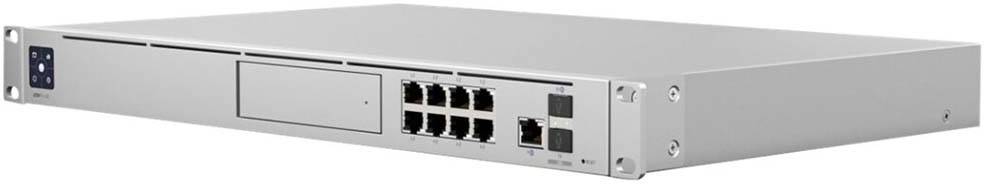

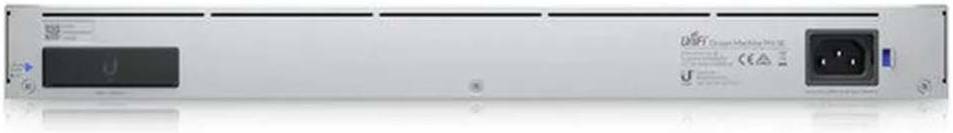

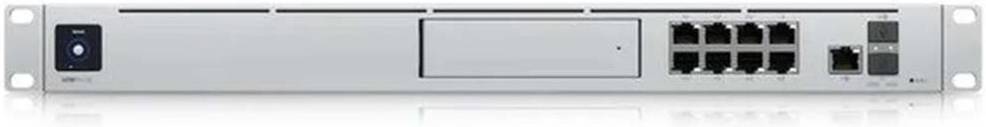

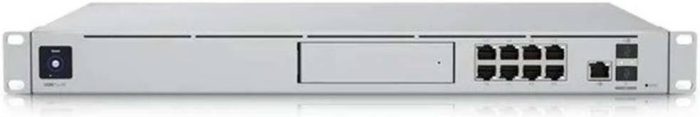

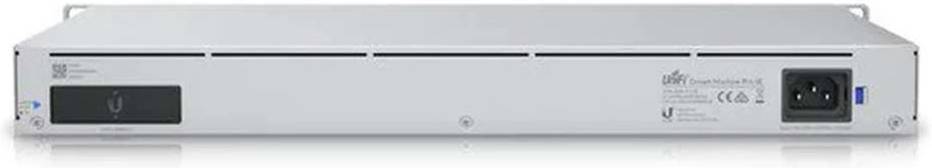

Dream Machine Special Edition
UDM-SE (180W)
All-in-one router and security gateway with an integrated PoE switch and network video recorder.
The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It’s also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
Key Features
1.7 GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(8) GbE RJ45 ports, including (6) 802.3af PoE and (2) 802.3at PoE+ LAN ports
(1) 10G SFP+ LAN port
(1) 1.3″ LCM color touchscreen for at-a-glance network monitoring
Customizable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Connect a SmartPower Redundant Power System to create an uninterruptible network
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5″ HDDs
128 GB integrated storage for full UniFi OS Application experience
Specifications
Mechanical
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)
Weight
5 kg (10.9 lb)
Enclosure material
Aluminium CNC, SGCC steel
Mount material
SGCC steel
Hardware
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory
4 GB DDR4
On-board storage
16 GB eMMC
Integrated 128 GB SSD
Management interface
Ethernet
Bluetooth
Networking interface
LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
PoE interface
(6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput
3.5 Gbps*
*Measured with iPerf3
Power method
(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
Power supply
AC/DC, internal, 240W
Supported voltage range
100—240V AC
Max. power consumption
50W (Excluding PoE output)
PoE budget
180W
Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection
Air: ± 15kV, contact: ± 8kV
LCM display
(1) 1.3″ touchscreen
Button
Factory reset
Operating temperature
-10 to 40° C (14 to 104° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet
White: link/activity
SFP+
White: link/activity
HDD
White: disk activity
Amber: disk error
RPS
Blue: ready
Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch.
