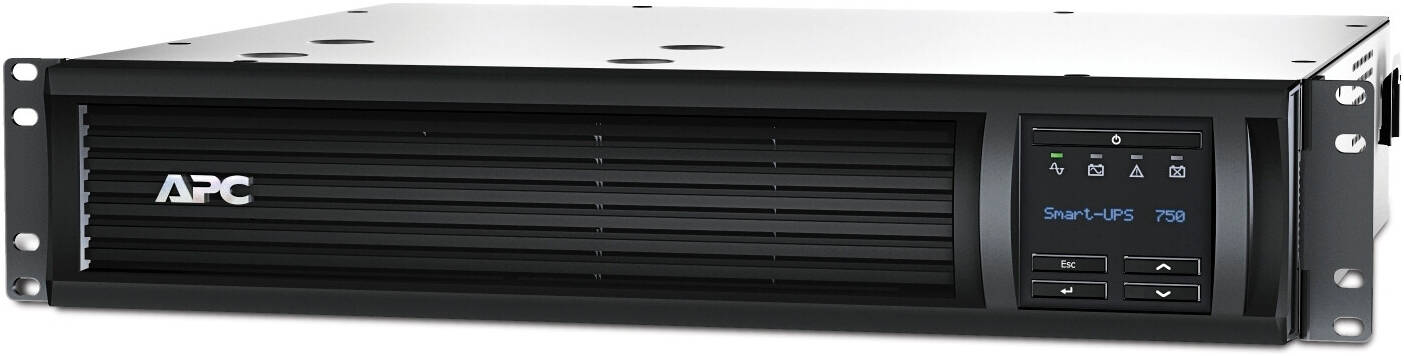

SMT750RMI2U
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.

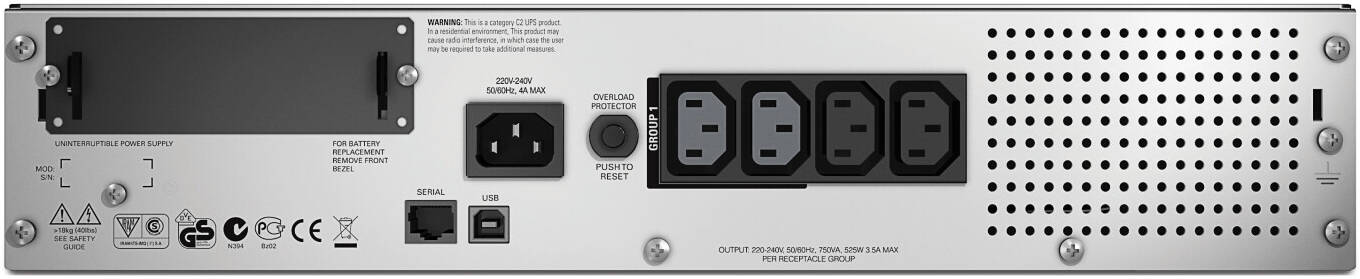

It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
Specifications
Run Time for Load
500 W (Min-max: 50-500 W, 5 min 27 sec at 100% capacity)
Capacity Used
100%
Main Input Voltage
230 V
Other Input Voltages
220 V, 240 V
Main Output Voltage
230 V
Other Output Voltages
220 V, 240 V
Rated Power
500 W / 750 VA
Type
Uninterruptible Power Supply (UPS)
Input Connection Type
IEC 320 C14
Output Connection Type
4 IEC 320 C13, 2 IEC Jumpers
Rack Units
2U
Number of Cables
1
Battery Type
Lead-acid
Provided Equipment
USB cable, Documentation CD, Installation guide, Rack mounting support rails, RS-232 cable
Range of Product
Smart-UPS
Communication Port Type
SmartSlot
Battery Recharge Time
3 hours
Battery Replacement
APCRBC123
Battery Life
4-6 years
Battery Charger Power
56 W
Colour
Black
Dimensions
Height: 8.9 cm, Width: 43.2 cm, Depth: 40.6 cm
Net Weight
17.27 kg
Mounting Options
Rack-mounted, Front-mounted, Lower preference
Input Voltage Limits
151-302 V adjustable / 160-286 V
Network Frequency
50/60 Hz ±3 Hz auto-sensing
Harmonic Distortion
Less than 5% at full load
Transfer Time
2 ms typical
UPS Type
Line Interactive
Wave Type
Sine wave
Output Frequency
47-53 Hz (50 Hz sync) / 57-63 Hz (60 Hz sync)
Product Certifications
CE, CSA, EAC, RCM, TÜV, VDE
Standards
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Acoustic Level
42 dBA
Heat Dissipation
46 Btu/h
Operating Altitude
0-10,000 ft
Temperature for Operation
0-40 °C
Storage Temperature
-15-45 °C
Humidity for Operation
0-95%
Control Panel
Multifunction LCD status and control console
Emergency Power Off
Optional
Surge Energy Rate
459 J
Noise Suppression
Full-time multi-pole filtering with 0.3% IEEE surge let-through
APC SMT750RMI2U Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartSlot, AVR, LCD | SMT750RMI2U
$580.00
Form Factor: 2U rackmount design, suitable for space-constrained installations.
Output Capacity: Delivers 750VA/500W of pure sine wave power, ideal for servers, storage devices, network equipment, business VoIP systems, and retail POS systems.
Automatic Voltage Regulation (AVR): Automatically corrects voltage fluctuations without using the battery, ensuring consistent power delivery.
Battery Backup: Provides approximately 5 minutes and 27 seconds of runtime at full load (500W), allowing for safe system shutdown during power outages.
Connectivity: Equipped with four IEC 320 C13 outlets and two IEC jumpers for versatile power connections. Features a SmartSlot for optional network management cards and includes USB and serial ports for communication.
User Interface: Multifunction LCD status and control console for real-time monitoring and configuration.
Battery Management: Hot-swappable, sealed lead-acid (VRLA) battery with a typical recharge time of 3 hours. Supports automatic battery testing and includes a battery replacement indicator.
Energy Efficiency: Achieves up to 97.7% efficiency, reducing energy consumption and operational costs.
Safety and Compliance: Certified to CE, CSA, EAC, RCM, TÜV, and VDE standards, ensuring adherence to international safety and performance criteria.
| Brand |
APC |
|---|---|
| Model |
SMT750RMI2U |
| Date first available |
21 November; 2024 |
| Shipping Weight |
21.23 Kg |
| Shipping Dimensions |
54.60 cm x 58.40 cm x 24.10 cm |
| Outlets |
IEC |
