SRT5KRMXLI

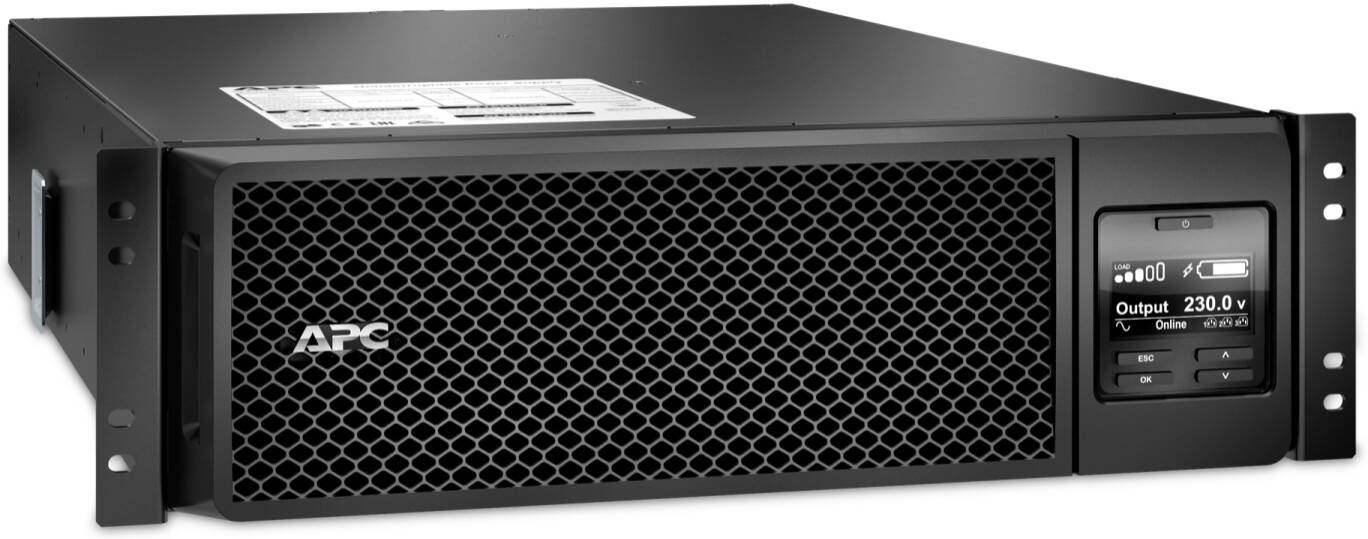

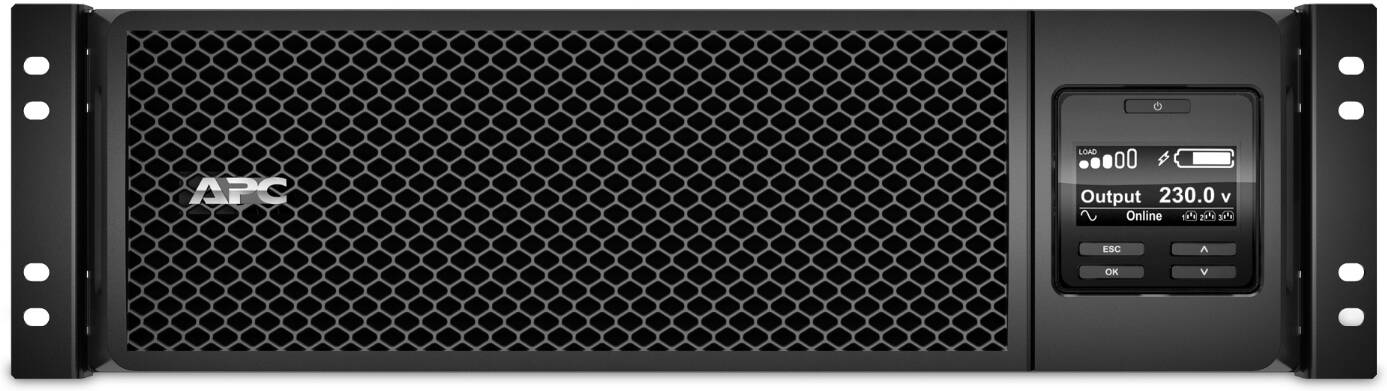

5000VA RM Smart UPS
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 3U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 719mm (depth) x 130mm (height) x 432mm (width) and weighs 54.43kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Specification
Overview
Presentation
High density, double-conversion on-line power protection with scalable runtime
Lead Time
Usually in Stock
Main
Run Time for Load
4500 W: 3 min 59 sec
Min-Max Load
450-4500 W
Max. Capacity Used
100%
Main Input Voltage
230 V
Other Input Voltage
220 V, 240 V
Main Output Voltage
230 V
Other Output Voltage
220 V, 240 V
Rated Power
4500 W
Rated Power in VA
5000 VA
Output Connection Type
6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Number of Rack Units
3U
Provided Equipment
Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, Warranty card, Web/SNMP management card
Range of Product
Smart-UPS On-Line
Batteries & Runtime
Battery Type
Lead-acid battery
Number of Battery Filled Slots
0
Battery Recharge Time
1.5 h
Number of Battery Replacement Quantity
1
Battery Voltage
192 V
Battery Charger Power
560 W rated
Battery Life
3-5 years

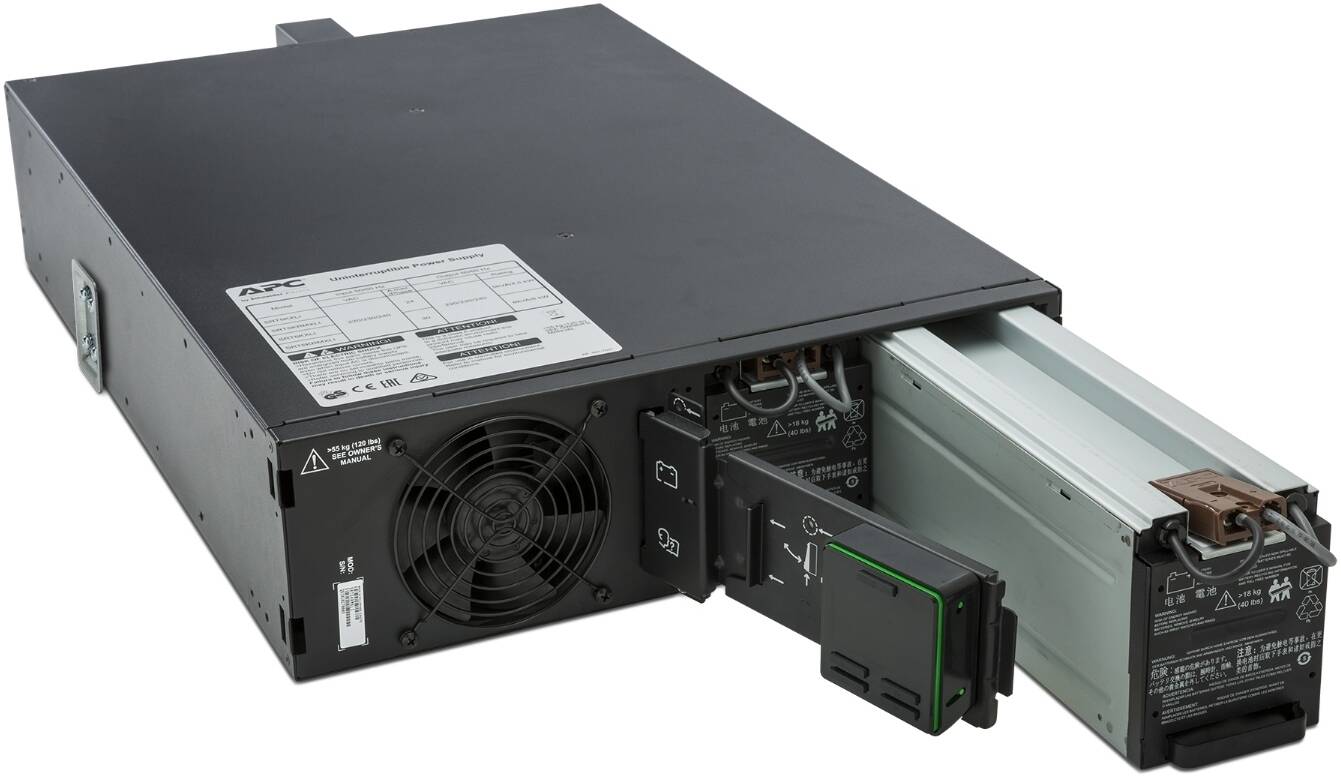

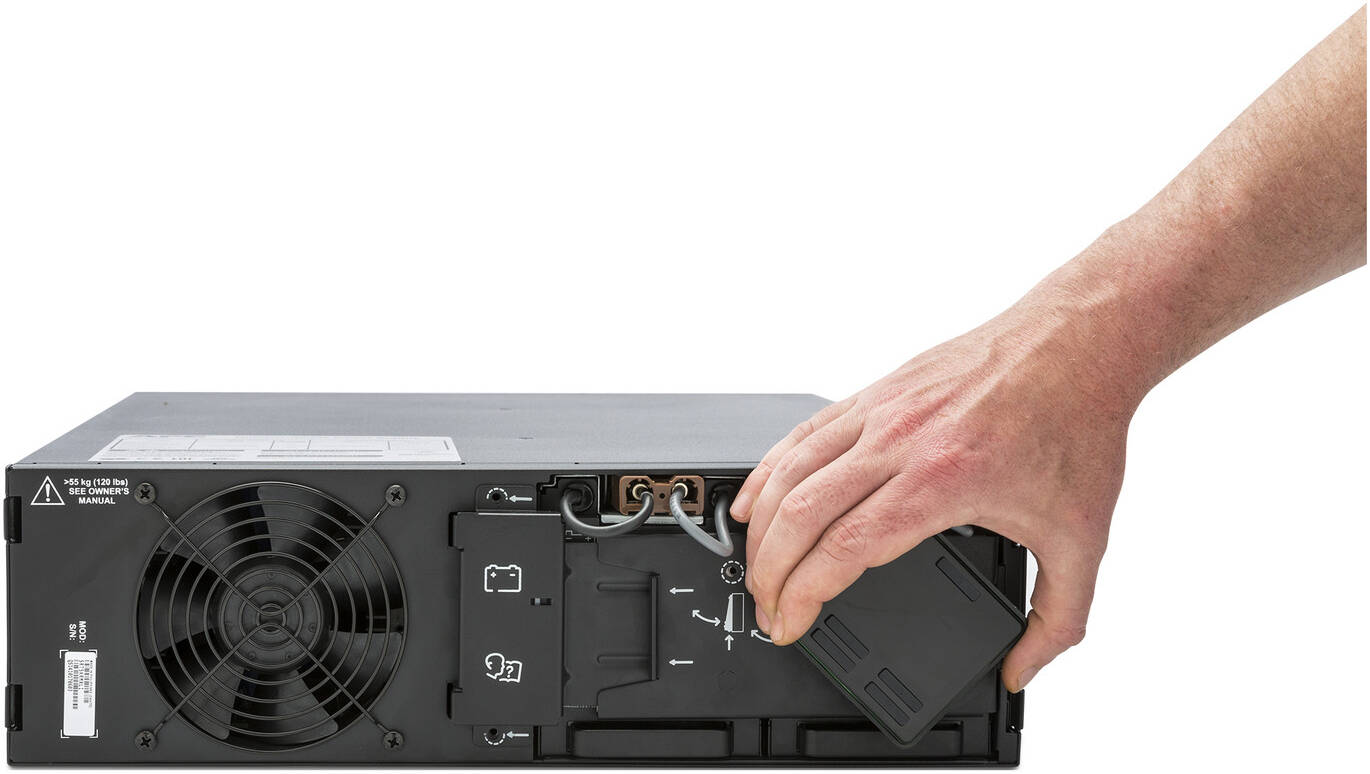

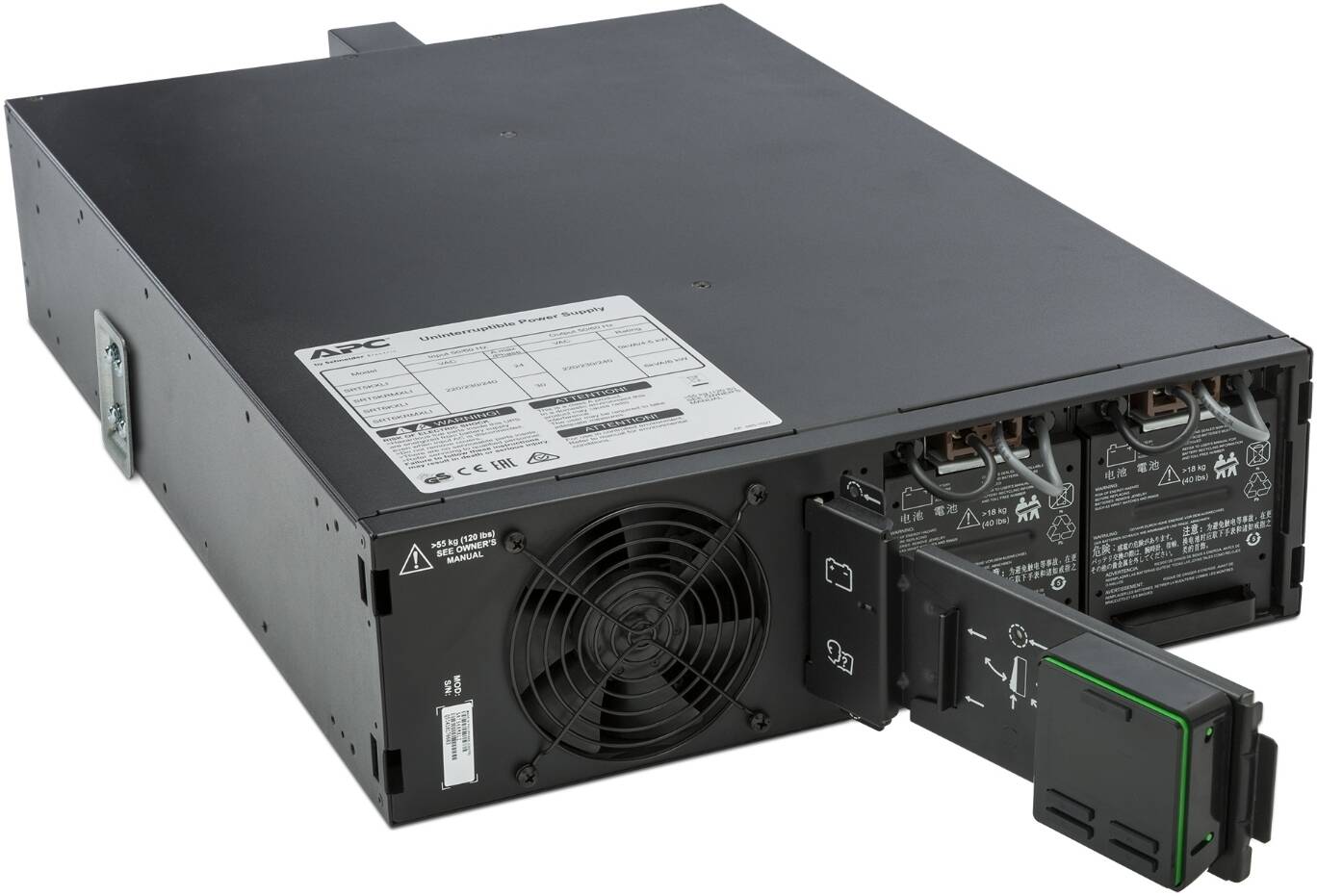

Replacement Battery
APCRBC140
Extended Runtime
1
General
UPS Type
Double conversion online
Product Web Sub-family
High density
Number of Power Module Free Slots
0
Number of Power Module Filled Slots
0
Redundant
No
Physical
Colour
Black
Height
13 cm
Width
43.2 cm
Depth
71.94 cm
Net Weight
54.43 kg
Mounting Location
Front
Mounting Preference
No preference
Mounting Mode
Rack-mounted
Two Post Mountable
0
USB Compatible
Yes
Mounting Position
Horizontal
Input
Network Frequency
40-70 Hz auto-sensing
Number of Input Connectors
1 hard wire 3-wire (1P + N + E)
Input Voltage Limits
100-275 V adjustable (half load)
Output
Maximum Configurable Power in VA
5000 VA
Maximum Configurable Power in W
4500 W
Output Frequency
50/60 Hz +/- 3 Hz sync to mains
Wave Type
Sine wave
Harmonic Distortion
Less than 2%
Crest Factor
3:1
Bypass Type
Internal bypass (automatic and manual)
Conformance
Product Certifications
CE, EAC, IRAM, RCM, VDE
Marking
CE Mark
Standards
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental
Ambient Air Temperature for Operation
0-40 °C
Relative Humidity
0-95% non-condensing
Operating Altitude
0-10000 ft
Ambient Air Temperature for Storage
-15-45 °C
Storage Relative Humidity
0-95% non-condensing
Storage Altitude
0-15240 m
Acoustic Level
55 dBA
Heat Dissipation
931 Btu/h
IP Degree of Protection
IP20
Communications & Management
Free Slots
1
Preinstalled Device
Network management card 3 with environmental monitoring
Alarm
Audible and visible alarms: prioritized by severity
Emergency Power Off
Yes
Surge Protection and Filtering
Surge Energy Rate
480 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
