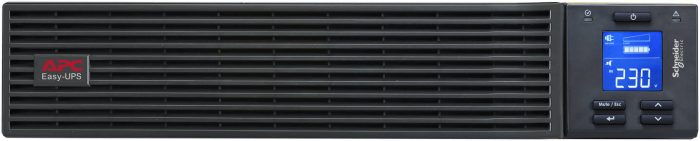

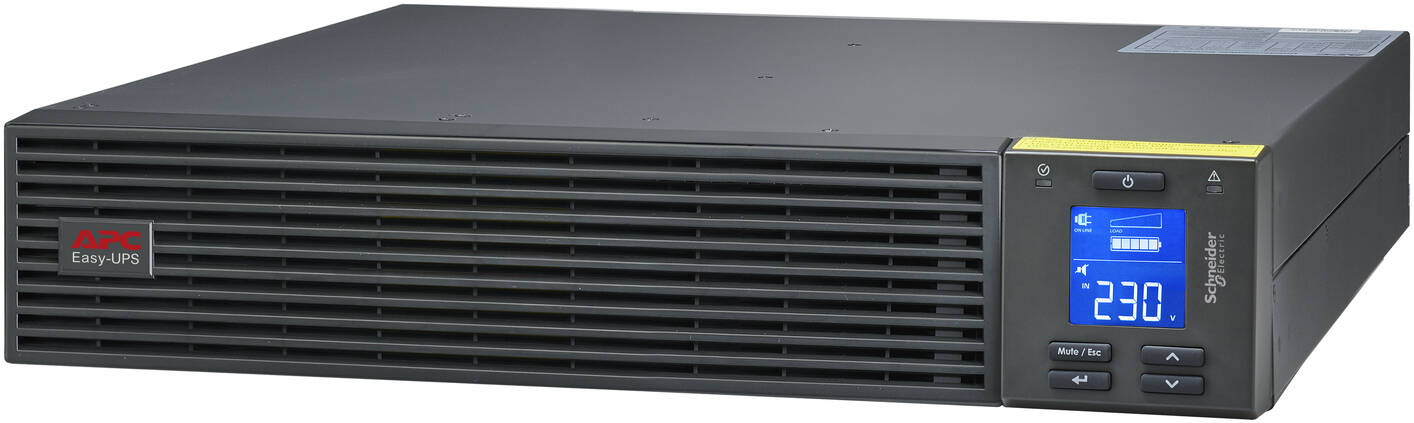

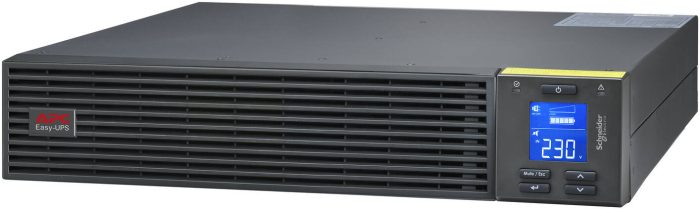

APC SRV 1000VA RM Easy On-Line UPS, 230V Main Input Voltage, 800 W Rated Power, 2U Rack Unit, 600 J Surge Energy Rate, 1.5m Cable Length | SRV1KRI

SRV1KRI
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Specifications
Main
Run time for load: 3 min 49 s
Max Capacity Used: 100%
Rated Power: 800 W (1000 VA)
Input Voltage: 230 V (Range: 220–240 V)

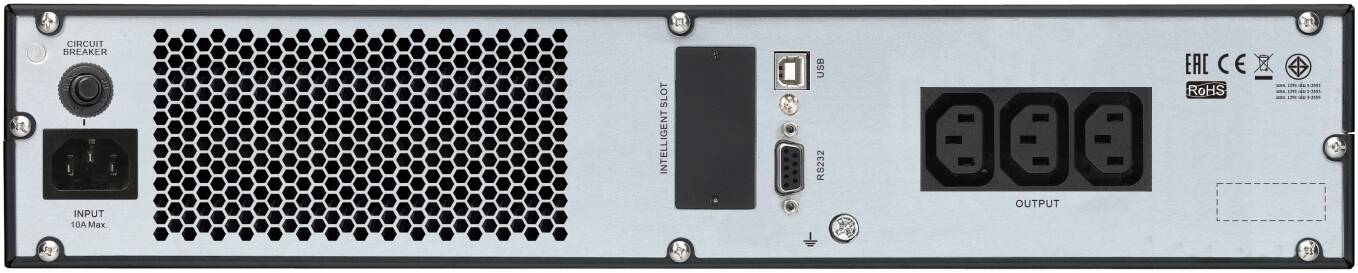

Input Connection Type
IEC 60320 C14
Output Connection Type
3 x IEC 60320 C13
Rack Units
2U
Cable Length
1.50 m
Provided Equipment
1 IEC C13 to Schuko power cable
1 IEC C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
Rack mounting kit
User manual
Product Range
Easy UPS On-Line
Battery Specifications
Type: Lead-acid battery
Voltage: 24 V
Battery recharge time: 4 h
Battery life: 3–5 years
Replacement battery: APCRBCV200
Charger Power: 30 W rated
Run Time
Max runtime: 4 min
General Physical Specs
Colour: Black (RAL 7010)
Height: 8.6 cm
Width: 43.7 cm
Depth: 31.2 cm
Weight: 11 kg
Mounting: Rack-mounted (horizontal, lower front)
Input Voltage Limits
110–285 V (half load)
160–280 V (full load)
Output
Maximum Configurable Power: 1000 VA/800 W
Frequency: 50/60 Hz ±3 Hz
Wave Type: Sine wave
Harmonic Distortion: 3%
Efficiency: 88%
UPS Type
Double conversion online
Bypass Type
Internal bypass (automatic and manual)
Crest Factor
3:1
Conformance
Certifications: CE, EAC, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental
Operating Temp: 0–40 °C
Storage Temp: -20–50 °C
Operating Humidity: 0–95%
Altitude: 0–3000 m (operation), 0–15000 m (storage)
Acoustic Level: 50 dBA
Heat Dissipation
372 Btu/h
IP Protection
IP20
Communications & Management
Alarm: Battery, low battery, overload
Control Panel: Multifunction LCD status and control console
Free Slots: 1
Surge Protection & Filtering
Surge Energy Rate: 600 J
