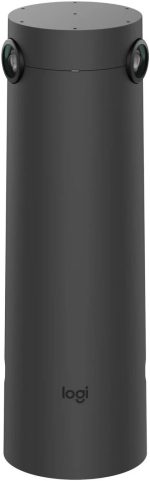

Logitech Sight Tabletop Camera, Intelligent Multi-Participant Framing, 7 Beamforming Microphones, Dual Lens camera, Logitech Collab OS Platform, Graphite | 960-001510

LOGITECH SIGHT
Tabletop companion camera with intelligent multi-participant framing. Get the best front-and-center view of the room, from anywhere.
Specifications
DIMENSIONS
– Table-mounted
Height: 11.77 in (299 mm)
Width: 6.65 in (169 mm)
Depth: 6.65 in (169 mm)
– Grommet-mounted
Height: 11.46 in (291.2 mm)
Width: 3.68 in (93.4 mm)
Depth: 3.68 in (93.4 mm)
Grommet hole
25 mm or larger
Weight
3.3 lbs (1.5 kg)
COMPATIBILITY
Power type
802.3at Type 2 “PoE+” or equivalent power supply (user supplied)
CAT Cable
Cat6 or greater
Maximum CAT Cable Length
Between Sight Dongle and Sight: 131.2 ft (40 m)
USB Mode
Windows 10, Windows® 11 or later, macOS (two most recent versions)
Appliance Mode
Room solution software license (not included), Rally Bar or Rally Bar Mini, Latest version of Logitech Collab OS

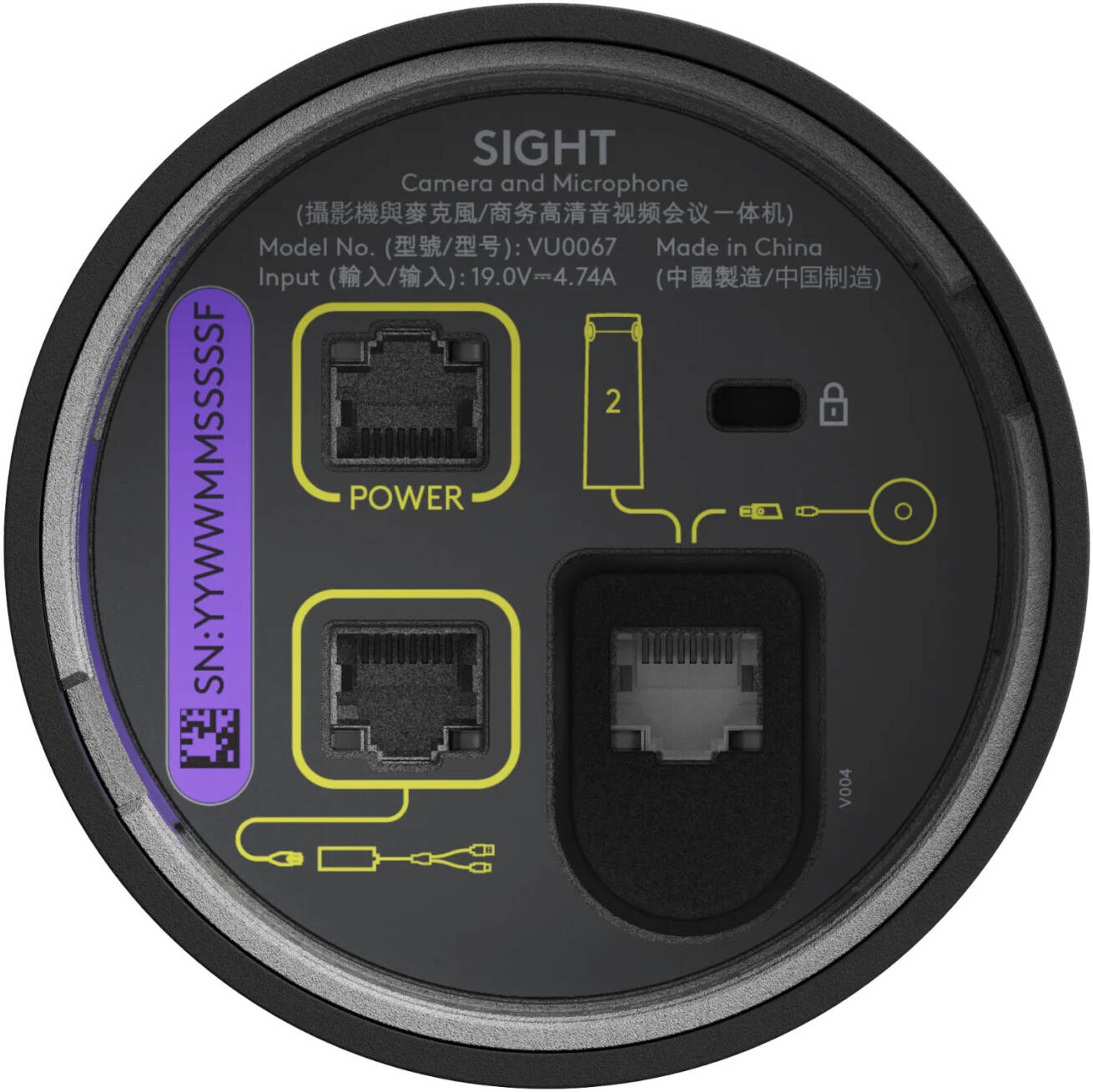

PORTS AND INTERFACES
RJ45 (audio/video data over USB)
1
RJ45 (Power Over Ethernet)
1
RJ45 (Daisychain – Rally Mic Pods)
1
TECHNICAL SPECIFICATIONS
General Specifications
Built-in Components
7 beamforming microphones, dual lens camera, Logitech Collab OS platform
Device Management
Logitech Sync

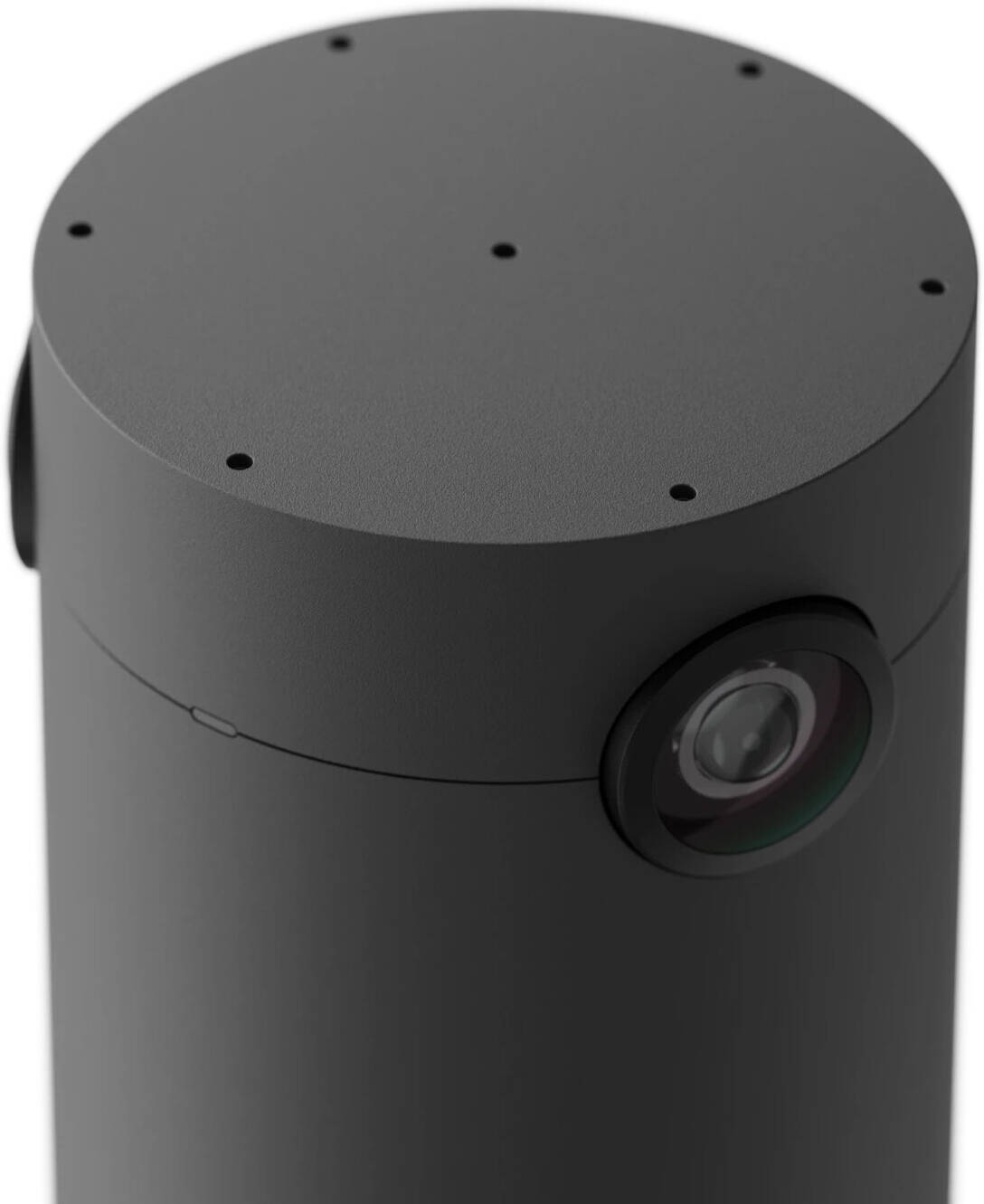

Camera
Sensor resolution
4K
Zoom
X1
Horizontal Field of View
315°
Vertical Field of View
97°
Diagonal Field of View
180°
Focal Length
0.07 in (1.87 mm)
Depth of Field
19.69in (50 cm)-16.41ft (5 m)
Frame Rate (max)
60 fps
Microphone Specifications
Beamforming Elements
7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
Pickup Range
7.55 ft (2.3 m) radius
Microphone Type
Digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
Frequency Response
90Hz – 16 kHz
Sensitivity
>-36 dBFS +/-1 dB @ 1 Pa
Audio processing
AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
Noise suppression
Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
Additional mic pods
Rally Bar
Supports up to 3 Mic Pods and 2 Mic Pod Hubs
Rally Bar Mini
Supports up to 2 Mic Pods and 2 Mic Pod Hubs
Rally/Rally Plus
Supports up to a total of 6 Mic Pods and/or Mic Pod Hubs
ENVIRONMENTALS
Operating Temperature
0 to 40°C @ 10% – 90% RH (Non-condensing)
Storage Temperature
-40 to 70°C @ 10% – 90% RH (Non-condensing)
