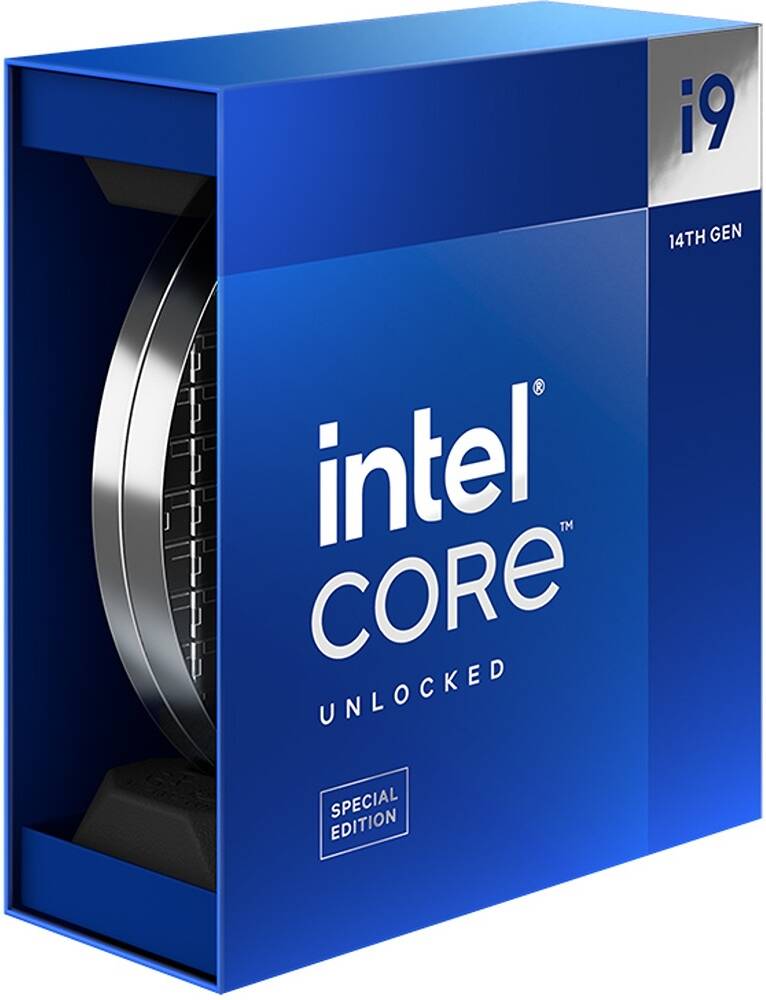

i9-14900KS – Special Edition
Power up your productivity, gaming, and content creation with the Intel Core i9-14900KS 3.2 GHz 24-Core LGA 1700 Processor. Built with the Intel 7 process, this high-performance 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i9-14900KS powers demanding applications and games with eight 3.2 GHz Performance cores while the 16 low-voltage Efficient cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
Key Features
24 Cores & 32 Threads
3.2 GHz P-Core Clock Speed
5.9 GHz Maximum Turbo Boost Frequency
LGA 1700 Socket
36MB Cache Memory
Dual-Channel DDR5-5600 ECC Memory
Integrated Intel UHD 770 Graphics
Hybrid Core Architecture
Unlocked for Overclocking
14th Generation
Specifications
General
CPU Model
Intel Core i9-14900KS (14th Gen)
CPU Socket
LGA 1700
Manufacturing Process
10 nm
Maximum CPU Configuration
1S
Maximum Number of PCIe Lanes
16 (Revision 5.0)
4 (Revision 4.0)
Unlocked
Yes
Performance
Number of Cores
24 (8 x P-Cores + 16 x E-Cores)
Number of Threads
32
Base Clock Speed
P-Core: 3.2 GHz
E-Core: 2.4 GHz
Maximum Boost Speed
P-Core Thermal Velocity Boost: 6.2 GHz
P-Core Turbo 3.0: 5.9 GHz
P-Core Turbo: 5.6 GHz
E-Core Turbo: 4.5 GHz
L3 Cache
36 MB
Memory Support
Maximum Capacity
192 GB
Memory Support
DDR5 Up to 5600 MHz
DDR4 Up to 3200 MHz
ECC Memory
Yes
Channel Architecture
Dual Channel
Maximum Memory Bandwidth
89.6 GB/s
Optane Memory Support
No
Power
Thermal Design Power (TDP)
150 W
Included Thermal Solution
No
Maximum Temperature
212°F / 100°C
Thermal Monitoring Technologies
Yes
Technology
AES Support
Yes
Extension
AVX 2.0, SSE 4.1/4.2
Instruction Set
64-Bit
Virtualization
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI
DMI4 (16 GT/s)
vPro Support
Yes
Performance Technologies
Adaptive Boost, Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0
Security Technologies
Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key
Video Technologies
Clear Video, Clear Video HD, Quick Sync Video
Integrated Graphics
Integrated Graphics
Intel UHD Graphics 770
Maximum Resolution Support
7680 x 4320 at 60 Hz
Supported APIs
DirectX: 12
OpenGL: 4.5
OpenCL: 3
Number of Displays
4
Output Support
eDP, DisplayPort, HDMI
Base Clock Speed
300 MHz
Maximum Boost Speed
1.65 GHz
