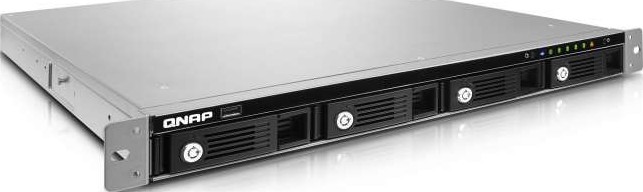

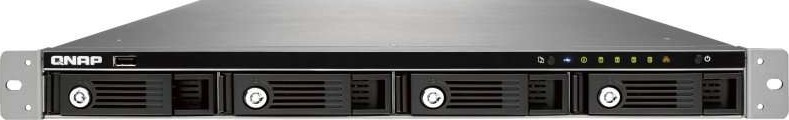

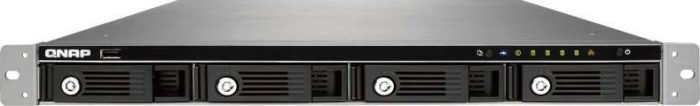

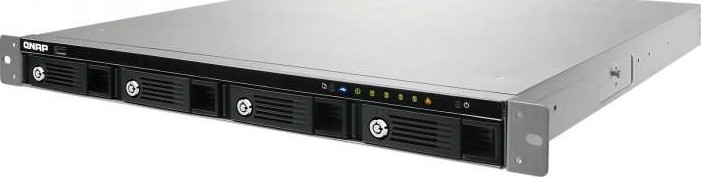

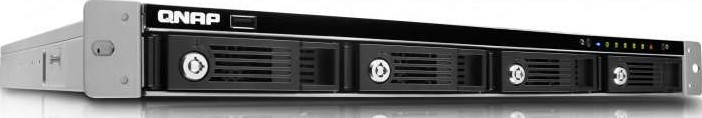

Qnap TS-469U-RP High-performance 4-bay NAS server for SMBs | TS-469U-RP

The TS-469U-RP is a cost-effective networked storage center incorporating high reliability and scalability. Featuring cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many other practical business applications, the TS-469U-RP is the ideal choice for SMBs to store and secure the growing business data as a reliable private cloud.
Manage and share files in one centralized storage.
Back up business data with encrypted remote replication, Real-time Remote Replication (RTRR), and cloud-based storage backup.
Utilize NAS, iSCSI/ IP-SAN storage combo solution for server virtualization
Facilitate iSCSI and virtualization deployment.
Increase efficiency with the support of Windows AD/LDAP, Windows ACL, and more.
Synchronize files between computers, tablets, and mobile devices.
Comprehensive virtualization support
The TS-469U-RP is VMware® Ready™, Citrix® Ready™, compatible with Microsoft® Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S, enabling flexible deployment and management for virtualization needs. The TS-469U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading ESXi server loading, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider to provide enhanced operational efficiency in managing virtualization applications.
Dropbox-like file sync across devices
Is Dropbox not enough to satisfy your storage needs? With Qsync, your TS-469U-RP is turned into a safe data center for file synchronization. Every file uploaded to the TS-469U-RP will be made available for all linked devices including computers, laptops and mobile devices. Qsync is especially useful for frequent travelers as it ensures the most up-to-date files are accessible on all linked devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of team projects and collaboration.
A private cloud without constraints
In contrast to the limited storage space and security concerns of public cloud services, the TS-469U-RP is advantageous for establishing a secure and large-capacity private cloud. myQNAPcloud service allows remote access to the TS-469U-RP from anywhere. You can easily get access to the TS-469U-RP, instantly share multimedia contents and check the system status via the Internet whether you are on the bus or in a coffee shop.
Windows AD / LDAP support
The support of Windows AD and LDAP Directory Service saves a great amount of time for account management and authentication. Users can use their Windows AD or LDAP server account and password to log into the Turbo NAS. The TS-469U-RP can also serve as an LDAP server.
Well-rounded backup solutions to secure data
QNAP Netbak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with an effortless solution to back up data to the TS-469U-RP. A wide range of third-party backup software such as Acronis True Image and Symantec Backup Exec are also supported.
Disaster recovery solutions bring peace of mind
The TS-469U-RP offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to remote Turbo NAS or FTP servers and synchronizes files to remote folders from local folders with better backup efficiency and reduced backup time. The TS-469U-RP also supports rsync protocol to back up data to remote servers on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, ElephantDrive®, Dropbox® and Google Cloud Storage.
High security
In an open network environment, business data may be exposed in a potential hack. The TS-469U-RP provides numerous security options, such as encrypted access, IP blocking, and other protective features. IT administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-469U-RP is validated with military-grade FIPS 140-2 AES 256-bit encryption, preventing unauthorized users to access data even if the hard drives or entire system were stolen.
Increase data capacity with flexible storage expansion options
The TS-469U-RP supports large storage capacities; fulfilling business needs to store large amounts of data. It also supports comprehensive RAID management, online RAID capacity expansion, and flexible RAID migration to safely store important data therefore reducing the risks of data loss. With reliable data protection, the TS-469U-RP is perfect for cross-platform data sharing.
A surveillance solution with 24/7 security
The Surveillance Station turns the TS-469U-RP into a professional surveillance solution with the user-friendly management interface, a wide range of compatible IP camera models, and expandable IP camera channel licenses. It also supports real-time monitoring, recording & playback with a wide range of customizable settings, and with the Vmobile app on your iOS® or Android™ devices you can manage the monitoring of cameras anytime, anywhere, for total surveillance of your monitored environment.
Access, sync and share on your mobile devices
The TS-469U-RP is your private cloud storage that virtually enlarges the capacity of your smart mobile devices. Qfile allows you to access, upload, download, manage, and share stored files easily as if you are carrying tons of files in your pocket. The Qfile app for iOS also allows users to browse videos and photos stored on the TS-469U-RP and play on the TV via AirPlay. Qmanager lets you monitor and manage the TS-469U-RP remotely and efficiently without turning on a PC.
Easy system setup
The TS-469U-RP provides system installation without using a CD. Simply visit the setup portal start.qnap.com and follow the setup guide to complete the system setup and download the utilities you want. For beginners, the TS-469U-RP features an “Auto Setup” option to provide an easy way to set up the TS-469U-RP with recommended settings. All settings can be flexibly changed at a later time after the installation.
Flexible & diverse, yet simple
Supporting SATA 6Gb/s and 3Gb/s hard drives and various 3.5”/2.5” hard drives and SSDs, the TS-469U-RP provides users with high flexibility in selecting hard drives. The various inbuilt I/O ports help accommodate different peripherals, including external storage devices and printers. Meanwhile, the TS-469U-RP allows file sharing and storage on different operating systems, such as Windows, Mac, Linux and UNIX. The simplified system setup process and the friendly-designed graphical user interface enable anyone to easily build up a business private cloud even without IT expertise. The TS-469U-RP has flexible and diverse features, but is simple to use.
Install apps on demand to extend NAS functionality
The QNAP App Center provides a wide range of apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. The App Center is a centralized location for installing, managing, and updating apps on demand. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless opportunities for the TS-469U-RP.
Ultra high performance
The TS-469U-RP is a 4-bay IP SAN/NAS unified storage, for small and medium businesses. Featuring a powerful Intel® Atom™ 2.13GHz Dual Core Processor and 1GB DDR3 RAM (expandable to 3GB), the TS-469U-RP provides high efficiency for CPU-consuming tasks and serves more concurrent tasks at the same time.
Exceptional Performance: Up to 222 MB/sec Read, 210 MB/sec Write
CPU
Intel® Atom™ 2.13GHz Dual-core Processor
DRAM
1GB RAM (Expandable RAM, up to 3GB)
NOTE:
1. The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module.
2 .For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory
512MB DOM
Hard Disk Drive
4 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit www.qnap.com/compatibility.

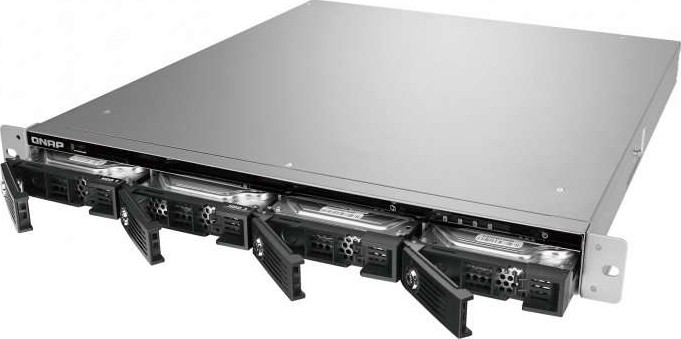

Hard Disk Tray
4 x Hot-swappable and lockable tray

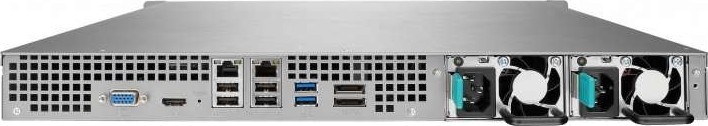

LAN Port
2 x Gigabit RJ-45 Ethernet port
LED Indicators
Status, LAN, USB, HDD 1, HDD 2, HDD3, HDD4
USB
2 x USB 3.0 port (Back: 2)
5 x USB 2.0 port (Front: 1; Back: 4)
Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA
2 x eSATA port (Back)
Buttons
System: Power button, USB One-Touch-Backup Button, Reset button
Alarm Buzzer
System warning
Form Factor
1U, Rackmount
Dimensions
44 (H) x 439 (W) x 499 (D) mm
1.73 (H) x 17.28 (W) x 19.65 (D) inch
Weight
Net weight: 7.63 kg (16.82 lbs)
Gross weight: 9.55 kg (21.05 lbs)
Power Consumption (W)
Sleep mode: 37W
In Operation:52W
Power-off (in WOL mode): 1W
(with 4 x 1TB HDD installed)
Temperature
0-40˚C
Humidity
5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply
Input: 100-240V AC, 50/60Hz, Output: Redundant 250W
Secure Design
K-lock security slot for theft prevention
VGA
Reserved VGA interface for maintenance
Fan
2 x quiet cooling fan (4 cm, 12V DC)
