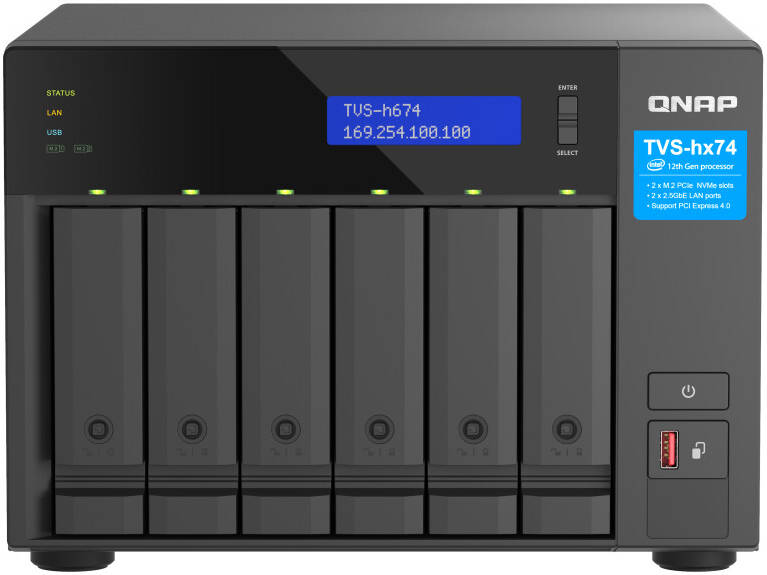

QNAP TVS-h674 NAS Enclosure, Intel Core i3-12100, 16GB RAM, 6x 3.5″ SATA 6Gb/s, 3Gb/s Drive Bay, 2x M.2 2280 PCIe Gen 4 x4 Slots, Intel UHD Graphics 730, Black | TVS-H674-I3-16G

TVS-h674
Highly-reliable ZFS-based storage with PCIe Gen 4 expandability for 10/25GbE connectivity, M.2 NVMe SSD caching and multi-threads processors for virtualization applications
With an Intel® Core™ i5 six-core Processor or Intel® Core™ i3 quad-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h674 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h674 delivers an ideal NAS solution. The high-performance TVS-h674 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE connectivity for high-speed virtualization network environments.
Specifications
Model
TVS-h674-i3-16G
CPU
Intel® Core™ i3-12100 4-core/8-thread Processor, burst up to 4.3 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics 730
Encryption Engine
AES-NI
System Memory
16 GB SODIMM DDR4 (1 x 16 GB)
Maximum Memory
64 GB (2 x 32 GB)
Memory Slots
2 x SODIMM DDR4
Flash Memory
5GB (Dual boot OS protection)
Drive Bays
6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5-inch SATA HDDs, 2.5-inch SATA SSDs
Hot-swappable Drives
Yes
M.2 Slot
2 x M.2 2280 PCIe Gen 4 x4 slots (compatible with NVMe SSD PCIe Gen 3 and above)
Ethernet Ports
2 x 2.5 Gigabit Ethernet Ports (2.5G/1G/100M/10M), optional 5G/10G via PCIe expansion
Wake on LAN (WOL)
Yes
PCIe Slots
2 (Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4)
USB Ports
1 x Type-C USB 3.2 Gen 2 (10Gbps), 2 x Type-A USB 3.2 Gen 2 (10Gbps)
HDMI™ Output
1 x HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor
Tower
LED Indicators
HDD 1-6, Status, LAN, USB port, M.2 port
Buttons
Power, Reset, USB Copy
Dimensions (HxWxD)
180.2 × 264.3 × 279.6 mm (excluding foot pad)
Weight (Net/Gross)
6.32 kg / 7.89 kg
Operating Temperature
0 – 40 °C (32°F – 104°F)
Storage Temperature
-20 – 70°C (-4°F – 158°F)
Relative Humidity
5-95% RH non-condensing
Power Supply Unit
250W, 100-240V
Power Consumption (HDD Sleep Mode)
39.911 W
Power Consumption (Operating Mode)
79.363 W (tested with WD10EFRX HDDs)
Fans
System fan: 2 x 92mm, 12VDC; CPU fan: 1 x 60mm, 12VDC
System Warning
Buzzer
Kensington Security Slot
Yes
Max CIFS Connections
2500 (with max memory)
