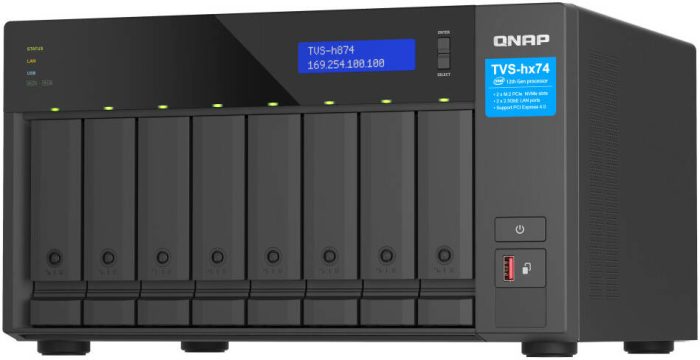

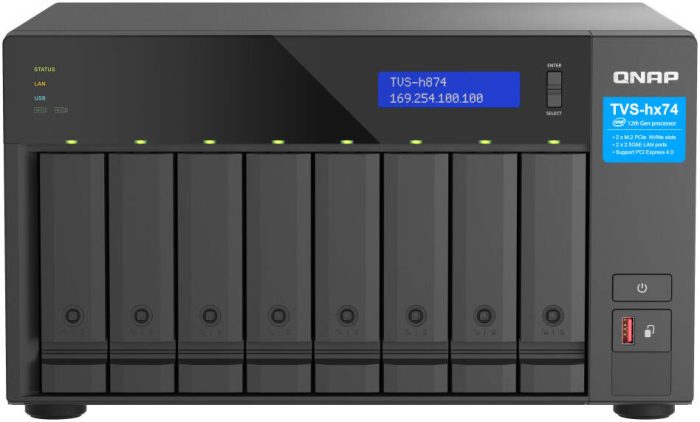

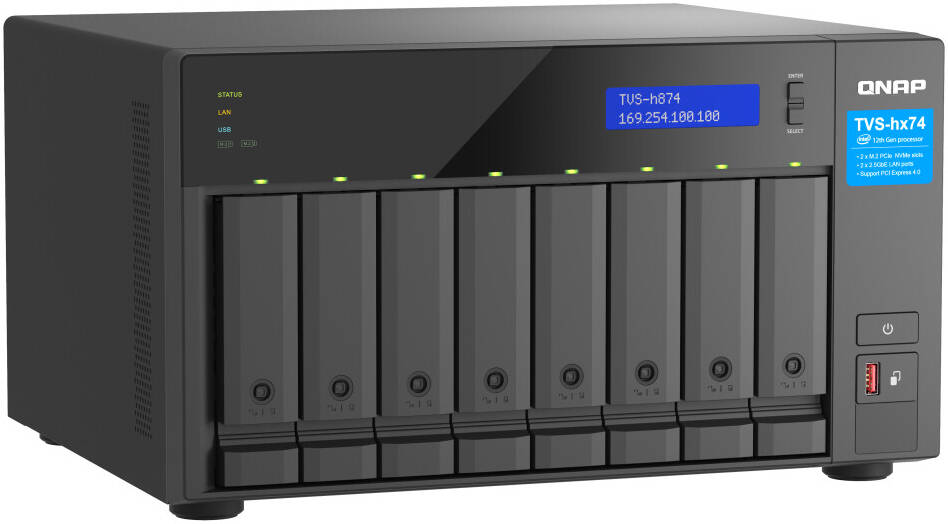

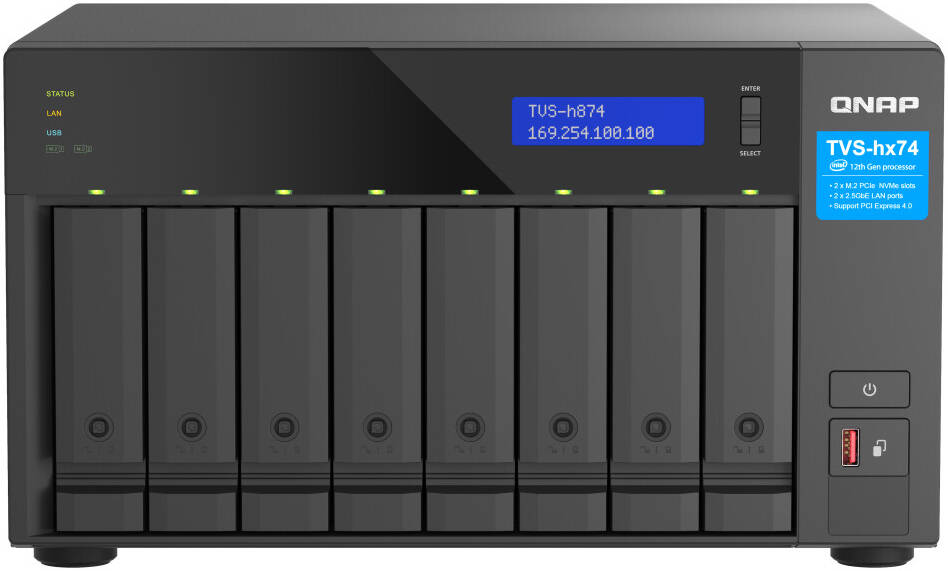

TVS-h874
With an Intel® Core™ multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h874 delivers an ideal NAS solution. The high-performance TVS-h874 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE/10GbE connectivity for high-speed virtualization network environments.
Specifications
Model
TVS-h874-i5-32G
CPU
Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics 730
Floating Point Unit
–
Encryption Engine
AES-NI
Hardware-accelerated Transcoding
Yes
System Memory
32 GB SODIMM DDR4 (2 x 16 GB)
Maximum Memory
64 GB (2 x 32 GB)
Memory Slot
2 x SODIMM DDR4
Flash Memory
5GB (Dual boot OS protection)
Drive Bay
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5-inch SATA HDD, 2.5-inch SATA SSD
Hot-swappable
Yes
M.2 Slot
2 x M.2 2280 PCIe Gen 4 x4 slots (Compatible with NVMe SSD PCIe Gen 3 and above)
SSD Cache Acceleration Support
Yes
GPU pass-through
Yes
2.5 Gigabit Ethernet Port
2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port
Optional via PCIe expansion card
10 Gigabit Ethernet Port
Optional via PCIe expansion card
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
PCIe Slot
2 (Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4)

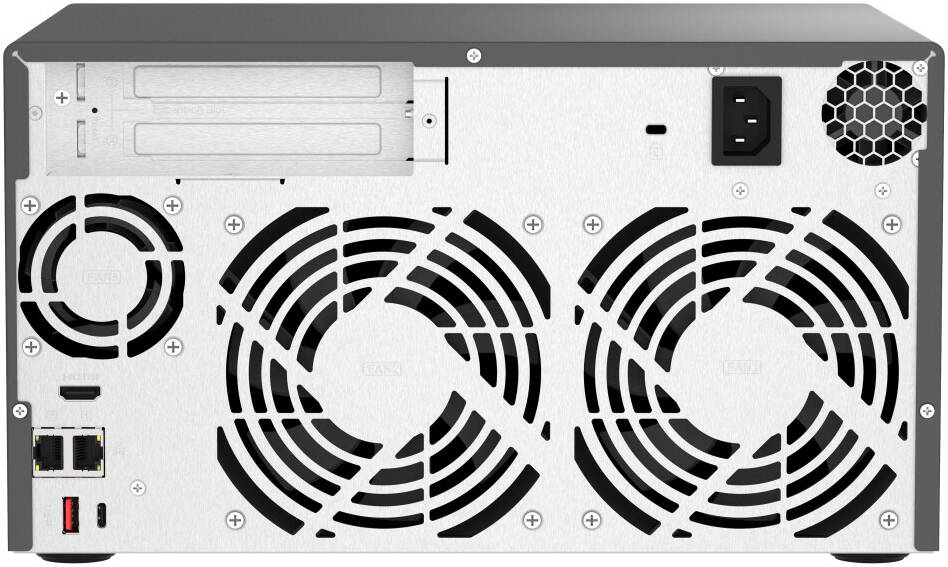

USB Ports
1 x Type-C USB 3.2 Gen 2 (10Gbps), 2 x Type-A USB 3.2 Gen 2 (10Gbps)
HDMIâ„¢ Output
1, HDMIâ„¢ 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor
Tower
LED Indicators
HDD 1-8, Status, LAN, USB port, M.2 port
LCD Display/Button
–
Buttons
Power, Reset, USB Copy
Dimensions (HxWxD)
188.2 × 329.3 × 280.8 mm (excluding foot pad)
Weight (Net)
7.3 kg
Weight (Gross)
8.95 kg
Operating Temperature
0 – 40 °C (32°F – 104°F)
Storage Temperature
-20 – 70°C (-4°F – 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF)
Power Supply Unit
250W, 100-240V
Power Consumption (HDD Sleep Mode)
58.127 W
Power Consumption (Operating Mode)
81.865 W (tested fully populated with WD10EFRX HDDs)
Fan
System fan: 2 x 120mm, 12VDC; CPU fan: 1 x 60mm, 12VDC
System Warning
Buzzer
Kensington Security Slot
Yes
Max. Concurrent Connections (CIFS)
3500
QNAP TVS-h874 NAS Enclosure, Intel Core i5-12400, 32GB RAM, 8x 3.5″ SATA 6Gb/s, 3Gb/s Drive Bay, 2x M.2 2280 PCIe Gen 4×4 Slots, Intel UHD Graphics 730, Black | TVS-h874-i5-32G
$2,490.00
M.2 PCIe Gen 4: Enable NVMe SSD caching or Edge TPU empowered AI image recognition.
2.5GbE/10GbE connectivity: 2.5GbE ports (TVS-h874-i9-64G is preinstalled with a dual-port 10GBASE-T network card) excel in bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, multimedia streaming, and virtualization).
Flexible PCIe Gen4 expansion: PCIe slots allow for installing 2.5/5/10/25GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
Virtual machines and containers: Host multiple virtual machines and containers with optimized resource utilization.
Full HD HDMIâ„¢: Directly view creative works on an HDMIâ„¢ display. Enjoy smooth full HD media playback and real-time transcoding.
Faster image recognition with AI acceleration: The built-in Intel® OpenVINO™ and Intel® UHD Graphics help boost AI image recognition and offload CPU workloads.
| Brand |
Qnap |
|---|---|
| Model |
TVS-h874 |
| Date first available |
11 January; 2025 |
| Shipping Weight |
8.95 Kg |
| Shipping Dimensions |
32.93 cm x 28.08 cm x 18.82 cm |
