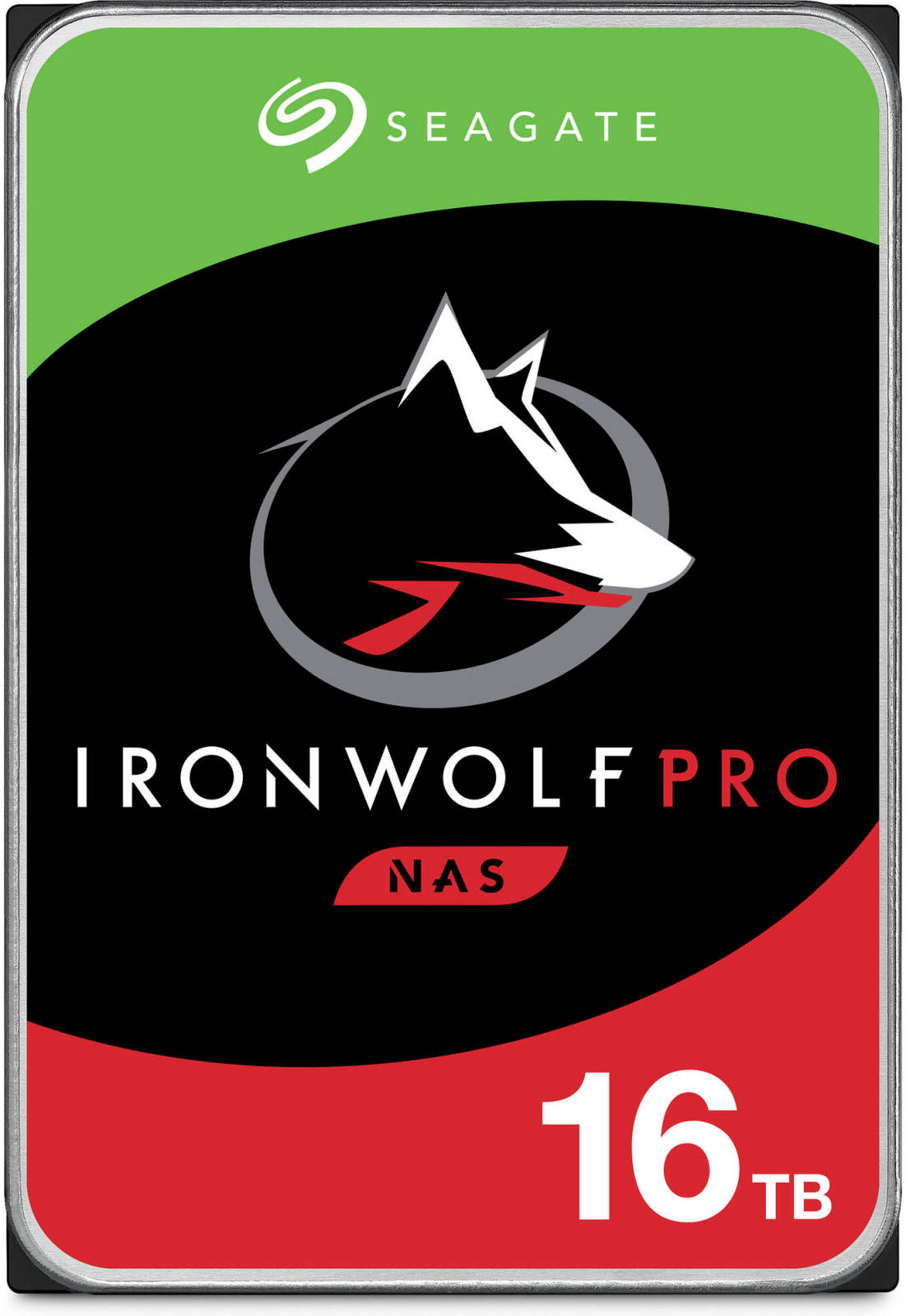

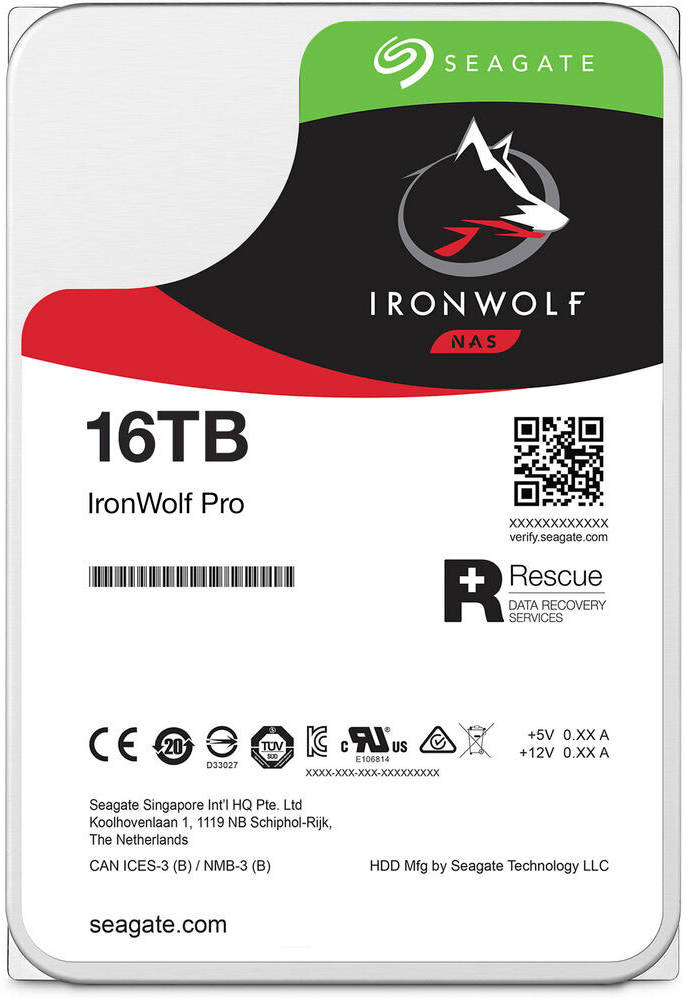

Seagate 16TB IronWolf Pro SATA III 3.5″ Internal NAS HDD, Up to 270 MB/s Data Transfer Rate, 7200 rpm, 256MB Cache, 2.5Mn Hours MTBF, 550TB / Year Workload Rate, Rescue Data Recovery | ST16000NT001

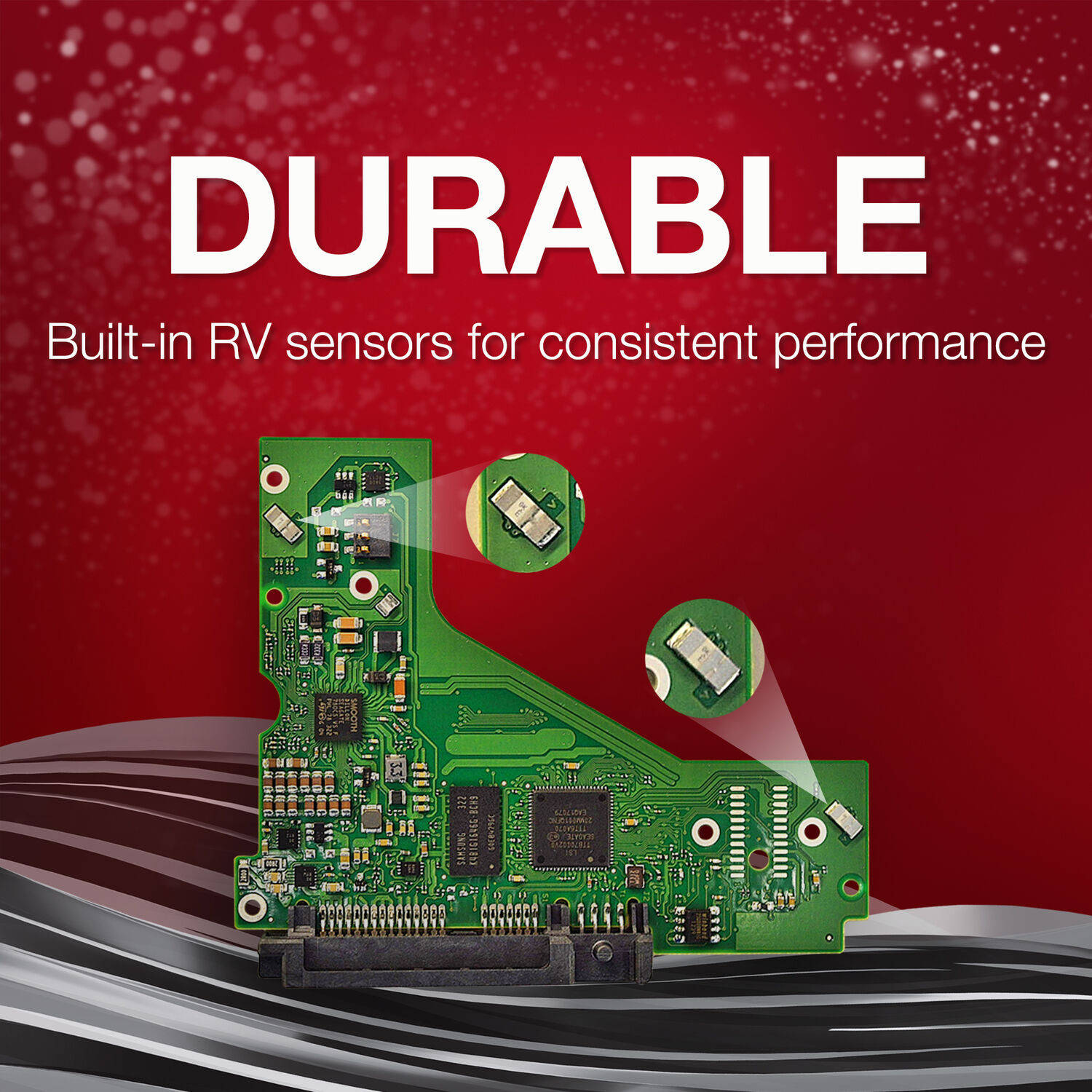

Designed to deliver performance, reliability, and dependability in multi-bay, multi-user RAID and NAS environments within commercial and enterprise settings, the 16TB IronWolf Pro 7200 rpm SATA III 3.5″ Internal NAS HDD from Seagate is built to withstand 24/7 operation, or 8760 hours per year. This 16TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5″ form factor, and a 256MB cache, providing users with ample storage capacity with data transfer speeds of up to 270 MB/s. The IronWolf Pro also has an MTBF rating of 2.5 million hours and a workload rate of up to 550TB per year. Seagate’s AgileArray technology provides dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors to deliver enhanced RAID performance. Included is a limited 3-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical error, accident, or natural disaster, and overall protection is provided by a limited 5-year macufacture warranty.
16TB Storage Capacity
3.5″ Form Factor
SATA III 6 Gb/s Interface
256MB Cache
7200 rpm
Up to 270 MB/s Data Transfer Rate
2.5 Million Hours MTBF
Workload Rate: 550TB per Year
AgileArray Technology
Seagate Rescue Data Recovery
Specifications
General
Device Type
Hard drive – internal
Capacity
16 TB
Form Factor
3.5″
Interface
SATA 6Gb/s
Buffer Size
256 MB
Features
RV Sensor, Time-Limited Error Recovery (TLER), advanced format 512e, 24×7 availability, Dual-Plane Balance, AgileArray, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, Workload Rate Limit(WRL) up to 550
Width
101.85 mm
Depth
146.99 mm
Height
26.11 mm
Weight
670 g
Bundled with
3 years Seagate Rescue Data Recovery
Performance
Drive Transfer Rate
600 MBps (external)
Spindle Speed
7200 rpm
Reliability
MTBF
2,500,000 hours
24×7 Operation
Yes
Non-Recoverable Errors
1 per 10^15
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
3.5″
Power
Power Consumption
5 Watt (idle) ¦ 7.6 Watt (active) ¦ 1 Watt (standby) ¦ 1 Watt (sleep)
Software & System Requirements
Software Included
IronWolf Health Management
Manufacturer Warranty
Service & Support
Limited warranty – 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
65 °C
Shock Tolerance (operating)
50 g @ 2 ms
Shock Tolerance (non-operating)
200 g @ 2 ms
Vibration Tolerance (non-operating)
2.27 g @ 10-500 Hz
Sound Emission
20 dBA
