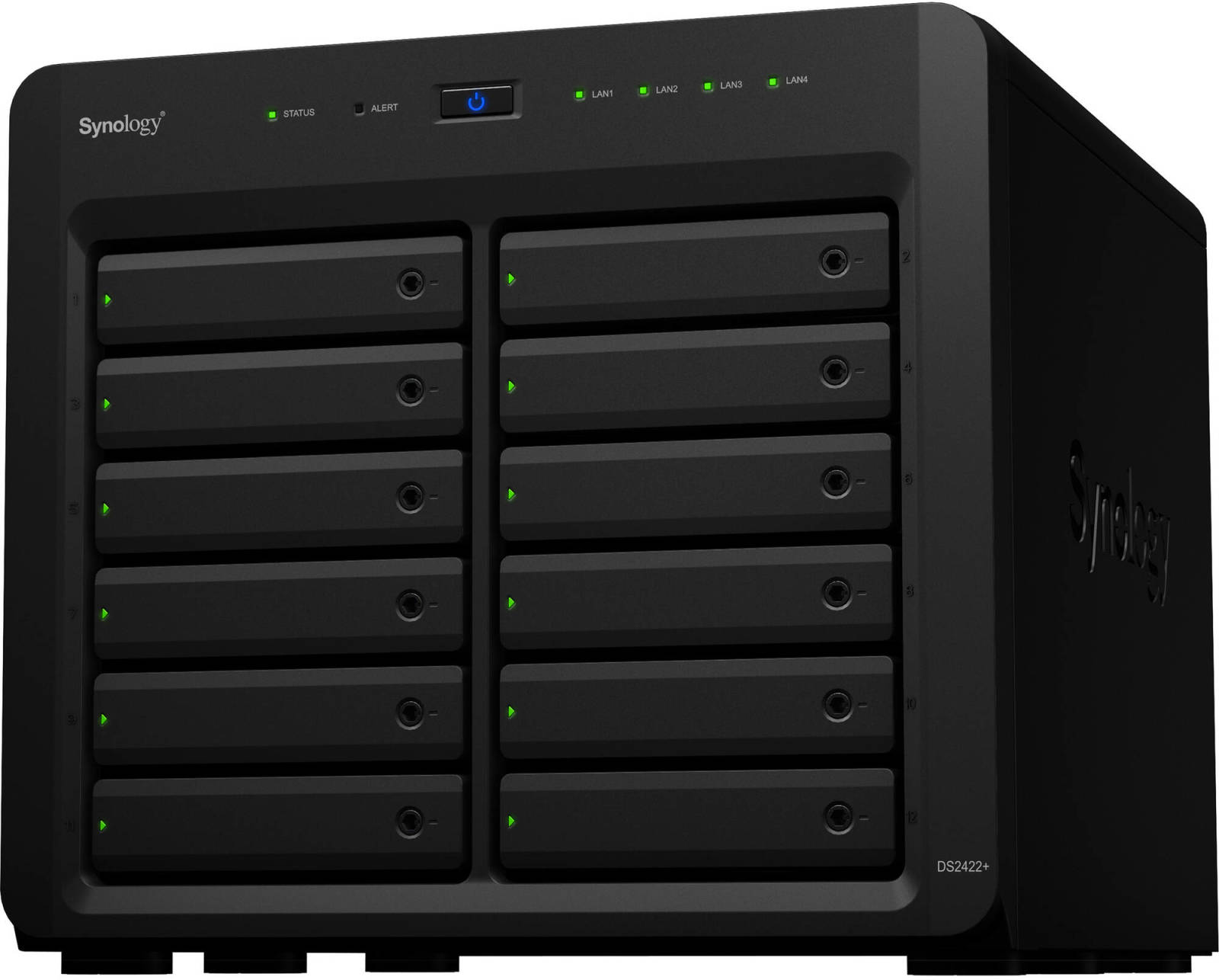

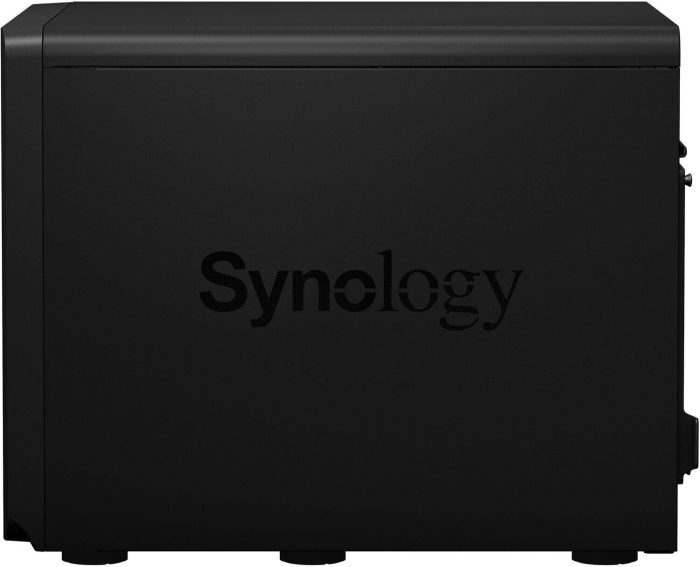

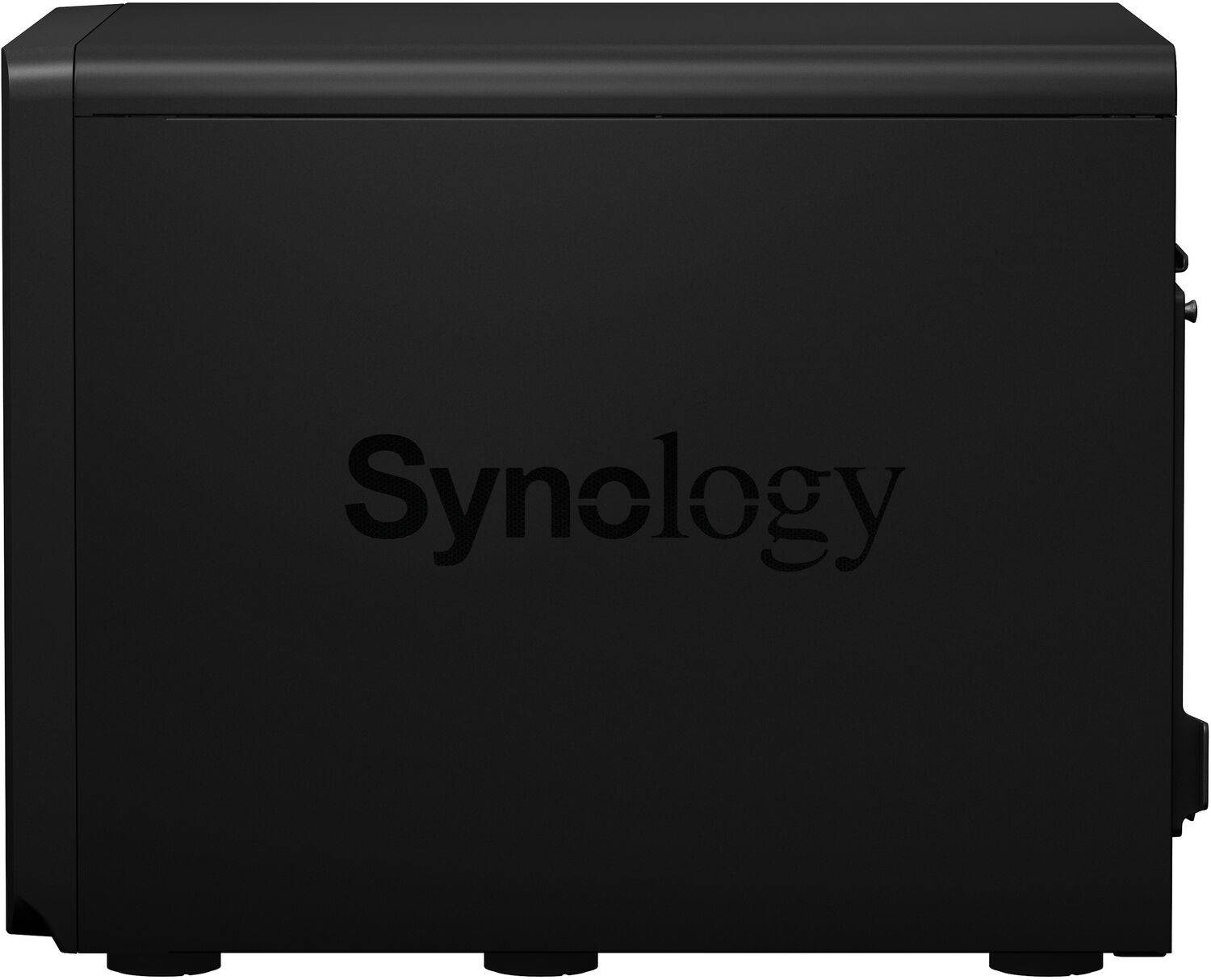

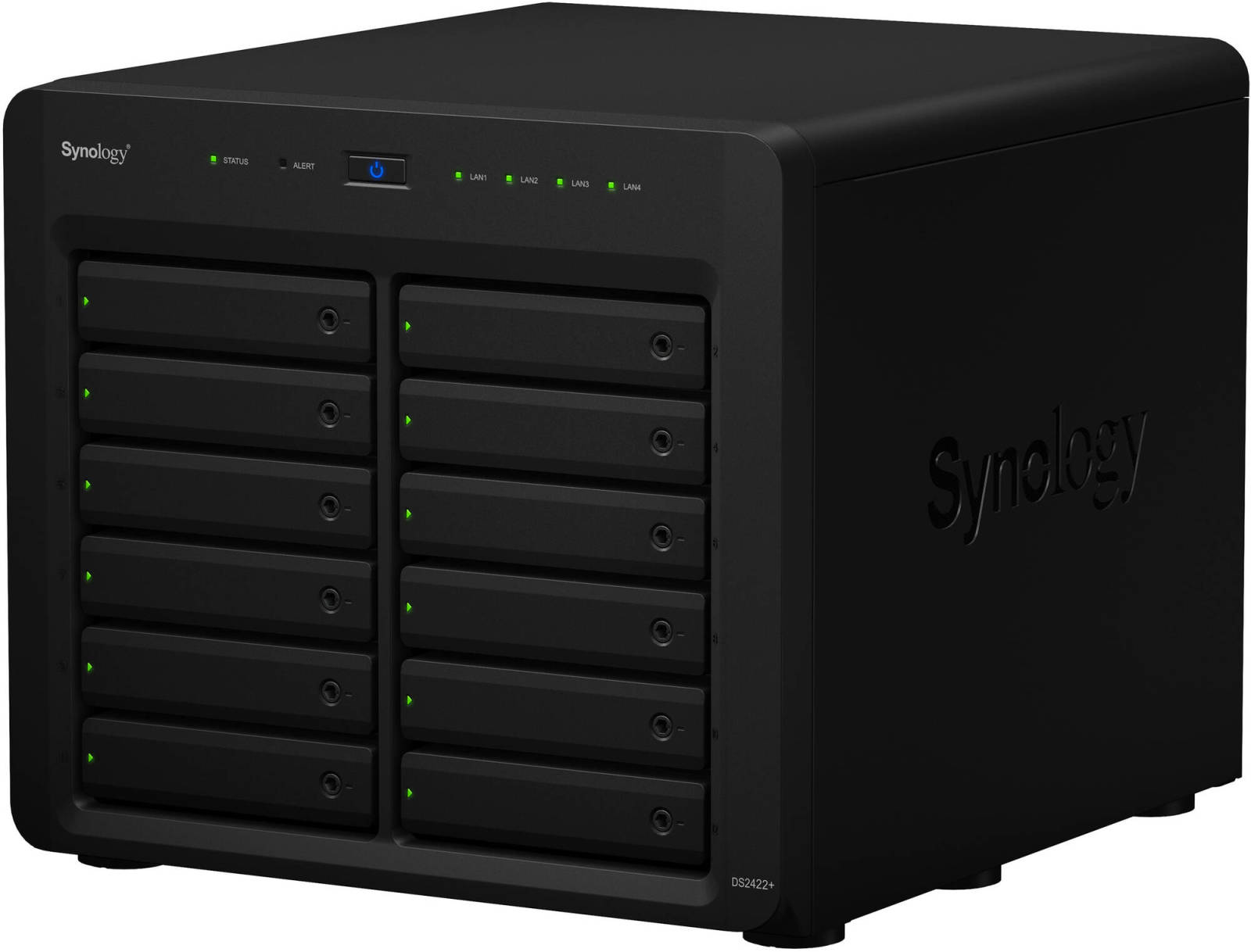

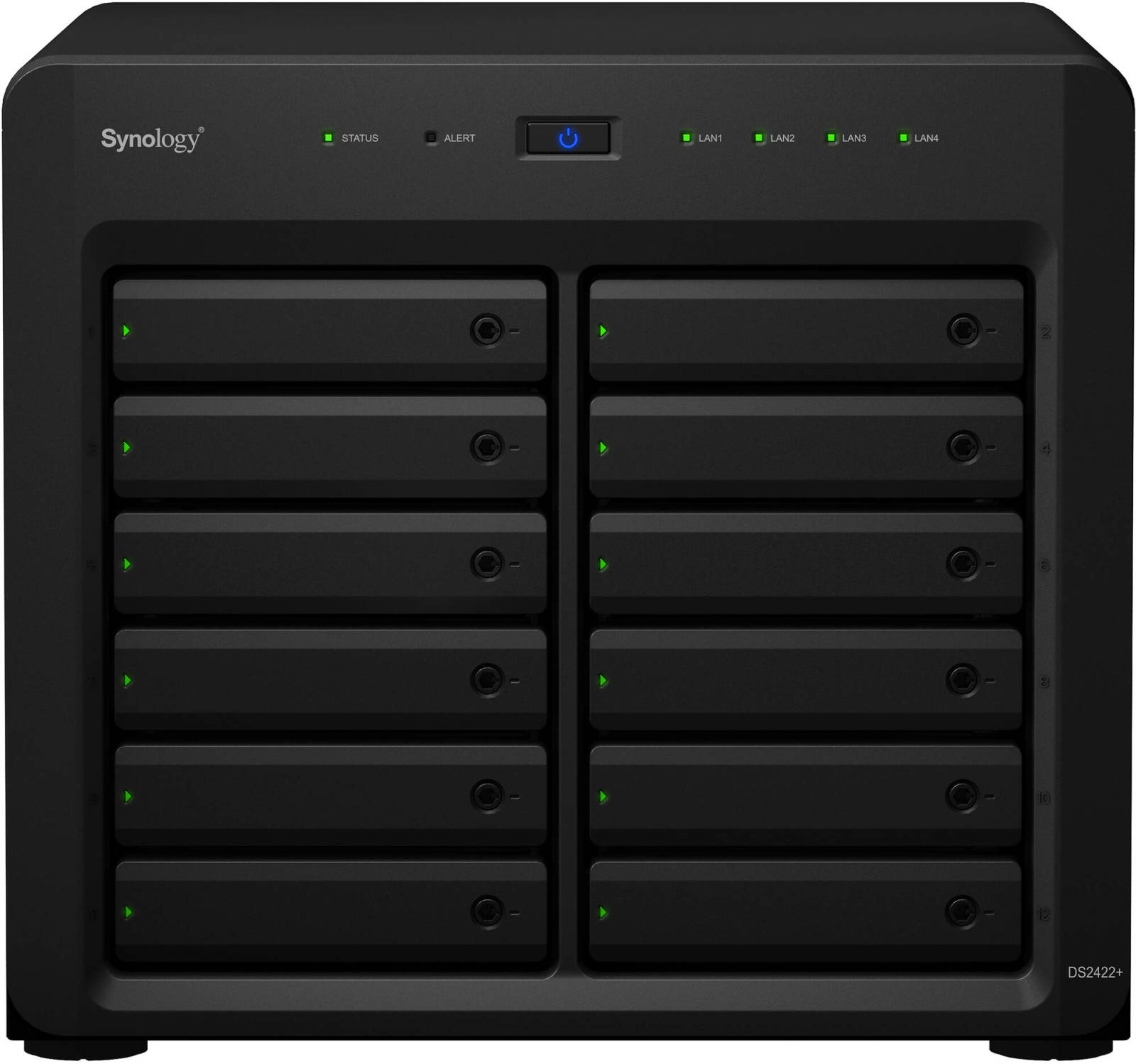

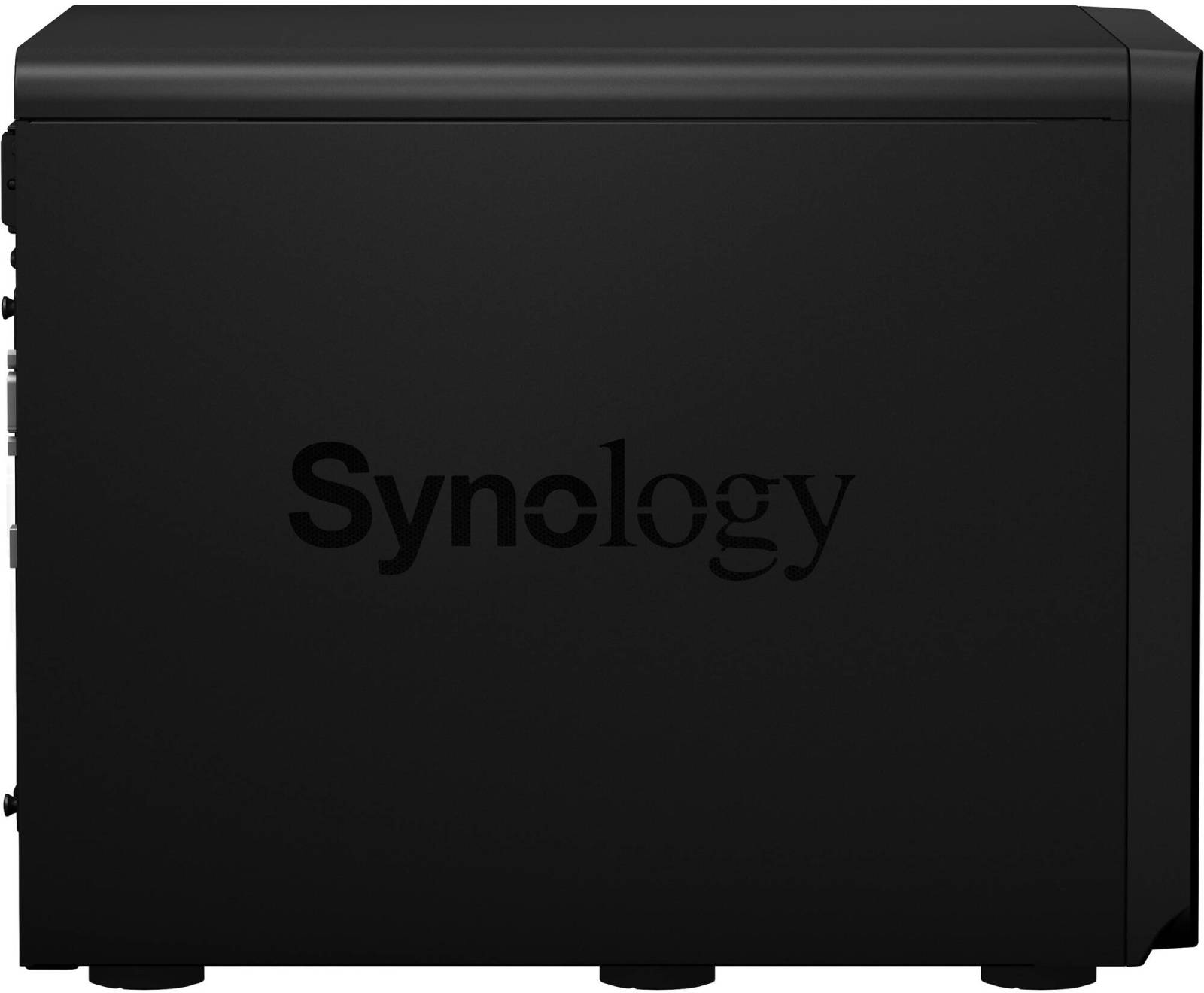

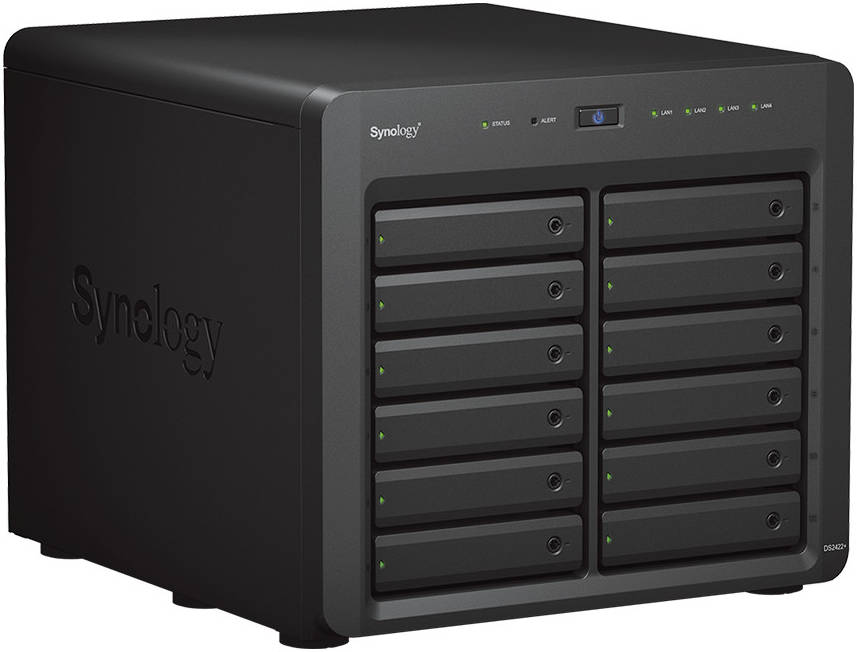

Synology DiskStation DS2422+ 12-Bay NAS Enclosure, AMD Ryzen V1500B 2.2GHz, 4GB DDR4 RAM, 12 x 3.5″/2.5″ SATA Drive Bays, 2x USB 3.2 Gen 1 Type-A | 1x Mini-SAS, 4 x Gigabit ETH Black | DS2422+

Designed for small- to medium-sized businesses with large storage, file sharing, and data protection requirements in a multi-user environment, the DiskStation DS2422+ 12-Bay NAS Enclosure from Synology comes with powerful storage management, file syncing, surveillance, and backup software. It is also suitable for editing high-quality video and for VM storage. Powered by Synology’s DiskStation Manager (DSM) which includes essential business software solutions, the DS2422+ can be expanded with 12 additional drive bays, or use the PCIe 3.0 x8/x4 slot to install a 10 or 25GbE networking cards or NVMe M.2 SSD.
12 x 3.5″/2.5″ SATA Drive Bays
2.2 GHz AMD Ryzen V1500B Quad-Core
4GB of DDR4 ECC RAM
4 x Gigabit Ethernet Ports
2 x USB 3.2 Gen 1 Type-A | 1 x Mini-SAS
RAID 0, 1, 5, 6, 10, Basic, Hybrid, JBOD
Up to 2201 MB/s Reads & 1383 MB/s Writes
AES-NI Encryption
1 x PCIe 3.0 x8/x4 Slot
Synology DiskStation Manager OS
Specifications
CPU
CPU Model
AMD Ryzen V1500B
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory
4 GB DDR4 ECC SODIMM
Memory Module Pre-installed
4 GB (4 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays
12
Maximum Drive Bays with Expansion Unit
24 (DX1222 x 1)
Compatible Drive Type* (See all supported drives)
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Hot Swappable Drive*
Notes
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

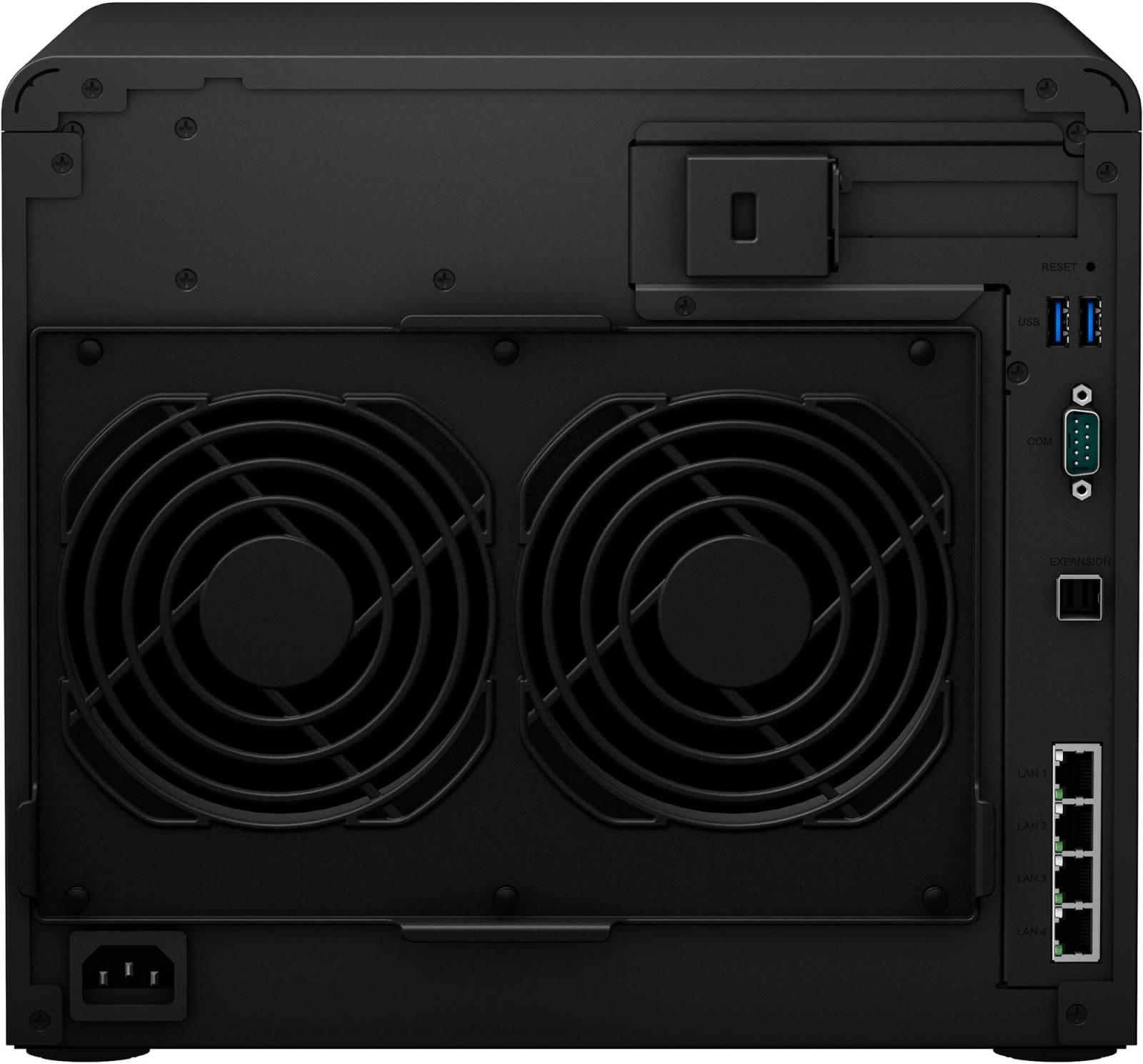

External Ports
RJ-45 1GbE LAN Port*
4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*
2
Expansion Port
1
Notes
This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
Size (Height x Width x Depth)
270 mm x 300 mm x 340 mm
Weight
9.5 kg
Others
System Fan
120 mm x 120 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*
25 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter
550 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
73.11 W (Access)
32.12 W (HDD Hibernation)
British Thermal Unit
249.63 BTU/hr (Access)
109.67 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL
