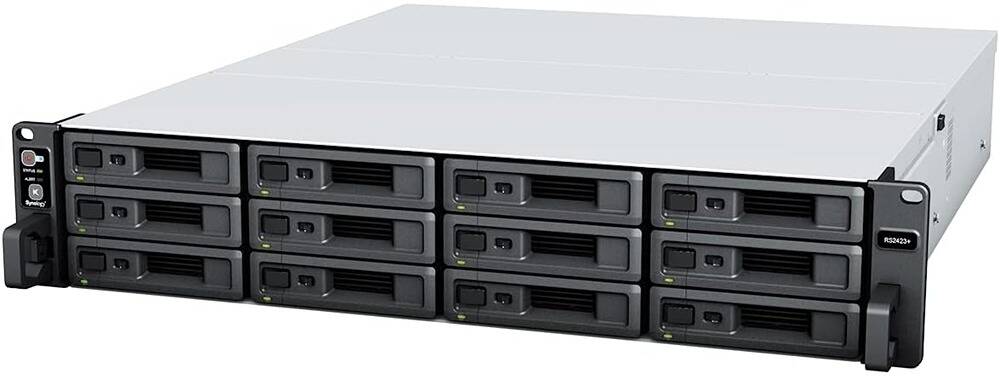

RackStation RS2423+​
Efficient storage for centralized data management
The DiskStation RS2423+ 12-Bay NAS Enclosure from Synology is a versatile and cost-effective storage server for central data storage and sharing, endpoint and server backup, surveillance management, and other business applications. With sequential reads of over 3500 MB/s and sequential writes of over 1700 MB/s, as well as the option to boost I/O speeds through SSD caching, the RS2423+ provides flexible storage with strong built-in data protection capabilities. Powered by Synology’s DiskStation Manager (DSM), the RS2423+ can be expanded with 12 additional drive bays, or use the PCIe 3.0 x8/x4 slot to install a 1/10/25GbE networking card.
Key Features
12 x 3.5″ / 2.5″ SATA Drive Bays
3.35 GHz AMD Ryzen V1780B 4-Core CPU
8GB DDR4 ECC RAM
1 x 10GbE Port | 2 x 1GbE Ports
2 x USB-A 3.2 Gen 1 Ports
1 x Mini-SAS HD Expansion Port
RAID 0, 1, 5, 6, 10, Hybrid, Basic, JBOD
PCIe 3.0 x8/x4 Expansion Slot
Single Power Supply
Synology DSM Operating System
Specifications
Computing
CPU
3.35 to 3.6 GHz Quad-Core
Processor
AMD Ryzen V1708B
Total Installed Memory
8 GB ECC DDR4
Maximum Memory Capacity
32 GB
General
Number of Bays
12 x 2.5″/3.5″

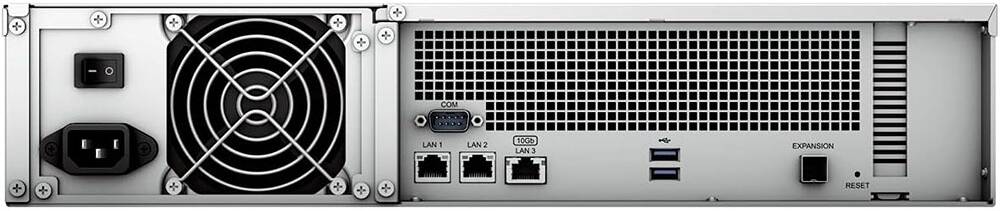

Inputs/Outputs
1 x RJ45 10GbE
2 x RJ45 Gigabit Ethernet
2 x USB-A 3.0 / 3.1/3.2 Gen 1
1 x Mini SAS (Unspecified)
Compatible Drive Interface
SATA (Unspecified Version)
Media Card Slots
No
Form Factor
Rackmount (2 RU)
RAID
RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
Hot-Swap Support
Yes
PCI Expansion
1 x PCIe 3.0 x8 (x4 Electrical)
Wake on LAN
Yes
Link Aggregation
Yes
Networking
Supported Protocols
AFP, CalDAV, FTP, L2TP, NFS, OpenVPN, PPTP, SMB,
SNMP, SSH, Telnet, WebDAV, iSCSI
Max Concurrent Connections
2000
Max Folders
512
Max Groups
256
Max User Accounts
2048
Software
Installed Operating System
Synology DiskStation Manager
Supported File Systems
Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS,
exFAT
Mobile App Compatible
Yes
Supported Browsers
Chrome, Edge, Firefox, Safari
Supported Languages
Brazilian Portuguese, Czech, Danish, Dutch,
English, French, German, Hungarian, Italian,
Japanese, Korean, Norwegian, Polish, Portuguese,
Russian, Simplified Chinese, Spanish, Swedish,
Thai, Traditional Chinese, Turkish
Electrical
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Source
Internal Power Supply
PSU Wattage
1
Environmental
Operating Temperature
32 to 95°F / 0 to 35°C
Operating Humidity
8 to 80%
Operating Altitude
0.0 to 16,404′ / 0 to 5000 m
Storage Temperature
-5 to 140°F / -20 to 60°C
Storage Humidity
5 to 95%
