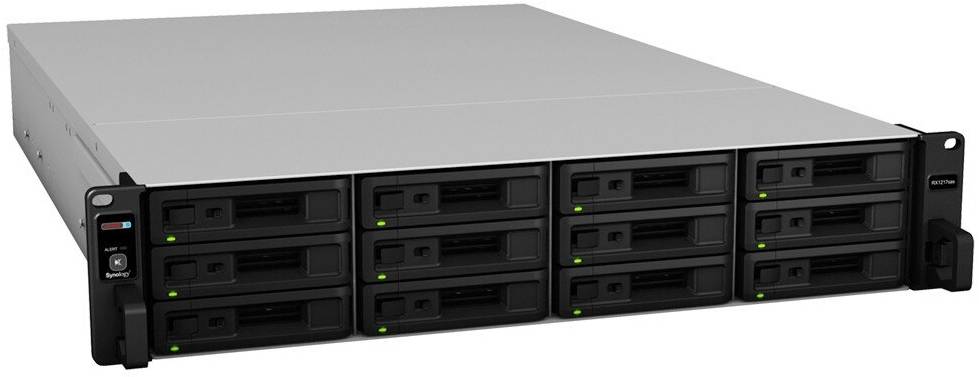

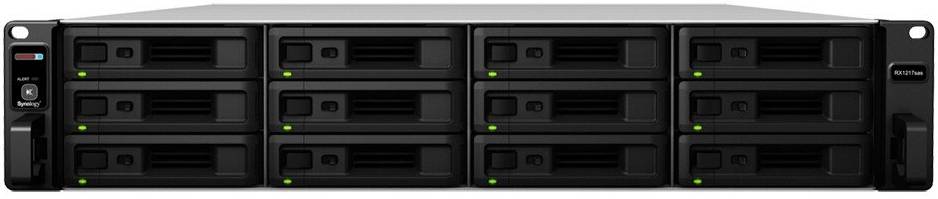

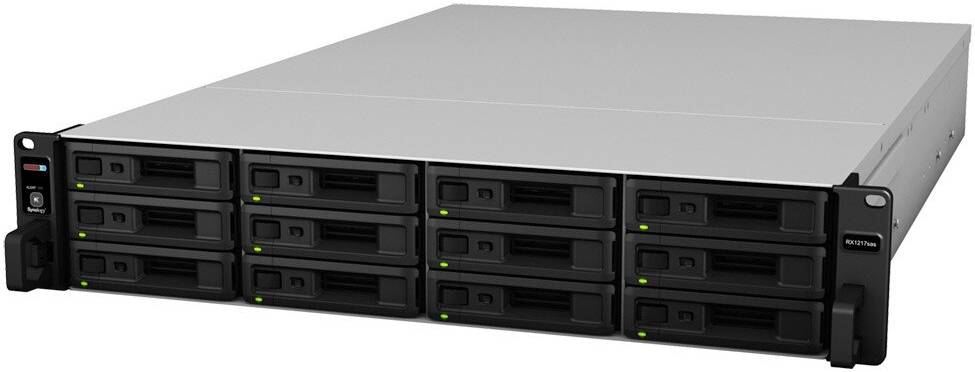

Synology RX1217sas Expansion Unit, 12x Drive Bays, 3.5″ & 2.5″ SAS/SATA Hard Drive Compatible, Hot Swappable Drive, Dual Redundant 500W Power Supply, For FS, SA & 17 Series | RX1217SAS

RX1217sas
Easily add 12 additional drive bays to Synology FlashStation or RackStation. Supporting both 2.5″ and 3.5″ SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination. Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot-swappable drive trays.
Key Features
Drive Bays 12
Compatible Drive Type: 3.5″ SAS HDD, 2.5″ SAS HDD, 2.5″ SAS SSD, 3.5″ SATA HDD, 2.5″ SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB drive x 12) (Capacity may vary by RAID types)
SAS IN-port 1
SAS OUT-port 1
Power Supply Unit / Adapter 2x 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Specifications
Applied Models
FS series: FS6400, FS3600, FS3400, FS3017, FS2017
SA series: SA3600, SA3400
17 series: RS18017xs+
Support for Volumes
Yes
Drive Bays
12
Compatible Drive Types
3.5″ SAS HDD, 2.5″ SAS HDD, 2.5″ SAS SSD,
3.5″ SATA HDD, 2.5″ SATA SSD
Hot Swappable Drive
Yes
RAID Management
Synology DSM

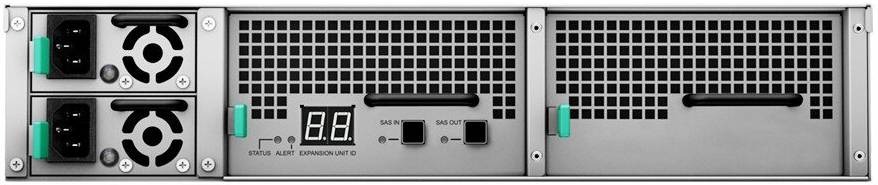

External Ports
SAS IN-port: 1
SAS OUT-port: 1
Size
88 mm x 430.5 mm x 692 mm
Size (with server ears)
88 mm x 482 mm x 724 mm
Weight
18 kg
Rack Installation Support
4-post 19″ rack (Synology Rail Kit – RKS-02)
Power
Power Recovery: Synchronized with Synology RackStation
Power Supply Unit/Adapter: 500 W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption: 132.7 W (Access),
89.3 W (HDD Hibernation)
British Thermal Unit: 452.79 BTU/hr (Access),
304.7 BTU/hr (HDD Hibernation)
Redundant Power Supply
For RP model (not specified)
Temperature
Operating Temperature: 5°C to 35°C (40°F to 95°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
System Fan
60 mm x 60 mm x 4 pcs
Easy Replacement System Fan
Yes
Noise Level
60.9 dB(A)
Certification
UL, FCC, CE, BSMI, EAC, RCM, KC
Environment & Packaging
RoHS Compliant
Packaging Content
Main Unit X 1, Accessory Pack X 1,
AC Power Cord X 2, Expansion Cable: MiniSAS-HD X 1,
Quick Installation Guide X 1
