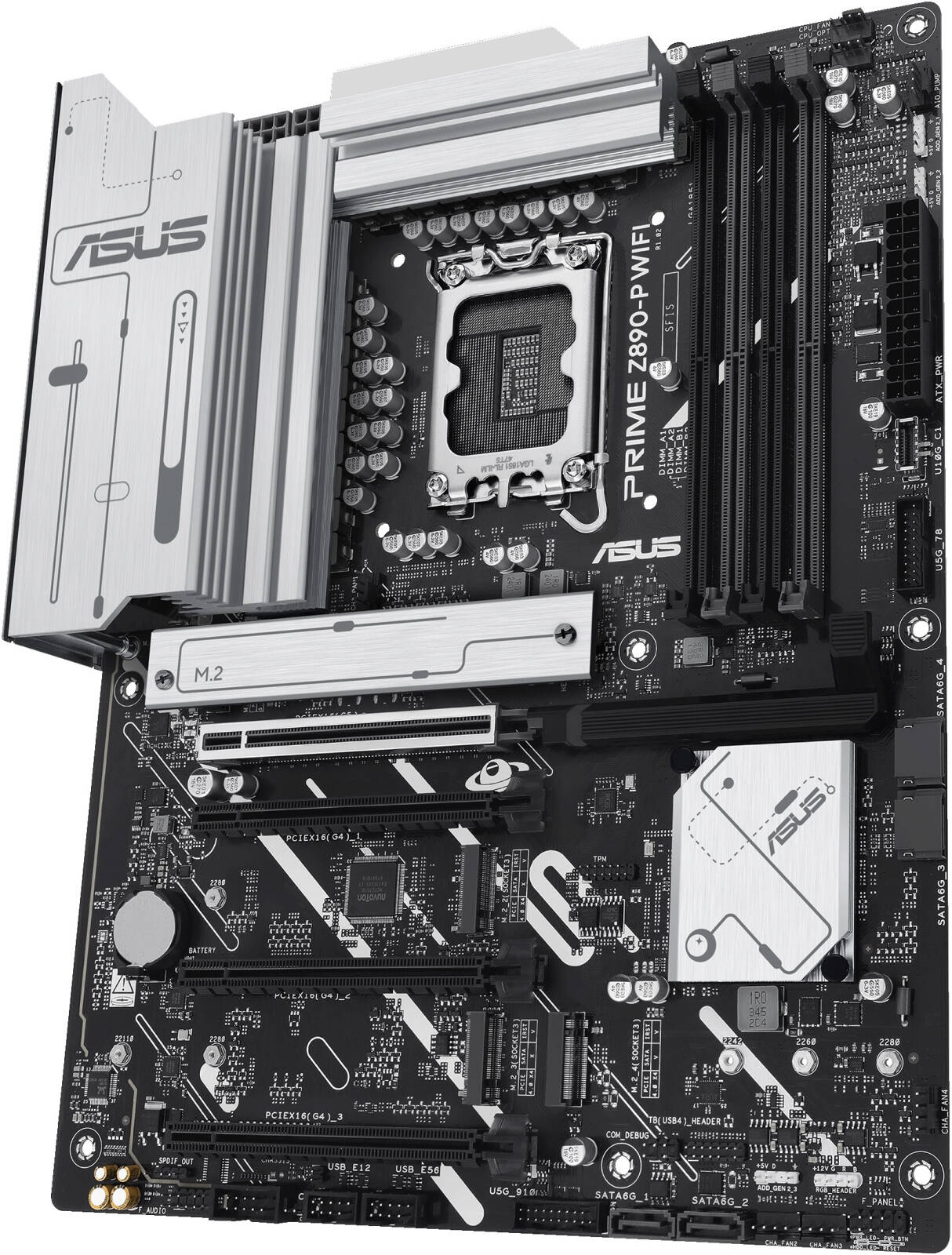

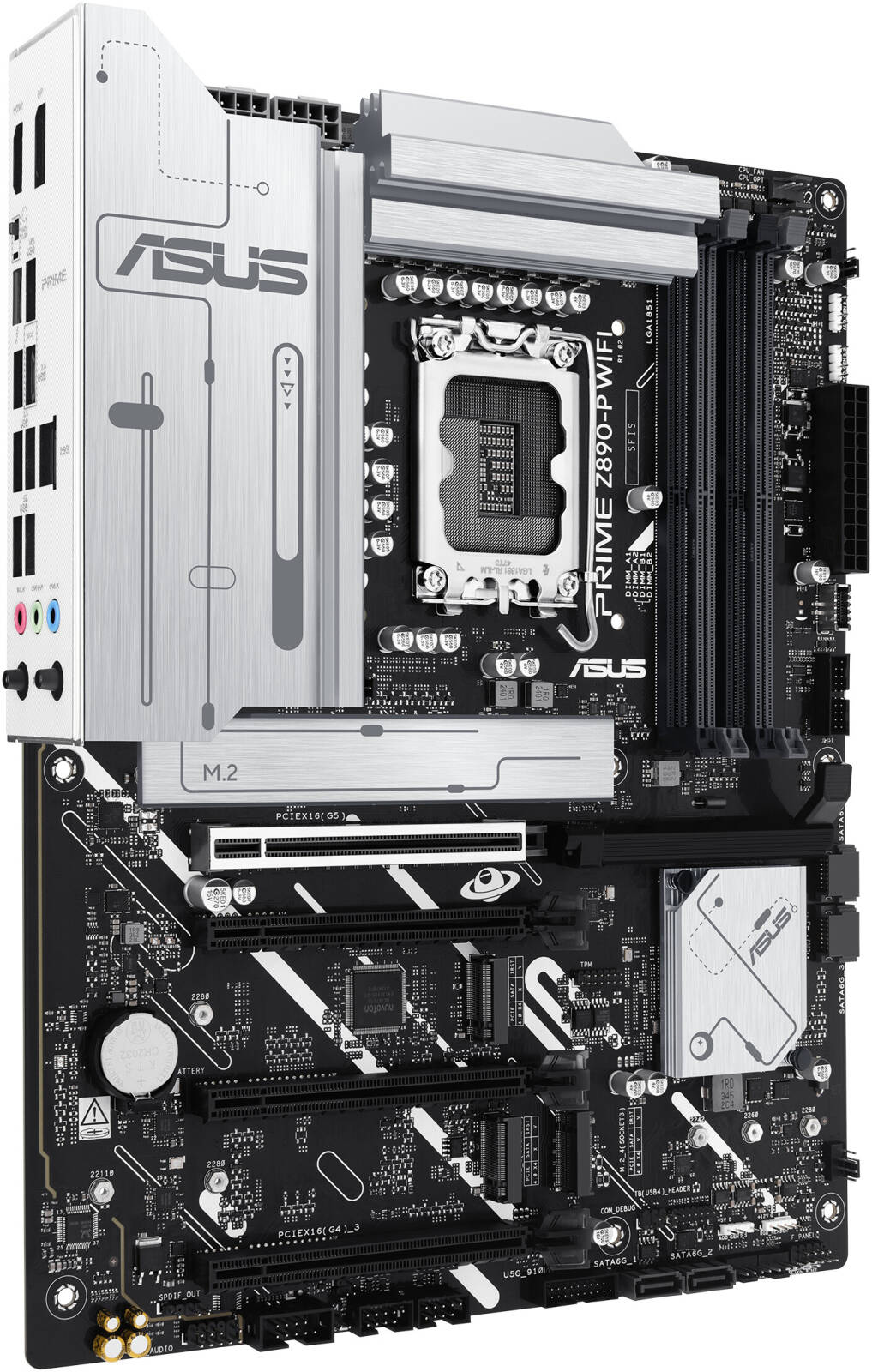

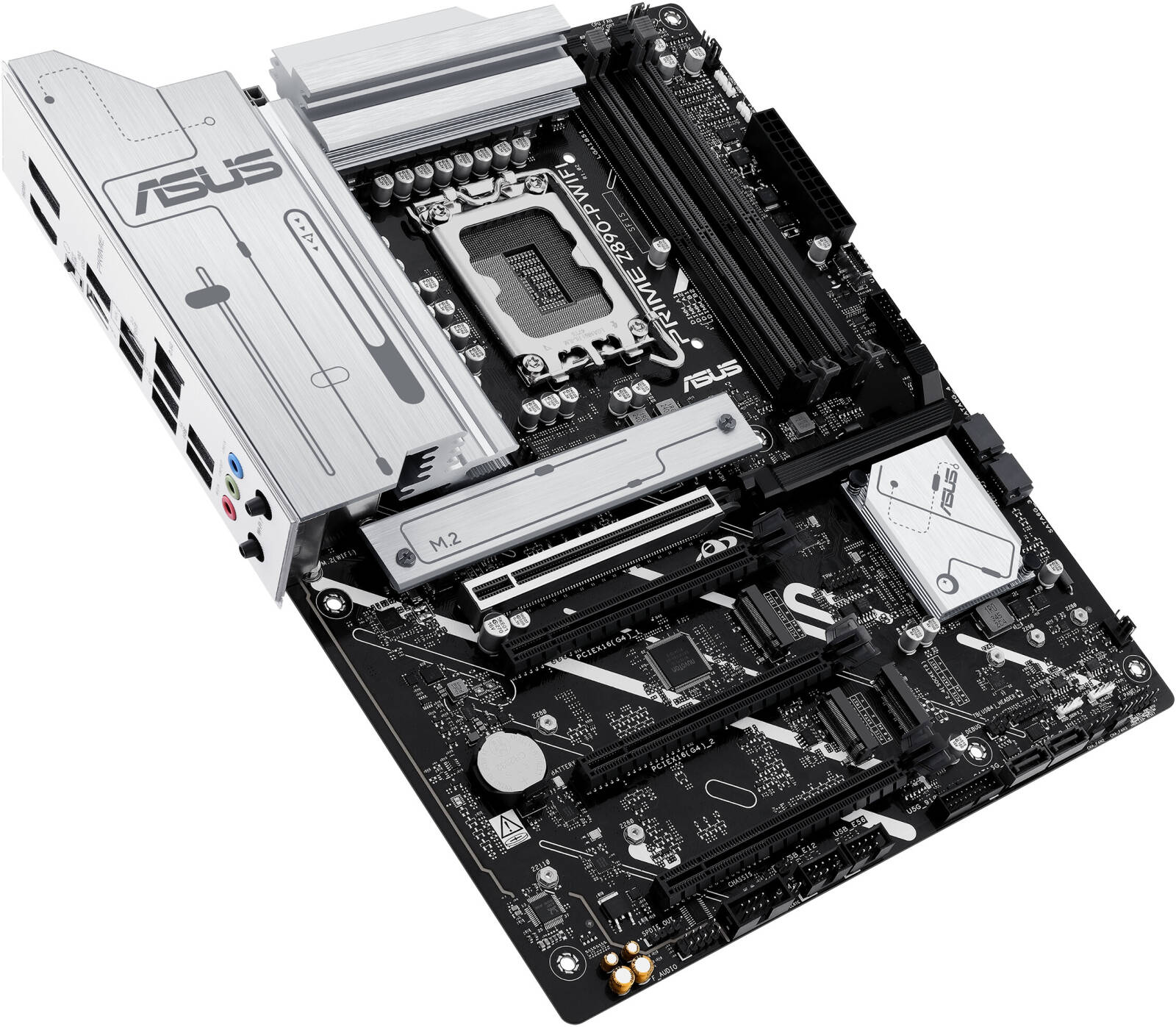

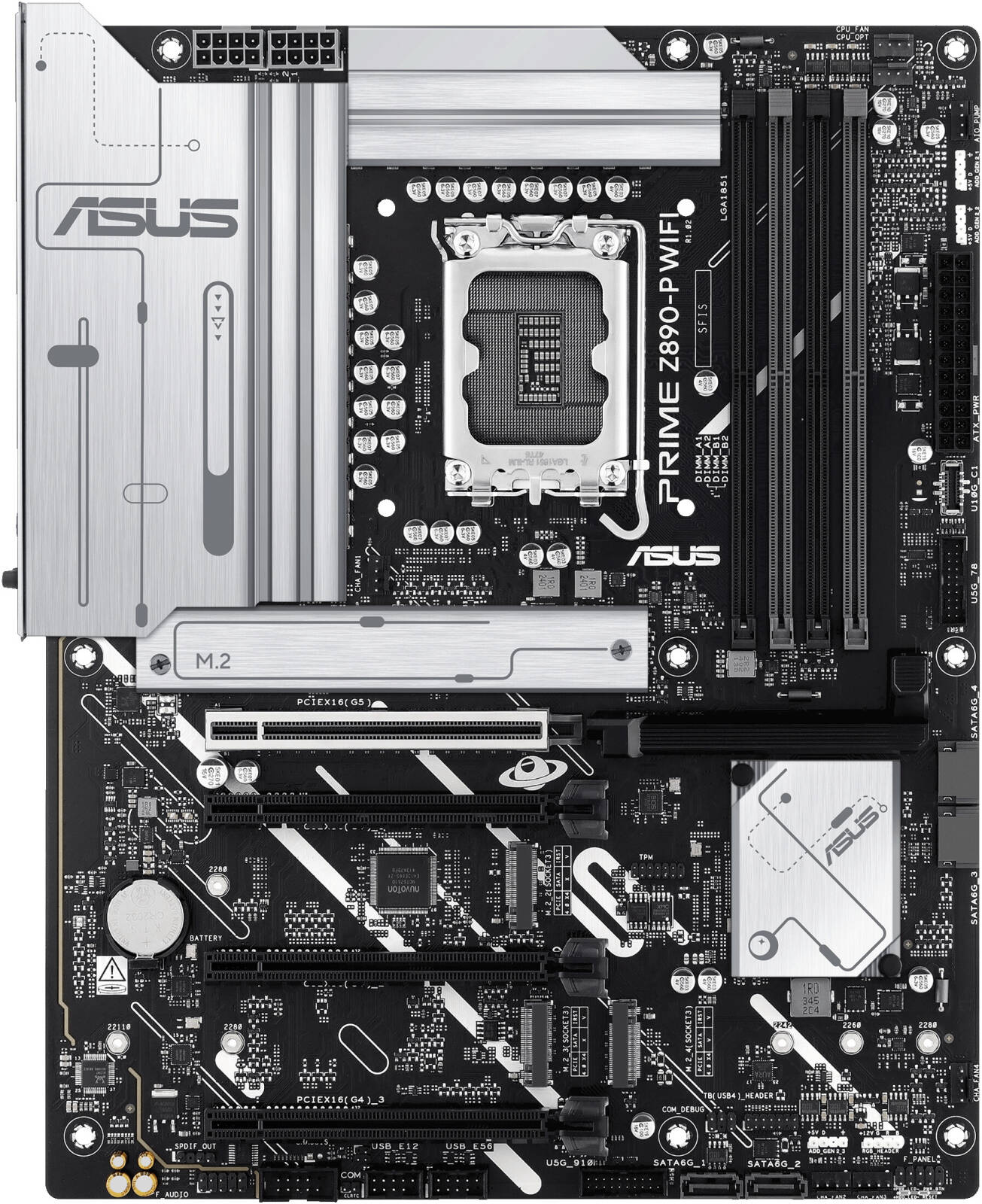

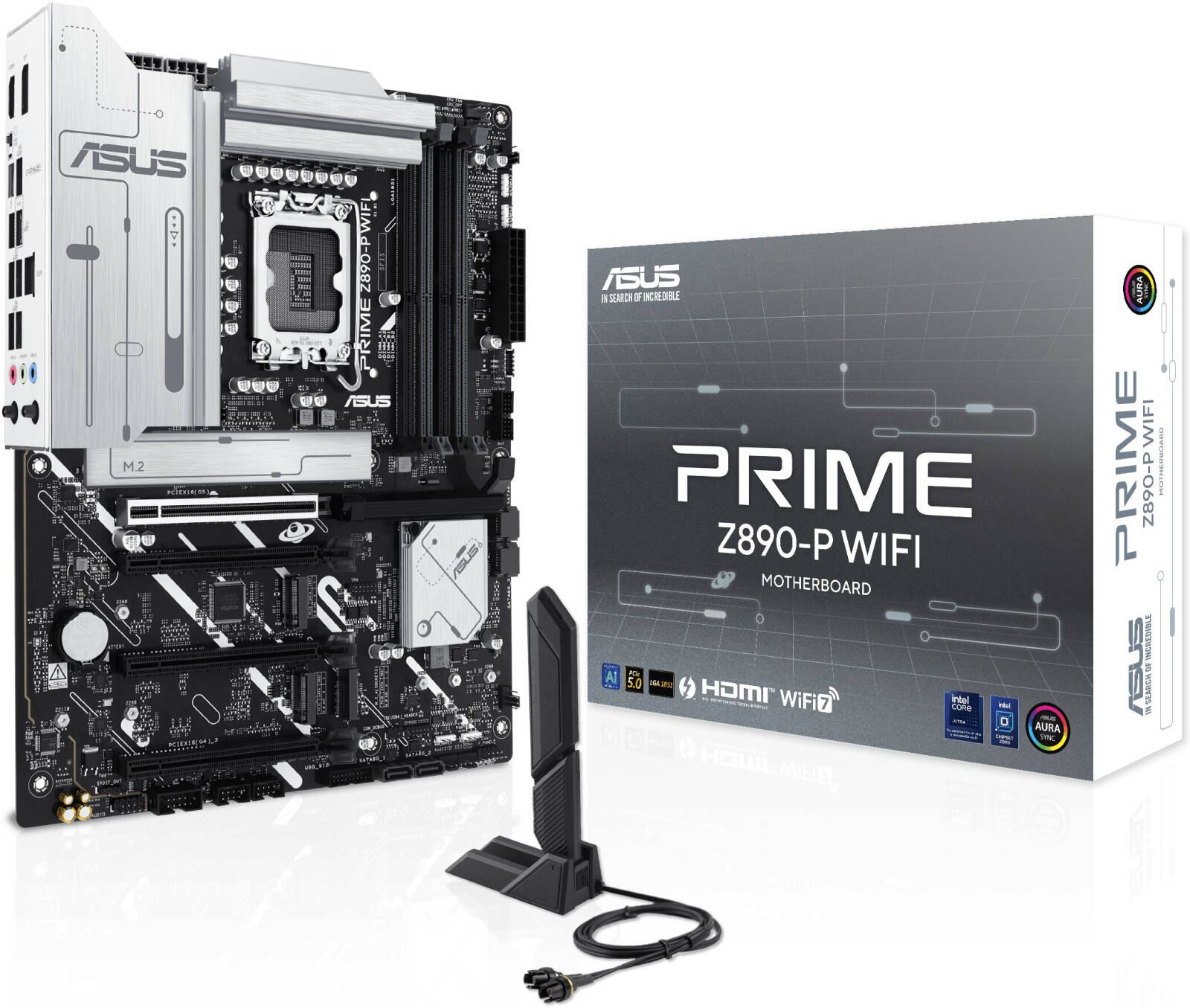

Prime Z890-P Wi-Fi
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Model
PRIME Z890-P WIFI
CPU Support
Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Intel® Z890 Chipset
Memory
4x DIMM slots, max. 192GB, DDR5, Dual Channel, 8666+MT/s (OC), Non-ECC, Un-buffered
Graphics
1x DisplayPort (4K@60Hz), 1x HDMI (4K@60Hz), 1x Thunderbolt™ 4 (USB-C) (supports 8K@60Hz, DSC, DP Alt mode)
Expansion Slots
1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x16 (x1 mode)
Storage
4x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, SATA), 4x SATA 6Gb/s ports
Ethernet
1x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (2×2), 2.9Gbps, Bluetooth® v5.4
Rear USB Ports
1x Thunderbolt™ 4 (USB-C), 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0 (Type-A)
Front USB Ports
1x USB 10Gbps (USB-C), 4x USB 5Gbps, 4x USB 2.0
Audio
Realtek 7.1 Surround Sound HD Audio CODEC

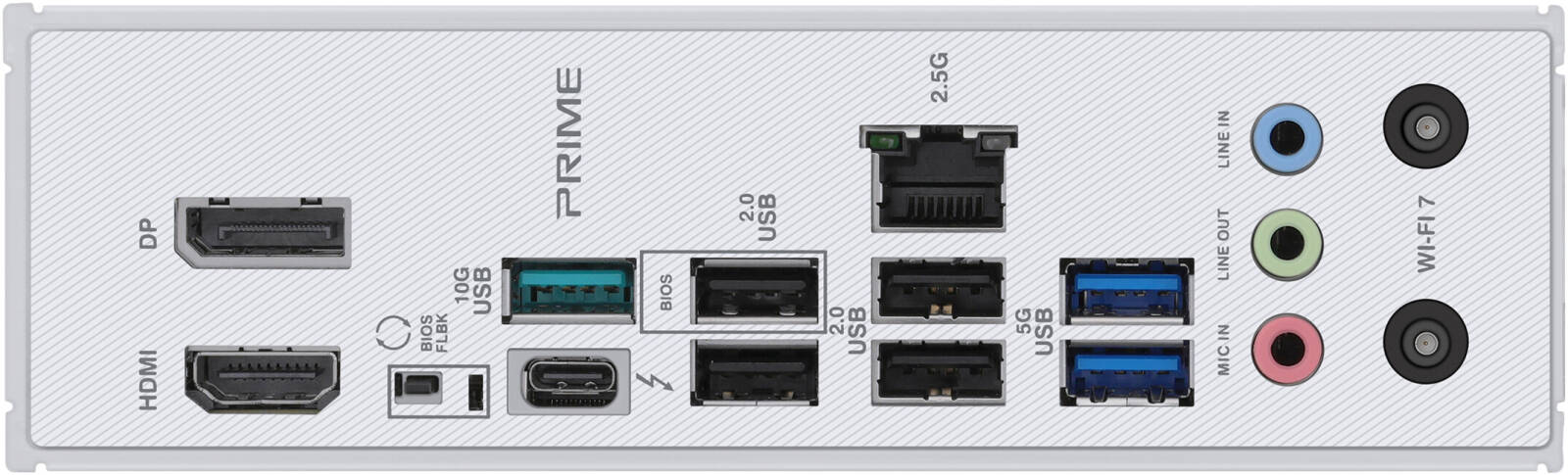

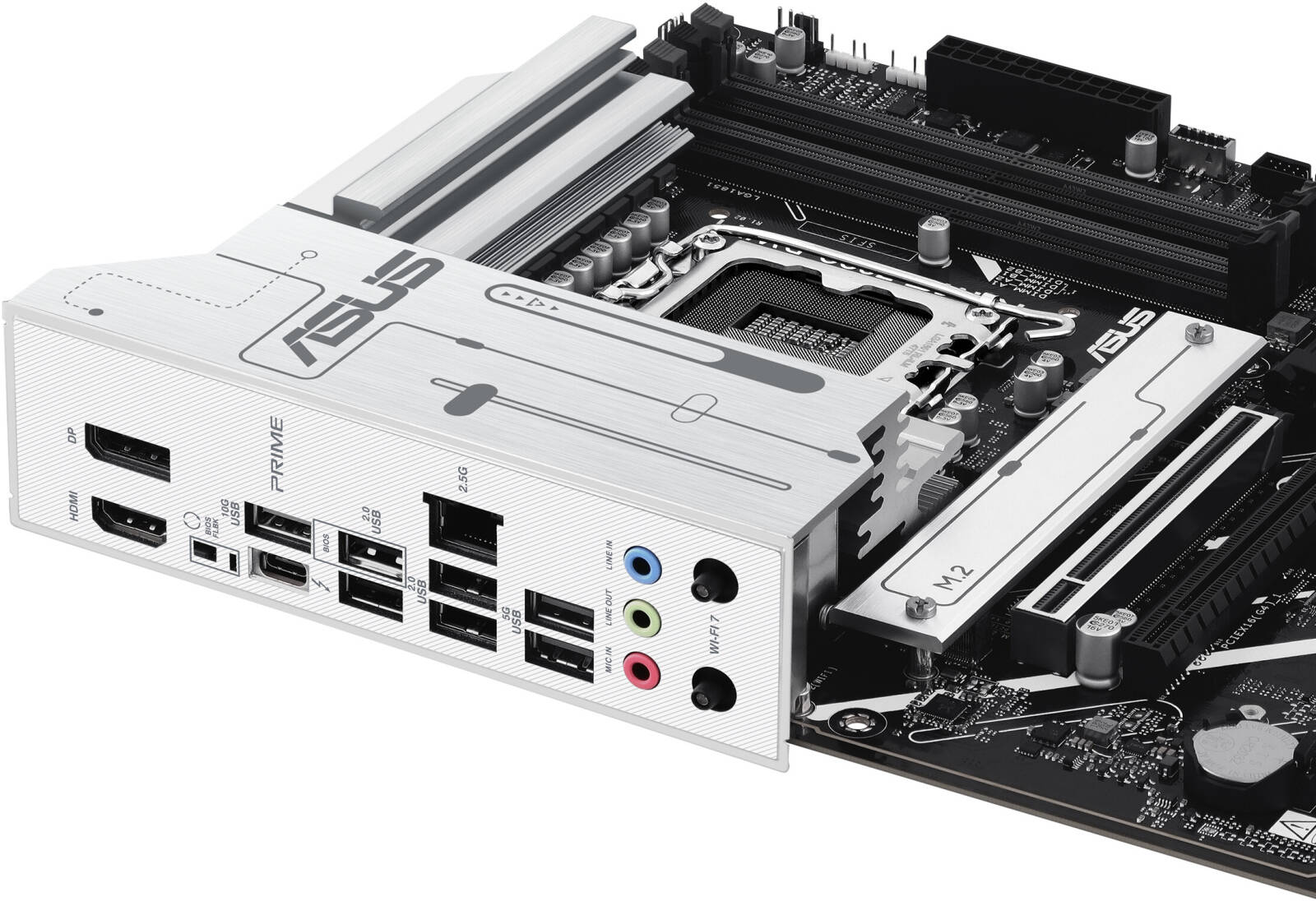

Back Panel I/O Ports
1x Thunderbolt™ 4 (USB-C), 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0, 1x DisplayPort, 1x HDMI, 1x Wi-Fi module, 1x 2.5Gb Ethernet, 3x Audio jacks
Internal I/O Connectors
1x CPU Fan header, 1x CPU OPT Fan header, 1x AIO Pump header, 4x Chassis Fan headers, 1x 24-pin Main Power, 2x 8-pin CPU Power, 4x M.2 slots, 4x SATA ports, 1x USB-C header (10Gbps), 4x USB 5Gbps ports, 4x USB 2.0 ports
Special Features
ASUS 5X Protection III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
Software
Armoury Crate, Aura Sync, Fan Xpert 4, ASUS AI Advisor, TurboV Core, Norton 360 (60 Days), WinRAR (40 Days)
BIOS
UEFI AMI BIOS, 256Mb Flash ROM, ASUS EZ DIY
Operating System
Windows 11 (22H2 & later)
Form Factor
ATX, 30.5 cm x 24.4 cm
ASUS Prime Z890-P Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16 Slots, 4x M.2 Sdlots | 90MB1I70-M0EAY0
$150.00
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME Z890-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
