Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard, AMD WRX90 Chipset, 8x DIMM DDR5 / 2048GB Max Memory, 7x PCIe 5.0 x16 Slots, 4x M.2 Slots | 90MB1FW0-M0EAY0

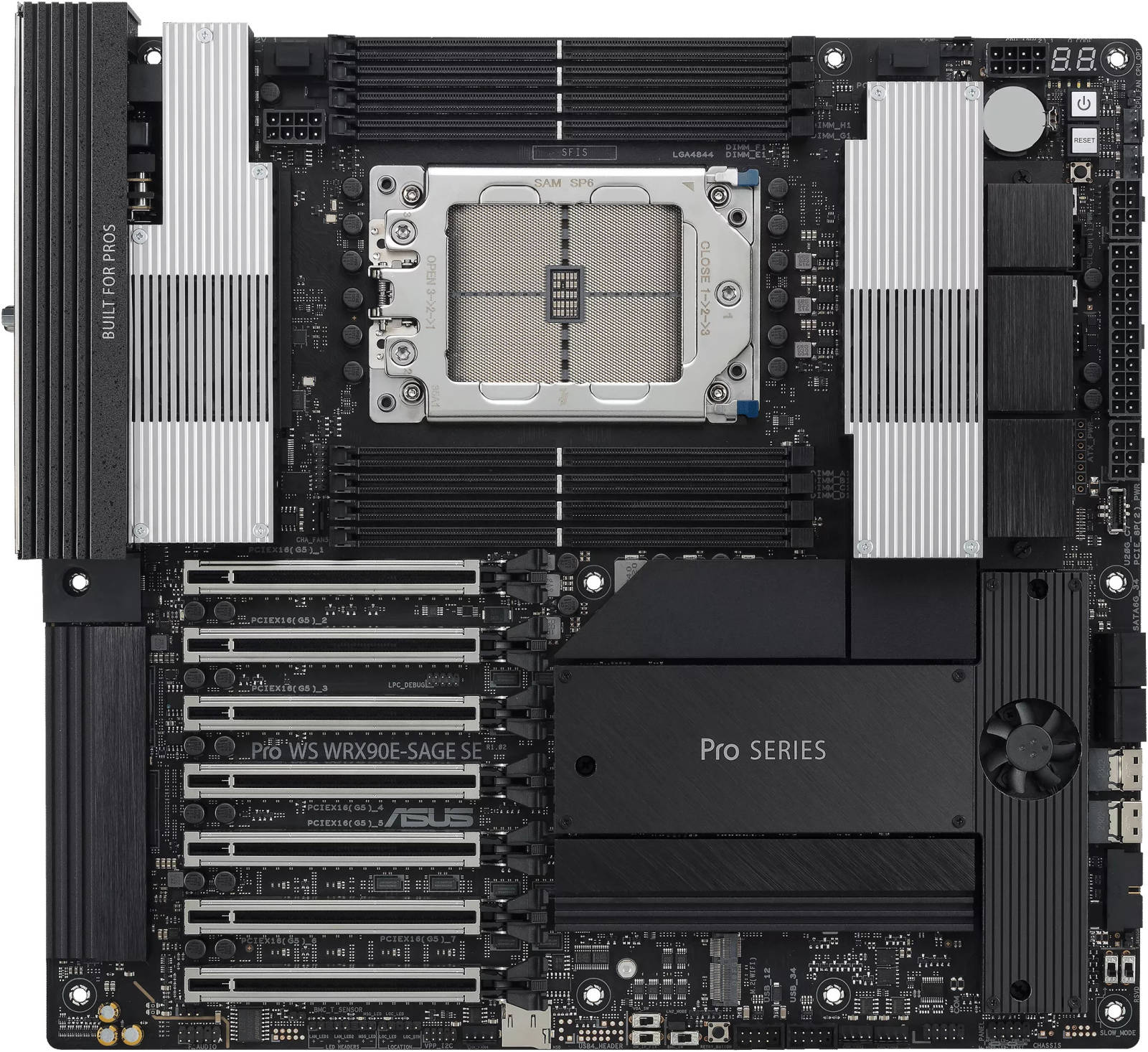

Pro WS WRX90E-SAGE SE
AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
Key Features
AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Lay a strong foundation for your workstation build using the ASUS Pro WS WRX90E-SAGE SE EEB Motherboard. With support for AMD’s Ryzen Threadripper PRO 7000 WX-Series processors through the WRX90 chipset, up to 2TB of quad-channel DDR5 RAM across the eight RAM slots, and four M.2 storage slots, this motherboard can accommodate builds of varying performance to fit your needs. The Pro WS WRX90E-SAGE SE is compatible with both Windows 10 (64-bit) and 11 operating systems.

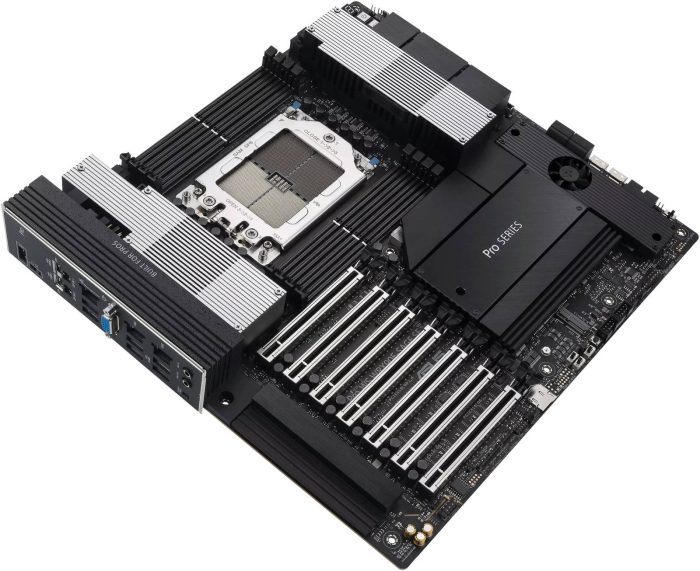

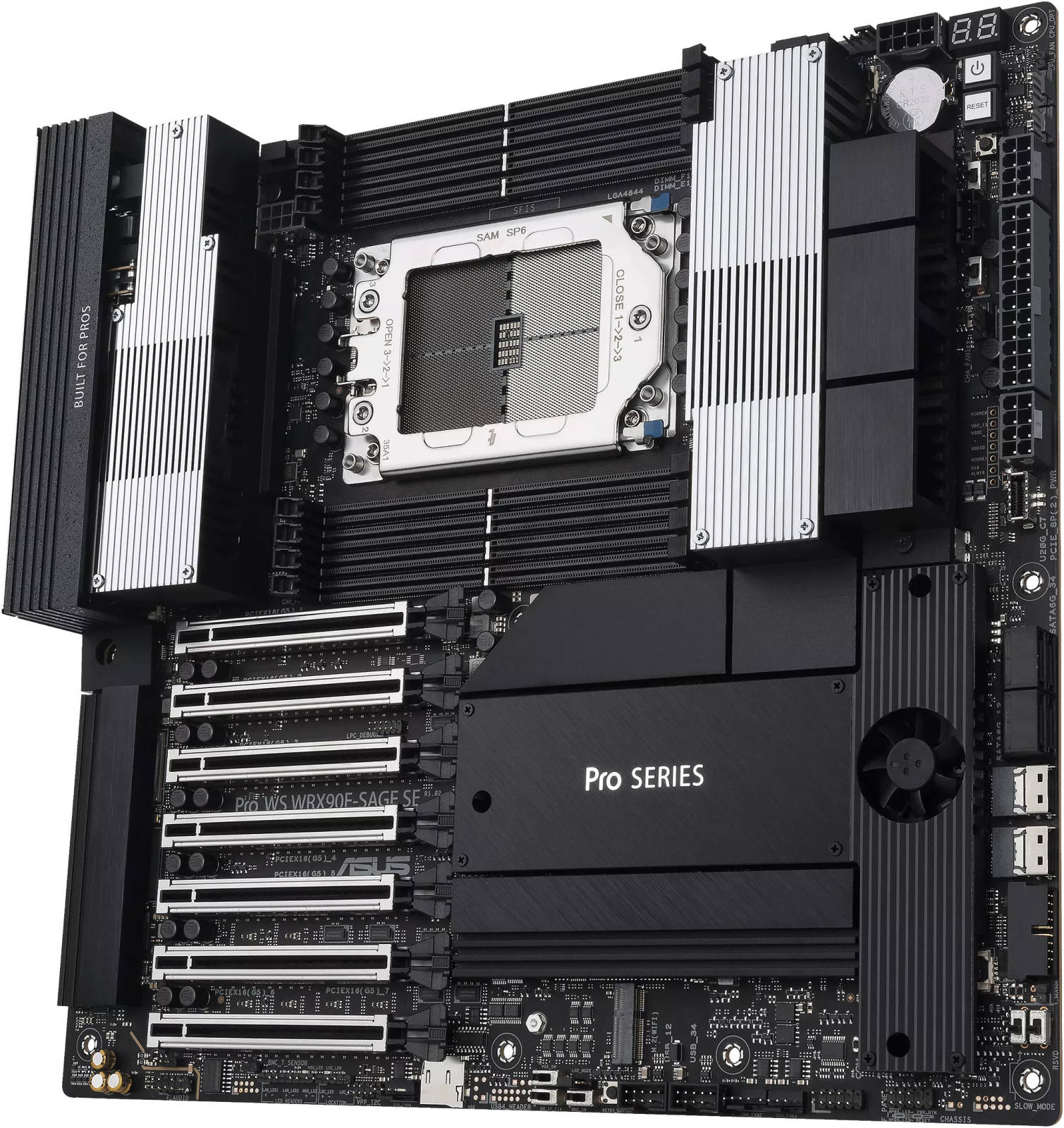

Form Factor and Expansion
The EEB form factor provides ample room for the larger Threadripper CPUs with up to 96-cores, eight RAM slots, and large VRMs that help cool your components. Six PCIe 5.0 x16 slots are perfect for storage expansion or powerful graphics cards, and there is one PCIe 5.0 x16 slot in x8 mode.

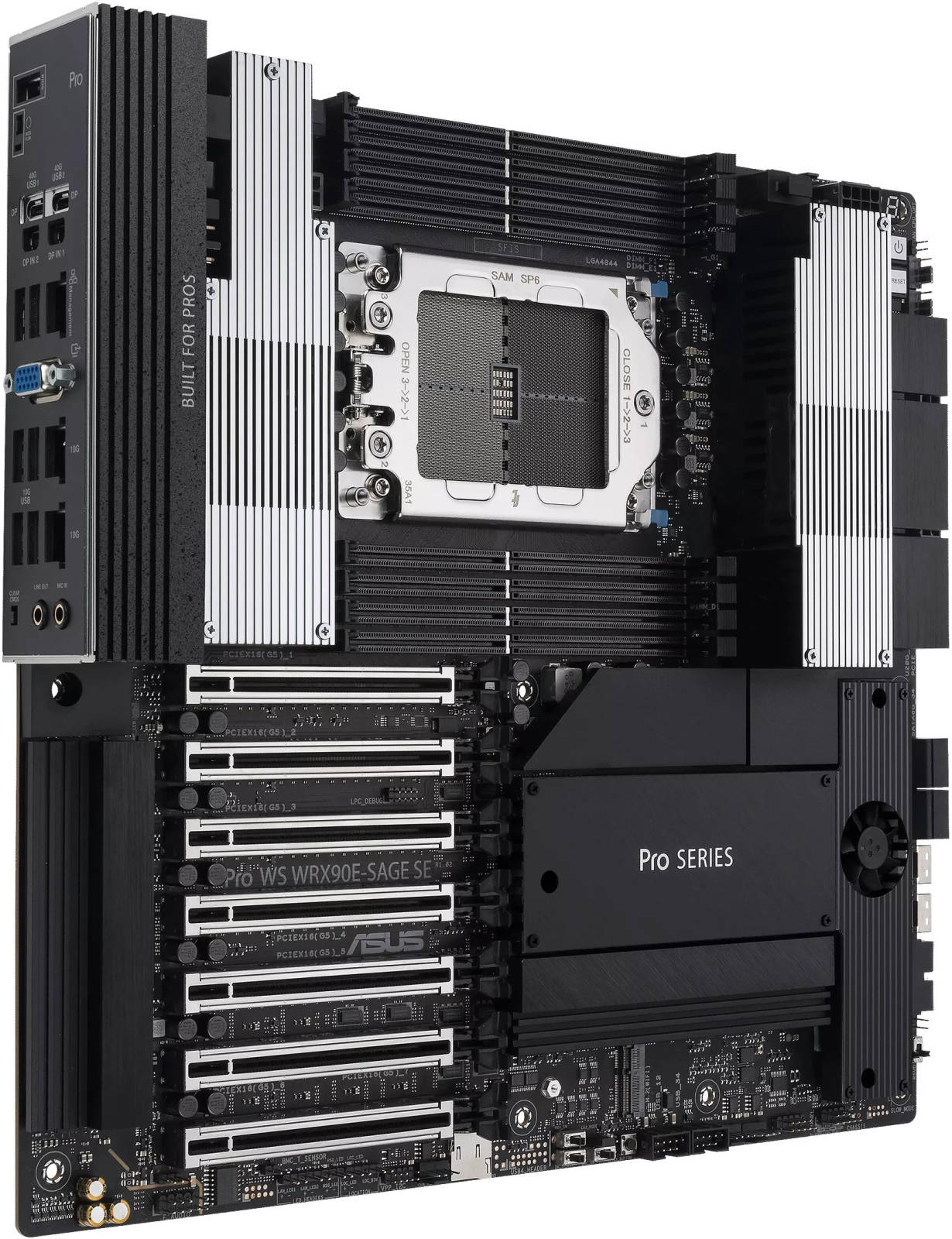

Rear I/O

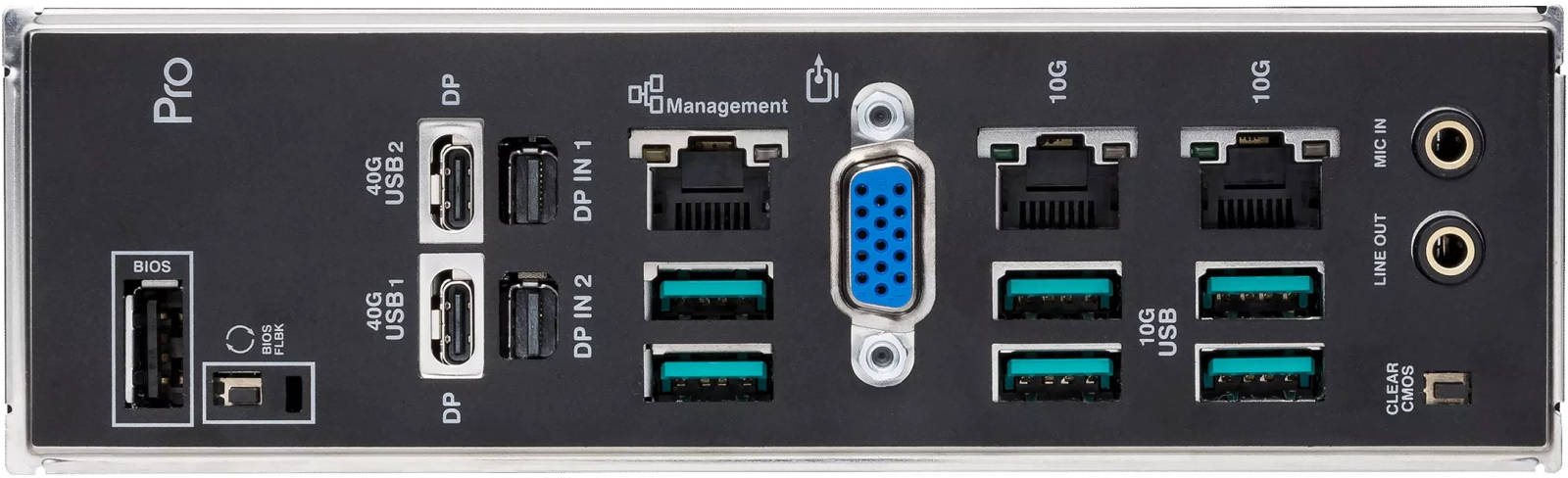

The rear panel of the motherboard offers access to a wide variety of ports to enhance your workstation.
Two USB4 ports reach speeds up to 40 Gb/s for peripherals like external SSDs
Six USB-A 3.2 Gen 2 ports offer 10 Gb/s
A VGA output and two mini DisplayPort inputs connect the CPU’s integrated graphics to external displays.
Dual Intel 10 GbE Ethernet ports and a single Realtek Gigabit Ethernet port provide wired connections to the internet.
Two audio jacks allow you to access the Realtek ALC1220P 5.1 audio.
Long-Term Storage and Short-Term Memory
Four M.2 PCIe 5.0 x4 slots and four SATA III ports provide a well of potential long-term storage space. Additionally, a SlimSAS slot supports a range of NVMe devices such as industrial-grade drives, servers, and advanced networking equipment to help you build your digital asset library. Eight slots have ECC support and can utilize up to 2TB of quad-channel DDR5 RAM which greatly improves your workstation’s multitasking capabilities. This means running multiple applications at once, having multiple instances of applications open such as separate internet tabs or photoshop projects, and switching between them will perform more consistently.

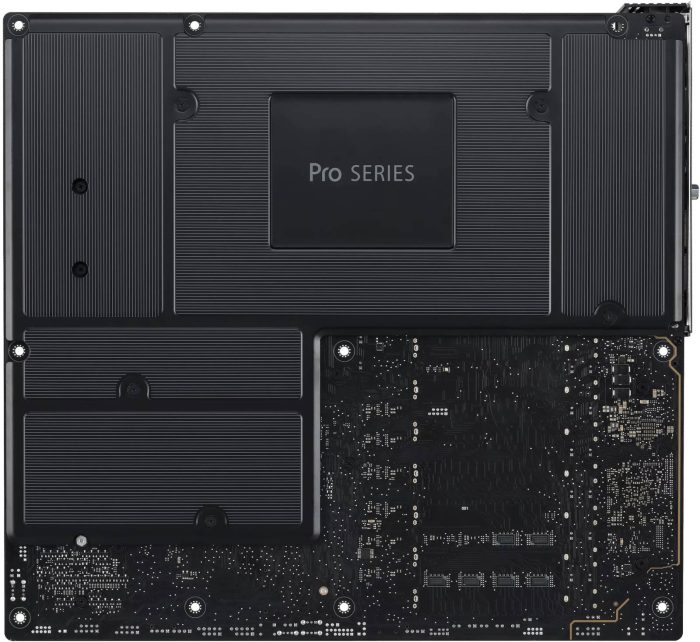

Robust Power and Thermal Design
32+3+3+3 power stages with two 8-pin power connectors for the CPU provide plenty of power to the most important components of your build, while large multi-layered VRMs, heat sinks, and thermal pads keep the chipset, M.2 storage drives, and numerous PCIe slots cool.
Server-Grade IPMI Remote Management and Onboard BMC
A dedicated LAN port links to an onboard AST2600 BMC controller for hardware and software-level management. Additionally, the ASUS Control Center Express software enables real-time monitoring and management.
PCIe Q-Release Slim
The graphics card of your system can be removed by directly pulling up instead of pressing a PCIe latch for a streamlined and more consistent user experience.
Specifications
CPU
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
Chipset
AMD WRX90 Chipset
Memory
8 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture
Expansion Slots
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
Storage
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback
Audio Features
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit
Back Panel I/O Ports
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel® dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with SPS)
– ESD Guards
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-Release Slim (with PCIe SafeSlot)
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate and onboard thermal pads
– M.2 heatsink
– Steel backplate
– VRM heatsink design with active fans
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
Software Features
ASUS Exclusive Software
Armoury Crate
– Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
– ASUS Control Center Express(ACCE)
Accessories
Cables, miscellaneous items, documentation
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
EEB Form Factor, 12 inch x 13 inch (30.5 cm x 33 cm)
