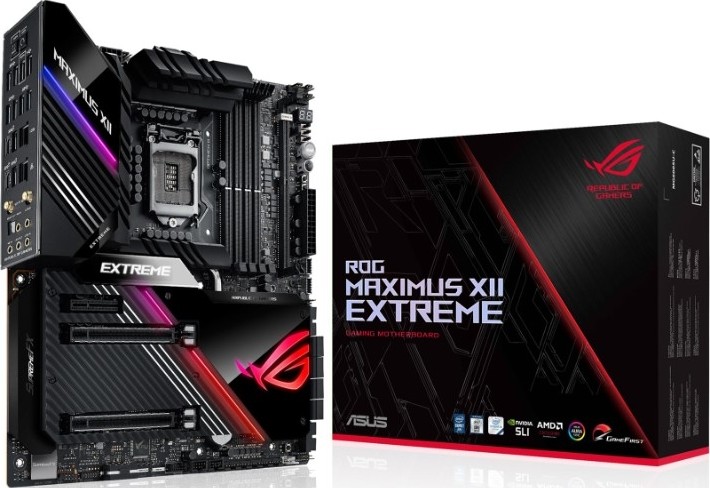

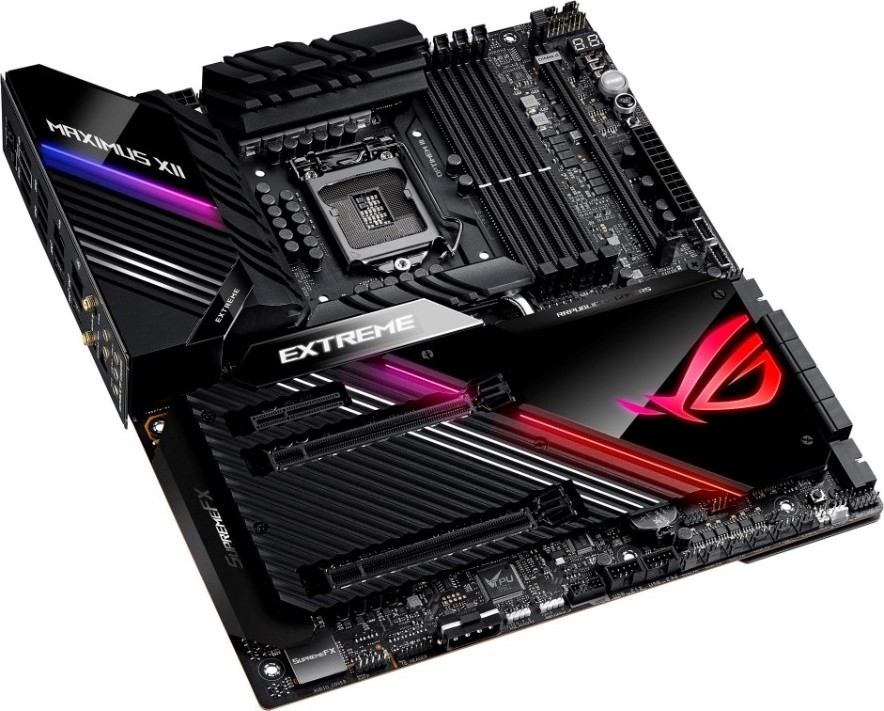

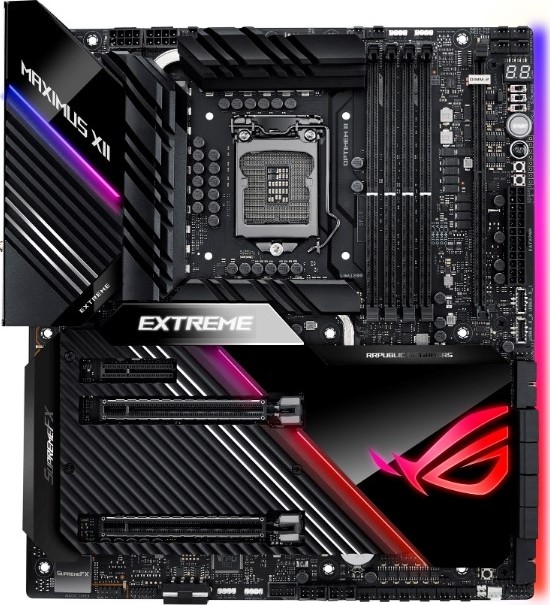

Asus ROG Maximus XII Extreme (WiFi) LGA 1200(Intel 10th Gen) EATX Gaming Motherboard – Black | 90MB12J0-M0EAY0

Description
Expertly tuned by our ROG Engineers to bring you the ultimate performance. Made to be extreme as the name suggested, is positioned for max performance water-cooling enthusiasts. Combining hardware and software, to achieve optimized overclocking, high-speed memory support, and comprehensive water and fan cooling controls, Maximus XII Extreme delivers ultimate performance combined with efficient, reliable operation.
Maximus XII Extreme is the ideal foundation for your dream gaming build. An intelligent voltage-regulator module (VRM) design and high-quality components ensure that you’ll get the most out of demanding latest-generation Intel processors. More firepower and an overclocking edge are yours with Maximus XII Extreme.
Teamed Power Architecture
Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current while maintaining exemplary thermal performance.
ASUS Optimem III
Boasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high-frequency settings, or low latency settings. With higher capacity memory kits, OptiMem III enables you to run at maximum frequency, whereas other motherboards will trade-off frequency for capacity. Stack Maximus XII Extreme with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.
Featuring premium components, multiple fan headers, and a bundled fan extension card, Maximus XII Extreme is fully equipped to enable higher performance at lower temperatures. To ensure system stability under heavy CPU loads, Maximus XII Extreme employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large heatsinks also cover multiple M.2 slots.
Cooling Heatsinks
Maximus XII Extreme delivers exceptional overclocking performance without requiring a fan for cooling. This is possible thanks to 16 teamed power stages running 90A MOSFETs on it VRM layout. To further improve heat dissipation, the I/O cover act as a large heatsink and there is also a heat pipe bridging the VRM heatsinks, increasing surface area and improving heat dissipation.
Cooler by design
ROG Maximus XII Extreme features the most comprehensive cooling options ever.
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
4-pin PWM/DC fan
Every onboard header supports the auto-detection of PWM or DC fans.
Bundled Fan Extension Card II
Bundled cand includes six additional DC or PWM fan headers, plus three thermal-probe headers.
ROG Water-Cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
Water pump+
A dedicated header can supply over 3 amps to high-performance PWM or DC water pumps.
Water in/out
A dedicated header enables monitoring of temperatures at the input/output points of any component.
Water flow
A dedicated header enables constant monitoring of flow rate throughout the entire loop.
Fan Extension Card II
ROG Maximus XII Extreme includes the new Fan Extension Card II, which adds six headers that area controllable via FanXpert 4. The card features three temperature-sensor headers to complement the one available onboard and also comes with three thermistors that can be affixed to different components. In addition to supplying extra headers for cooling, it provides three RGB headers to provide illuminated effects for your RGB fan.
ROG provides the tools needed to optimize your system quickly and easily. For those who relish complete control, the UEFI BIOS offers advanced customization options so you can tweak every aspect of your system.
Performance Level Up
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Maximus XII Extreme system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn’t ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to the software. Maximus XII Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

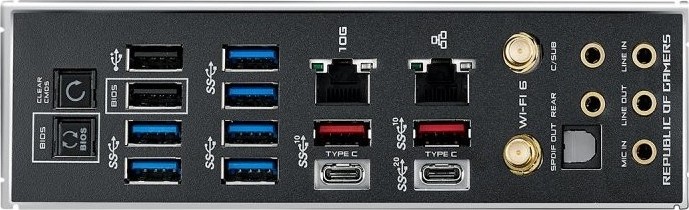

ROG Maximus XII Extreme offers advanced connectivity, including WiFi 6 (AX201) and dual Ethernet with intel® 2.5G Ethernet and 10G port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports Intel® VROC technology to maximize the speed of your SSD for faster load times, and SupremeFX onboard audio provides superb sound while saving a PCIe slot.
Storage
Maximus XII Extreme supports up to four onboard M.2 drives to maximize storage. Two can be found on the ROG DIMM.2 module, next to the memory slots, and supports drives as long as 110 mm. The other two can be found under the aluminum heatsink cover. PCIe support ensures compatibility with the very latest NVMe SSDs for ultrafast transfer speeds.
ROG DIMM.2
The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating the aesthetics.
SupremeFX
ROG SupremeFX audio technology has leveled up, delivering an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op-amp for high gain with low distortion — all to deliver audio that envelops you as never before.
In addition to extraordinary performance, Maximus XII Extreme provides extensive styling and customization options to let you build a system that truly stands apart.
Grow your gaming world
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control, and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
OLED
ROG Maximus XII Extreme motherboards is equipped with LiveDash, a built-in 2” OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, OLED shows key progress stats in simple language, using traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds, or information from the Water-Cooling Zone. You’re also able to customize the default OLED GIF, so it’ll display your own image or animation.
Armory Crate
Armory Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
