Specifications
Model
ROG STRIX B850-F GAMING WIFI
CPU
AMD Socket AM5 (Supports Ryzen™ 9000/8000/7000 Series)
Chipset
AMD B850
Memory
4x DIMM DDR5, up to 192GB, Supports 8000+MT/s (OC), ECC/Non-ECC, Dual Channel
Graphics
1x DisplayPort (8K@30Hz), 1x HDMI™ (4K@60Hz), dependent on CPU specifications
Expansion Slots
1x PCIe 5.0 x16 (Q-Release Slim), 1x PCIe 4.0 x16 (x4 mode, shared with M.2_3)
Storage
4x M.2 slots, 2x SATA 6Gb/s ports, AMD RAIDXpert2 (RAID 0/1/5/10 based on CPU series)
Ethernet
Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & BT
Wi-Fi 7 (2.4/5/6GHz), Bluetooth® 5.4
Rear USB
12 ports: 1x USB 20Gbps (Type-C®), 3x USB 10Gbps, 4x USB 5Gbps, 4x USB 2.0
Front USB
7 ports: 1x USB 10Gbps (Type-C®), 1x USB 5Gbps header (2 ports), 2x USB 2.0 headers (4 ports)
Audio
ROG SupremeFX 7.1 Surround, ALC4080 codec, Dolby Atmos, 32-bit/384kHz playback, premium features

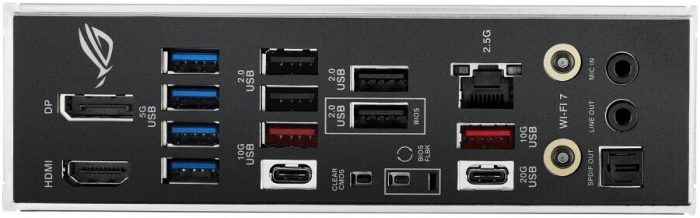

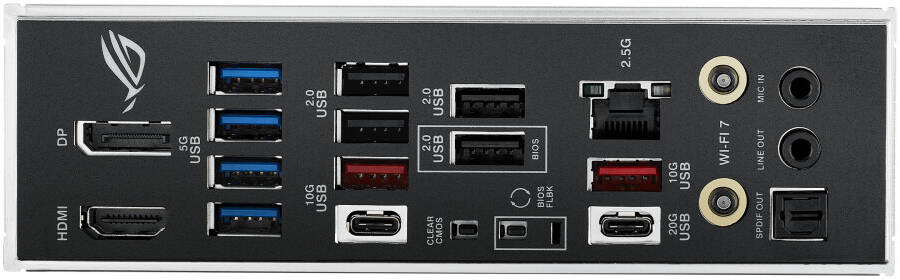

Back I/O Ports
1x DisplayPort, 1x HDMI™, 1x Wi-Fi module, 1x Intel® 2.5Gb Ethernet, 2x Audio jacks, Optical S/PDIF
Internal I/O
4x M.2 slots, 2x SATA ports, USB headers, fan/cooling headers, Thunderbolt™ (USB4®) header
Special Features
M.2 Q-Latch, Q-Release, Q-DIMM, Aura Sync, Extreme Engine Digi+, pre-mounted I/O shield
Software
ROG CPU-Z, Armoury Crate, Fan Xpert 4, Adobe Creative Cloud (Trial), Norton 360 (Trial)
UEFI BIOS
EZ DIY features, 256 Mb Flash ROM
Accessories
2x SATA cables, ASUS WiFi Q-Antenna, ROG keychain, M.2 Q-Latch package, ROG Strix stickers
OS Compatibility
Windows 11
Form Factor
ATX (12″ x 9.6″)

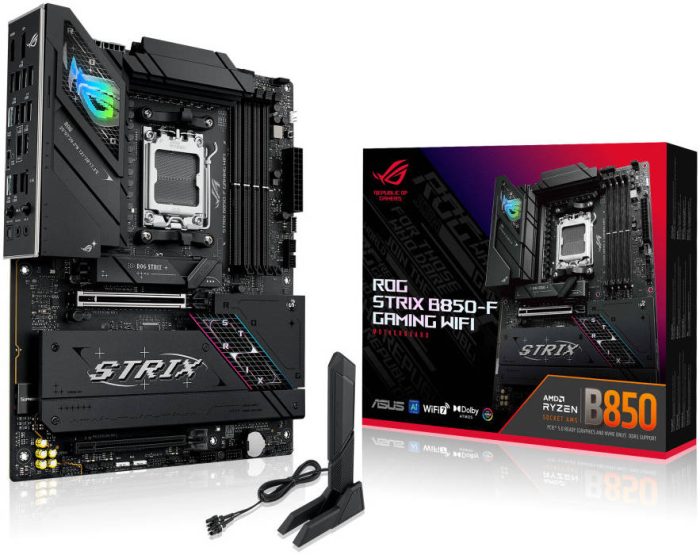

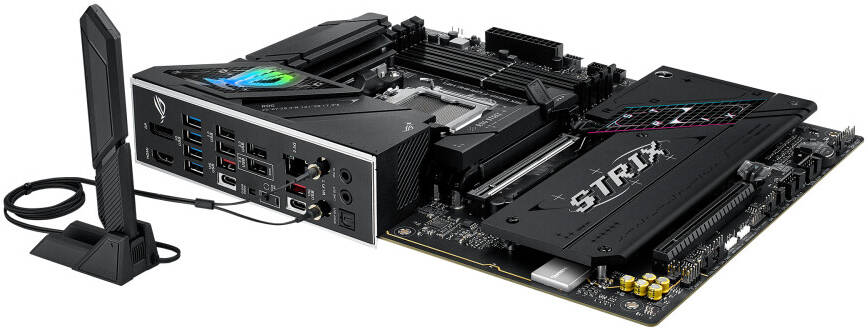

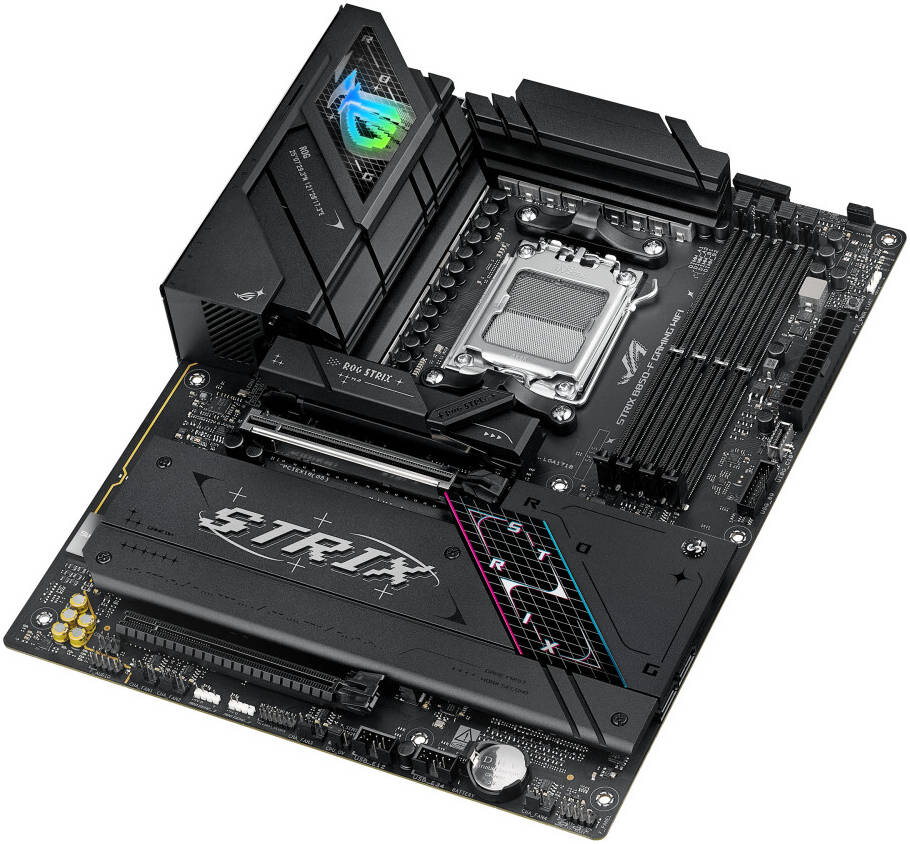

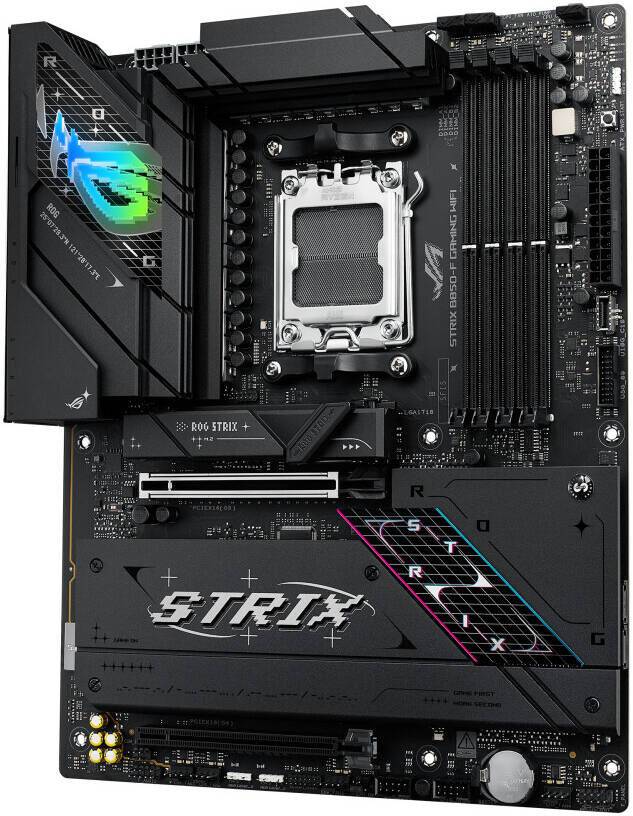

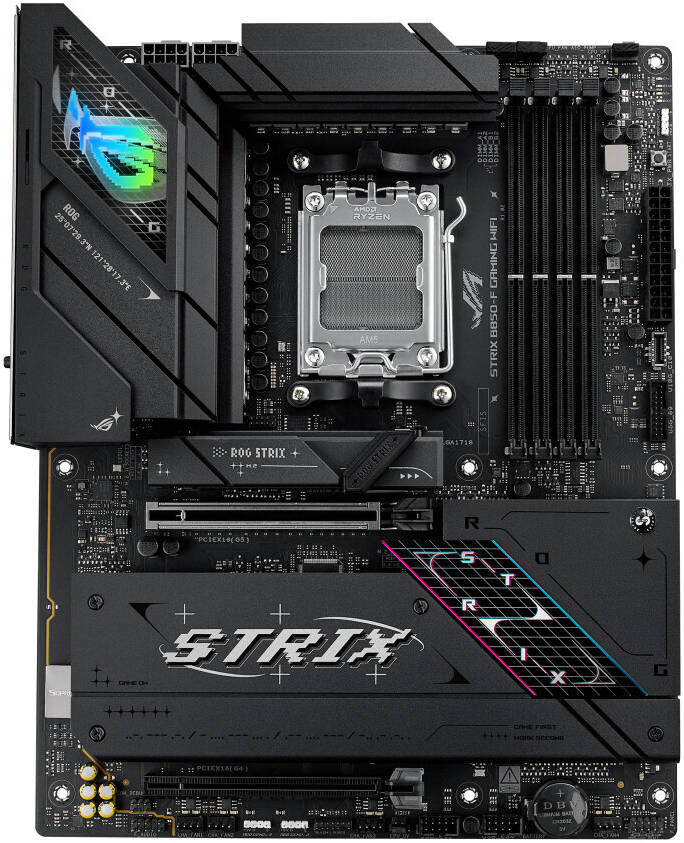

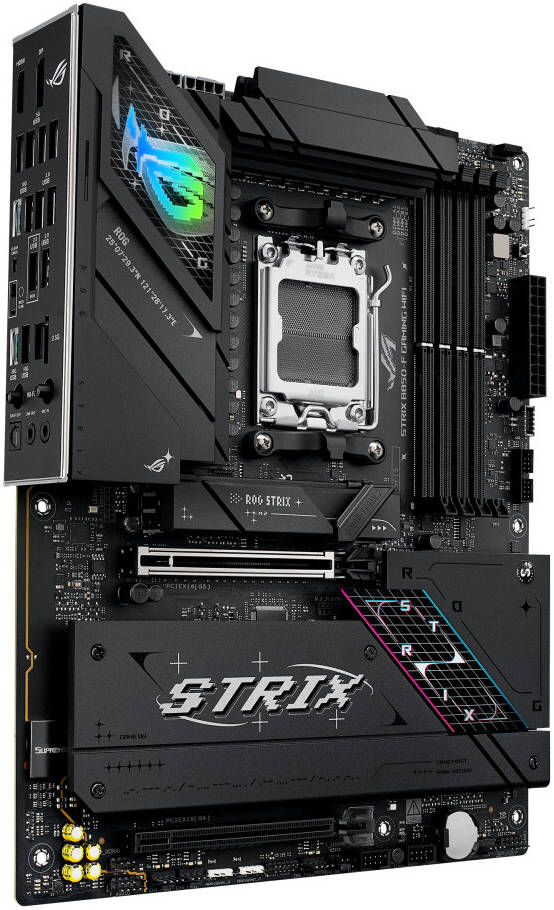

ASUS ROG Strix B850-F Gaming WiFi AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT Connectivity | 90MB1J70-M0EAY0
$320.00
AI Networking II
ROBUST POWER SOLUTION 16 + 2 + 2 power solution rated for up to 80A per stage
WIFI 7
GEN 5 SUPPORT Two Onboard M.2 Slots
DDR5 Max. 192GB, AEMP
| Brand |
ASUS |
|---|---|
| Model |
ROG Strix B850-F Gaming WiFi |
| Date first available |
14 January; 2025 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
2.00 Kg |
| Shipping Dimensions |
7.00 cm x 36.00 cm x 27.51 cm |
| Chipset |
AMD B850 |
| M.2 Slots |
4 |
| Maximum Memory |
192 GB |
| Memory Slots |
4 |
| PCI Express x16 |
2 |
| Socket |
AM5 |
| Memory Speed |
— |
