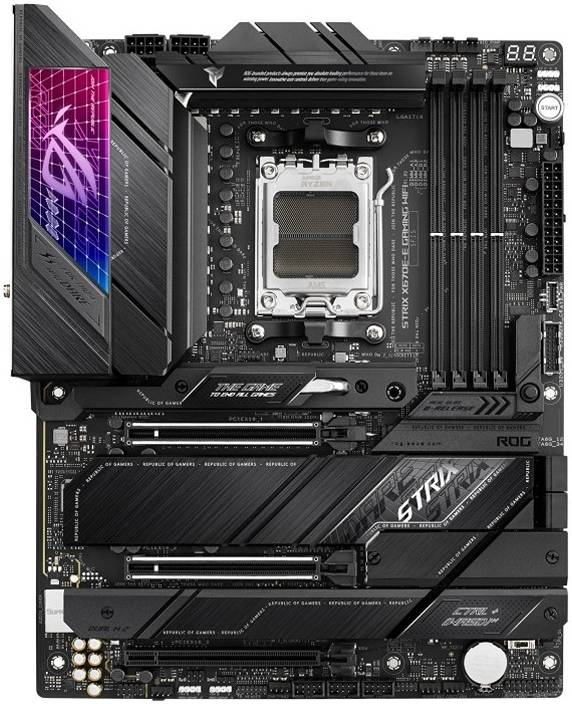

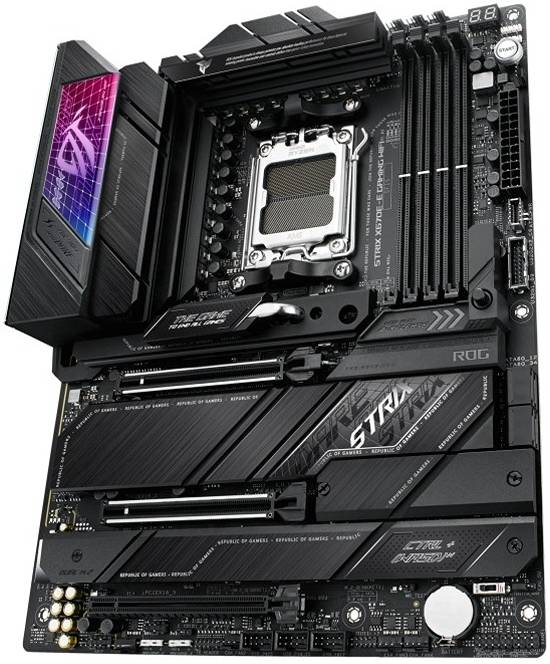

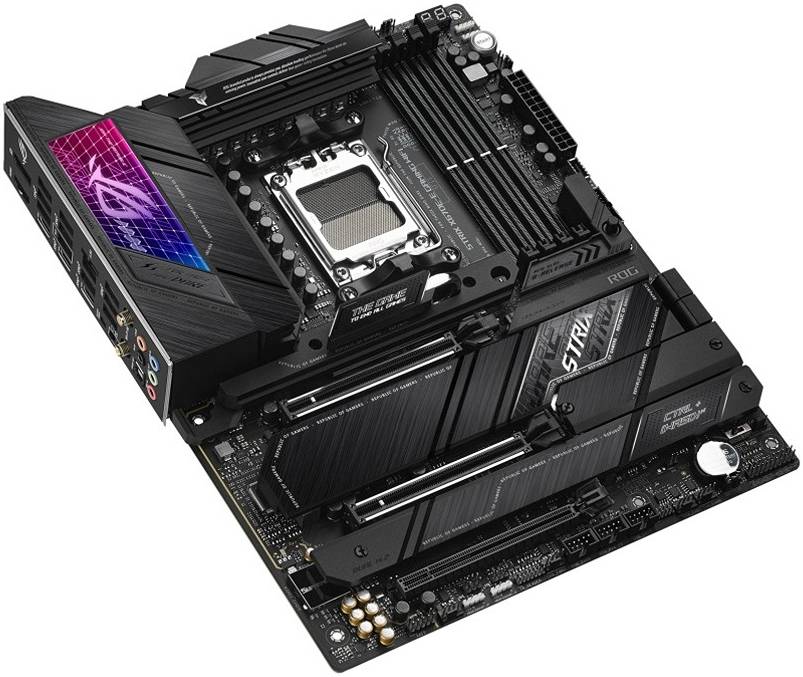

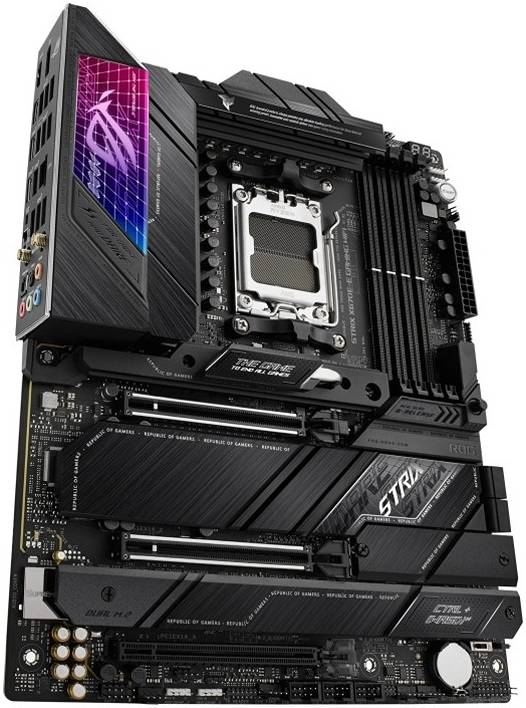

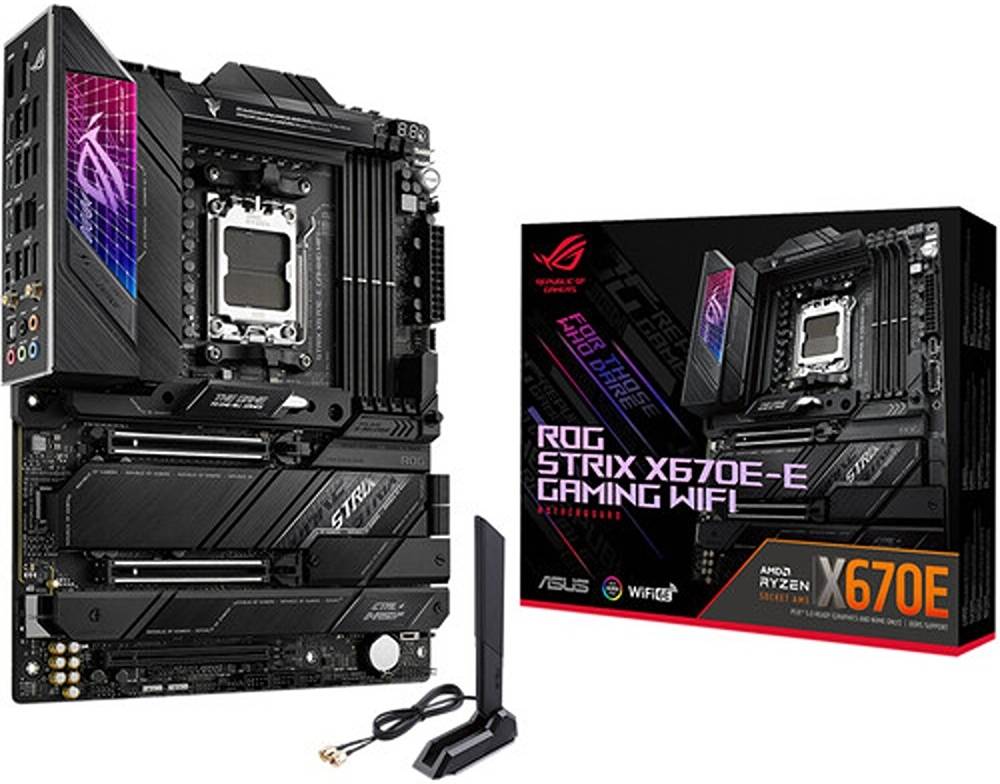

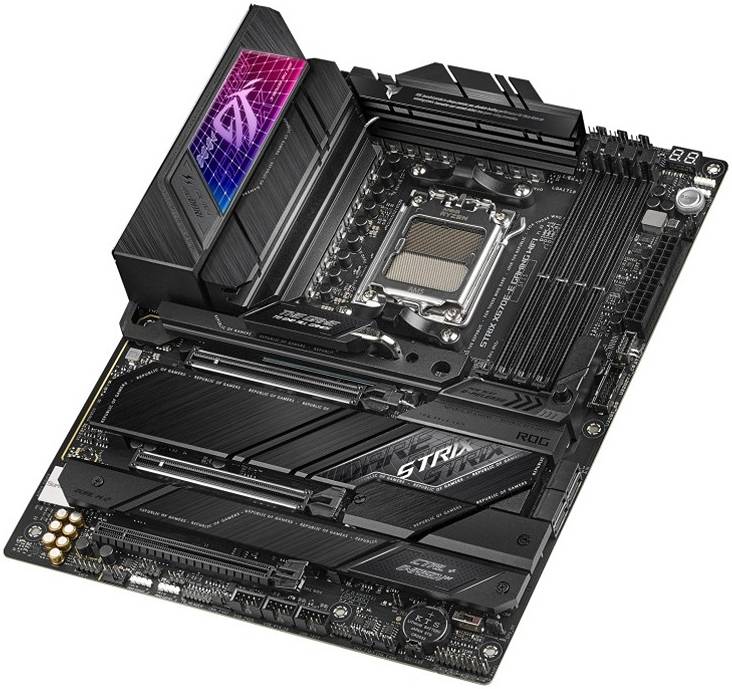

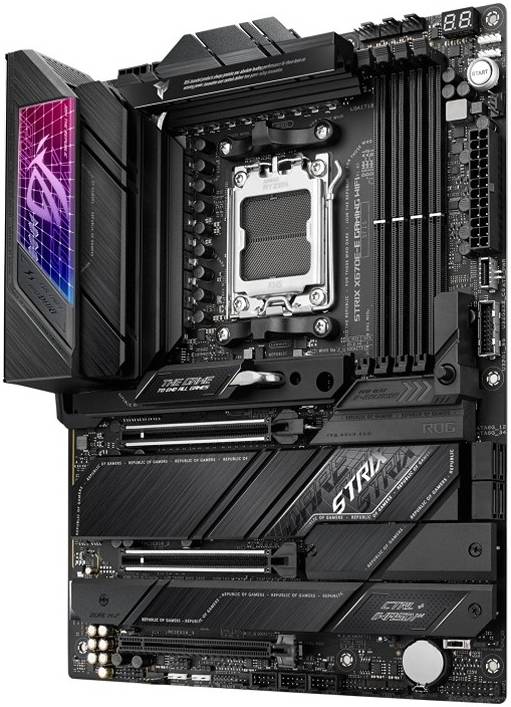

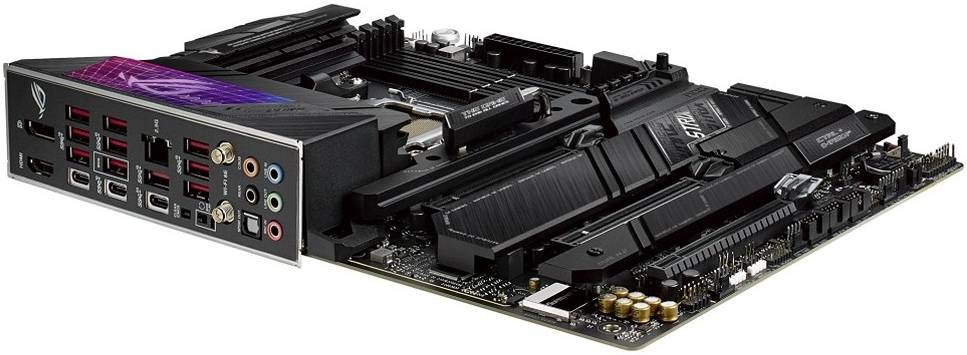

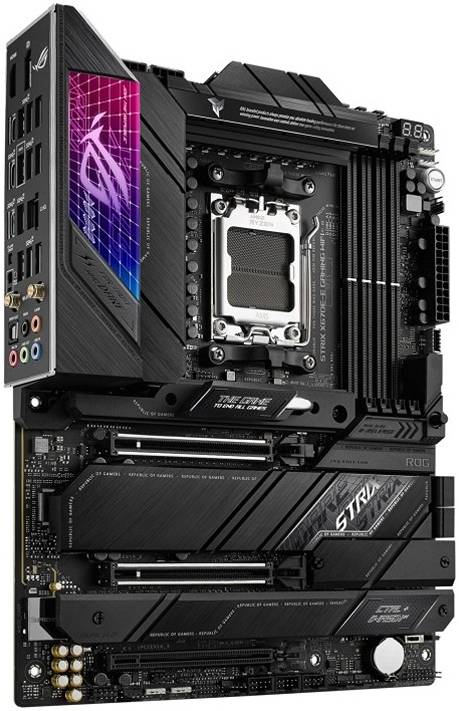

ASUS ROG STRIX X670E-E GAMING WIFI ATX Motherboard, AMD X670 Chipset, AM5 Socket, Intel 2.5 Gb Ethernet, 4xDual Channel DDR5-6400, 128GB Max Memory, 4xSATA 6Gb/s, PCIe 5.0, HDMI/DP | 90MB1BR0-M0EAY0

The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen™ 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.
ATX Form Factor
AMD X670 Chipset
Socket AM5
4 x Dual-Channel DDR5-6400 (OC)
4 x M.2 Slot | 4 x SATA III
ROG SupremeFX 7.1 Surround Sound
Intel 2.5 Gb Ethernet
Wi-Fi 6E (802.11ax) | Bluetooth 5.2
ASUS Aura Sync RGB Lighting
ROG STRIX X670E-E GAMING WIFI
The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled.
PCIE 5.0
Blazing fast storage is at your command with three PCIE 5.0 M.2 slots and one PCIE 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots, which include a SafeSlot to support heavy graphics cards and a Q-release (top slot only) for easy upgrades.
DYNAMIC OC SWITCHER
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle.
CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control the clock, power, and thermals in creative new ways. In its simplest form, you can maximize the base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as the temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the Strix X670E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
COOLING
Two thick VRM heatsinks are connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of the high-performance AMD Ryzen 7000 Series processors.
High-Conductivity Thermal Pads
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
NETWORKING
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
Intel 2.5G Ethernet
Onboard Intel 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Strix X670E-E Gaming WiFi’s SupremeFX implementation features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving a wide variety of gaming headsets and high-fidelity headphones.
ID Design
The ROG Strix X670E-E Gaming WiFi makes quite a statement compared to its slightly more subdued brethren. A high contrast monochromatic colorway includes silver metal components and white design accents on top of a black PCB and dark metallic heatsinks. Aggressive angles and a splash of customizable RGB on the I/O shroud help it stand out even further from the crowd.
AURA SYNC
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Specification
Chipset
AMD X670
CPU Socket
AM5

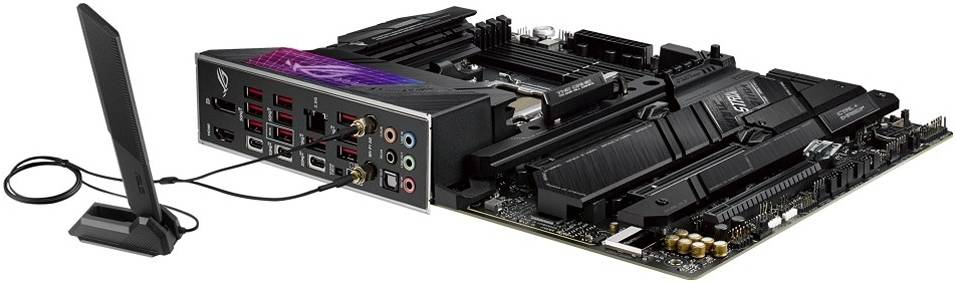

Back Panel I/O
USB
1 x USB 3.2 Gen 2×2 Type-C
2 x USB 3.1/3.2 Gen 2 Type-C
10 x USB 3.1/3.2 Gen 2 Type-A
Thunderbolt
None
Display
1 x DisplayPort
1 x HDMI
Audio
5 x 1/8″ / 3.5 mm
1 x S/PDIF
Ethernet / Controller
1 x Intel I225-V 2.5Gigabit
Wi-Fi Antenna
1 x Connector
Buttons
BIOS Flashback
Memory
Memory Slots
4 x 288-Pin
Memory Support
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6400 MHz
Maximum Capacity
128 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC, ECC Unbuffered
Storage Expansion
SATA
4 x SATA III
M.2
2 x M Key 2242, 2260, 2280 (PCIe 5.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support
No
RAID Support
None
Internal I/O
Expansion Slots
2 x PCIe 5.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
USB
1 x 3.2 Gen 2×2 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
3 x 2.0 Header (Supports 6 USB-A Port)
Air Cooling
2 x 4-Pin CPU
5 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
2 x 8-Pin CPU
Security
Chassis Intrusion
LED Header
4 x RGB
Audio
None
Diagnostics
Clear CMOS
BIOS
ROM
256 Mb
Front Panel I/O
I/O Connection Headers
USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio
Audio Codec
SupremeFX (7.1-Channel)
Wireless
Bluetooth
5.2
Wi-Fi
Wi-Fi 6E (802.11ax) (MU-MIMO)
