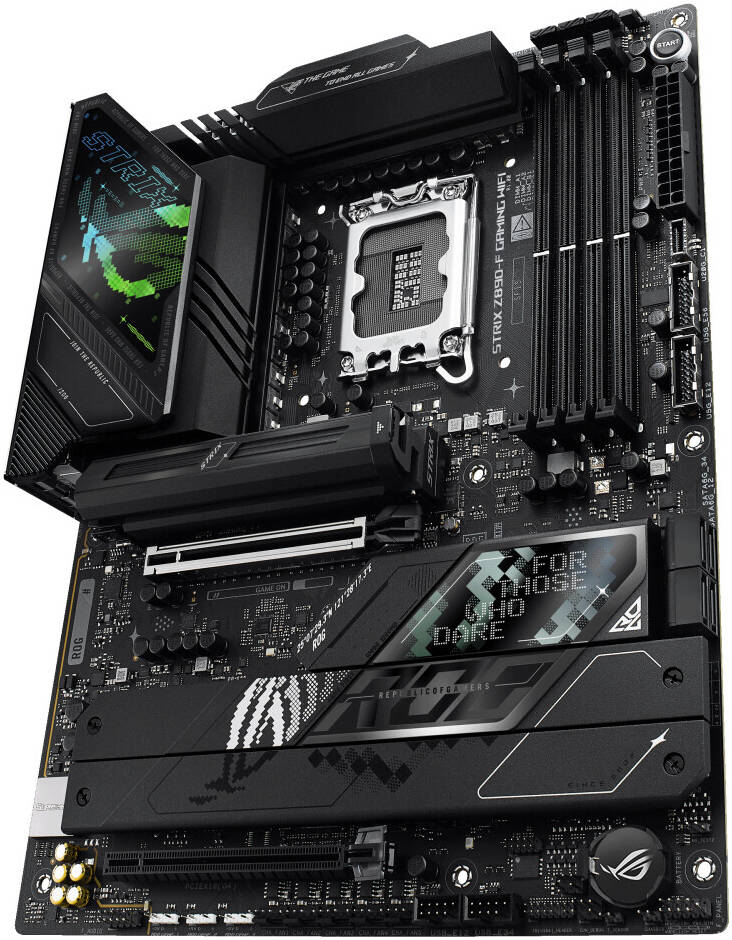

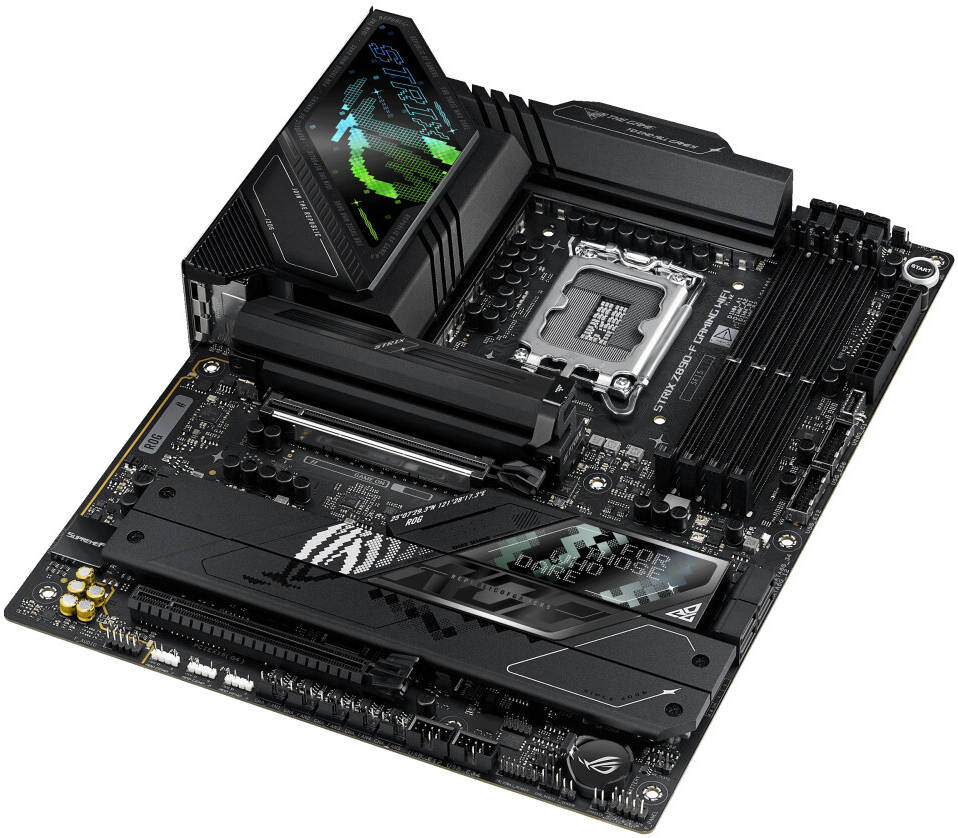

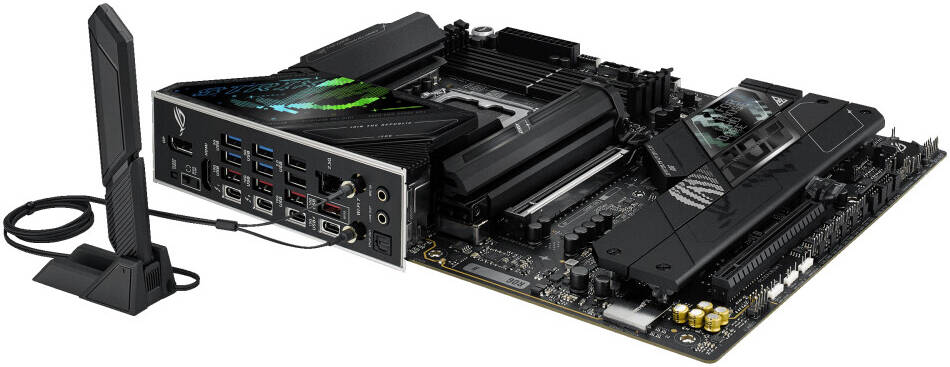

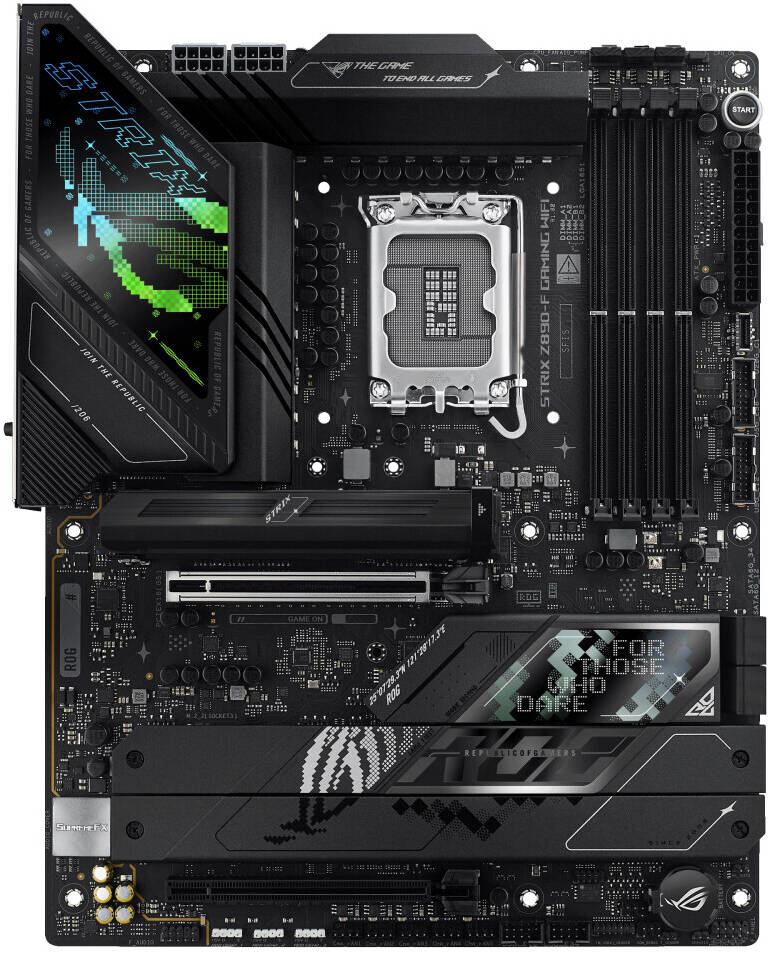

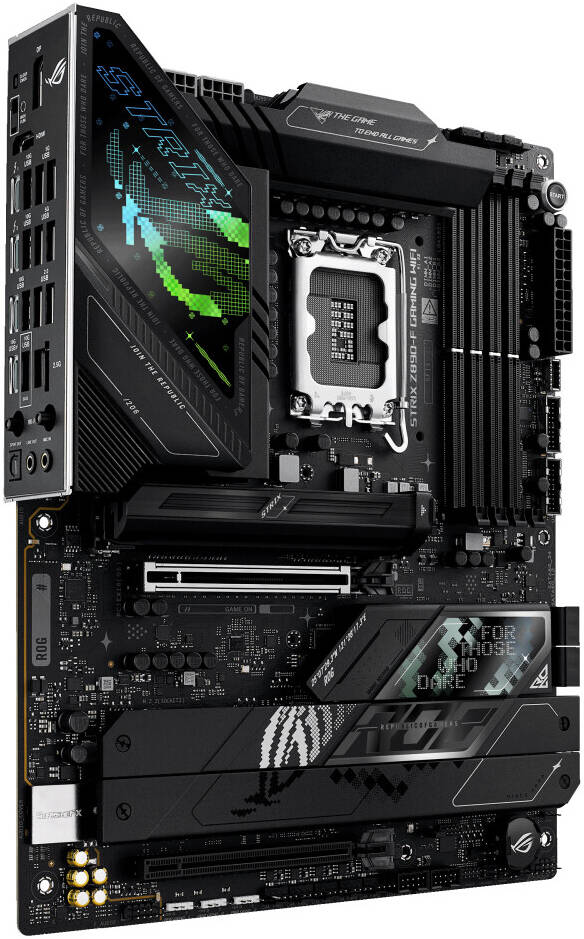

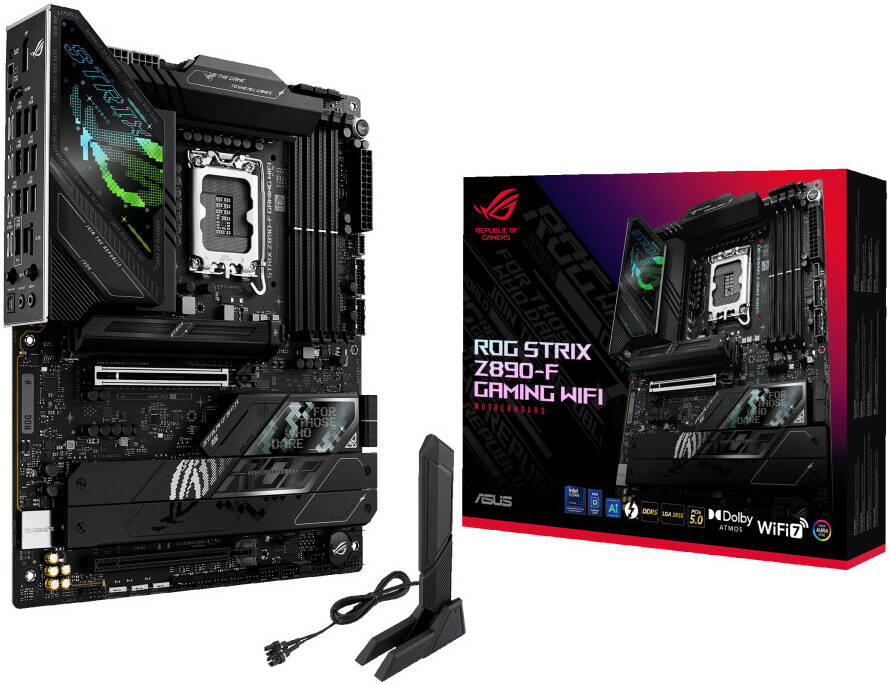

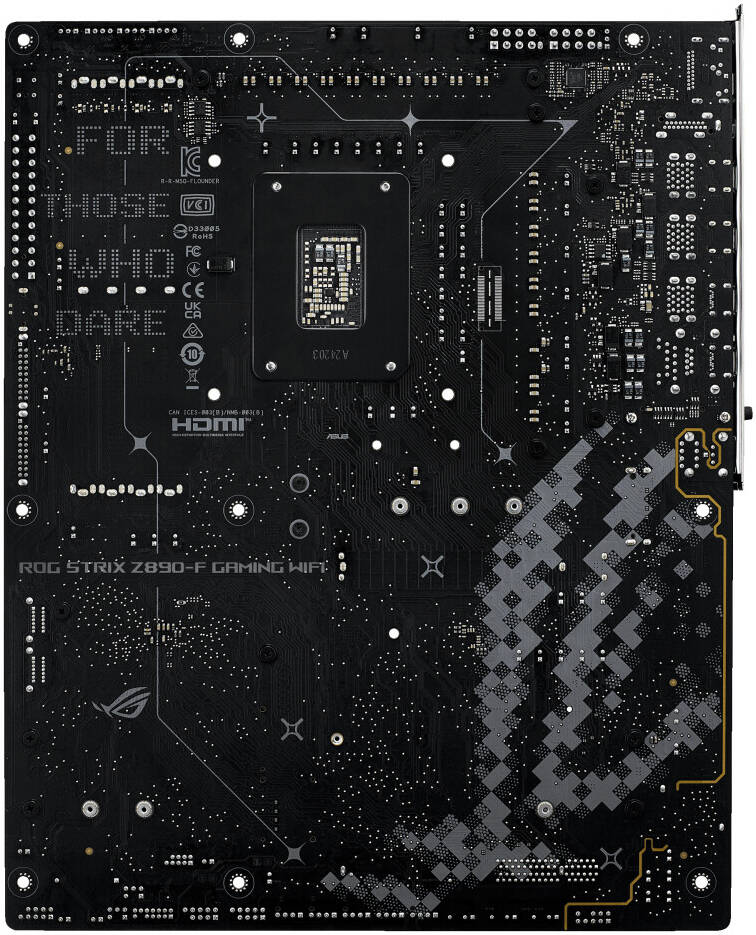

ROG STRIX Z890-F GAMING WIFI
Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+1+2+2 power stages, DDR5 slots, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe® 5.0 NVMe® SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, USB 10Gbps Type-C® rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
Specifications
CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Graphics
1 x DisplayPort**
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
Graphics specifications may vary between CPU types. Please refer to www.intel.com for updates.
Expansion Slots
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band**
Bluetooth® v5.4***
Wi-Fi features may vary depending on the OS.
USB
Rear USB (Total 14 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
Front USB (Total 9 ports)
1 x USB 20Gbps connector (1 x USB Type-C®)
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
The LINE OUT port on the rear panel does not support spatial audio.

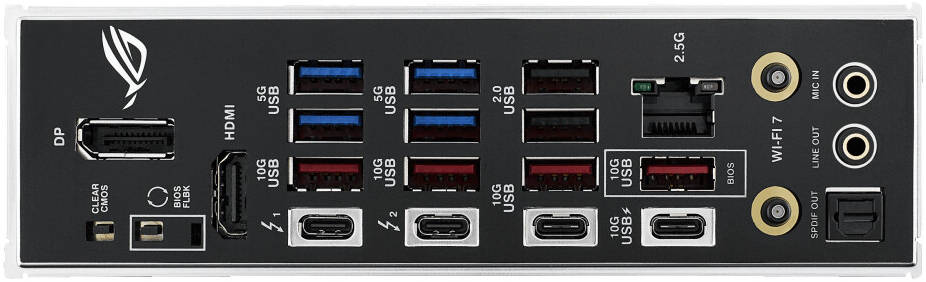

Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
1 x DisplayPort
1 x HDMI™ port
1 x Intel® 2.5Gb Ethernet port
Internal I/O Connectors
1 x 4-pin CPU Fan header
1 x 24-pin Main Power connector
5 x 4-pin Chassis Fan headers
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Special Features
Extreme Engine Digi+
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Software Features
ROG Exclusive Software
ASUS Exclusive Software
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 11 (22H2 & later)
Form Factor
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
ASUS ROG Strix Z890-F Gaming Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slot, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16 Slot, 5x M.2 Slots | 90MB1I40-M0EAY0
$480.00
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)
Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
Robust Power Solution: 16(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
Latest M.2 Support: One PCIe® 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI™ 2.1 and DisplayPort™ 1.4
High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet
DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
| Brand |
ASUS |
|---|---|
| Model |
ROG STRIX Z890-F GAMING WIFI |
| Date first available |
23 October; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
1.00 Kg |
| Shipping Dimensions |
5.50 cm x 27.00 cm x 26.50 cm |
| Chipset |
Intel Z890 |
| M.2 Slots |
5 |
| Maximum Memory |
192 GB |
| Memory Slots |
4 |
| PCI Express x16 |
1 |
| Socket |
LGA 1851 |
| Memory Speed |
— |
