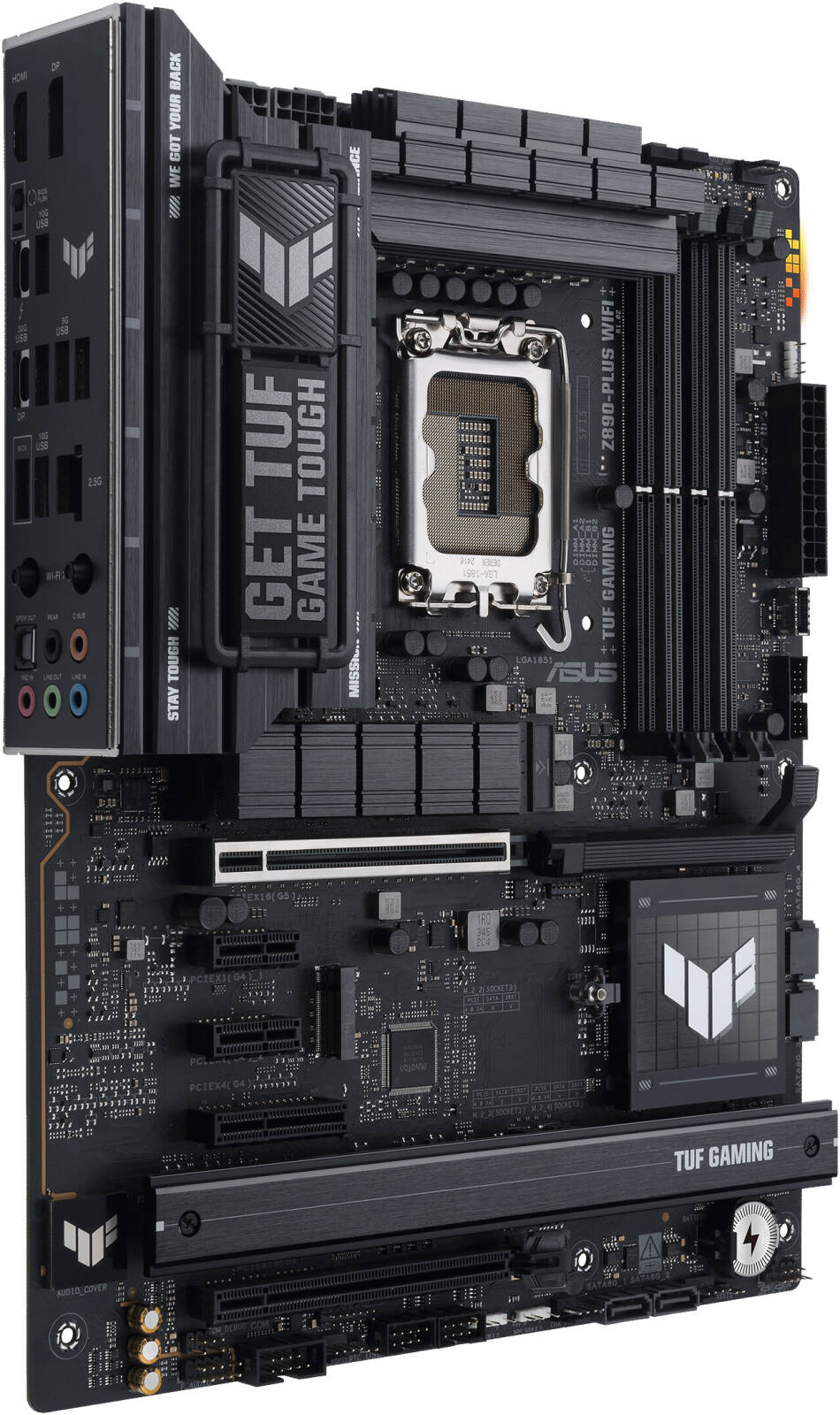

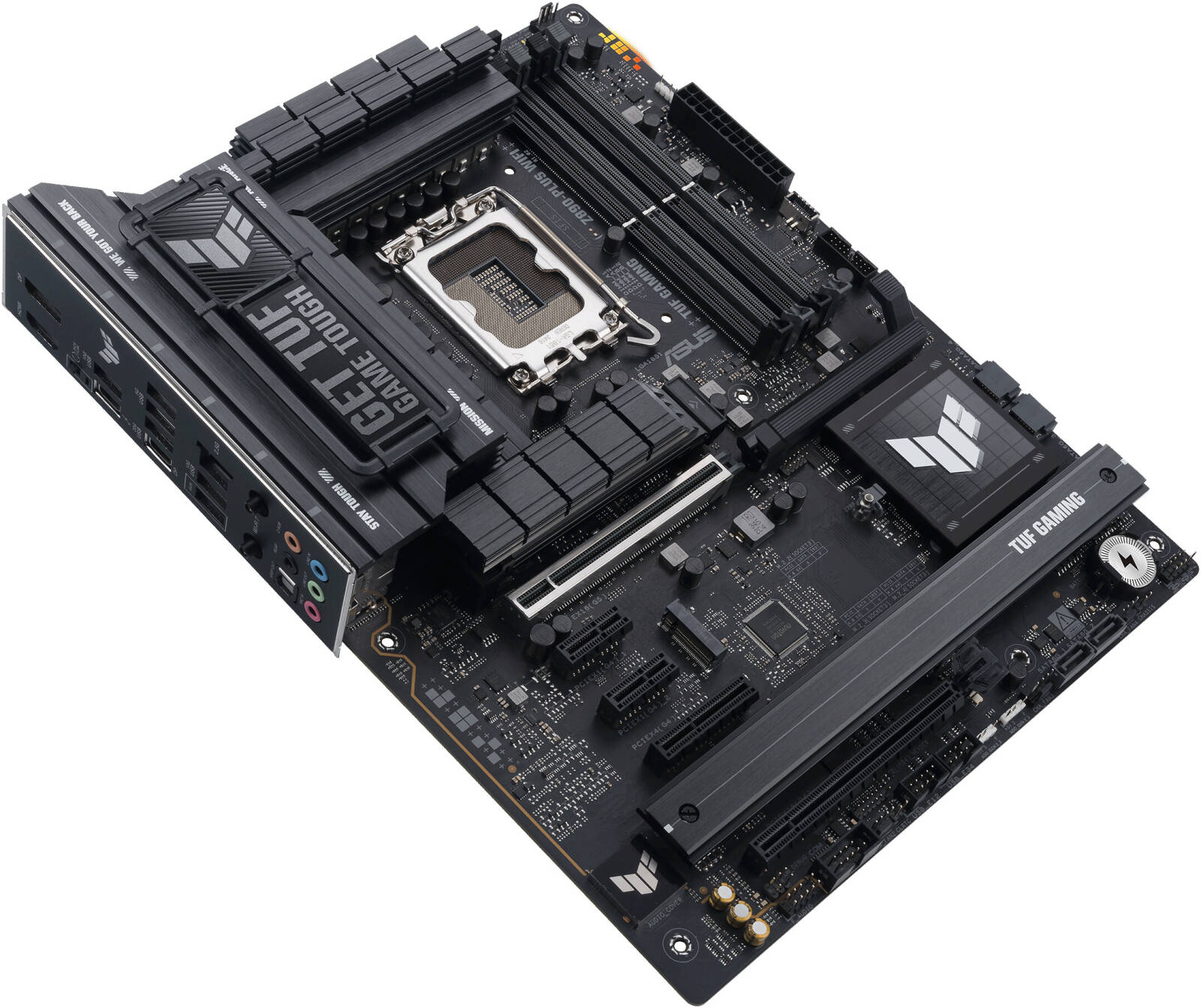

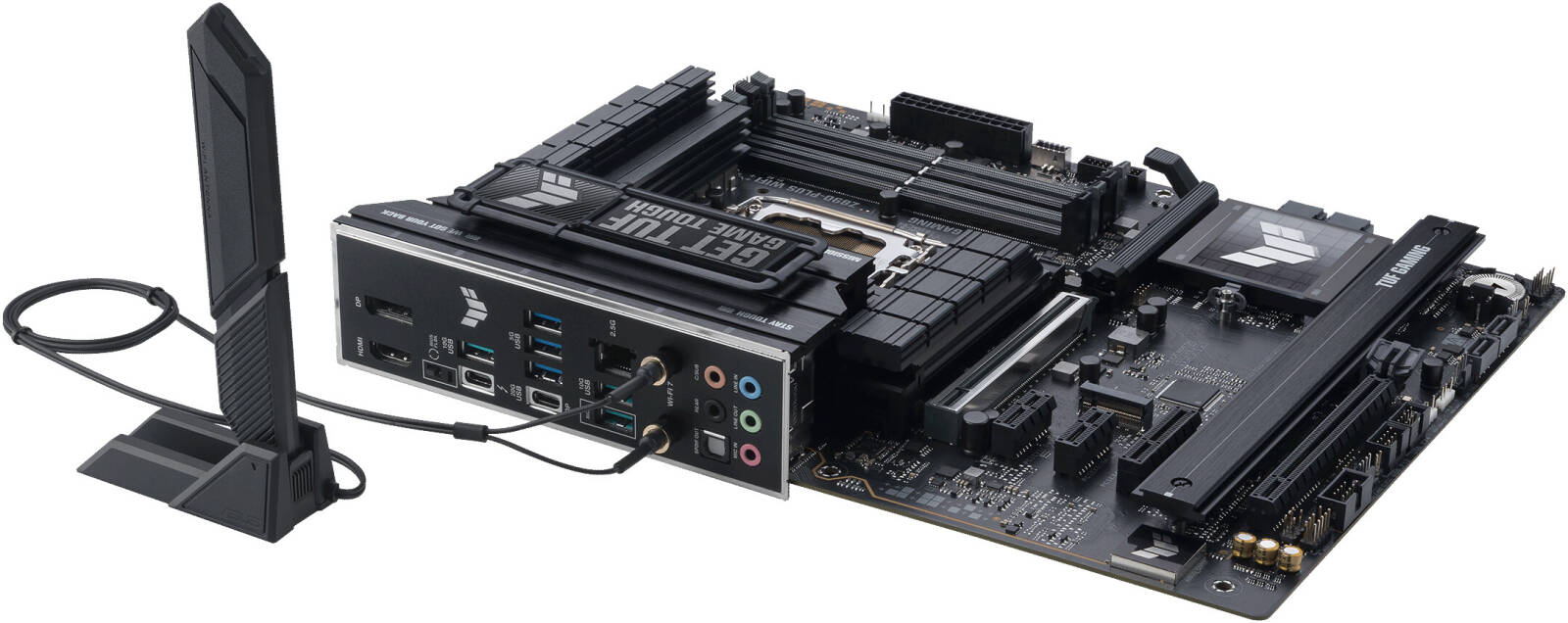

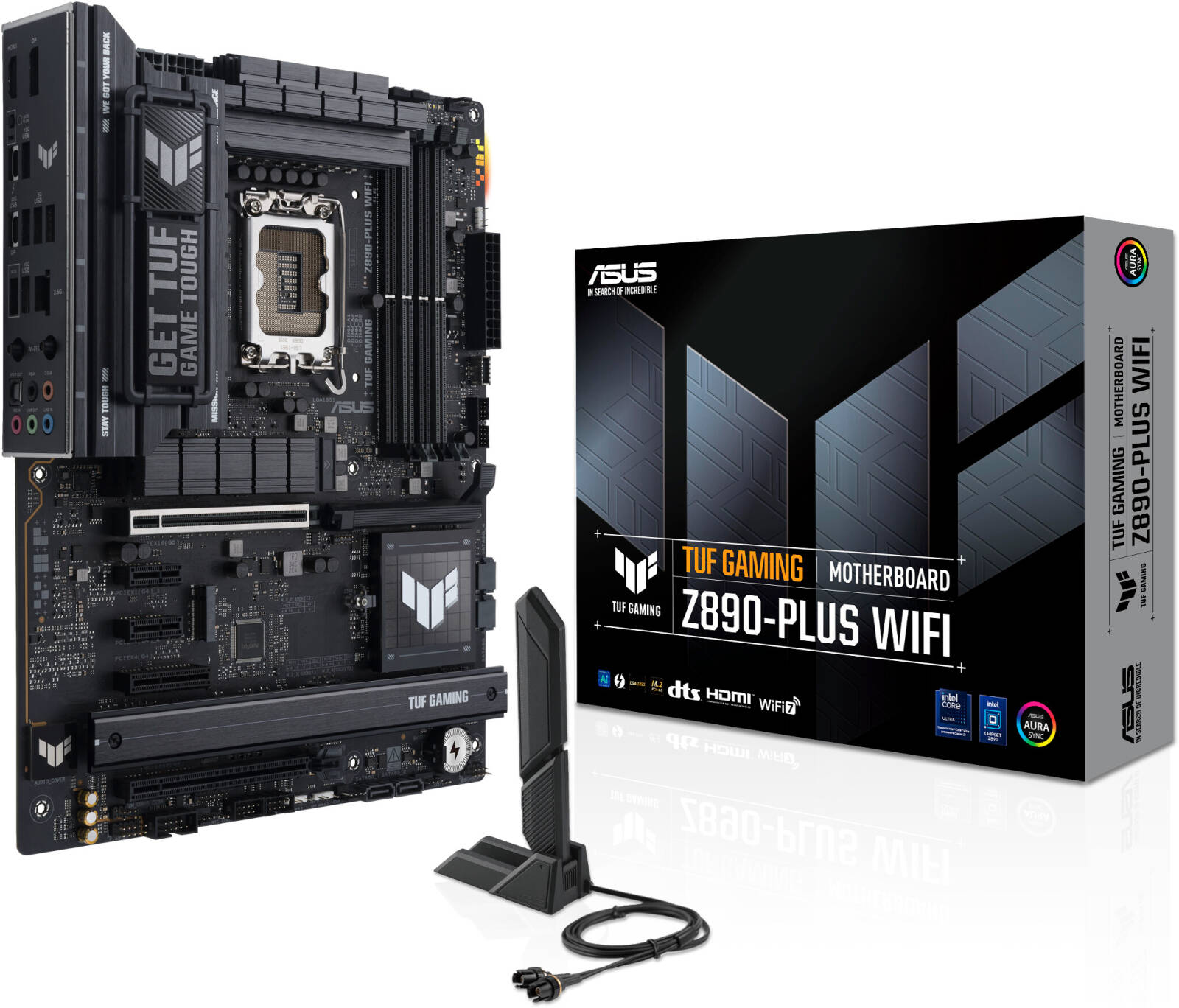

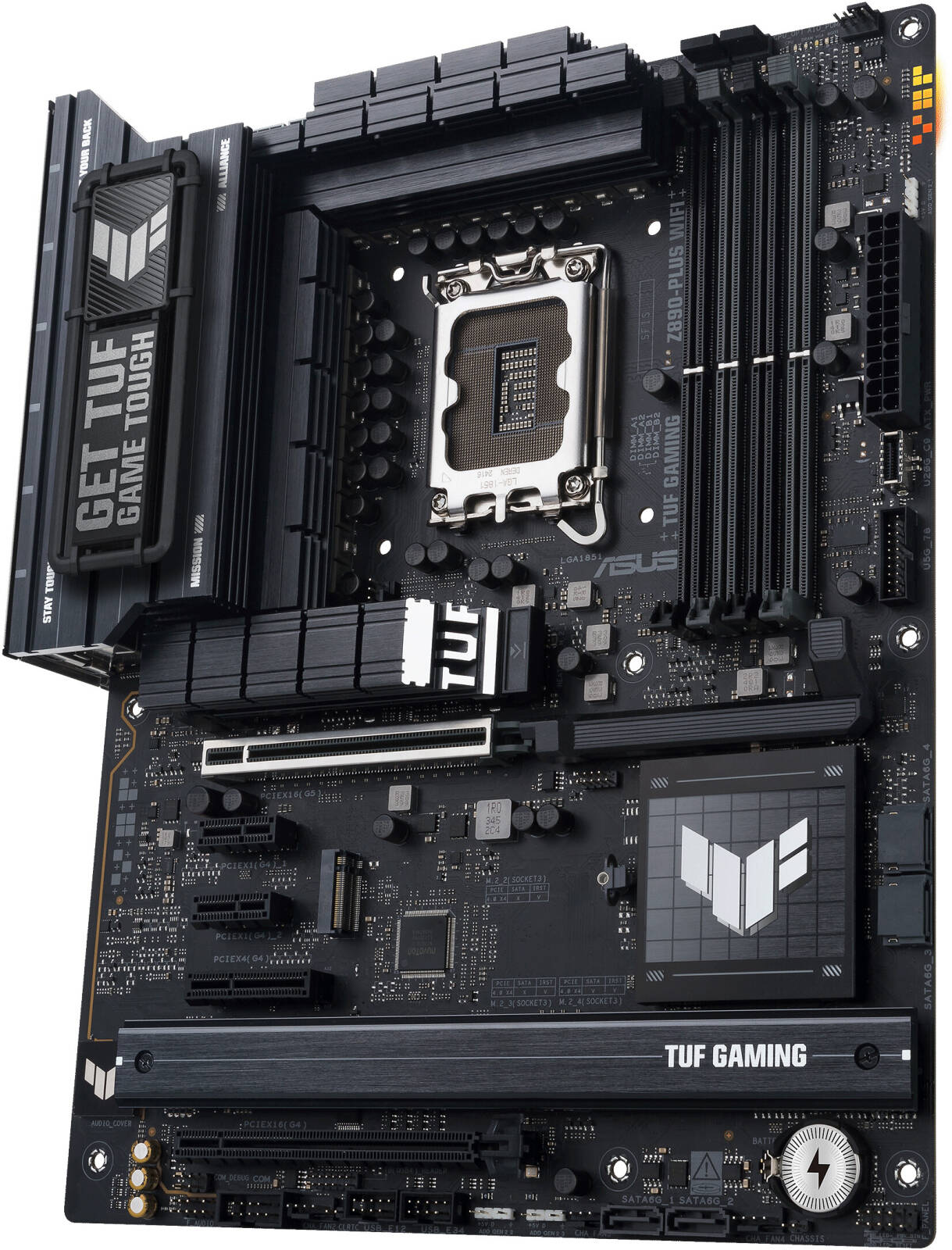

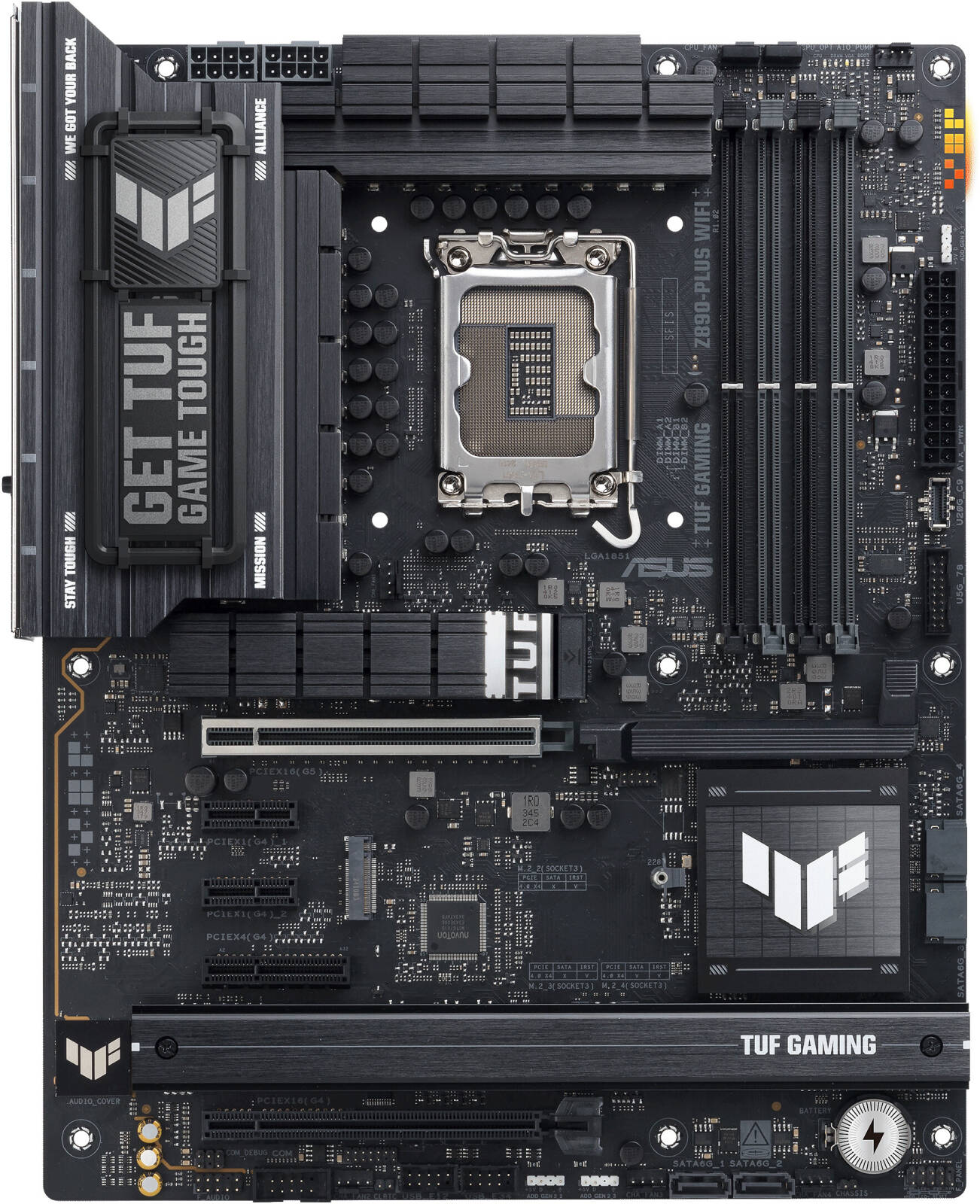

TUF GAMING Z890-PLUS WIFI
ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
Model
TUF GAMING Z890-PLUS WIFI
CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel® Turbo Boost Max Technology 3.0 support depends on CPU types.
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)
Supported memory types and configurations vary based on CPU.
Graphics
1 x DisplayPort (max. 4K@60Hz)
1 x HDMI™ port (4K@60Hz)
1 x Intel® Thunderbolt™ 4 port (supports DisplayPort and Thunderbolt™ video outputs)
1 x USB 20Gbps port (USB Type-C® supports DisplayPort video output)
Graphics specifications vary by CPU types.
Expansion Slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
Check PCIe bifurcation table on support site.
Storage
Total: 4 x M.2 slots, 4 x SATA 6Gb/s ports
M.2_1 (Key M, PCIe 5.0 x4 mode)
M.2_2 (Key M, PCIe 4.0 x4 mode)
M.2_3 (Key M, PCIe 4.0 x4 mode)
M.2_4 (Key M, PCIe 4.0 x4 & SATA modes)
Supports RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth
Wi-Fi 7 (2×2 Wi-Fi 7, 802.11be)
Supports 2.4/5/6GHz bands, up to 2.9Gbps
Bluetooth® v5.4
Wi-Fi features may vary by OS.
USB
Rear (Total 8 ports):
1 x Thunderbolt™ 4 (USB Type-C®)
1 x USB 20Gbps (USB Type-C®)
3 x USB 10Gbps (Type-A)
3 x USB 5Gbps (Type-A)
Front (Total 7 ports):
1 x USB 20Gbps connector (USB Type-C®)
1 x USB 5Gbps header
2 x USB 2.0 headers
USB Type-C® power delivery max. 5V/3A
Audio
Realtek ALC1220P 7.1 Surround Sound CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High-quality 120 dB SNR playback output, 113 dB SNR recording input
Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers

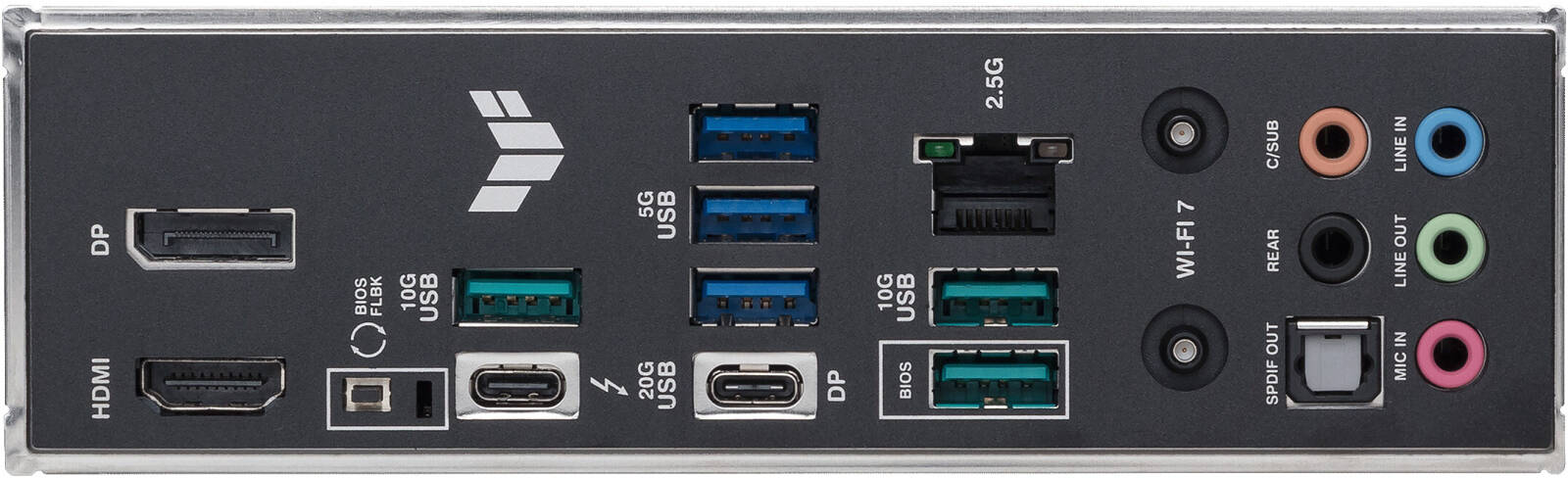

Back Panel I/O Ports
1 x Thunderbolt™ 4 USB Type-C®
1 x USB 20Gbps (USB Type-C® with DP Alt mode)
3 x USB 10Gbps (Type-A)
3 x USB 5Gbps (Type-A)
1 x DisplayPort
1 x HDMI™
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related:
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related:
4 x M.2 slots, 4 x SATA 6Gb/s ports
Special Features
ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-LED indicators
ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
ASUS EZ DIY: BIOS FlashBack™ button, CPU Socket lever protector
Software Features
ASUS Exclusive Software:
Armoury Crate, Aura Creator, Fan Xpert 4, Power Saving
Others:
ASUS DriverHub, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Free Trial)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide package, 1 x Screw package for M.2 SSD
Documentation: 1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
Sale
ASUS ROG Strix Z890-F Gaming Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slot, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16 Slot, 5x M.2 Slots | 90MB1I40-M0EAY0
Original price was: $340.00.$240.00Current price is: $240.00.
ASUS ROG Maximus Z890 Hero LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16, 6x M.2 slots | 90MB1ID0-M0EAY0
Original price was: $540.00.$380.00Current price is: $380.00.
ASUS TUF Gaming Z890-Plus Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16, 4x M.2 Slots, Black | 90MB1IQ0-M0EAY0
Original price was: $260.00.$180.00Current price is: $180.00.
ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
ASUS AI Solutions – including AI Advisor, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart assistance, efficient cooling and new levels of ultrafast connectivity.
TurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer’s potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.
