GIGABYTE B850 AI TOP AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 3x M.2 Slots, WiFi & Bluetooth Connectivity | B850-AI-TOP

B850 AI TOP
Specifications
CPU
AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors
Chipset
AMD B850
Memory
DDR5 up to 8600(O.C.), 4x DIMM slots, max 256GB, Dual-channel, ECC & non-ECC support, AMD EXPO™ & XMP support
Onboard Graphics
Integrated AMD Radeon™ Graphics, 1x USB Type-C® (3840×2160@144Hz), 1x HDMI (4096×2160@60Hz)
Audio
Realtek® ALC1220 CODEC, HD Audio, 7.1-channel, S/PDIF Out
LAN
2x Marvell® AQtion AQC113C 10GbE (10G/5G/2.5G/1G/100M)
Wireless
Realtek® Wi-Fi 7 RTL8922AE, Bluetooth 5.4, 11be 160MHz support (Wi-Fi 7 requires Windows 11 SV3)
Expansion Slots
1x PCIe 5.0 x16 (Ryzen 9000/7000), 1x PCIe 4.0 x8 (Ryzen 8000-Phoenix 1), 1x PCIe 4.0 x4 (Ryzen 8000-Phoenix 2), 1x PCIe 4.0 x2 (Chipset)
Storage
3x M.2 (PCIe 5.0/4.0, CPU), 4x SATA 6Gb/s, RAID 0/1/5/10 support (RAID 5 on Ryzen 9000 only)
USB Ports
Rear: 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A (red), 4x USB 3.2 Gen 1, 4x USB 2.0 Internal: 1x USB 3.2 Gen 2×2 Type-C, 4x USB 2.0, 2x USB 3.2 Gen 1
Internal I/O
1x 24-pin ATX, 2x 8-pin ATX 12V, 3x M.2, 4x SATA, RGB headers, USB headers, TPM header, Power/Reset buttons

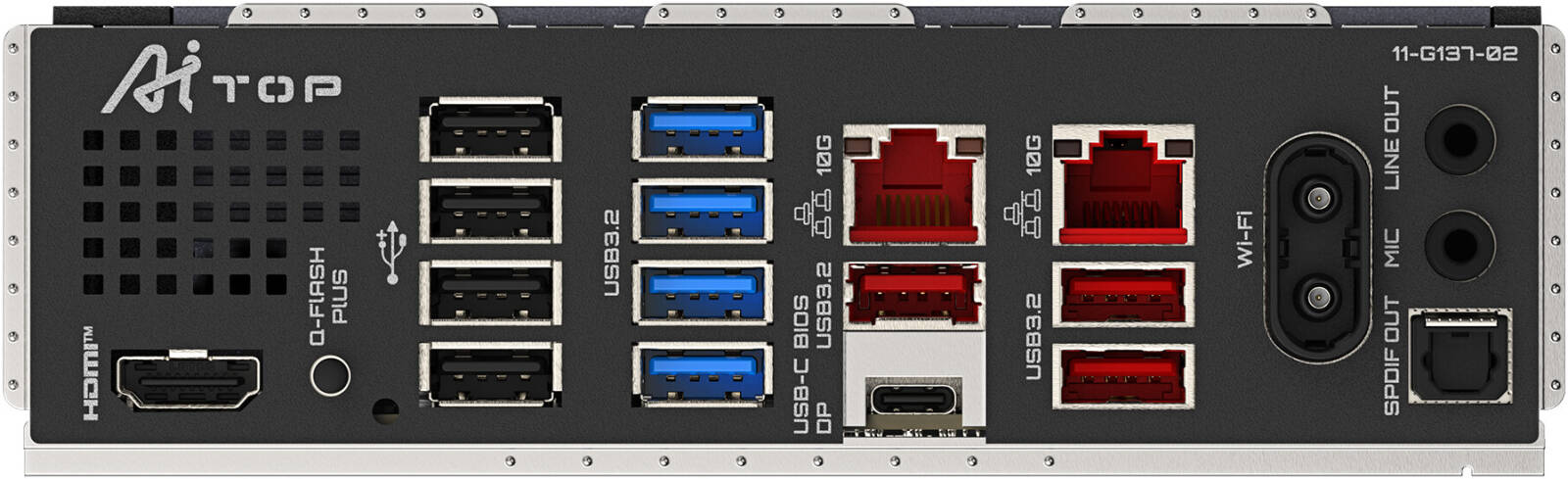

Back Panel
1x Q-Flash Plus button, 1x HDMI, 1x USB Type-C® (DisplayPort), 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x RJ-45, 1x optical S/PDIF, 2x audio jacks
BIOS
256 Mbit flash, AMI UEFI, Q-Flash, Q-Flash Plus, Smart Backup
OS Support
Windows 11 64-bit
Form Factor
ATX (30.5cm x 24.4cm)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan Speed, Water cooling flow, Fan fail warning, Fan speed control
Noise Detection
Yes
Unique Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Bundled Software
Norton® Internet Security, LAN bandwidth management software
