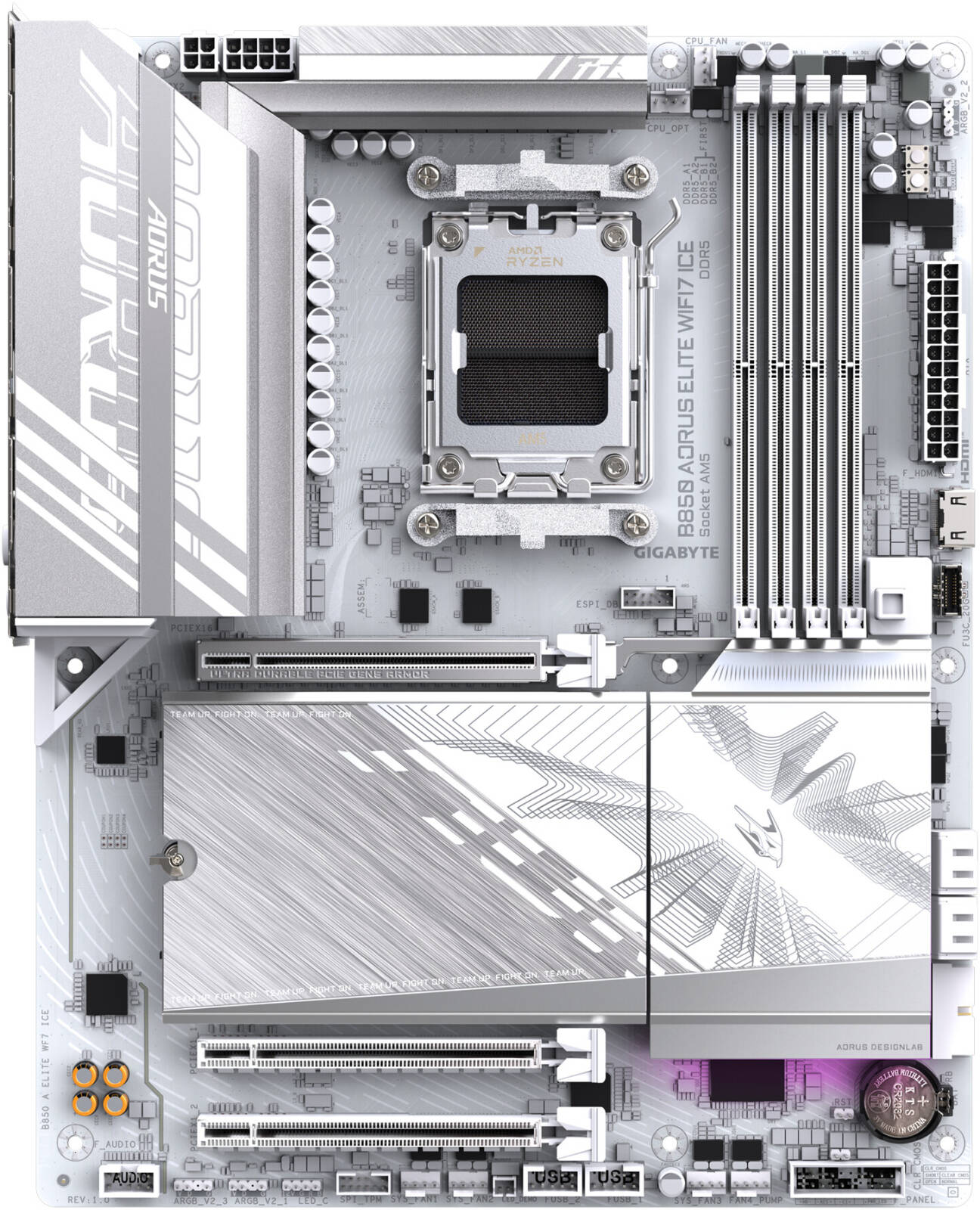

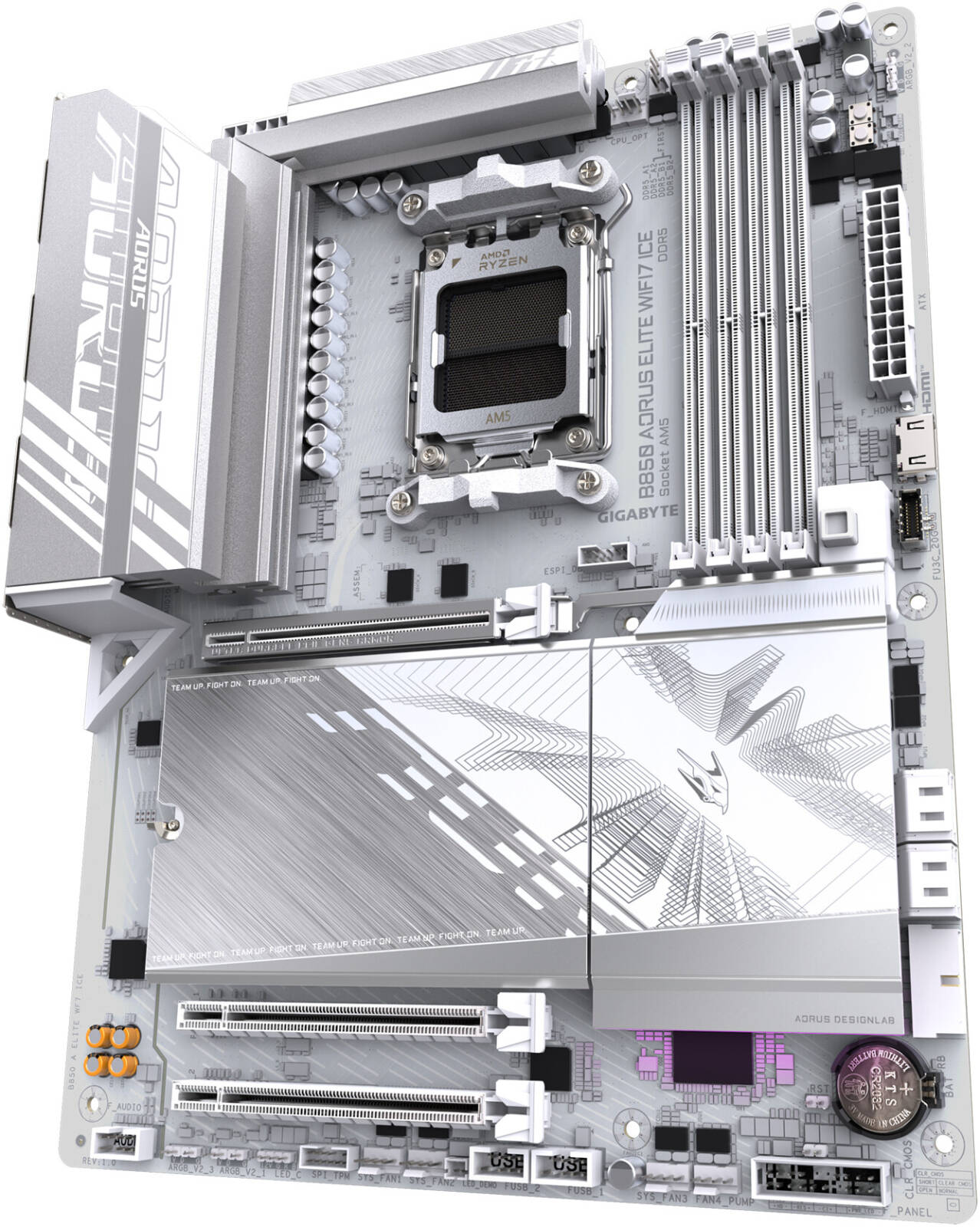

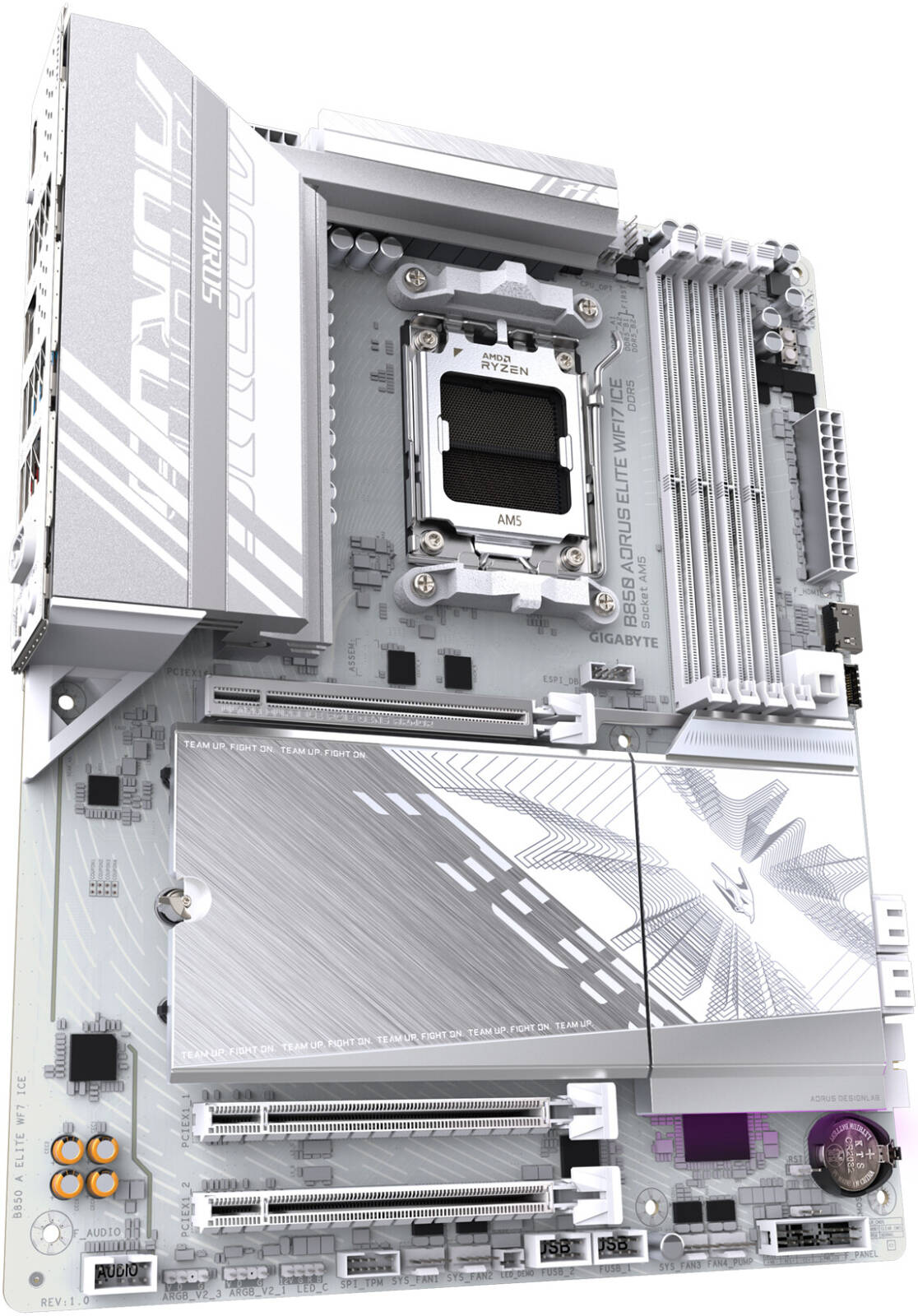

B850 AORUS ELITE WIFI7 ICE
Specifications
CPU
AMD Socket AM5, support for AMD Ryzenâ„¢ 9000, 8000, 7000 Series Processors (Refer to GIGABYTE’s website for the latest CPU support list)
Chipset
AMD B850
Memory
DDR5 8200(O.C.) to 4800 (O.C.), 4 x DDR5 DIMM sockets, up to 256 GB, Dual Channel, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Support for AMD EXPOâ„¢ and XMP memory modules
Onboard Graphics
AMD Radeonâ„¢ Graphics support, 1 x DisplayPort (3840×2160@144 Hz), 1 x Front HDMI port (1920×1080@30 Hz), Support for DisplayPort 1.4 and HDMI 1.4
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication
Realtek® Wi-Fi 7 RTL8922AE, 802.11a, b, g, n, ac, ax, be (2.4/5/6 GHz), Bluetooth 5.4, Support for 11be 160MHz wireless standard
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), 2 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2)
Storage Interface
1 x M.2 connector (M2A_CPU) PCIe 5.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU) PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2C_SB) PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors
USB
1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 (CPU+USB 2.0 Hub), 4 x USB 3.2 Gen 1 (Chipset), 4 x USB 3.2 Gen 1 ports on back panel
Internal I/O Connectors
24-pin ATX main power, 8-pin ATX 12V, 4-pin ATX 12V, CPU fan headers, 3 system fan headers, 1 USB Type-C® header (USB 3.2 Gen 2×2 support), 2 x USB 2.0/1.1 headers

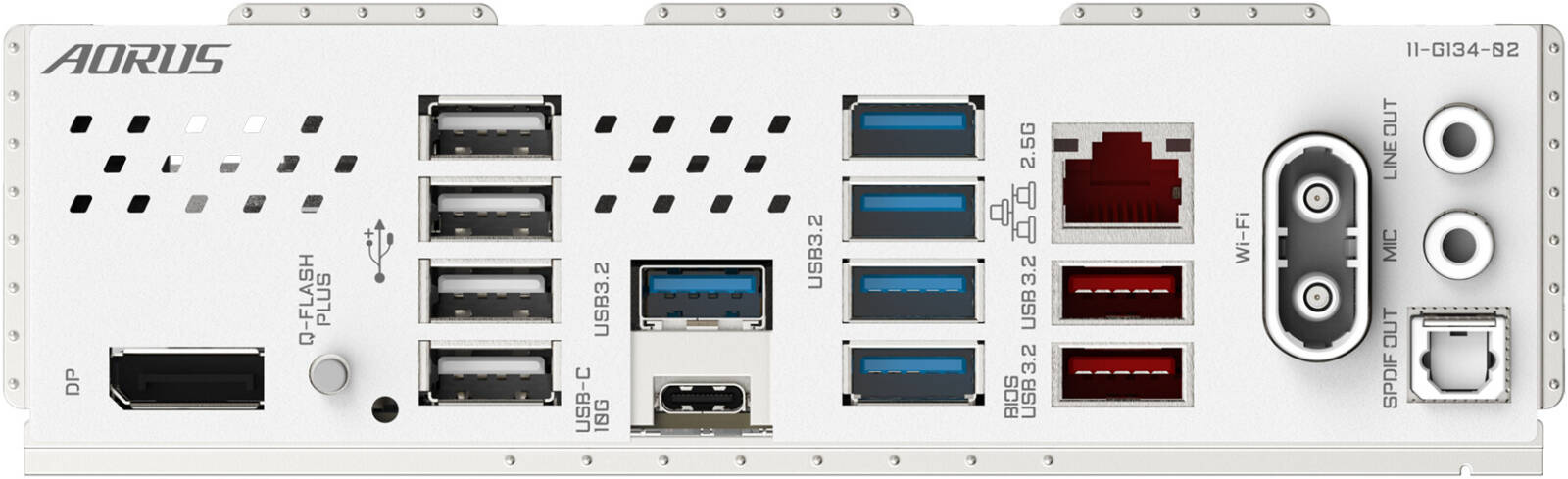

Back Panel Connectors
1 x DisplayPort, 4 x USB 2.0/1.1, 1 x USB Type-C® (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 1 x RJ-45 port, 2 x USB 3.2 Gen 2 Type-A (red), 2 x antenna connectors, 2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS
256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center (GCC) support, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm

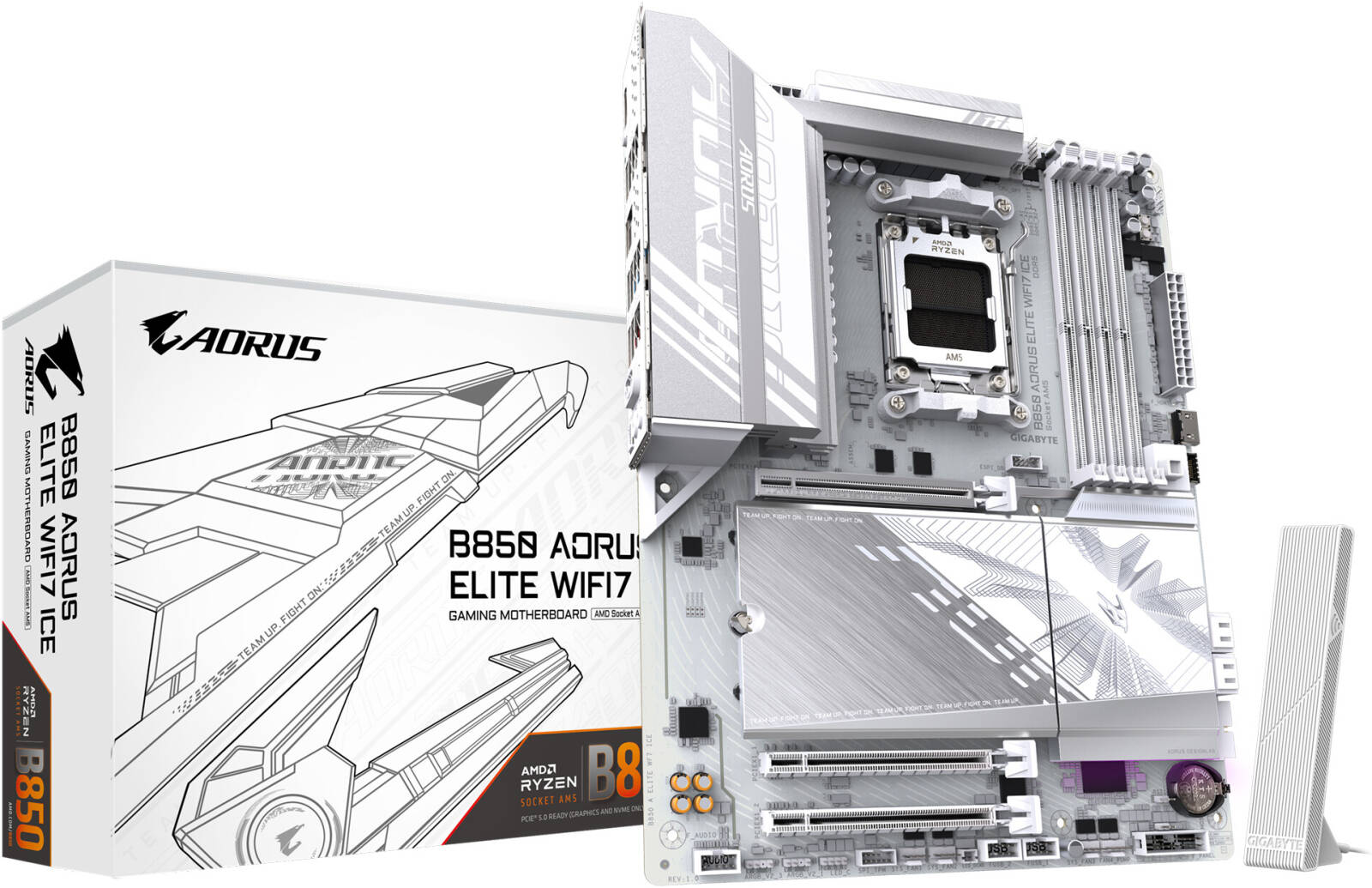

GIGABYTE B850 Aorus Elite WIFI7 ICE AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, WiFi & BT, White | B850-AORUS-ELITE-WIFI7-ICE
$310.00
X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 14+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design | EZ-Latch Click：M.2 heatsinks with screwless design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
Ultra-Fast Storage：3*M.2 slots, including PCIe 5.0 x4
Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
| Brand |
Gigabyte |
|---|---|
| Model |
B850 Aorus Elite WIFI7 ICE |
| Date first available |
13 January; 2025 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
2.20 Kg |
| Shipping Dimensions |
8.50 cm x 34.50 cm x 27.51 cm |
| Chipset |
AMD B850 |
| M.2 Slots |
3 |
| Maximum Memory |
256 GB |
| Memory Slots |
4 |
| PCI Express x16 |
1 |
| Socket |
AM5 |
| Memory Speed |
— |
