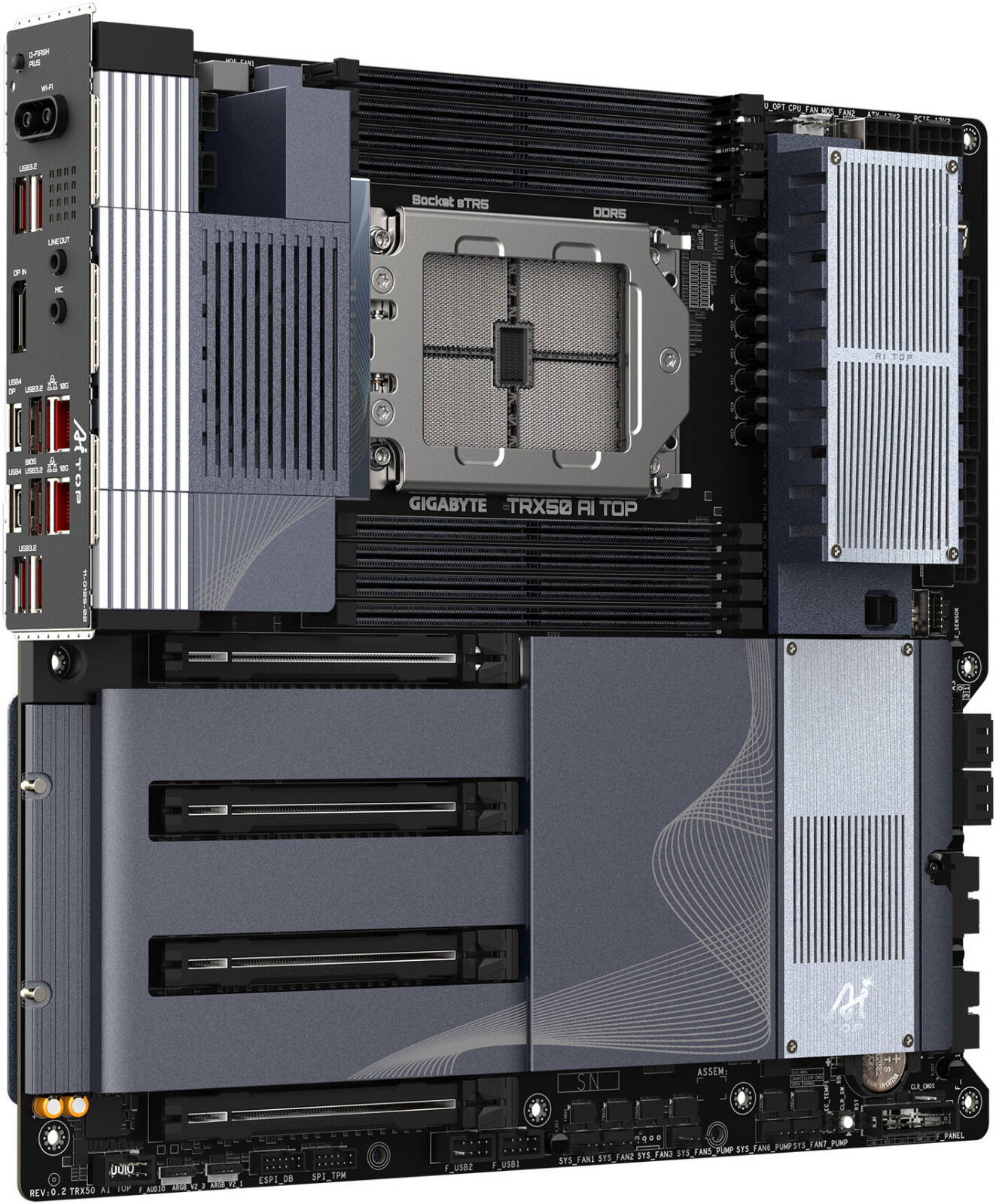

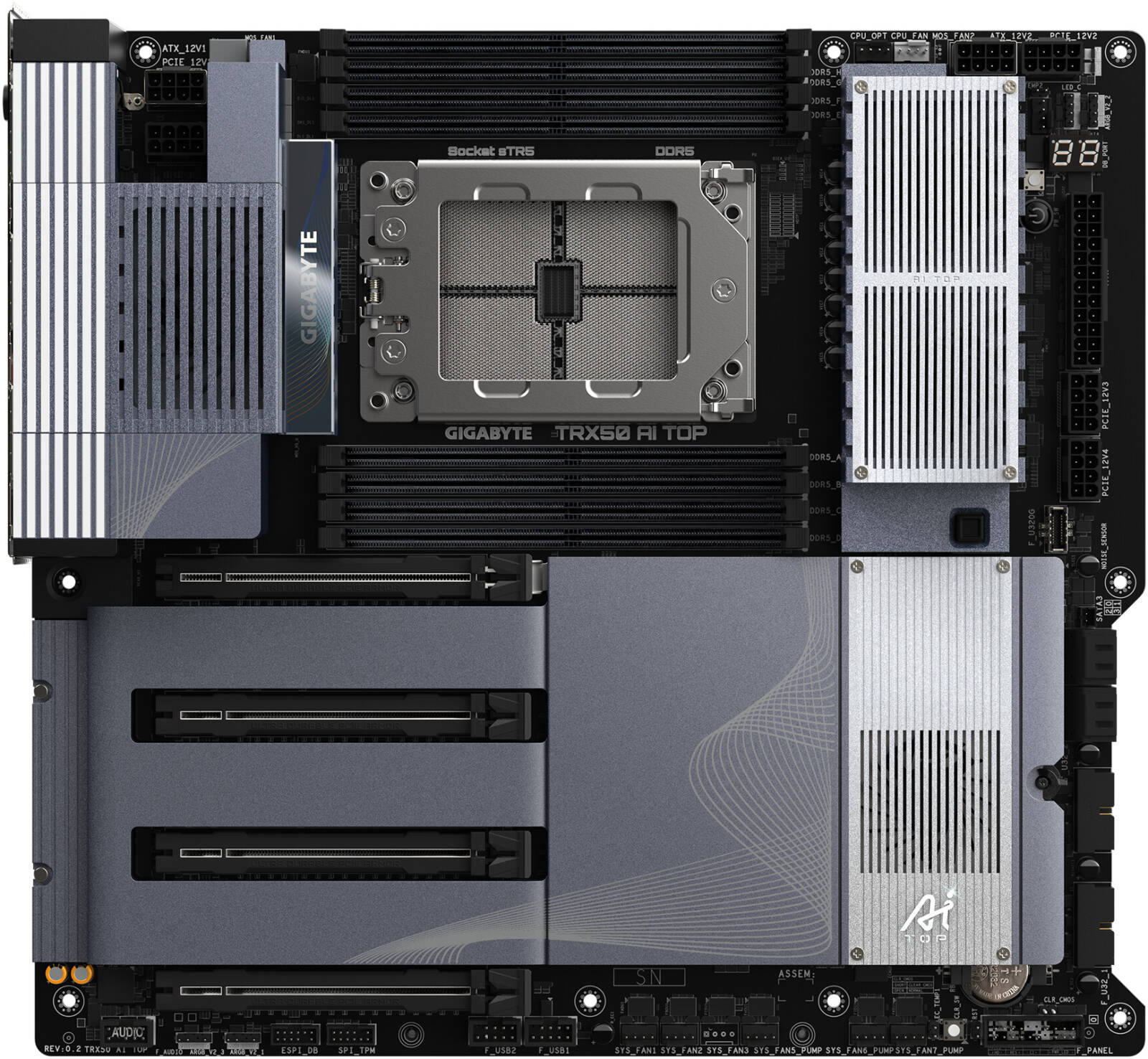

TRX50 AI TOP
A high-end motherboard designed for demanding workloads, particularly those involving artificial intelligence (AI) and machine learning.
Specifications
CPU
AMD Socket sTR5, supports AMD Ryzenâ„¢ Threadripperâ„¢ PRO 7000 processors and AMD Ryzenâ„¢ Threadripperâ„¢ 7000 Series processors.
Chipset
AMD TRX50
Memory
DDR5 ECC Registered memory (RDIMM/RDIMM-3DS), 8 x DIMM sockets, up to 2 TB.
– 8-Channel memory with AMD Ryzenâ„¢ Threadripperâ„¢ PRO 7000 Processors.
– Quad-Channel memory with AMD Ryzenâ„¢ Threadripperâ„¢ 7000 Processors.
Supports AMD EXPOâ„¢ and XMP profiles.
Audio
Realtek® ALC4080 (rear panel): DTS:X® Ultra, HD Audio, 2-channel. Realtek® ALC897 (front panel).
LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chips.
Wireless
Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.3.
Expansion Slots
3 x PCIe x16 (5.0) slots for CPU, 1 x PCIe x16 (4.0 or 5.0).
Storage Interface
3 x PCIe 5.0/4.0 M.2 connectors, 1 x PCIe 5.0/4.0 M.2 connector, 4 x SATA 6Gb/s connectors.
RAID 0, 1, 10 for NVMe SSD; RAID 0, 1 for SATA devices.
USB
– CPU: 4 x USB 3.2 Gen 2 Type-A ports.
– Chipset+Intel® USB4®: 2 x USB4® Type-C® ports.
– Chipset: USB 3.2 Gen 2×2 and USB 3.2 Gen 1/2 ports.
Internal I/O
24-pin ATX, 2 x 8-pin ATX 12V, 4 x PCIe power, 4 x M.2, 4 x SATA, RGB headers, fan headers, noise detection.

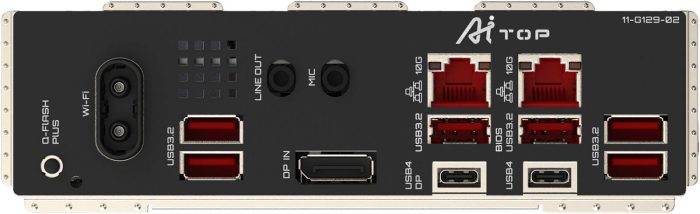

Back Panel
Q-Flash Plus button, SMA antenna connectors, DisplayPort, USB4® ports, RJ-45, audio jacks.
H/W Monitoring
Voltage, temperature, fan speed, water flow rate detection, noise detection.
BIOS
256 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup.
Unique Features
GIGABYTE Control Center (GCC), support for Windows 11 64-bit and Ubuntu 24.04 LTS.
Form Factor
E-ATX; 30.5 cm x 33.0 cm.

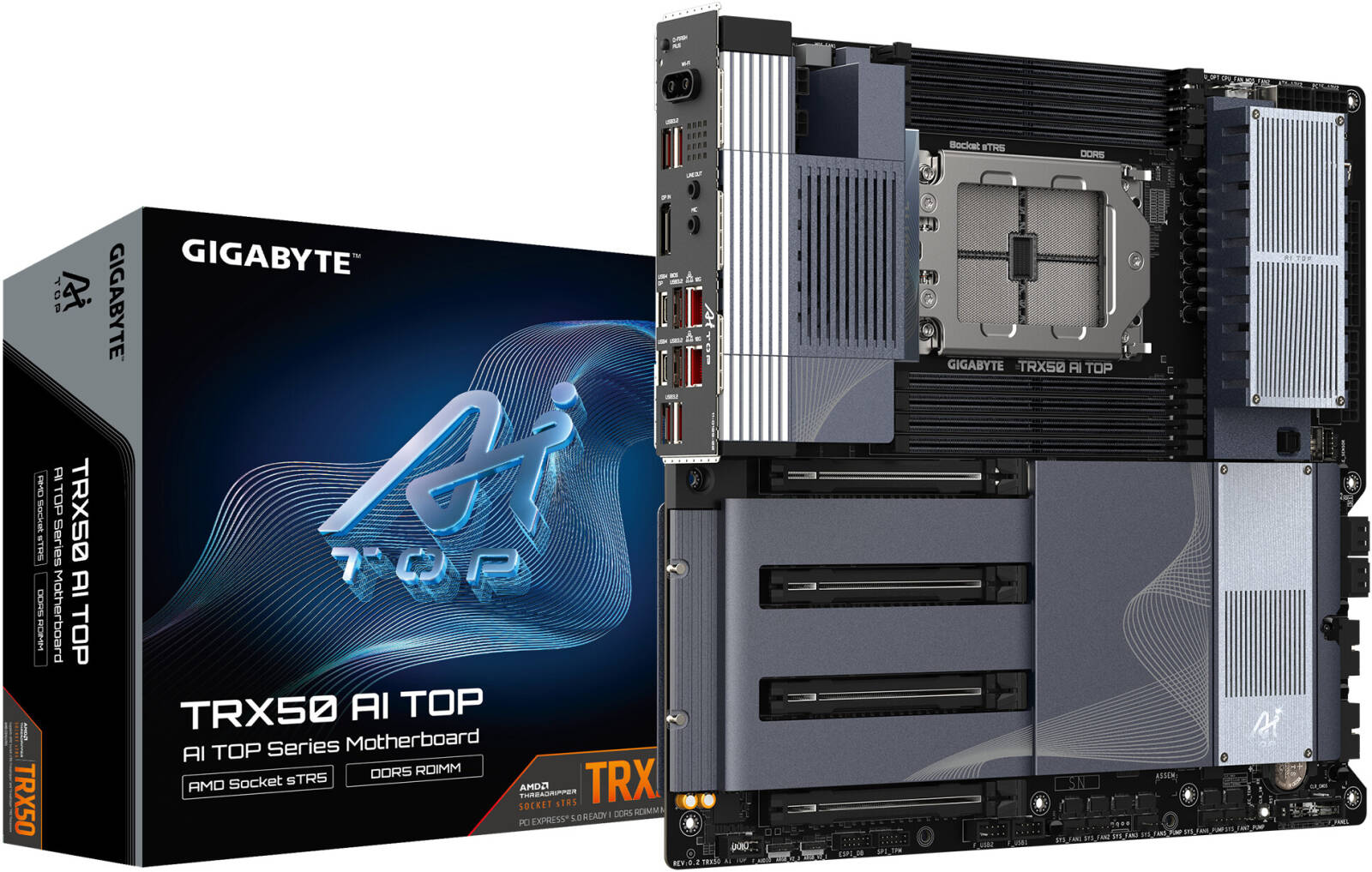

GIGABYTE TRX50 AI TOP E ATX sTR5 Motherboard, AMD TRX50 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, Wi-Fi 7 & BT 5.3 Connectivity, 4x PCIe 5.0 x16 Slot, 4x PCIe 5.0 M.2 UD Slots | TRX50-AI-TOP
$1,210.00
Training your own AI on your desk
Socket sTR5: Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors​
Breakthrough Performance：16+8+4 Phases Digital VRM Solution
8 Channel DDR5：8*SMD ECC R-DIMMs with Maxmium 2TB capacity
Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalibility: 4*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0 x4 M.2 slots
Next-gen Connectivity: Dual USB4® Type-C ports
Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
| Brand |
Gigabyte |
|---|---|
| Model |
TRX50 AI TOP |
| Date first available |
16 December; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
E-ATX |
| Shipping Weight |
3.60 Kg |
| Shipping Dimensions |
10.00 cm x 38.00 cm x 33.00 cm |
| Chipset |
AMD TRX50 |
| M.2 Slots |
4 |
| Maximum Memory |
2 TB |
| Memory Slots |
8 |
| PCI Express x16 |
4 |
| Socket |
sTR5 |
| Memory Speed |
— |
