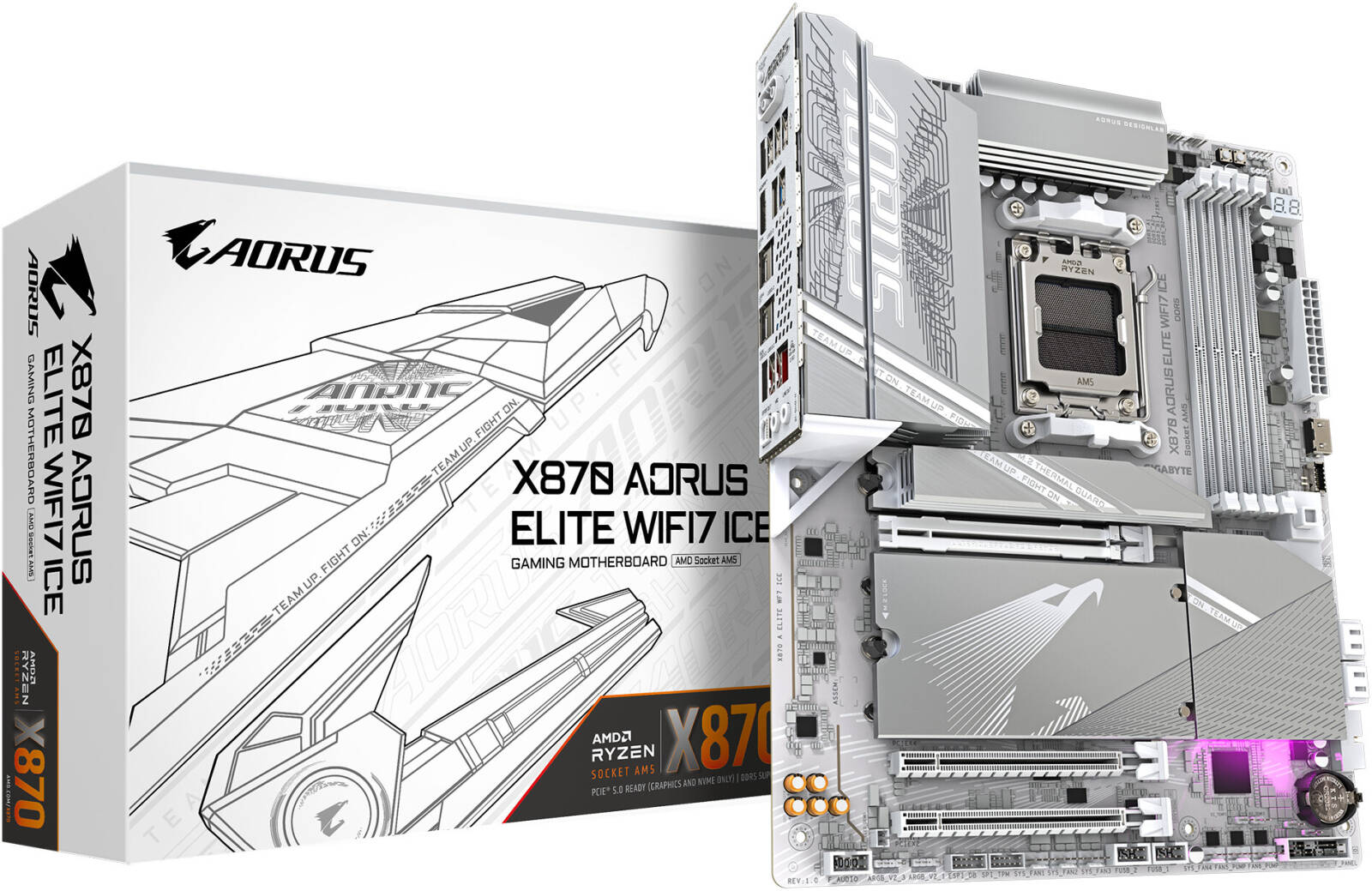

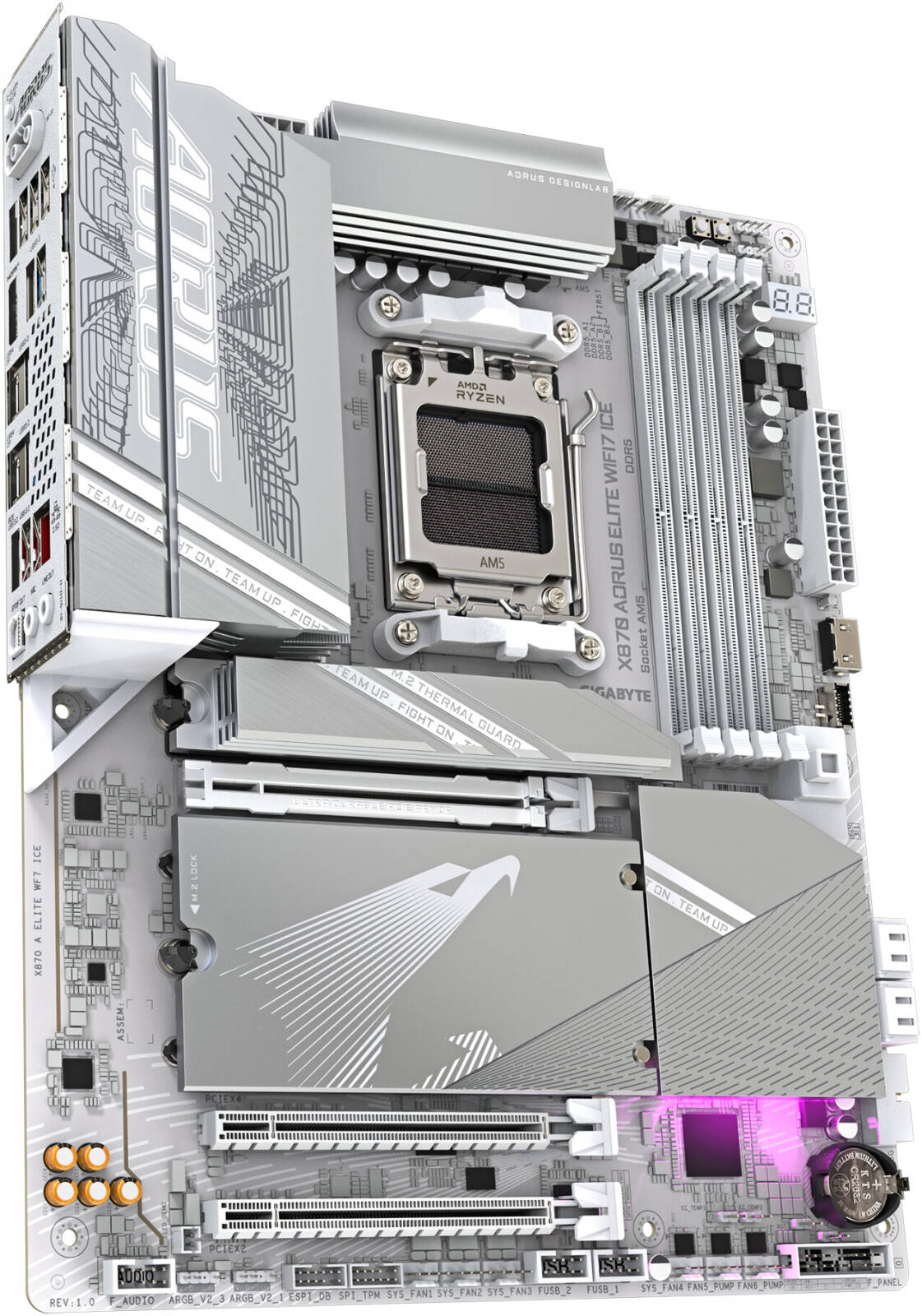

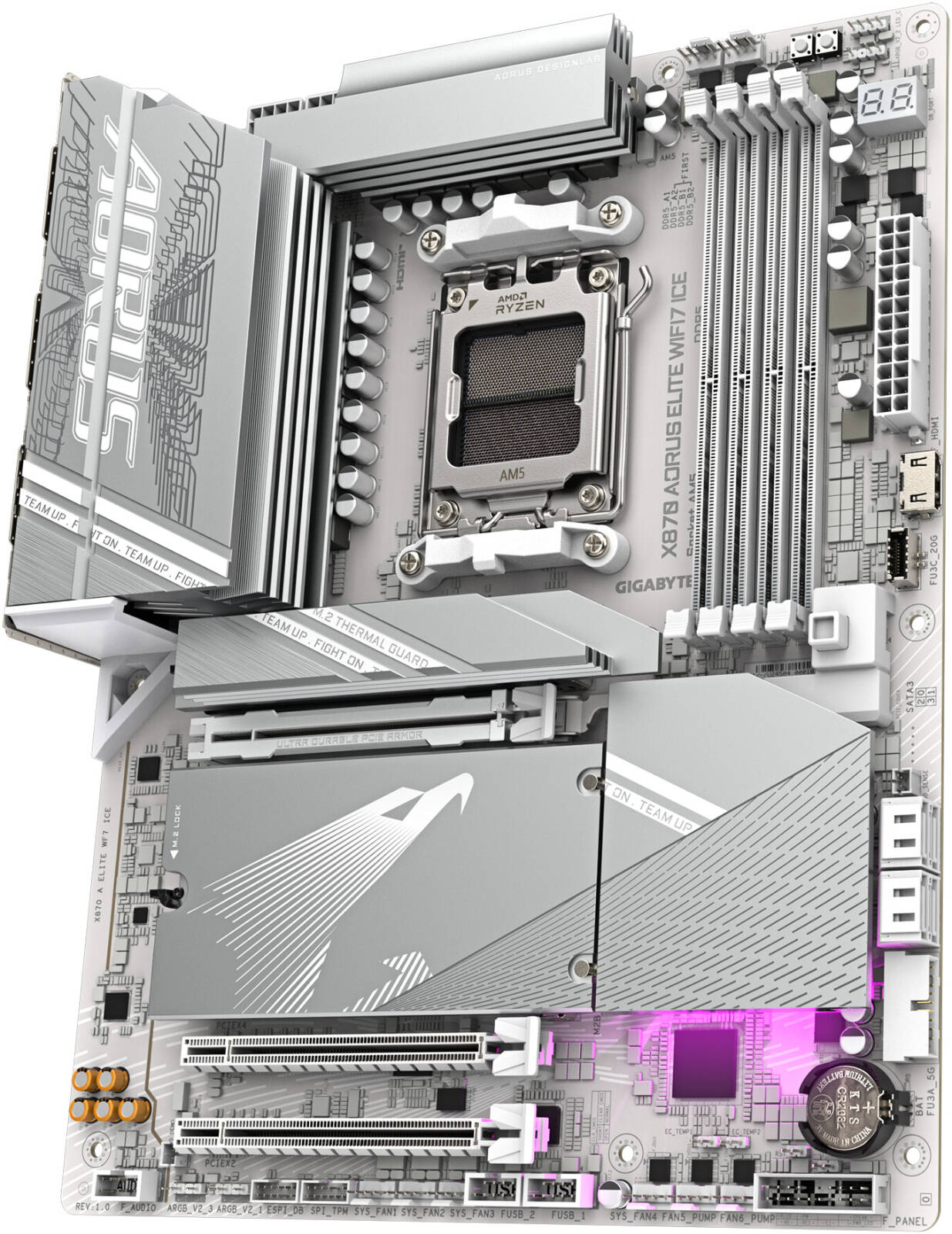

GIGABYTE X870 Aorus Elite WiFi7 Ice AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 4x M.2 Slots, 1x PCIe 5.0 x16, White | X870-A-ELITE-WF7-ICE

X870 Aorus Elite Wifi7 Ice
The X870 AORUS ELITE WIFI7 ICE is a high-performance gaming motherboard designed for cutting-edge PC builds. Equipped with next-gen WiFi 7 technology, it offers ultra-fast, stable wireless connectivity. The motherboard features advanced thermal solutions with its ICE cooling system, ensuring optimal performance during intense gaming or heavy workloads. With support for the latest processors, PCIe 5.0, and DDR5 memory, it delivers top-tier speed, responsiveness, and future-proof capabilities. Ideal for gamers and tech enthusiasts seeking peak performance and reliability.
Specifications
CPU
AMD Socket AM5, Ryzen™ 9000/8000/7000 Series Processors
Chipset
AMD X870
Memory
DDR5 8000(OC)-4400 MT/s, 4x DDR5 DIMM, max 256GB, Dual channel, AMD EXPO™, XMP support
Onboard Graphics
AMD Radeon™ Graphics, 2x USB4 Type-C, 1x HDMI, quad-display support
Audio
Realtek® ALC1220, 7.1-channel, S/PDIF Out
LAN
Realtek® 2.5GbE LAN
Wireless Communication
MediaTek Wi-Fi 7, Bluetooth 5.4
Expansion Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x2
Storage Interface
4x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s, RAID 0, 1, 5, 10
USB
2x USB4 Type-C, 4x USB 3.2 Gen 1, 4x USB 2.0, 1x USB 3.2 Gen 2 Type-C, internal USB headers
Internal I/O Connectors
1x 24-pin ATX, 2x 8-pin ATX 12V, 4x system fan headers, 3x RGB Gen2 headers, Clear CMOS

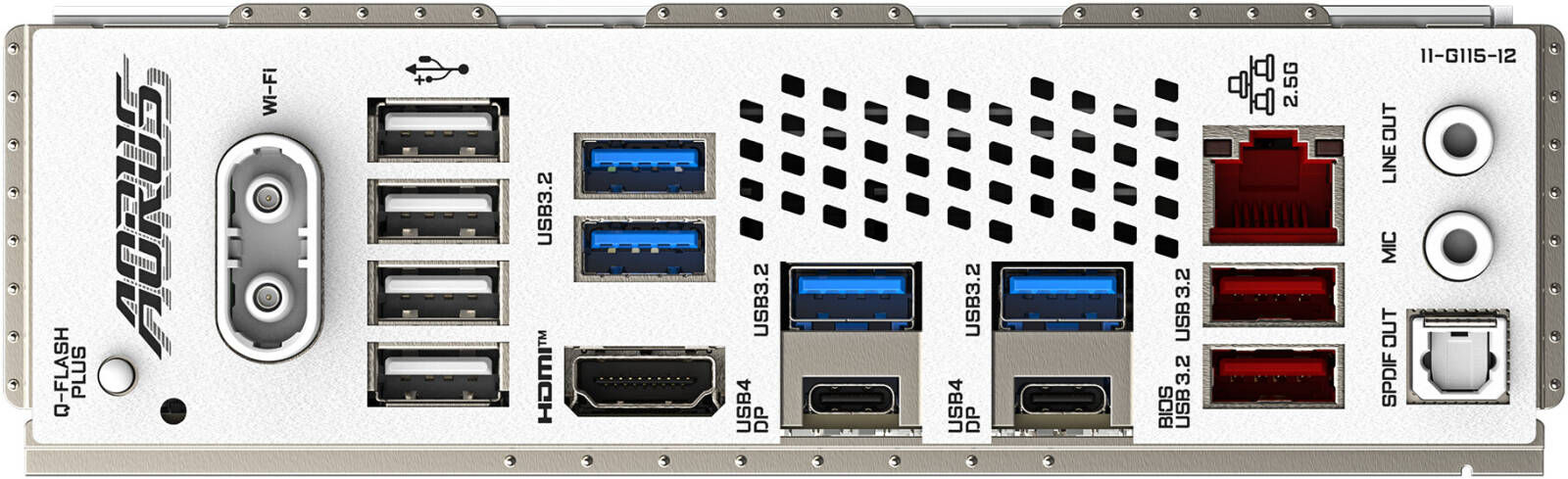

Back Panel Connectors
1x Q-Flash Plus, 1x HDMI, 2x USB4 Type-C, 4x USB 3.2 Gen 1, 4x USB 2.0, 1x RJ-45, 2x audio
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed, water cooling detection, noise detection
BIOS
256 Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus
Unique Features
GIGABYTE Control Center, Smart Backup
Bundled Software
Norton® Internet Security (OEM), LAN bandwidth management
Operating System
Windows 11 64-bit
Form Factor
ATX, 30.5 cm x 24.4 cm
