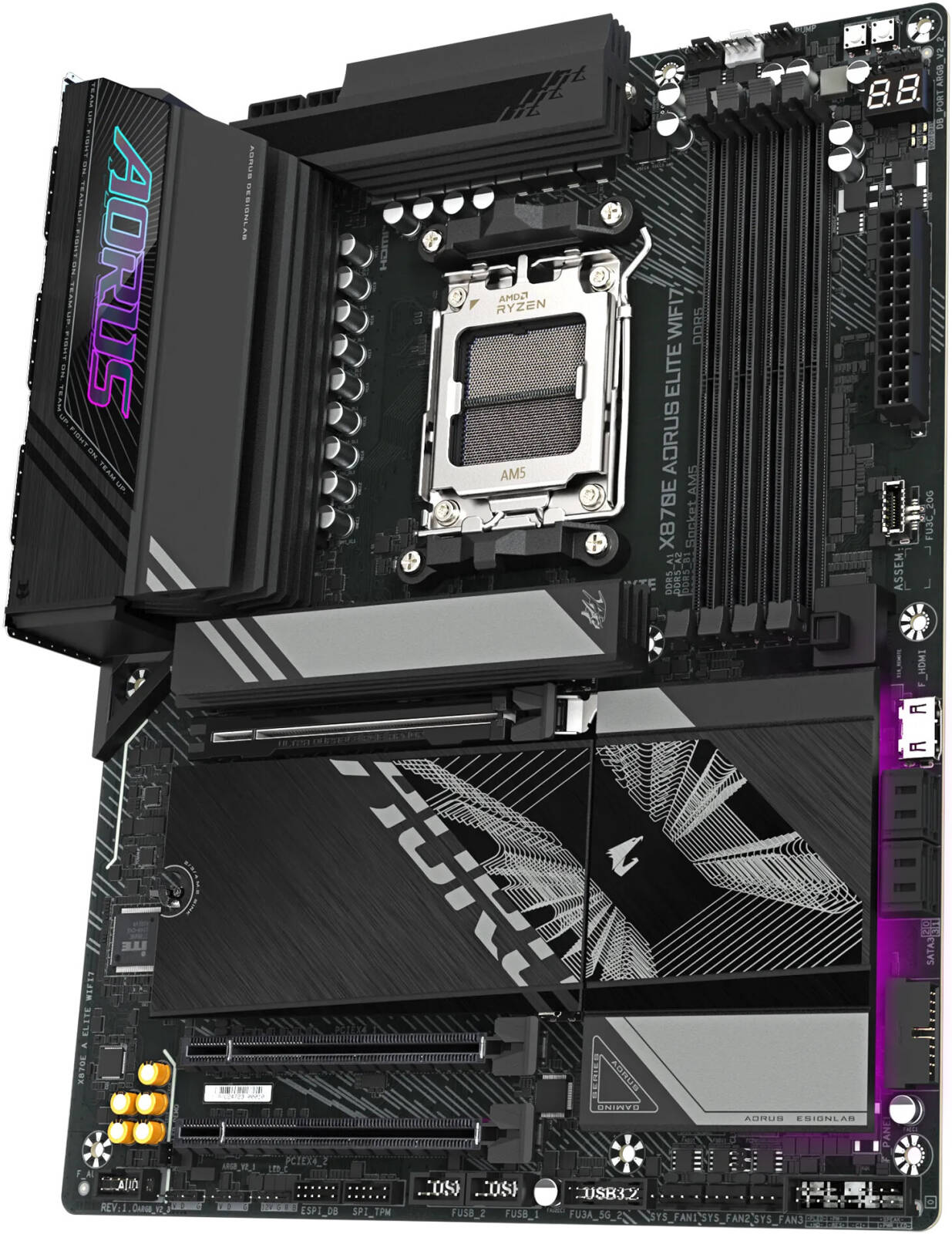

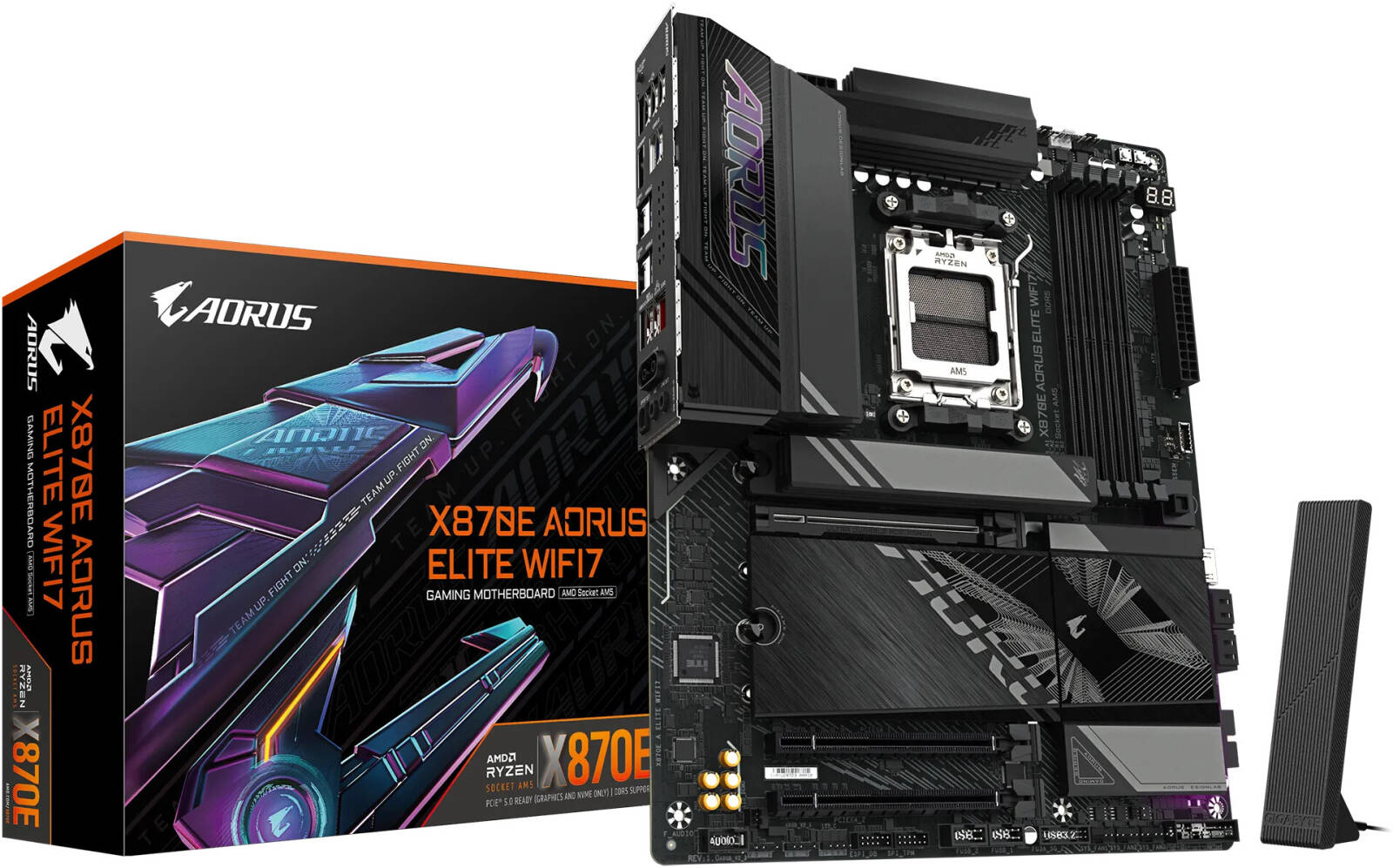

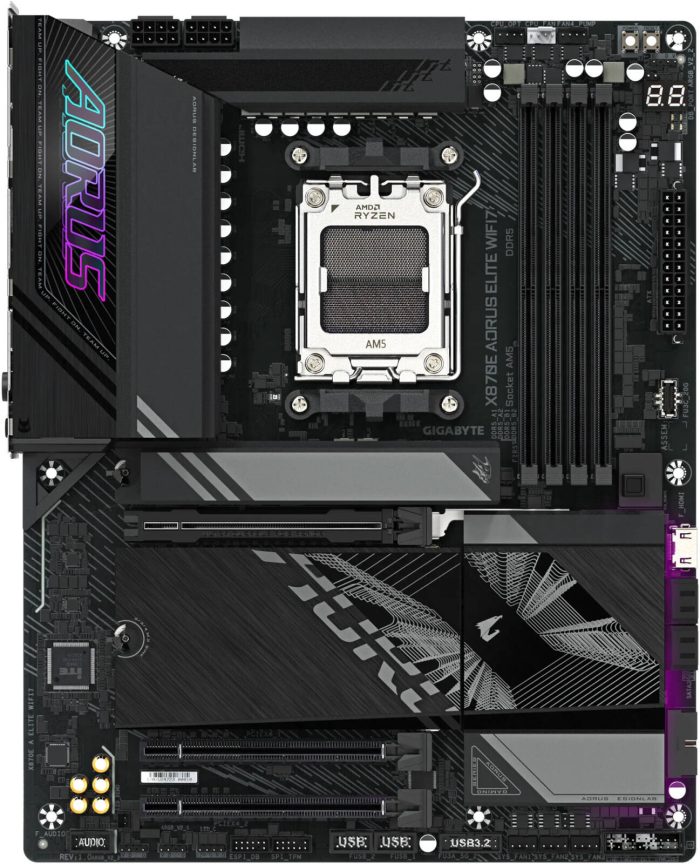

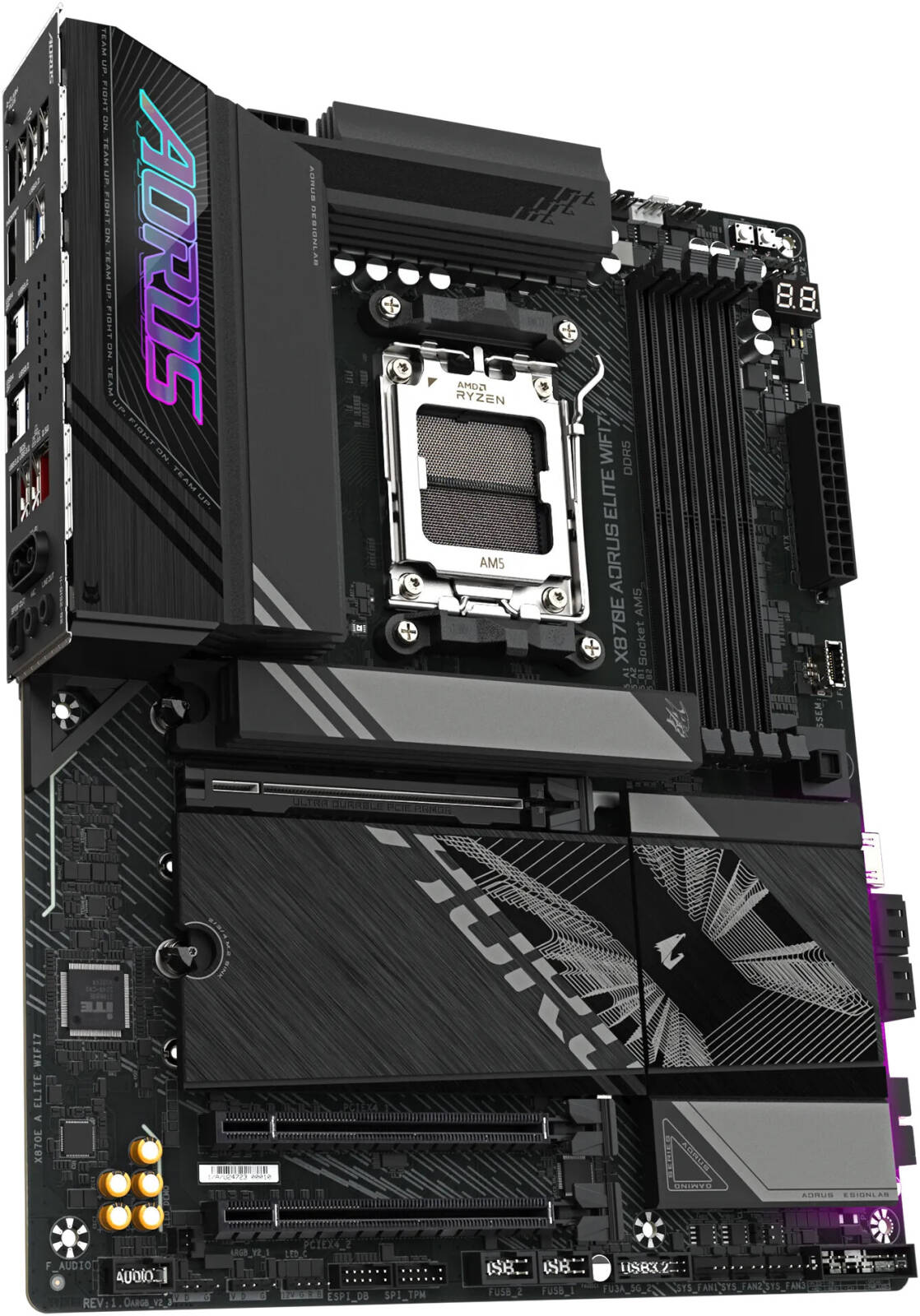

GIGABYTE X870E Aorus Elite WIFI7 Motherboard, AMD X870E Chipset, AMD Socket AM5, Dual Channel DDR5, EZ-Latch Plus, 4x M.2 Slots, Sensor Panel Link | X870E AORUS ELITE WIFI7

X870E AORUS ELITE WIFI7
The GIGABYTE AMD X870E Motherboard is a high-performance ATX platform, engineered for enthusiasts seeking cutting-edge technologies. It supports the latest AMD Ryzen™ 9000, 8000, and 7000 processors, leveraging the AMD X870E chipset. With support for DDR5 memory speeds up to 8200 MT/s and PCIe 5.0 for storage and graphics, this motherboard provides blazing-fast performance. Integrated Wi-Fi 7 and Realtek 2.5GbE LAN ensure top-tier connectivity, while USB4® ports offer modern expansion options.
Designed with gamers, creators, and overclockers in mind, the motherboard supports advanced cooling configurations, customizable RGB lighting, and robust audio capabilities, making it an ideal foundation for any cutting-edge build.
Specifications
CPU
AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors.
Chipset
AMD X870E
Memory
– DDR5 up to 8200 MT/s (OC)
– 4 x DIMM, up to 256 GB total capacity
– Dual-channel
– AMD EXPO™ & XMP support.
Onboard Graphics
– AMD Radeon™ Graphics
– 2 x USB4® USB-C ports (DisplayPort 1.4, HDR)
– HDMI 2.1: 4096×2160@60 Hz
– Front HDMI 1.4: 1920×1080@30 Hz.
Audio
Realtek® ALC1220 CODEC
– DSD audio support
– 7.1-channel (via software)
– S/PDIF Out.
LAN
Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

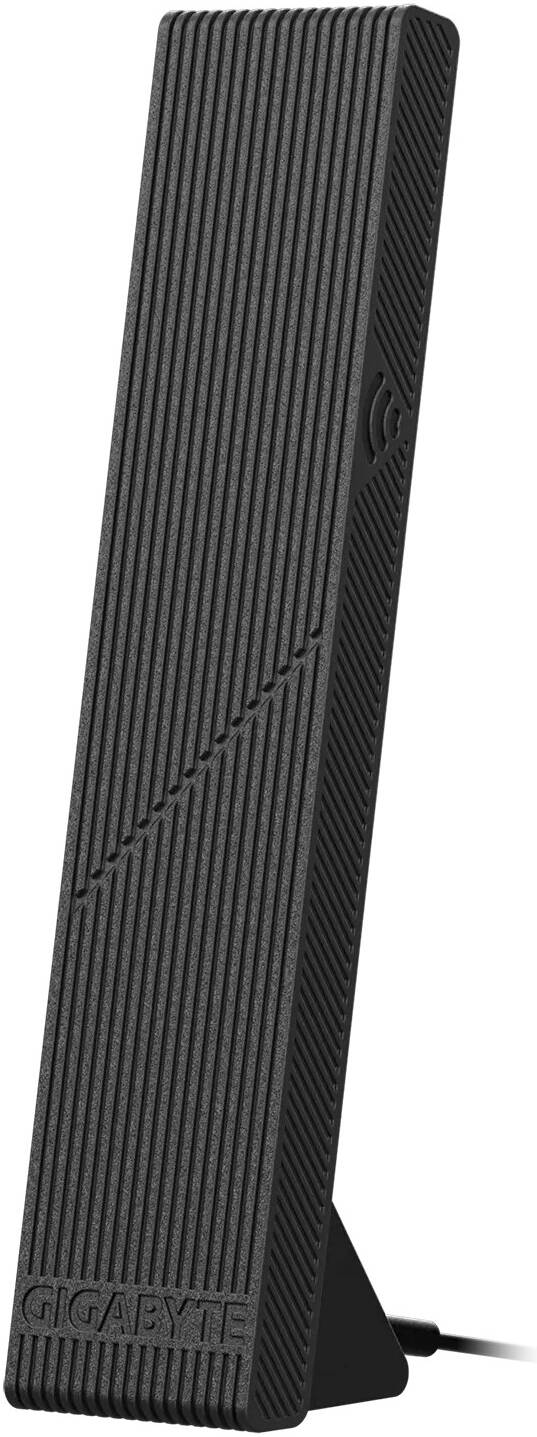

Wireless Communication
– Wi-Fi 7 (MediaTek MT7925/Realtek RTL8922AE)
– Bluetooth 5.4.
Expansion Slots
– 1 x PCIe 5.0 x16 (CPU-integrated)
– 1 x PCIe 4.0 x4
– 1 x PCIe 3.0 x4.
Storage Interface
– 4 x M.2 (PCIe 5.0 & 4.0 support)
– 4 x SATA 6Gb/s (RAID 0, 1, 5, 10).
USB Ports
– 2 x USB4® Type-C
– 1 x USB 3.2 Gen 1
– 1 x USB-C (USB 3.2 Gen 2×2)
– 2 x USB 3.2 Gen 2 (Type-A)
– 7 x USB 3.2 Gen 1
– 8 x USB 2.0.
Internal I/O
– 24-pin ATX power
– 2 x 8-pin ATX 12V power
– CPU/System/Water fan headers
– RGB/ARGB headers
– USB-C and USB 3.2 headers.

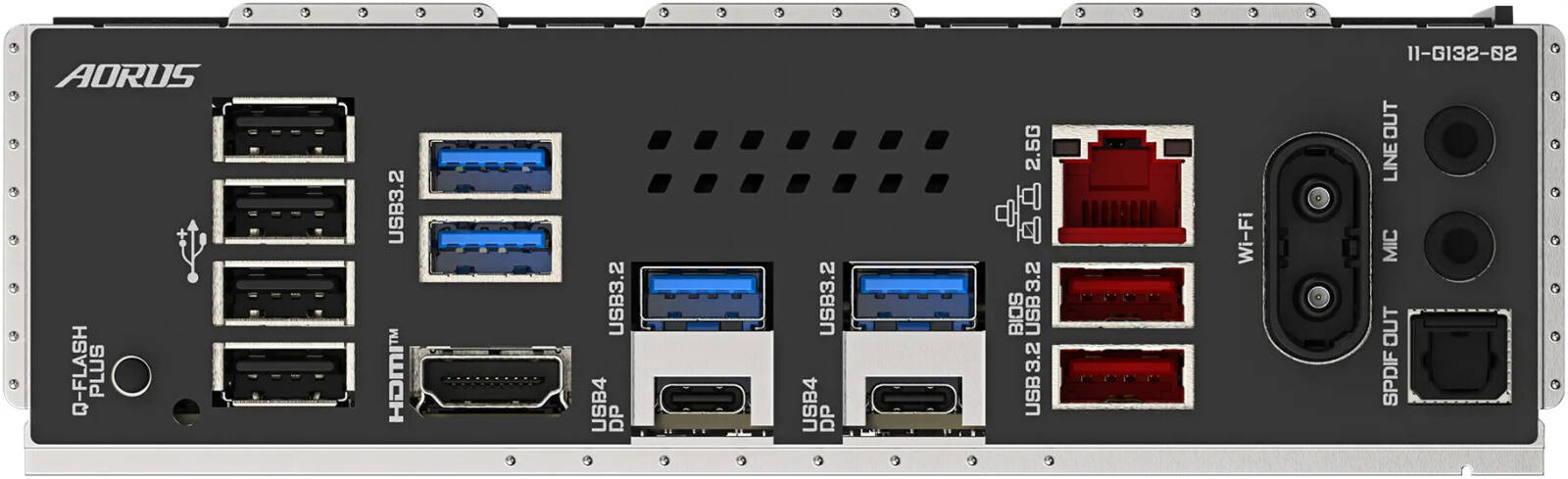

Back Panel I/O
– 2 x USB4® Type-C (DisplayPort support)
– 4 x USB 2.0
– 4 x USB 3.2 Gen 1
– 2 x USB 3.2 Gen 2 (Type-A, red)
– HDMI, RJ-45, S/PDIF, Audio.
BIOS
AMI UEFI BIOS
– Q-Flash & Q-Flash Plus support
– 256 Mbit flash.
Unique Features
– GIGABYTE Control Center
– Smart Backup
– Noise detection.
Bundled Software
– Norton® Internet Security (OEM version)
– LAN management software.
Operating System
Windows 11 64-bit
Form Factor
ATX (30.5cm x 24.4cm).
