GIGABYTE Z790 AERO G LGA1700 ATX Motherboard, Intel Z790 Chiipset, 4x DDR5 DIMM Up to 192GB Memory, Wi-Fi 6E / 2.5GbE LAN / BT 5.3, 5x M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, HDMI / DP | Z790 AERO G

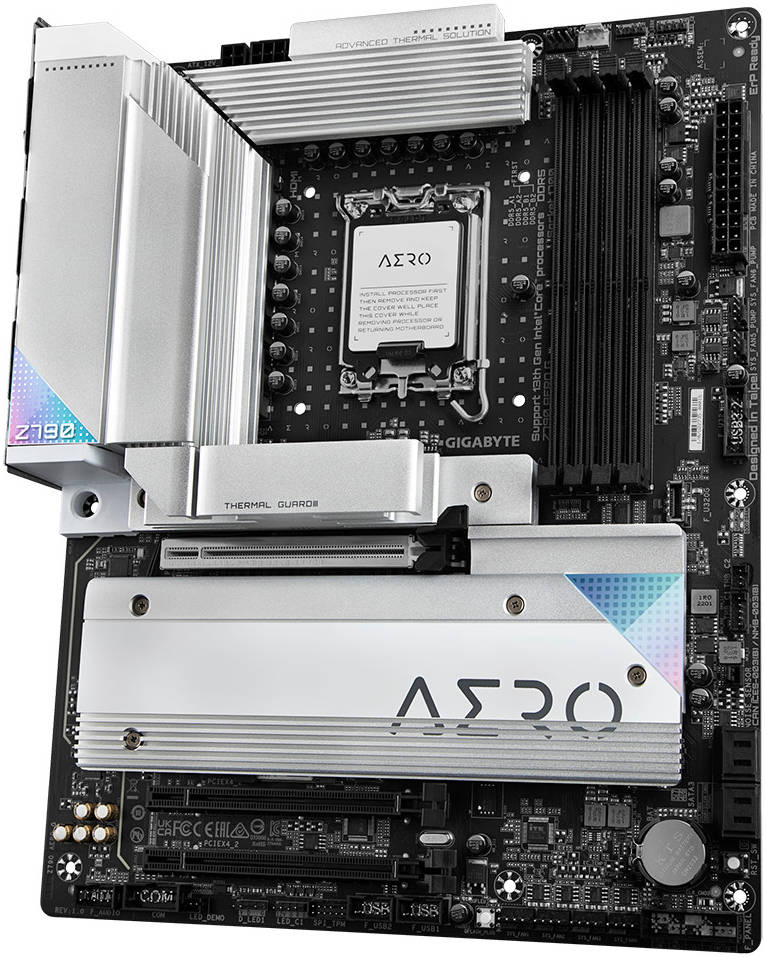

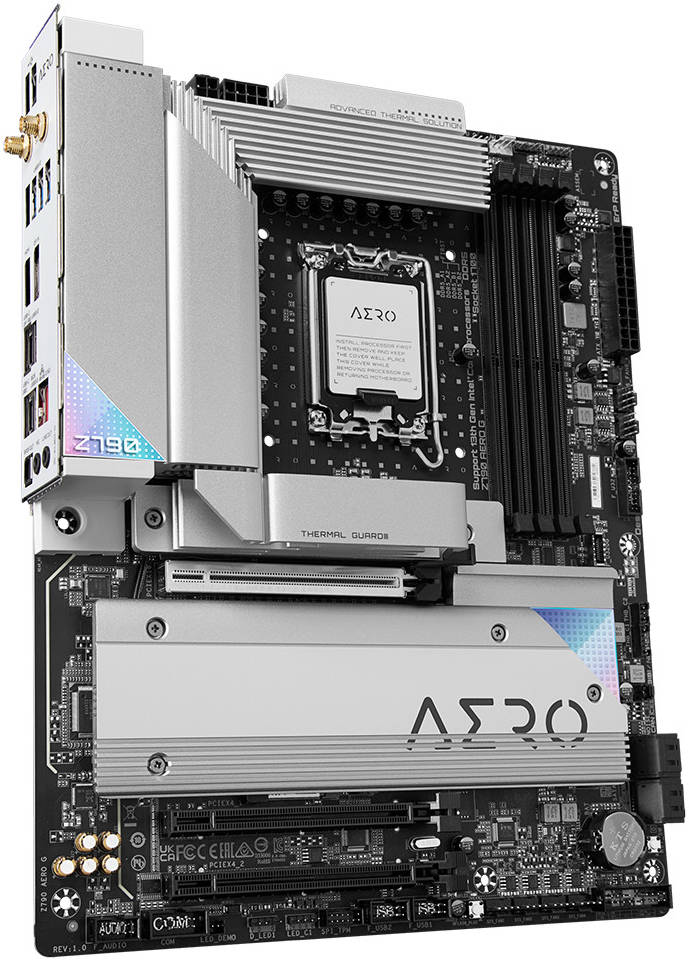

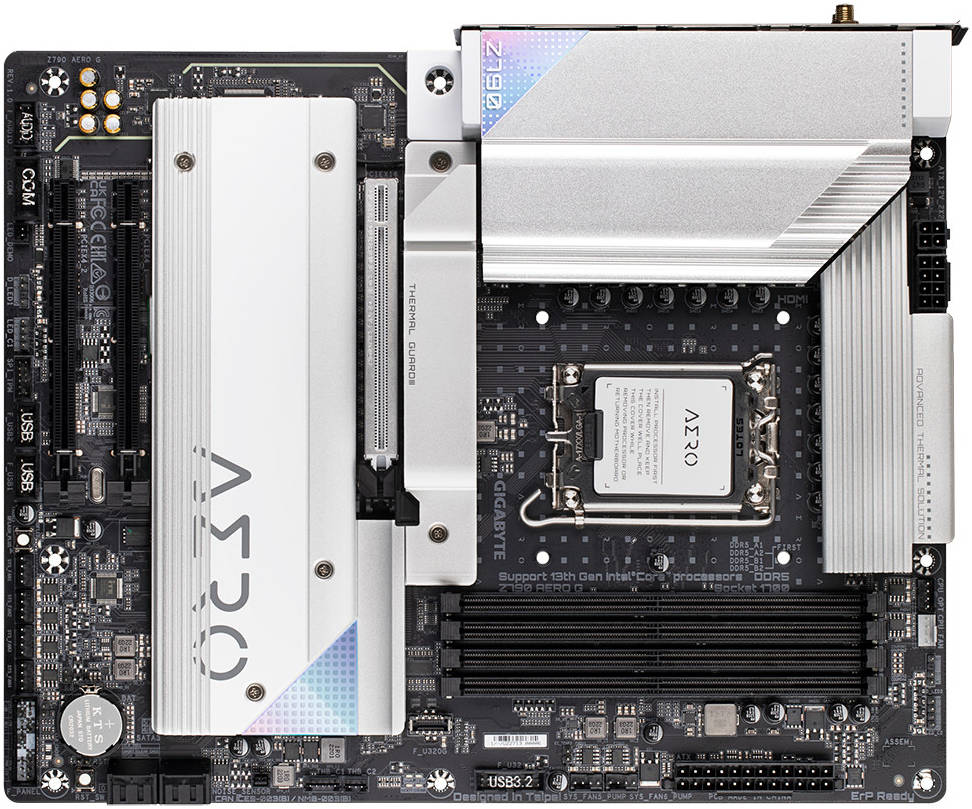

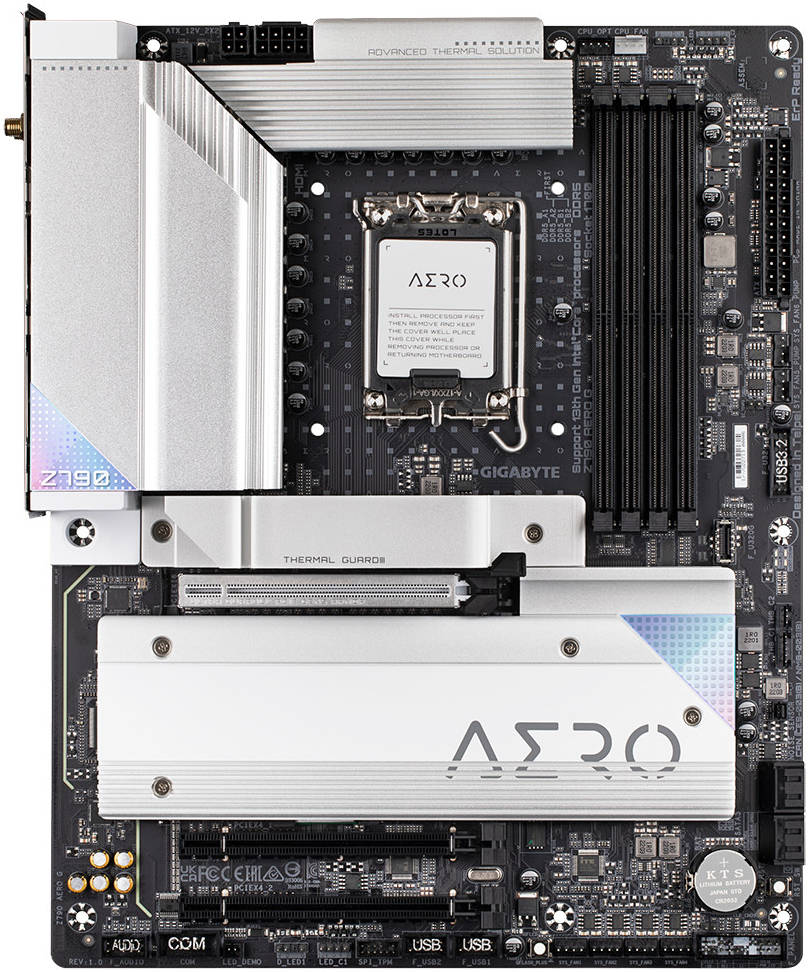

Z790 AERO G (rev. 1.0)
AERO SERIES
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
Key Features
Supports 13th and 12th Gen Intel® Core™ Series Processors
VisionLINK: One USB-C® Port for Video, Data Transfer and Charging
Dual Channel DDR5: 4*SMD DIMMs with XMP Memory Module Support
Next Generation Storage : 1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
Fast Networks : Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gb/s Support
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
CPU
LGA1700 socket: Support for 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. L3 cache varies with CPU.
Chipset
Intel Z790 Express Chipset
Memory
– Support for DDR5 memory modules up to 7600MHz (O.C.) – 4 x DDR5 DIMM sockets supporting up to 192GB (48GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: – 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs (max resolution: 4096×2304@60Hz) – 1 x HDMI port, supporting max resolution of 4096×2160@60Hz
Audio
Realtek ALC1220-VB CODEC – High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX211 – Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) (Shares bandwidth with M2C_CPU connector) Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors – RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices – RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset: – 2 x USB Type-C ports with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) – 1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
Various connectors including ATX power connectors, CPU fan header, system fan headers, M.2 connectors, SATA connectors, front panel header, USB headers, temperature sensor headers, Clear CMOS jumper, and more.

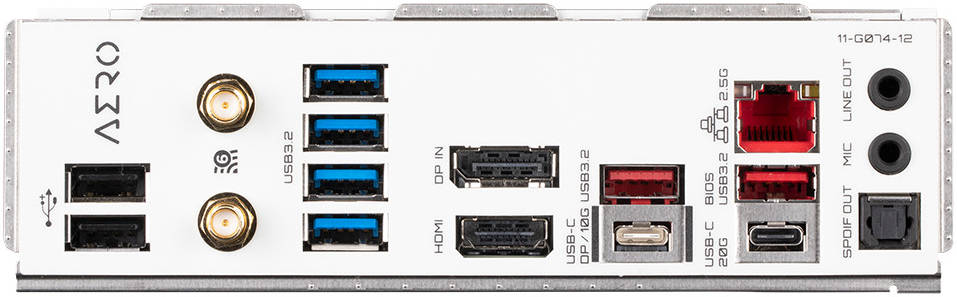

Back Panel Connectors
Various connectors including USB ports, SMA antenna connectors, DisplayPort In port, HDMI port, LAN port, audio jacks, and more.
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control, noise detection
BIOS
1 x 256 Mbit flash, licensed AMI UEFI BIOS
Unique Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security (OEM version), LAN bandwidth management software
Operating System Support
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
