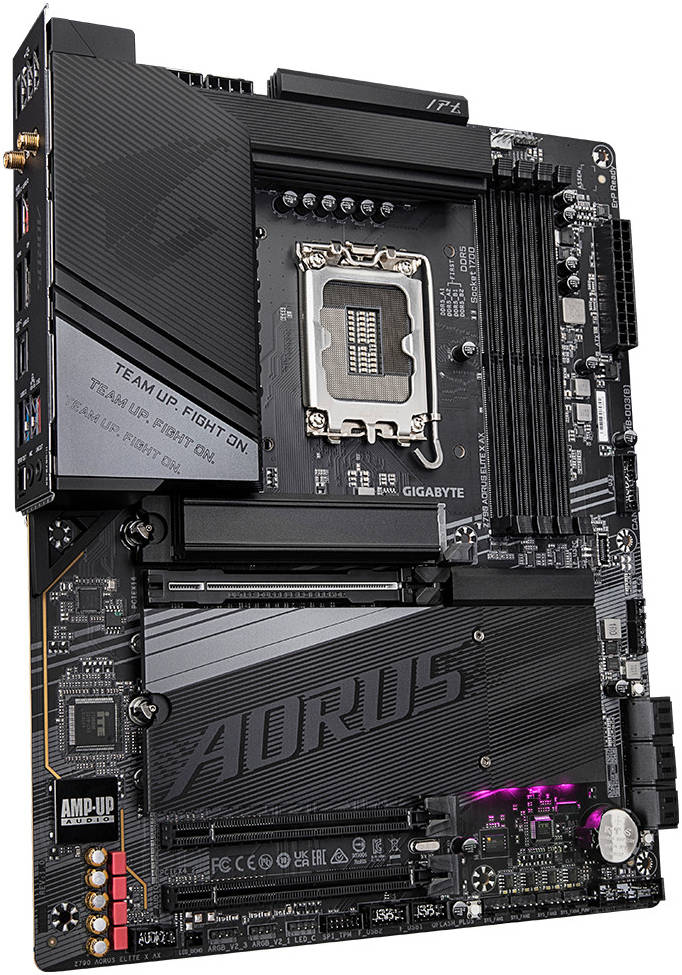

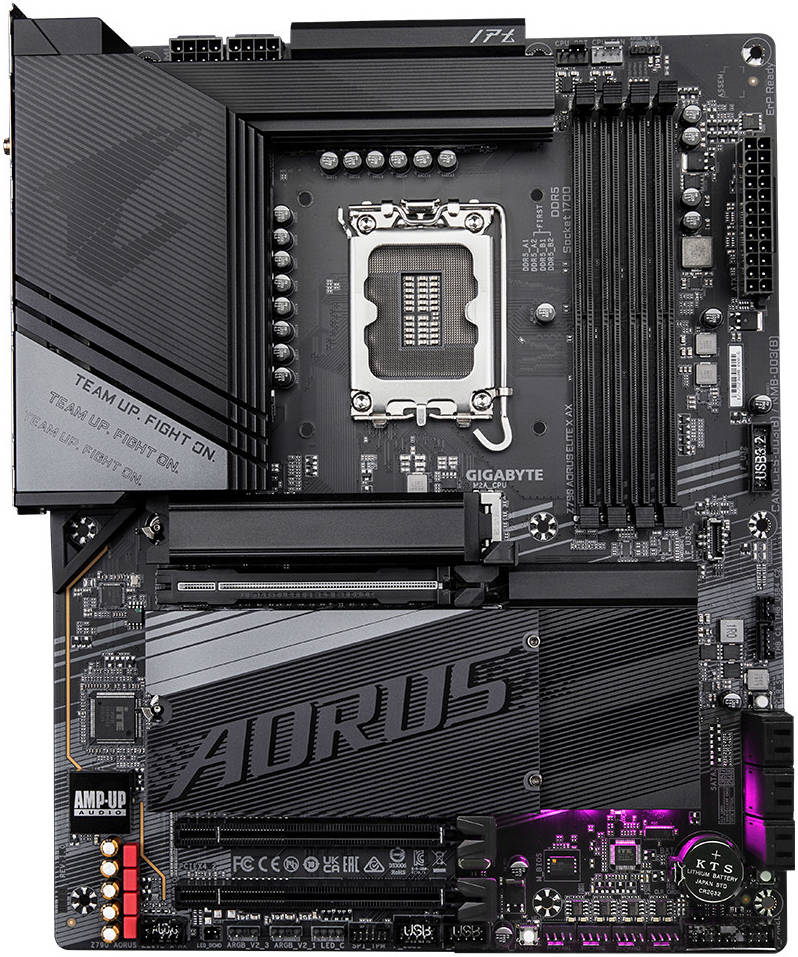

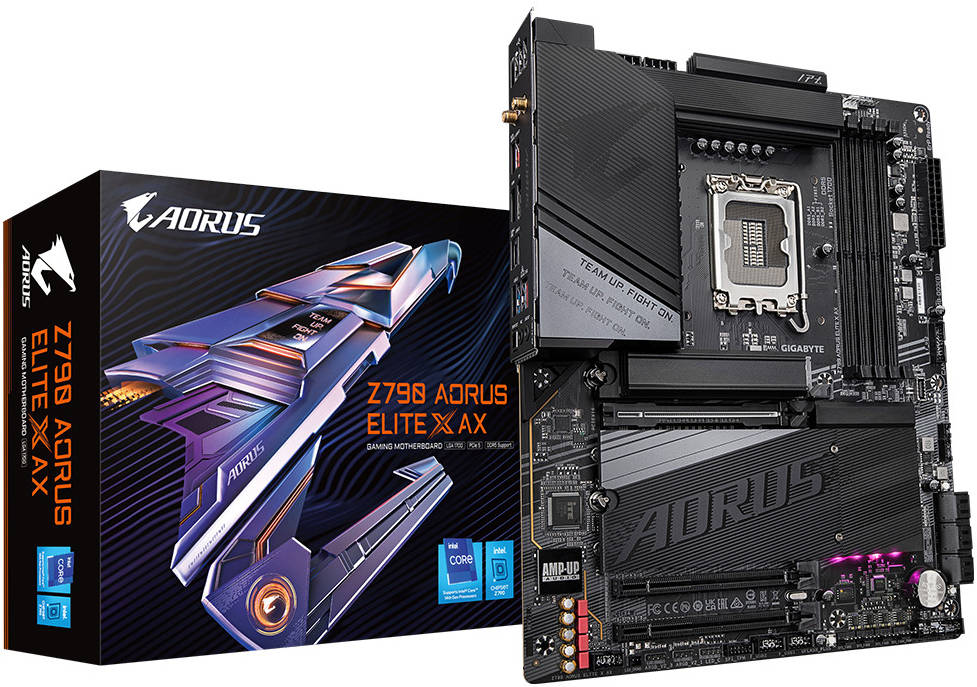

Gigabyte Z790 Aorus Elite X AX LGA1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM / 192 GB Max Memory, 1x HDMI & DisplayPort, Intel 2.5GbE LAN Chip, Wi-Fi 6E | Z790-AORUS-ELITE-X-AX

Z790 AORUS ELITE X AX
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
Features
Supports Intel® Core™ 14th and 13th processors
Digital twin 16+1+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with quick release design
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Precision Audio：ALC1220 & Audiophile Grade Capacitors
Specifications
CPU
LGA1700 socket
Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, Celeron Processors (Refer to “CPU Support List” for details)
Chipset
Intel Z790 Express Chipset
Memory
DDR5 Support
8266(O.C) / 8200(O.C) / … / 4800 MT/s
Max Memory Capacity
192 GB (4 x DDR5 DIMM sockets)
Memory Channels
Dual channel
ECC Support
Yes (Operate in non-ECC mode)
XMP Support
Yes
Onboard Graphics
Intel HD Graphics Support
HDMI: 4096×2160@60 Hz, DisplayPort: 4096×2304@60 Hz
Audio
Realtek ALC1220-VB CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN
Intel 2.5GbE LAN, Realtek Wi-Fi 6E RTL8852CE, Intel Wi-Fi 6E AX211, Bluetooth 5.3
Expansion Slots
PCIe Slots
CPU: 1 x PCIe 5.0 x16, Chipset: 2 x PCIe 4.0 x16 (x4 mode)
Storage Interface
M.2 Connectors
CPU: 1 x PCIe 4.0, Chipset: 2 x PCIe 4.0, 1 x SATA
SATA Connectors
6 x SATA 6Gb/s, RAID 0/1/5/10 support
USB
USB Ports
USB Type-C, USB 3.2 Gen 2/Gen 1, USB 2.0
Internal I/O Connectors
Power Connectors
24-pin ATX, 2 x 8-pin ATX 12V
Fan Headers
CPU/system fan, RGB LED strip
M.2/SATA Connectors
4 x M.2, 6 x SATA 6Gb/s
Front Panel Connectors
Audio, USB Type-C, USB 3.2 Gen 1/Gen 2, Thunderbolt, TPM

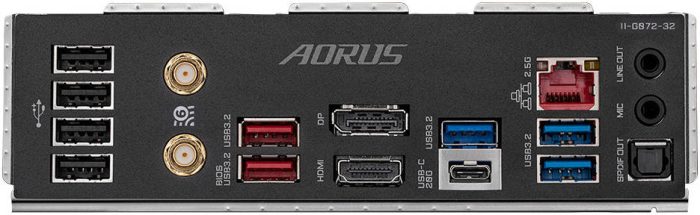

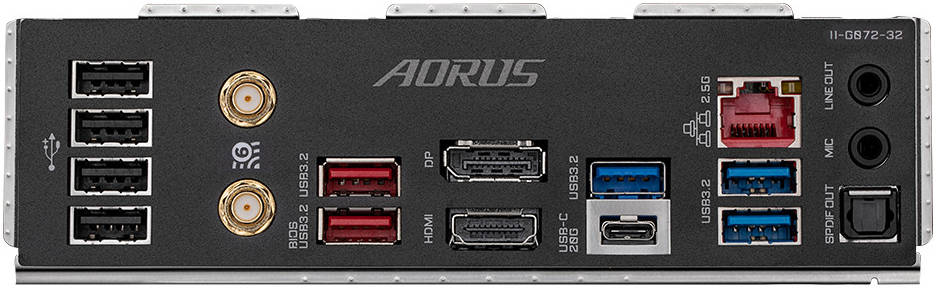

Back Panel Connectors
USB Ports
USB Type-C, USB 3.2 Gen 2/Gen 1, USB 2.0
Audio Ports
Line-out, S/PDIF Out
Video Outputs
HDMI, DisplayPort
Networking
2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan speed, Water cooling flow rate
BIOS
256 Mbit flash, AMI UEFI BIOS
Unique Features
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security, LAN bandwidth management software
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX, 30.5cm x 24.4cm
