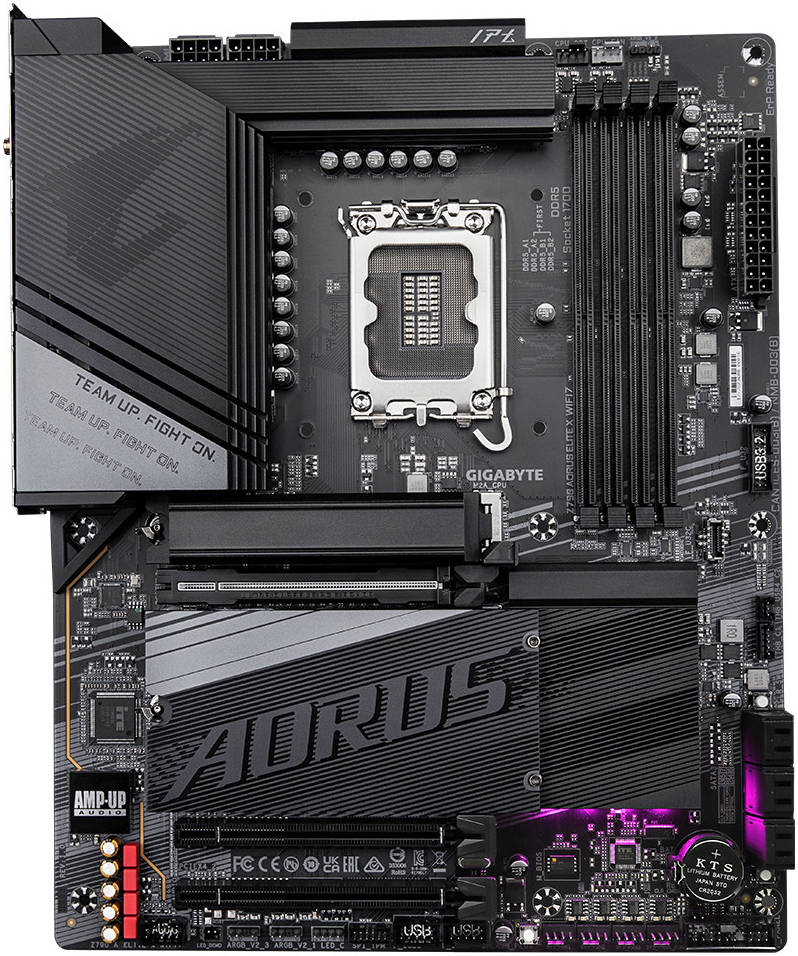

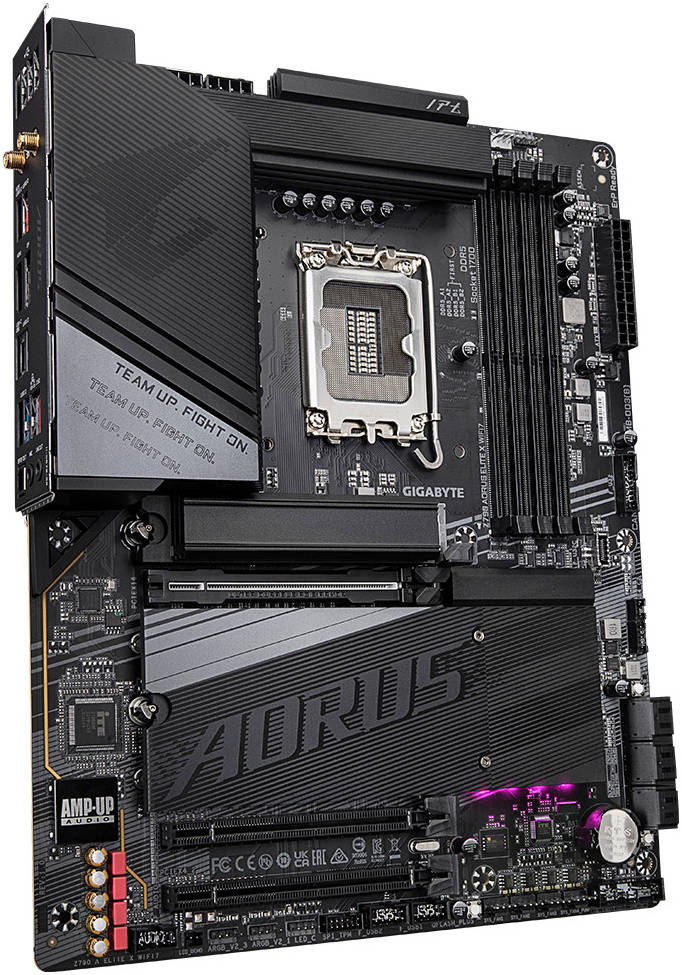

Gigabyte Z790 AORUS ELITE X WIFI7 LGA1700 ATX Motherboard, Intel Z790 Chipset, 4x DIMM DDR5, 192GB Max Memory, 4x M.2 Slot, Wi-Fi 7, BT5.3, PCIe 5.0 x16 & 2x PCIe 4.0 x16 Slots | Z790-A-ELITE-X-WIFI7

Z790 AORUS ELITE X WIFI7
Key Features
Supports Intel® Core™ 14th and 13th processors
Digital twin 16+1+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with quick release design
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Precision Audio：ALC1220 & Audiophile Grade Capacitors
Specifications
Chipset
Intel® Z790 Express
Size Format
ATX (305x244mm)
Processor Support
13th and 12th generation Intel® Core™, Pentium® Gold, and Celeron®
Processor Socket
LGA1700
Memory
DIMM Sockets
4x
Memory Capacity
Up to 192GB
Memory Type
DDR5
Memory Speed
8266(OC)
8200(OC)
8000(OC)
7950(OC)
7900(OC)
7800(OC)
7600(OC)
7400(OC)
7200(OC)
7000(OC)
6800(OC)
6600(OC)
6400(OC)
6200(OC)
6000(OC)
5800(OC)
5600(OC)
5400(OC)
5200(OC)
4800
4000
Graphics Card
Video Outputs
1x HDMI 2.0, 1x DisplayPort 1.2
Sound Card
Realtek 7.1 Surround Sound High Definition Audio CODEC
Ethernet
Intel® 2.5 GbE LAN
WLAN + Bluetooth
Wi-Fi 7 + Bluetooth v5.3
Expansion Slots
PCIe x16 Slots
1x PCIe 5.0 x16, 2x PCIe 4.0 x16
Storage
M.2 Slots
1x M.2, M key, type 22110/2280 – PCIe 4.0 x4/x2 SSD support (M2A_CPU)
2x M.2, M key, type 22110/2280 – PCIe 4.0 x4/x2 SSD support (M2Q_SB, M2P_SB)
1x M.2, M key, type 22110/2280 – SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
SATA Ports
6x SATA 6Gb/s
RAID Controller
RAID 0/1/5/10 (NVMe and SATA)
USB
Rear USB Ports
1x USB Type-C, 2x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 4x USB 2.0/1.1
Front USB Ports
1x USB Type-C® connector – USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header – support for 2 additional USB 3.2 Gen 1 ports
2x USB 2.0/1.1 header – support for another 4 USB 2.0/1.1 ports
2x Thunderbolt™ add-on card connector

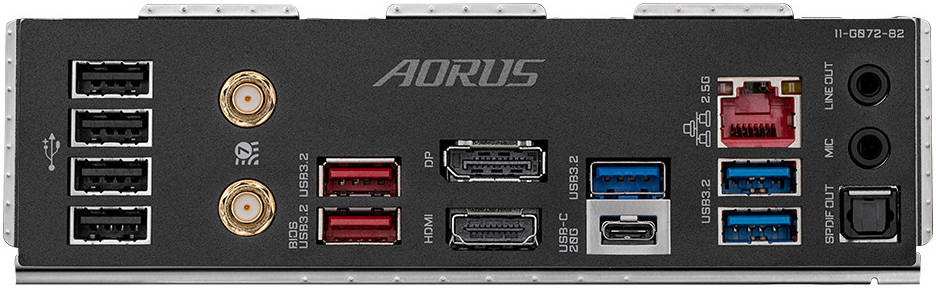

Rear Panel Ports
1x USB Type-C® with USB 3.2 Gen 2×2 support
2x USB 3.2 Gen 2 type-A (red)
3x USB 3.2 Gen 1
4x USB 2.0/1.1
2x SMA antenna connector (2T2R)
1x HDMI 2.0
1 x DisplayPort
1x RJ-45
1x optical S/PDIF Out
2x audio jack
Internal Ports
Power Supply
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connector
Fan and Cooling
1x CPU fan header
1x CPU fan/water cooling pump header
3x system fan headers
1x system fan/water cooling pump header
Repository
4x M.2 slot (Key M), 6x SATA 6Gb/s port
Other
3x addressable LED strip header
1x RGB LED strip header
1x front panel header
1x front panel audio header
1x Trusted Platform Module header (only for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module)
1x reset button
1x Q-Flash Plus button
1x Clear CMOS button
1x reset jumper
1x Clear CMOS jumper
BIOS
256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
