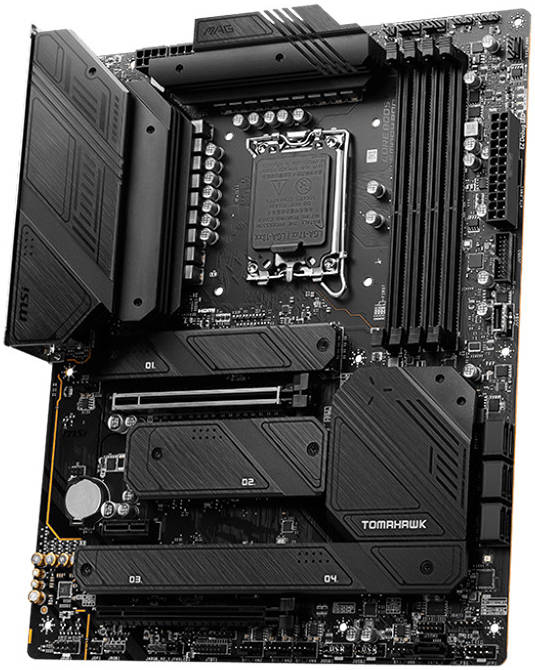

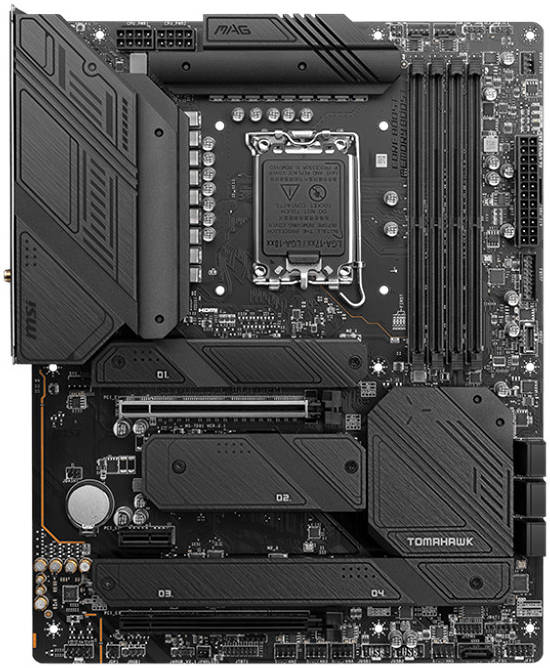

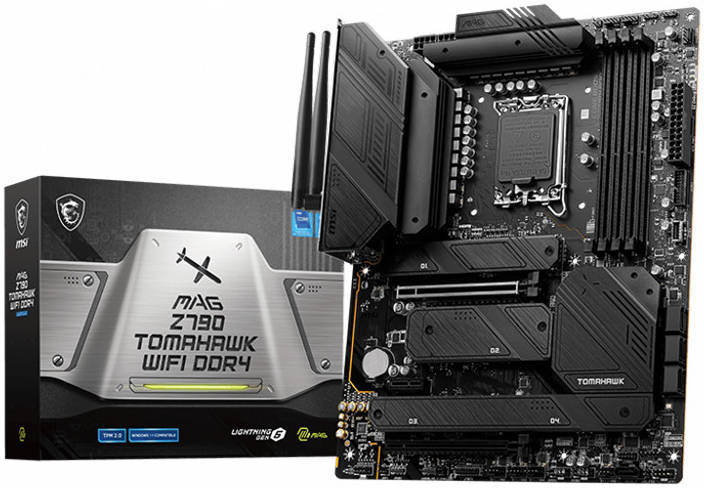

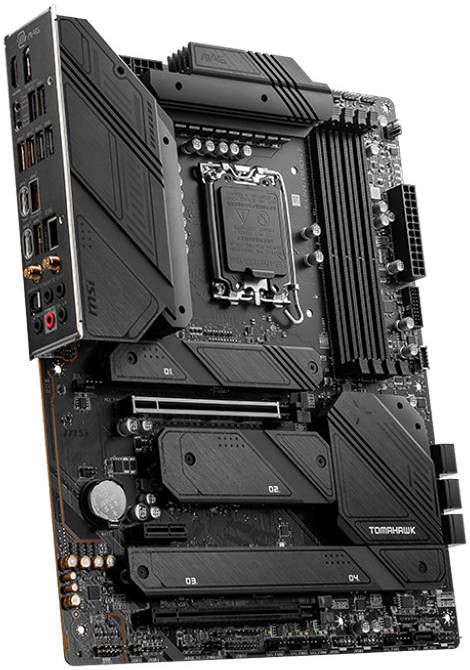

MAG Z790 TOMAHAWK WIFI DDR4
Bring easy connectivity to your system with the MAG Z790 TOMAHAWK WIFI DDR4 LGA 1700 ATX Motherboard from MSI. Utilizing the Intel Z790 chipset and LGA 1700 socket, this ATX motherboard sports four DDR4 RAM slots supporting dual channel memory and speeds up to 5333 MHz when overclocked. Seven SATA III and four M.2 interfaces provide ample room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2.
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
DDR 4 Dual Channel.
Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
Quadruple M.2 Connectors.
Wifi-6E: the latest wireless solution supports 6GBz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G network solution: Featuring premium 2.5 LAN to deliver better network experience.
Lightning USB 20G: Built-in USB3.2 Gen 2X2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR: M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Memory Boost: Advanced technology to delivery pure data signals for the best performance.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost 5.
6 Layer PCB with 2oz Thickened Copper.
LGA 1700 Socket
This motherboard features an LGA 1700 socket, which supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Intel Z790 Chipset
This motherboard sports the Intel Z790 chipset for optimal performance.
Lightning Gen 5
Lightning Gen 5 is a PCIe 5.0 solution that boasts up to 128 GB/s bandwidth and for optimal transfer speed.
Onboard M.2
Four onboard M.2 connectors provide maximum storage performance.
Wi-Fi 6E
Wi-Fi 6E supports the 6 GHz spectrum, MU-MIMO, and BSS color technology and delivers speeds up to 2400 Mbps.
2.5 Gigabit Ethernet
This motherboard also features a 2.5G LAN to deliver fast networking.
USB 3.2 Gen 2×2
A built-in USB 3.2 Gen 2×2 port offers up to 20 Gb/s transmission speed, four times faster than USB 3.2 Gen 1.
M.2 Shield FROZR
M.2 Shield FROZR is a strengthened built-in M.2 thermal solution that keeps M.2 SSDs safe while preventing throttling and making them run faster.
Memory Boost and Core Boost Technology
Memory Boost technology delivers pure data signals for unfettered performance, stability, and compatibility, while Core Boost supports more cores to provide better performance with intricate layouts and fully digital power designs.
Audio Boost
Audio Boost on the MAG 790 TOMAHAWK WIFI DDR4 Motherboard provides isolated audio with a robust processor for an immersive gaming experience. An enhanced PCB design with 6 layers and 2 ounces of thickened copper provides higher performance and long-lasting system stability without compromise.
Technical Specification
CHIPSET
INTEL Z790
CPU SUPPORT
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
MEMORY
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
ONBOARD GRAPHICS
1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE
4x EZ Debug LED

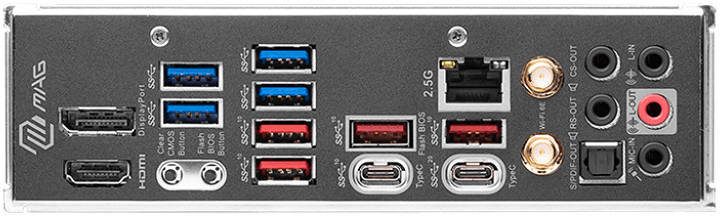

BACK PANEL PORTS
DisplayPort 1.4
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port,
HD Audio Connectors
HDMI™ 2.1 Port
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2×2 20Gbps Type-C
Wi-Fi / Bluetooth Antenna
Optical S/PDIF OUT
Physical
Form Factor
ATX
