MAG Z890 Tomahawk Wi-Fi
Designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for the battlefied of Intel Core Ultra processors.
Specifications
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory
4x DDR5 UDIMM, Max 256GB, Speeds: 9200-4800 MT/s, Supports Intel® XMP 3.0, Dual-Channel Mode, Non-ECC
Onboard Graphics
1x HDMI™ 2.1 (4K 120Hz), 2x Type-C DisplayPort (Thunderbolt™ 4, 4K@120Hz / 8K@60Hz)
Expansion Slots
3x PCI-E x16 (PCIe 5.0/4.0)
Audio
Realtek® ALC1220P Codec, 7.1-Channel HD Audio, Supports S/PDIF
Storage
4x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6G, RAID 0/1/5/10 for SATA & NVMe
RAID
Supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage
Thunderbolt™
2x Thunderbolt 4 (40Gbps), Supports USB4, USB 3.2, up to 8K display, 15W charging
USB
Rear: 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A; Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
LAN
Intel® Killer™ E5000 5Gbps LAN
Internal IO
Thunderbolt5 card connector, ATX_PWR, CPU_PWR, PCI_PWR, CPU & system fans, RGB LED connectors, TPM 2.0 header, USB 2.0, 5Gbps Type A, 20Gbps Type C
Wireless LAN & Bluetooth
Intel® Killer™ BE1750x Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, 2.4GHz/5GHz/6GHz MU-MIMO
LED Features
4x EZ Debug LED, 1x EZ Digit Debug LED

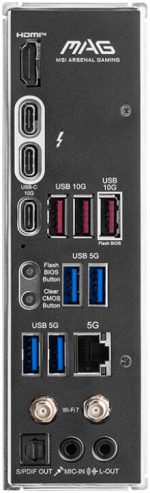

Back Panel Ports
HDMI™, Thunderbolt™ 4, USB 10Gbps Type-C/A, S/PDIF, 5G LAN, Wi-Fi/Bluetooth, Flash BIOS Button, Clear CMOS Button
Operating System
Windows® 11 64-bit
PCB Info
ATX, 243.84mm x 304.8mm
MSI MAG Z890 Tomahawk Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-e x16 Slots, 4x M.2 Slots | 911-7E32-003
$410.00
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Brand |
MSI |
|---|---|
| Model |
MAG Z890 Tomahawk Wi-Fi |
| Date first available |
24 October; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
1.85 Kg |
| Shipping Dimensions |
7.50 cm x 34.50 cm x 27.51 cm |
| Chipset |
Intel Z890 |
| M.2 Slots |
4 |
| Maximum Memory |
256 GB |
| Memory Slots |
4 |
| PCI Express x16 |
3 |
| Socket |
LGA 1851 |
| Memory Speed |
— |
