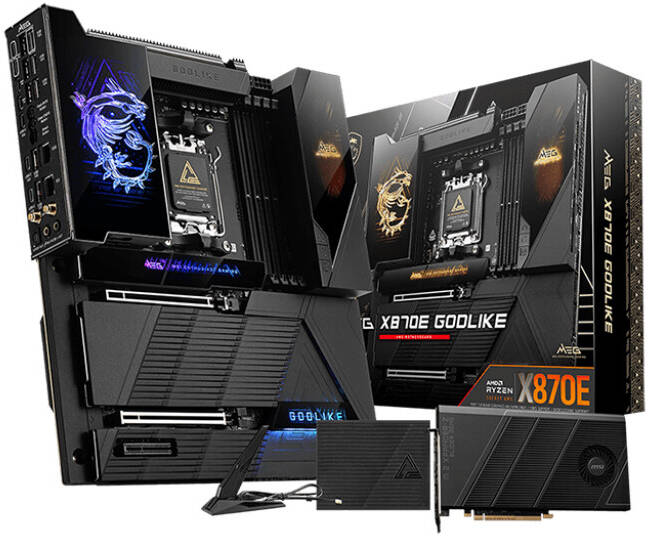

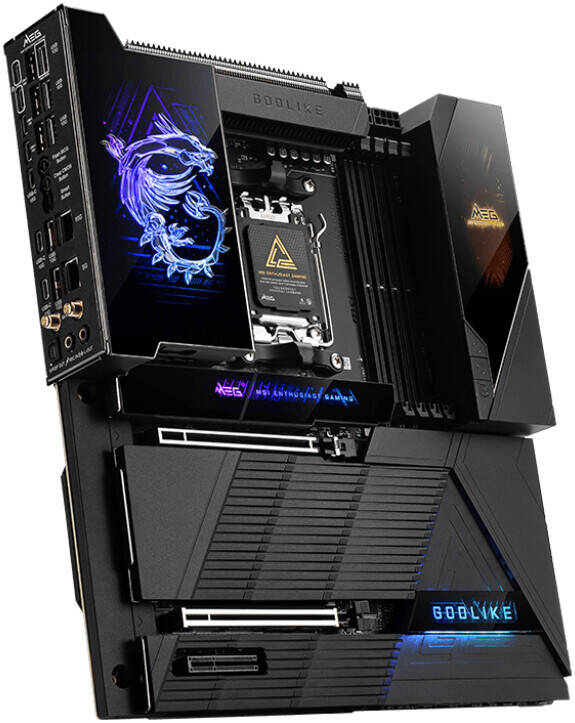

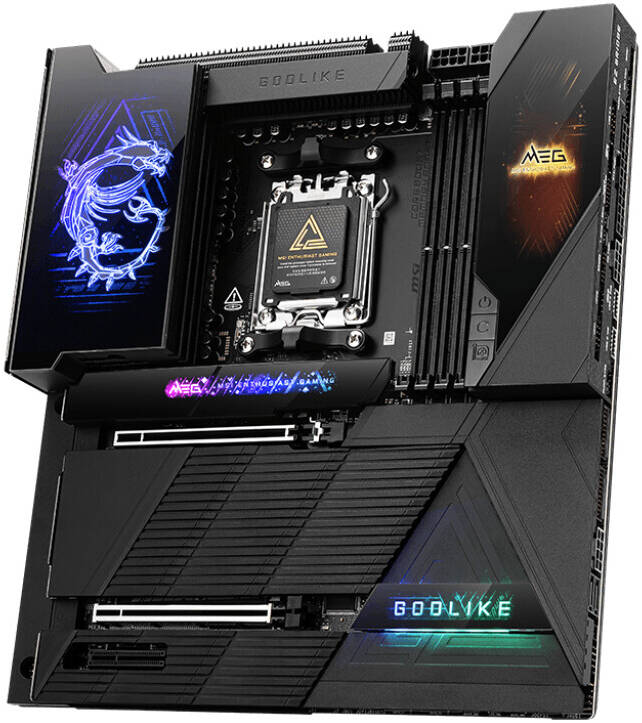

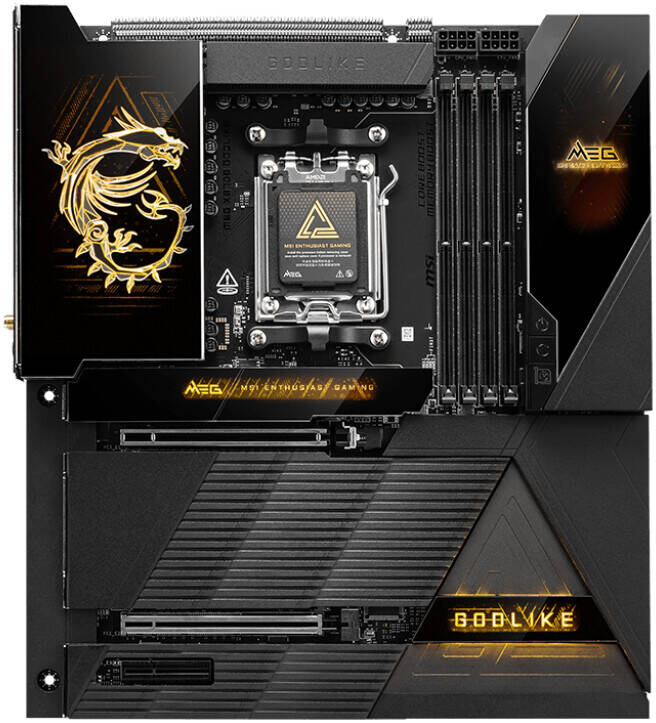

MEG X870E GODLIKE
Experience the pinnacle of innovation with MEG X870E GODLIKE gaming motherboard, engineered for ultimate AI applications and extreme gaming performance. This E-ATX Motherboard features a dark black heatsink with embedded crystal-cut tempered glass, a stereoscopic dragon, and the groundbreaking Dynamic Dashboard, symbolizing boundless performance and pure perfection.
Specifications
Chipset
AMD X870E
CPU
Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, Socket AM5
Memory
4x DDR5 UDIMM, Max 256GB, DDR5 9000–4800 MT/s (OC/JEDEC), Dual-Channel, AMD EXPO™ support
Onboard Graphics
2x Type-C DisplayPort, USB4® port, DisplayPort 1.4, 4K@60Hz (dependent on CPU)
Slots
2x PCI-E x16 (Gen5), 1x PCI-E x4 (Gen4), configurable speeds based on CPU and BIOS settings
Audio
Realtek® ALC4082 Codec + ESS9219Q DAC, 7.1-Channel USB, 32-Bit/384 kHz playback
Storage
7x M.2 (PCIe Gen5/Gen4), 4x SATA 6G, RAID 0/1/10 support
USB Ports
4x USB 2.0, 4x USB 5Gbps Type-A, 8x USB 10Gbps (7x Type-A, 1x Type-C), 2x USB 40Gbps Type-C
LAN
1x Marvell® AQC113CS 10Gbps, 1x Realtek® 8126 5Gbps
Wireless LAN & Bluetooth
Wi-Fi 7 (802.11a/b/g/n/ac/ax/be, 5.8Gbps, MU-MIMO), Bluetooth® 5.4
LED Features
Dynamic Dashboard III, EZ Digit Debug LED, EZ LED Control Switch
Internal I/O
Multiple power connectors, fan connectors, thermal sensor connectors, USB headers, RGB LED connectors

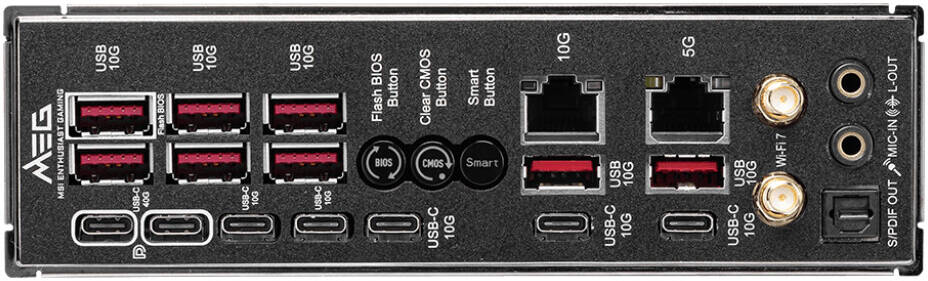

Back Panel Ports
USB 10Gbps (Type-A/C), USB 40Gbps (Type-C), LAN (10G/5G), Wi-Fi/Bluetooth, HD Audio, Optical S/PDIF
Operating System
Windows® 11 64-bit
Box Content
E-ATX PCB, 304.8mm x 277mm
MSI MEG X870E Godlike E-ATX AMD Motherboard, AMD X870E Chipset, 4x DDR5 UDIMM Slot, Up to 256GB Max Memory, 2x PCI-E x16 Slot, 7x M.2 Storage Slot | 911-7E48-003
$1,670.00
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
| Brand |
MSI |
|---|---|
| Model |
MEG X870E Godlike |
| Date first available |
28 December; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
E-ATX |
| Shipping Weight |
5.65 Kg |
| Shipping Dimensions |
13.50 cm x 38.50 cm x 36.51 cm |
| Chipset |
AMD X870 |
| M.2 Slots |
7 |
| Maximum Memory |
256 GB |
| Memory Slots |
4 |
| PCI Express x16 |
2 |
| Socket |
AM5 |
| Memory Speed |
— |
