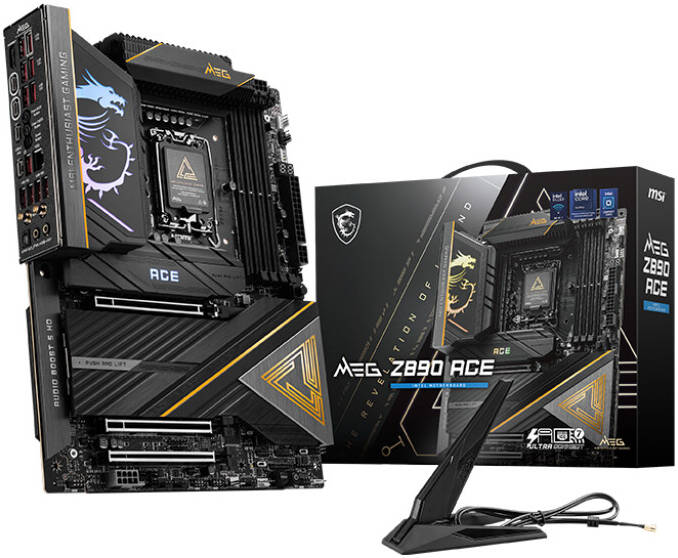

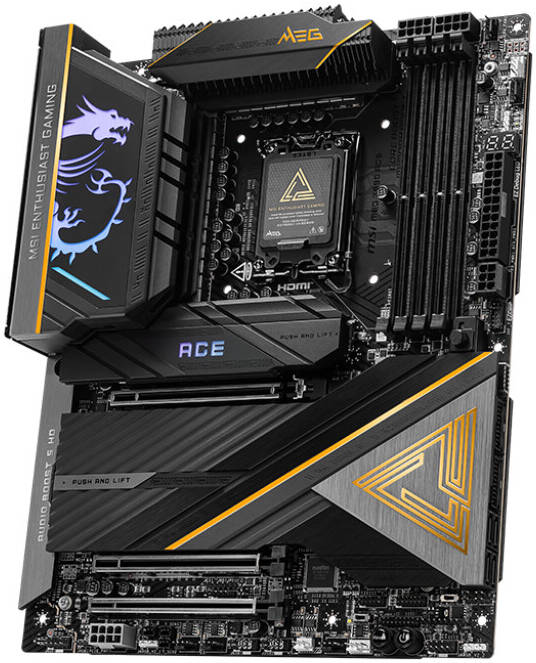

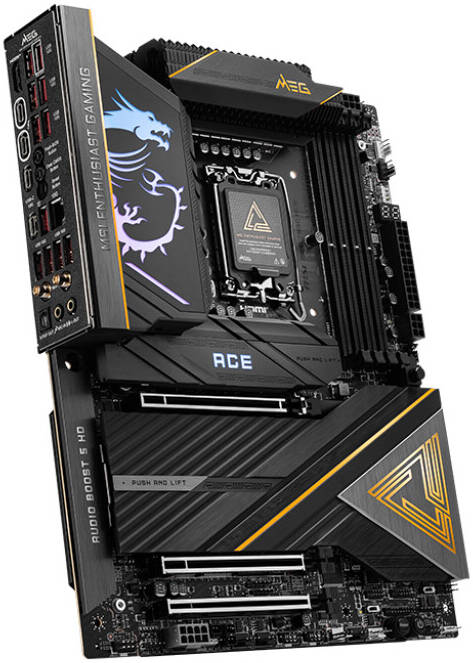

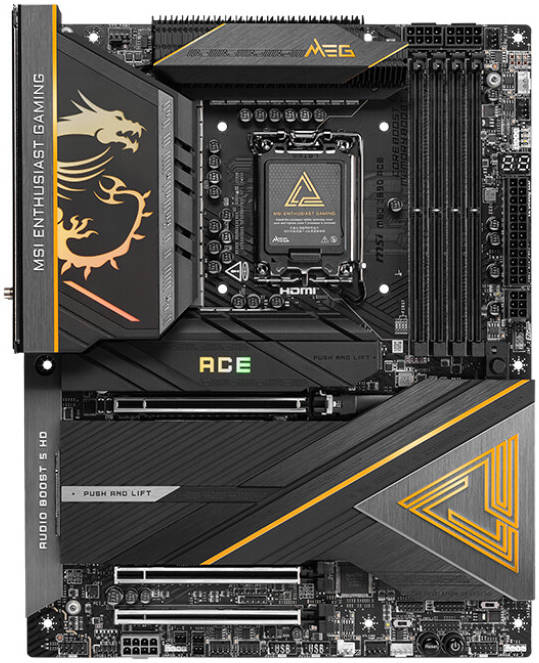

MEG Z890 Ace
Furnished premium aesthetics with its dark black finish and pale gold embellishes. Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.
Specifications
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory
4x DDR5 UDIMM, Max 256GB, Speeds: 9200-4800 MT/s, Supports Intel® XMP 3.0, Dual-Channel Mode, Non-ECC
Onboard Graphics
1x HDMI™ 2.1 (8K 60Hz), 2x Type-C DisplayPort (Thunderbolt™ 4, 8K@60Hz)
Expansion Slots
3x PCI-E x16 (PCIe 5.0/4.0), Supports manual BIOS adjustment
Audio
Realtek® ALC4082 Codec + ESS9219Q Combo DAC, 7.1-Channel, S/PDIF, 32-bit/384 kHz playback
Storage
5x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6G, RAID 0/1/5/10 for SATA & NVMe
RAID
Supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage
Thunderbolt™
2x Thunderbolt 4 (40Gbps), Supports USB4, USB 3.2, up to 8K display, 15W charging
USB
Rear: 11x USB 10Gbps Type-A, 2x USB 10Gbps Type-C; Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 20Gbps Type C
LAN
Marvell® AQC113CS 10Gbps LAN
Internal IO
Thunderbolt5 card connector, ATX_PWR, CPU_PWR, PCI_PWR, PD_PWR1, CPU & system fans, RGB LED connectors, TPM 2.0 header, USB 2.0, 5Gbps Type A, 20Gbps Type C
Wireless LAN & Bluetooth
Intel® Killer™ BE1750x Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, 2.4GHz/5GHz/6GHz MU-MIMO
LED Features
4x EZ Debug LED, 1x EZ Digit Debug LED, 1x EZ LED Control Switch
Back Panel Ports

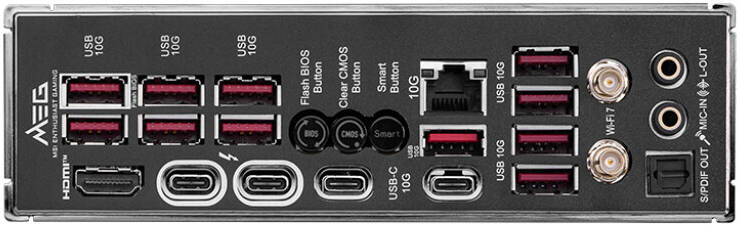

HDMI™ 2.1, Thunderbolt™ 4, USB 10Gbps Type-C/A, Optical S/PDIF-Out, Wi-Fi/Bluetooth, 10G LAN, Smart Button, Flash BIOS, Clear CMOS
Operating System
Windows® 11 64-bit
PCB Info
ATX, 243.84mm x 304.8mm
MSI MEG Z890 Ace LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-E x16 Slots, 5x M.2 Slots, Black | 911-7E22-001
$760.00
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
| Brand |
MSI |
|---|---|
| Model |
MEG Z890 Ace |
| Date first available |
24 October; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
3.50 Kg |
| Shipping Dimensions |
9.50 cm x 35.50 cm x 29.01 cm |
| Chipset |
Intel Z890 |
| M.2 Slots |
5 |
| Maximum Memory |
256 GB |
| Memory Slots |
4 |
| PCI Express x16 |
3 |
| Socket |
LGA 1851 |
| Memory Speed |
— |
