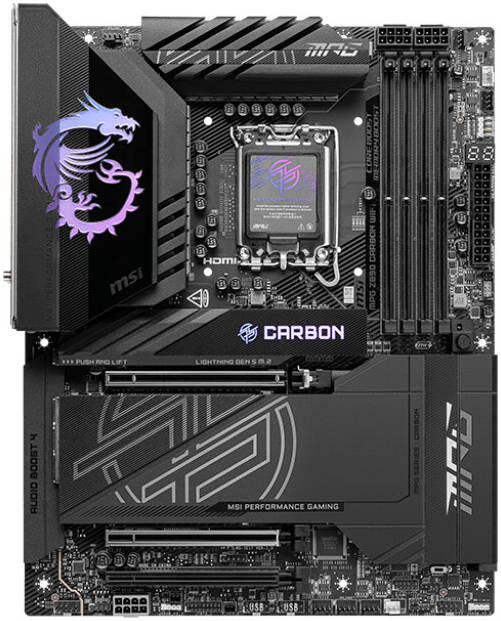

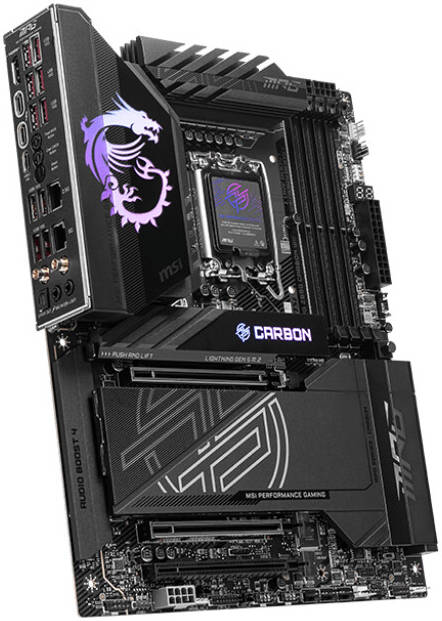

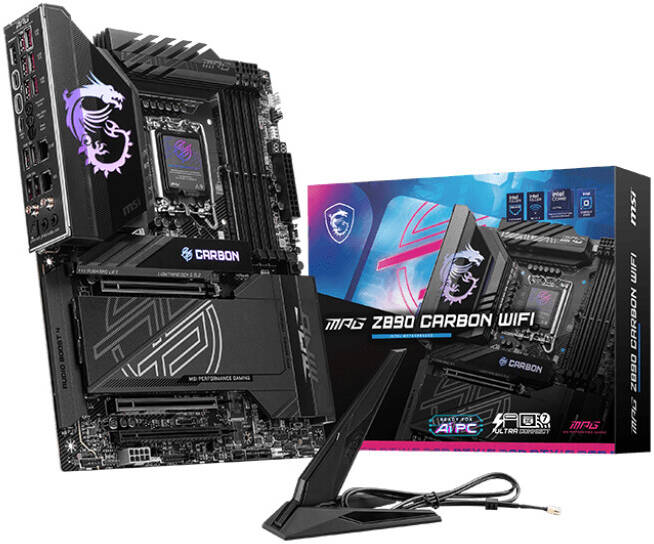

MPG Z890 Carbon Wi-Fi
Employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring Killer 5G LAN and Wi-Fi 7 solution, Thunderbolt 4, Supplemental PCIe Power and the effortless EZ DIY designs, making this motherboard definetly one of the best Z890 ATX motherboards for Intel Core Ultra processors.
Specifications
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory
4x DDR5 UDIMM, Max 256GB, 9200 – 4800 MT/s (OC), Supports Intel® XMP 3.0, Dual-Channel Mode, Non-ECC, CUDIMM
Onboard Graphics
1x HDMI™ 2.1 (8K 60Hz), 2x Type-C DisplayPort (Thunderbolt™ 4, 4K@120Hz / 8K@60Hz)
Expansion Slots
3x PCI-E x16 (PCIe 5.0/4.0), Supports BIOS adjustments for x8+x4+x4 and x4+x4
Audio
Realtek® ALC1220P Codec, 7.1-Channel USB HD Audio, Supports S/PDIF
Storage
5x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6G, RAID 0/1/5/10 for SATA & NVMe
RAID
Supports RAID 0, 1, 5, 10 for both SATA and M.2 NVMe storage
Thunderbolt™
2x Thunderbolt 4 (40Gbps), USB4, USB 3.2, 8K display support, 15W charging, Daisy-chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices
USB
Rear: 10x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
LAN
Intel® Killer™ E5000B 5G LAN, Intel® I226V 2.5G LAN
Internal IO
ATX_PWR, CPU_PWR, PCI_PWR, CPU & system fans, RGB LED connectors, TPM 2.0 header, USB 2.0, USB 5Gbps Type-A, USB 20Gbps Type-C, Water Flow, Thermal Sensor
Wireless LAN & Bluetooth
Intel® Killer™ BE1750x Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, 2.4GHz/5GHz/6GHz MU-MIMO
LED Features
4x EZ Debug LED, 1x EZ Digit Debug LED

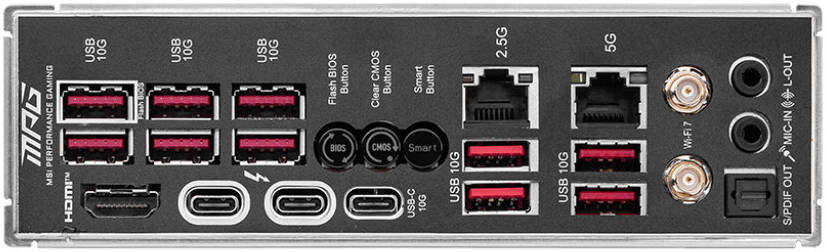

Back Panel Ports
HDMI™, Thunderbolt 4, USB 10Gbps Type-C/A, 5G LAN, 2.5G LAN, Wi-Fi/Bluetooth, Flash BIOS, Clear CMOS, Smart Button, Optical S/PDIF Out
Operating System
Windows® 11 64-bit
PCB Info
ATX, 243.84mm x 304.8mm
MSI MPG Z890 Carbon Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-e x16 Slots, 5x M.2 Slots | 911-7E17-001
$560.00
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, up to 9200+ MT/s (OC)
Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Brand |
MSI |
|---|---|
| Model |
MPG Z890 Carbon Wi-Fi |
| Date first available |
24 October; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
1.00 Kg |
| Shipping Dimensions |
5.50 cm x 17.00 cm x 16.50 cm |
| Chipset |
Intel Z890 |
| M.2 Slots |
5 |
| Maximum Memory |
256 GB |
| Memory Slots |
4 |
| PCI Express x16 |
3 |
| Socket |
LGA 1851 |
| Memory Speed |
— |
