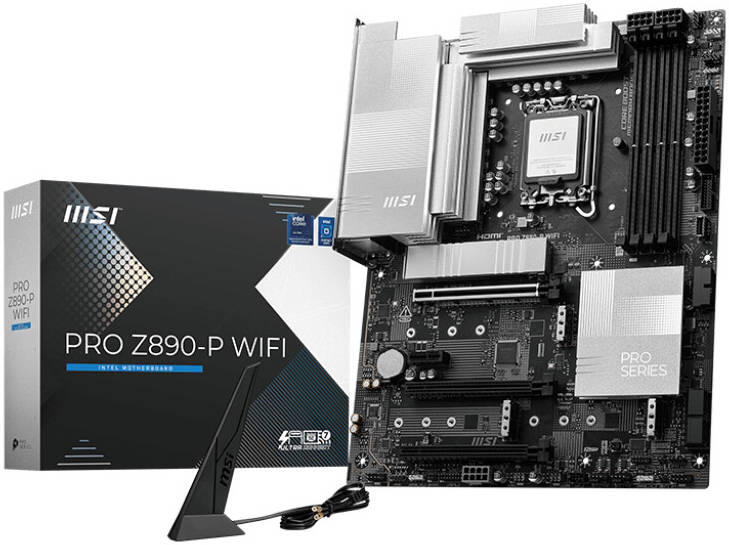

PRO Z890-P WIFI
Offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
Specifications
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory
4x DDR5 UDIMM, Max 256GB, Speeds: 9200-4800 MT/s, Supports Intel® XMP 3.0, Dual-Channel Mode, Non-ECC
Onboard Graphics
1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Type-C DisplayPort (Thunderbolt™ 4, 4K@120Hz/8K@60Hz)
Expansion Slots
3x PCI-E x16 (PCIe 5.0, 4.0), 1x PCI-E x1
Audio
Realtek® ALC897 Codec, 7.1-Channel HD
Storage
4x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6G
RAID
RAID 0/1/5/10 for SATA & M.2 NVMe devices
Thunderbolt™
1x Thunderbolt 4 (40Gbps), Supports USB4, USB 3.2, up to 8K display, 15W power charging
USB
Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C; Front: 4x USB 5Gbps Type A, 1x USB 20Gbps Type C
LAN
Realtek® 8126 5Gbps LAN
Wireless LAN & Bluetooth
Intel® Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, 2.4GHz/5GHz/6GHz MU-MIMO
Internal IO
Thunderbolt5 card connector, ATX_PWR, CPU_PWR, PCI_PWR 8pin, 5x System Fan, RGB LED connectors, TPM 2.0 header
LED Feature
4x EZ Debug LED

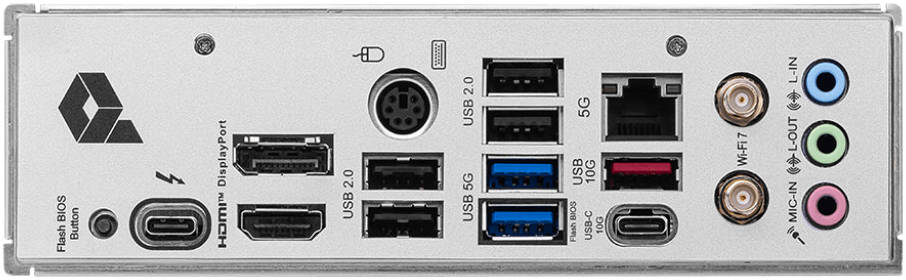

Back Panel Ports
DisplayPort, HDMI™, USB 2.0, USB 5Gbps Type A, USB 10Gbps Type A/C, 5G LAN, Wi-Fi/Bluetooth, Flash BIOS Button
Operating System
Windows® 11 64-bit
PCB Info
ATX, 243.84mm x 304.8mm
MSI Pro Z890-P Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-E x16 Slots, 4x M.2 Slots, Black | 911-7E34-001
$300.00
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Brand |
MSI |
|---|---|
| Model |
Pro Z890-P Wi-Fi |
| Date first available |
24 October; 2024 |
| Multi-GPU Support |
— |
| Memory Type |
DDR5 |
| Form Factor |
ATX |
| Shipping Weight |
1.00 Kg |
| Shipping Dimensions |
5.50 cm x 17.00 cm x 16.50 cm |
| Chipset |
Intel Z890 |
| M.2 Slots |
4 |
| Maximum Memory |
256 GB |
| Memory Slots |
4 |
| PCI Express x16 |
3 |
| Socket |
LGA 1851 |
| Memory Speed |
— |
