MSI Z790 PROJECT ZERO LGA1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 UDIMM / 192GB Max, 3x PCI-E x16, 4x M.2, Wi-Fi 7, ALC897 Codec, USB 3.2 Gen2, HDMI/ DP | 911-7E23-001

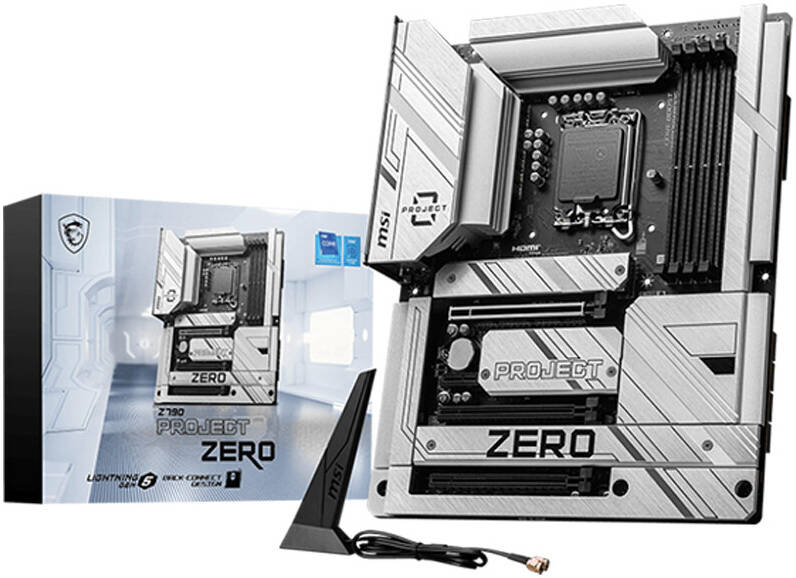

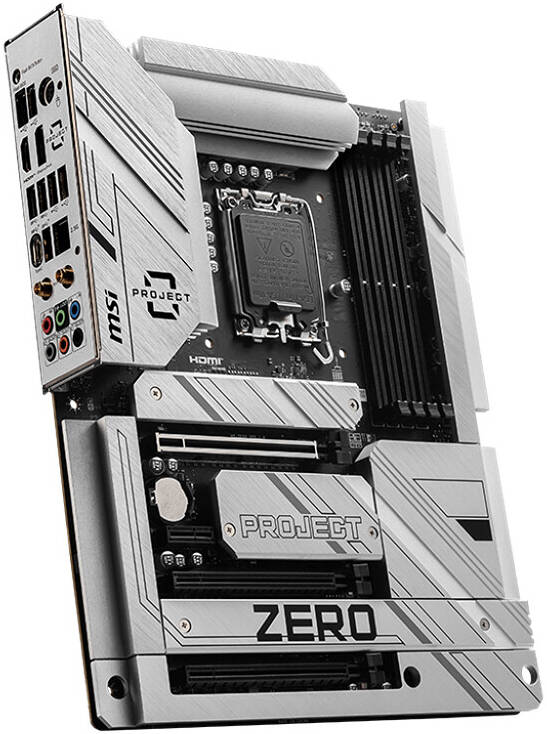

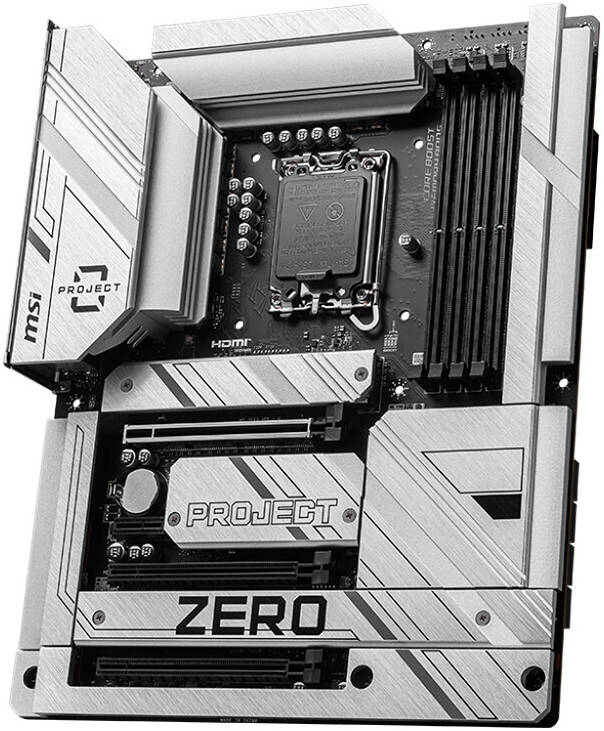

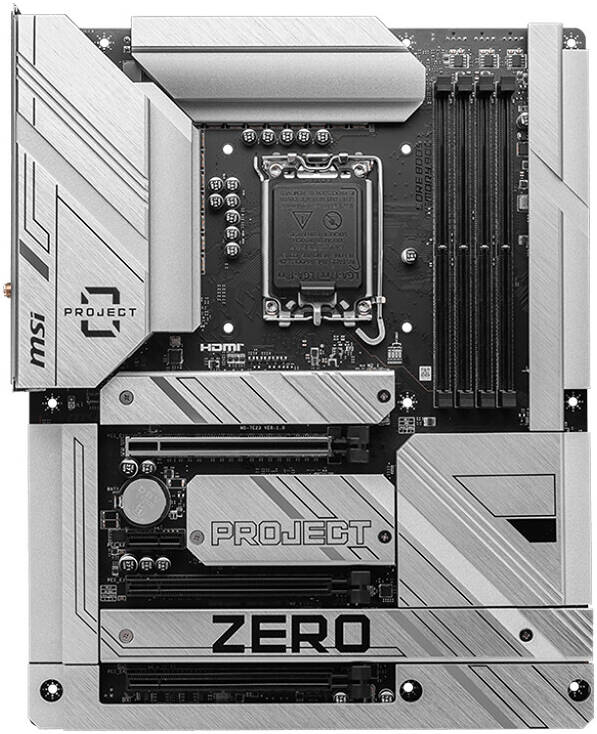

Z790 PROJECT ZERO

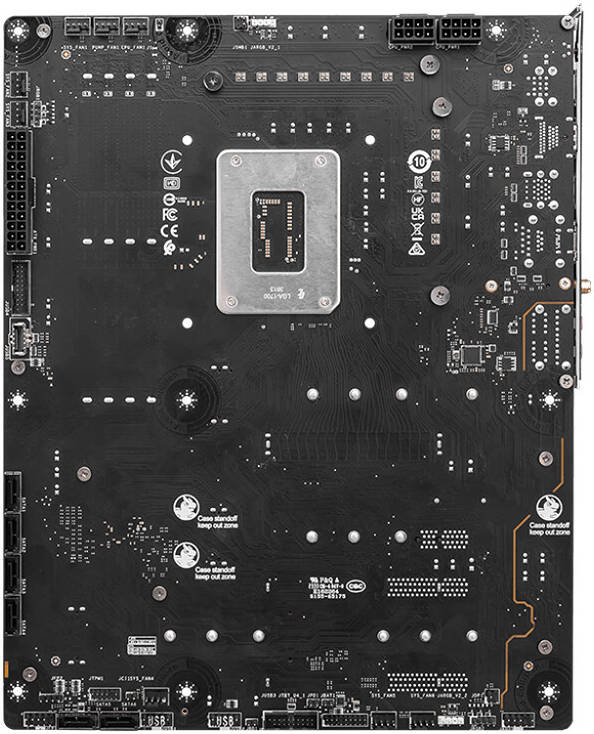

The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards.
Key Features
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7200+(OC) MHz
Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works
Audio Boost: Reward your ears with studio-grade sound
High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications
Chipset
INTEL Z790
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support:
– 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
– Max. overclocking frequency:
– 1DPC 1R Max speed up to 7200+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Onboard Graphics
1x HDMI™ (Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*)
1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*)
Slots
3x PCI-E x16 slot
1x PCI-E x1 slot
– PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
– PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
– PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
– PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
4x M.2
– M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
– M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
– M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
– M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
Wireless LAN & Bluetooth
Wi-Fi 7
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
– Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
– Supports Bluetooth® 5.4**, MLO, 4KQAM
Audio
Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Internal I/O
Various internal connectors including power connectors, fan connectors, USB ports, RGB LED connectors, etc.
LED Feature
4x EZ Debug LED

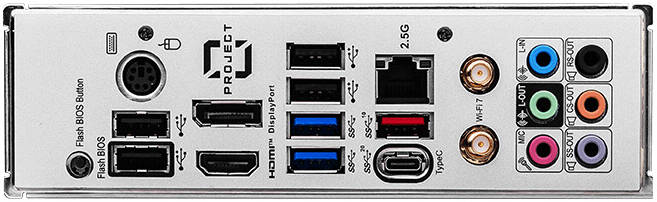

Back Panel Ports
Mouse / Keyboard
DisplayPort 1.4
USB 2.0
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
Flash Bios Button
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2×2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
ATX
Dimensions: 243.84mm x 304.8mm
