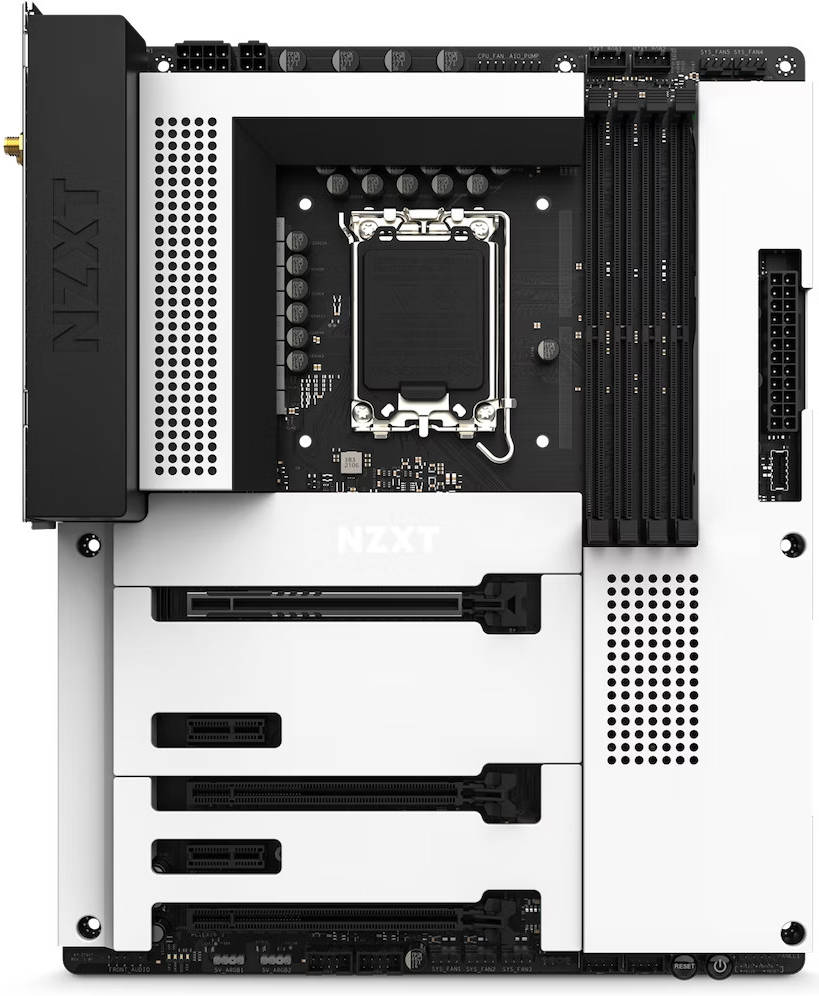

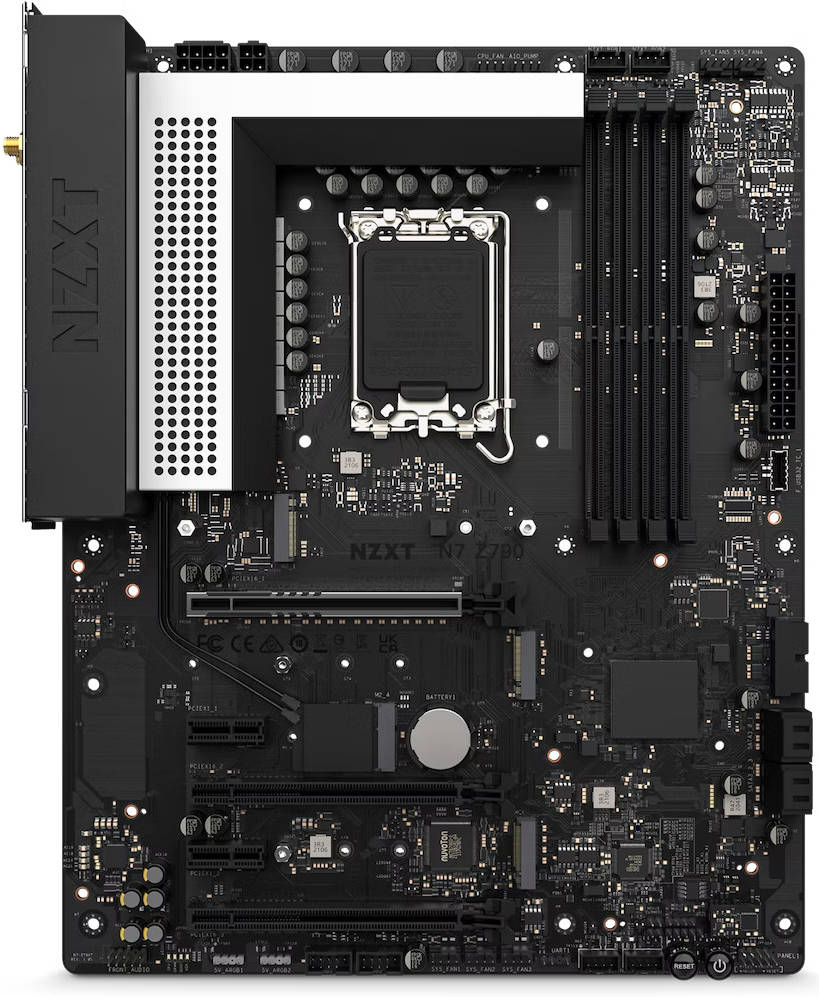

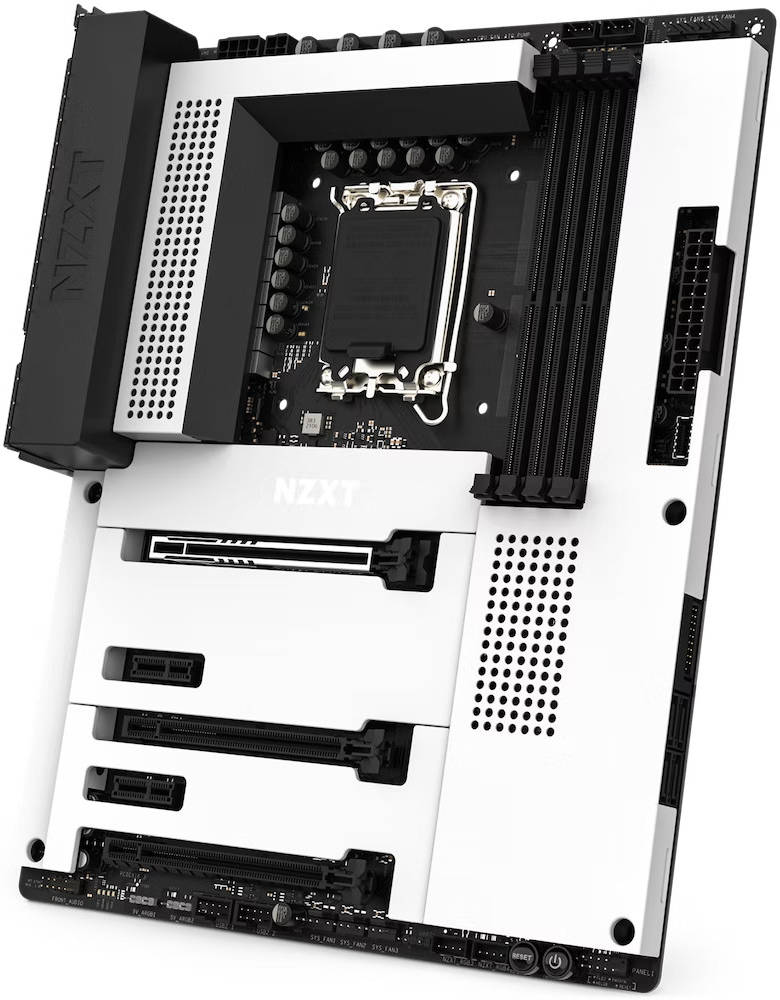

N7 Z790
The N7 Z790 supports Intel’s latest CPUs and has everything needed to build a modern system. The full black or white cover blends seamlessly within your build and includes optimally placed headers and built-in fan & lighting controls via NZXT CAM.
The Latest and Greatest
The N7 Z790 allows for a great look without sacrificing the build experience with an integrated rear I/O and optimally placed headers.
Stunning Craftsmanship

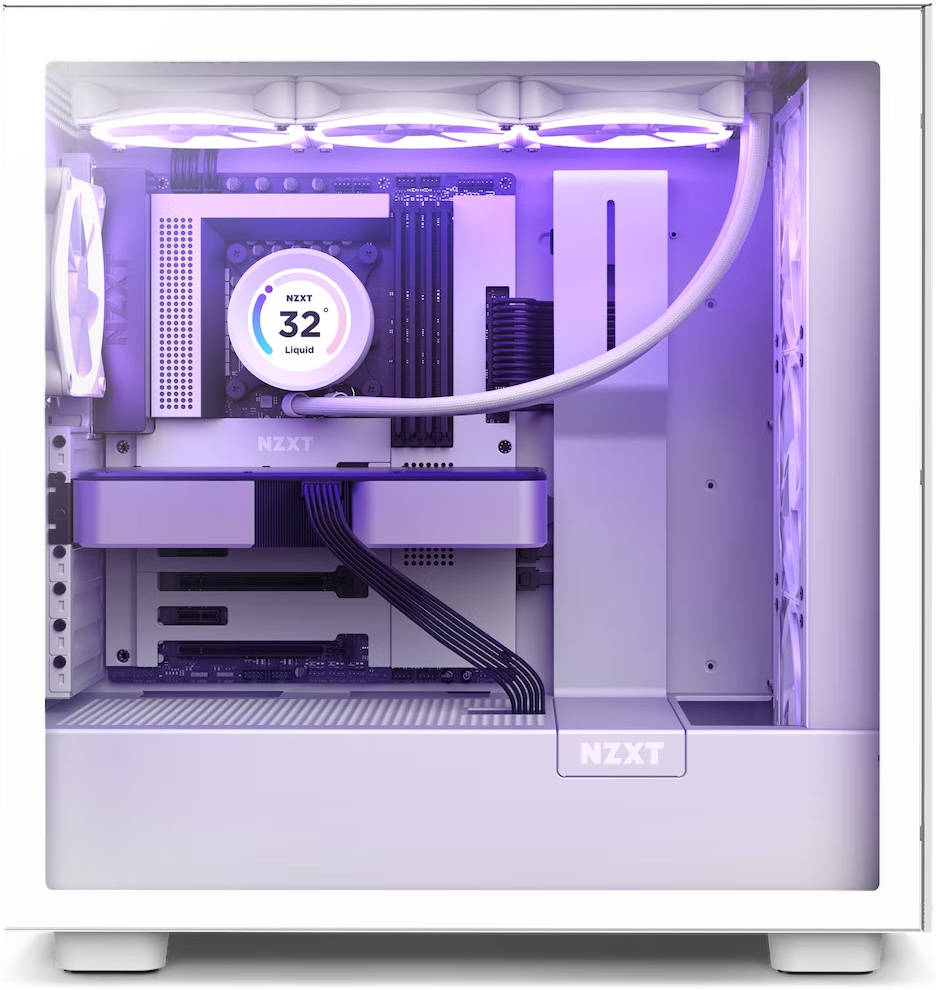

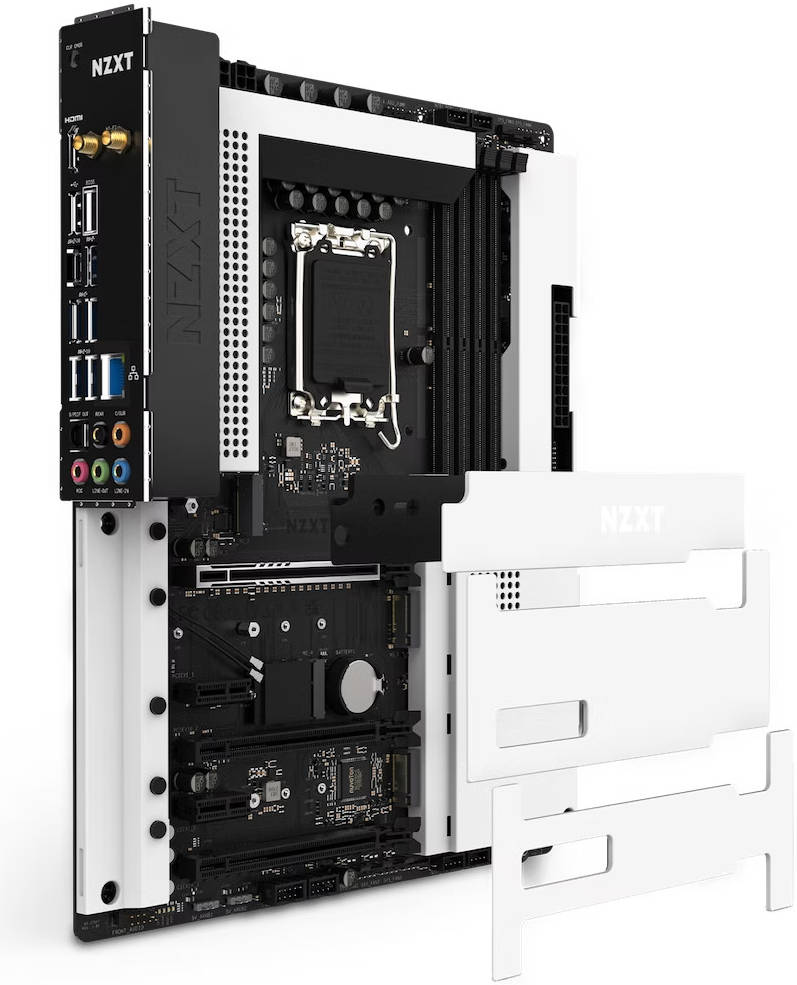

Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your prized components.
Powerful Control
The N7 Z790 includes key features from the NZXT RGB and Fan Controller, allowing intuitive control of six RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported as well as 5V ARGB.
Specifications
CPU & SOCKET
Socket LGA 1700 for Intel 14th, 13th, and 12th Gen Core™ CPUs Intel Hybrid Technology, Turbo Boost Max 3.0, Intel TVB, Intel ABT
CHIPSET
Intel Z790
MEMORY
DIMM Slots: 4, DDR5 only Max Memory Support: 192GB, DDR5 Memory Architecture: Dual-Channel OC Frequency: 7200+ (O.C.)
EXPANSION SLOTS
PCIe 5.0 ×16 (PCIEX16_1): 1 (supports ×16 mode) PCIe 4.0 ×16 (PCIEX16_2, PCIEX16_3): 2 (supports ×4 mode) PCIe 3.0 ×1 (PCIEX1_1, PCIEX1_2): 2 M.2 Socket (Key E): 1
STORAGE
M.2_1 (PCIe 4.0 ×4 mode): 1 M.2_2 (PCIe 4.0 ×4 mode): 1 M.2_3 (PCIe 4.0 ×4 and SATA 6Gb/s mode): 1 SATA 6Gb/s ports: 4
LAN
Realtek RTL8125BG 2.5G LAN
WIRELESS
Dual Band Wi-Fi 6E, Bluetooth V5.3
AUDIO
Realtek ALC1220 Codec

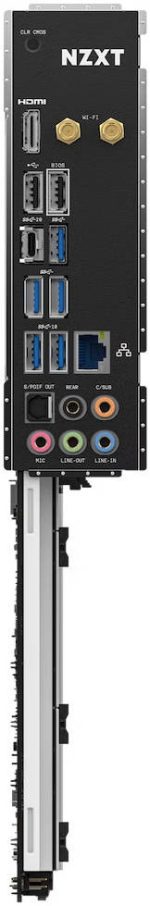

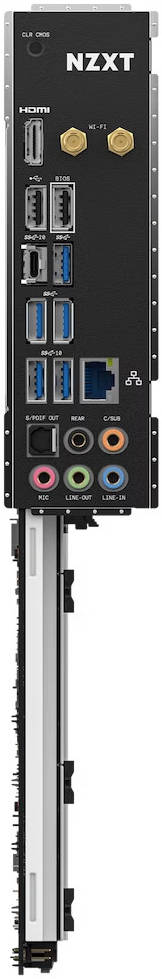

REAR I/O
Wireless antenna SMA connectors: 2 HDMI™ port: 1 USB 2.0: 2 USB 3.2 Gen 2×2 Type-C: 1 USB 3.2 Gen 2: 2 USB 3.2 Gen 1: 3 Clear CMOS button: 1 LAN (RJ45) port: 1 Audio jacks: 5 Optical S/PDIF Out port: 1
INTERNAL I/O
24-pin ATX power connector: 1 8+4-pin ATX 12V power connector: 1 4-pin CPU_FAN connector: 1 4-pin AIO_PUMP connector: 1 4-pin SYS_FAN connectors: 5 NZXT RGB LED connectors: 4 5V ARGB LED connector: 2 USB 2.0 header: 2 USB 3.2 Gen1 header: 1 USB 3.2 Gen2x2 front panel header: 1 Front panel audio connector: 1 Power button: 1 Reset button: 1 POST LEDs: 4
GENERAL
Operating System: Windows 11/10 64-bit Form Factor: ATX
