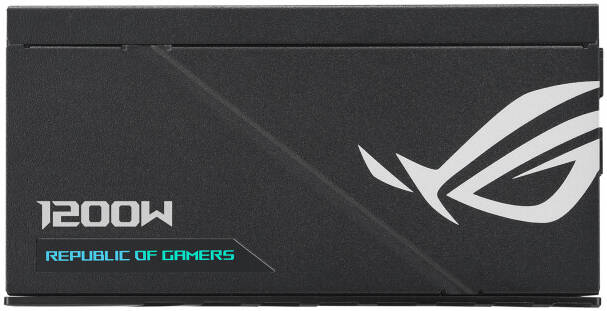

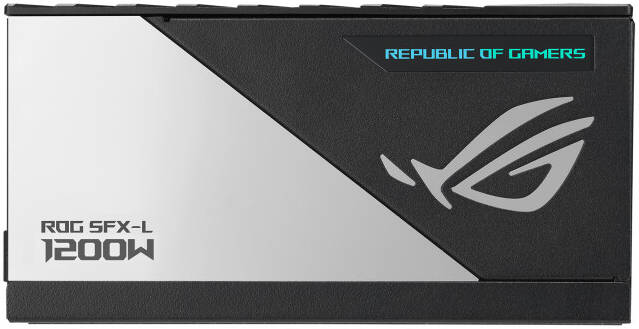

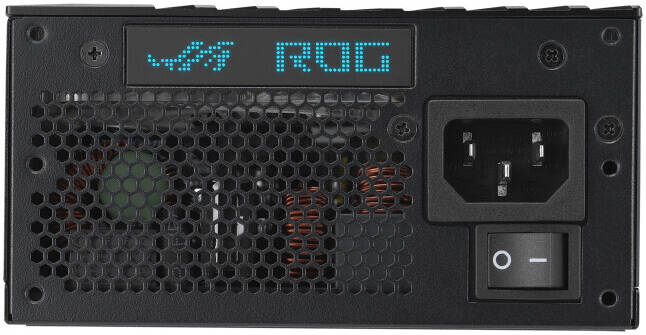

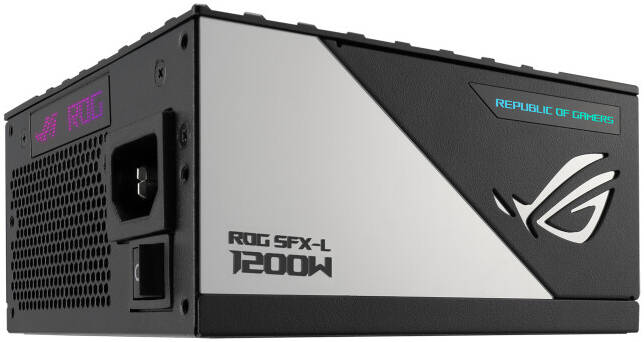

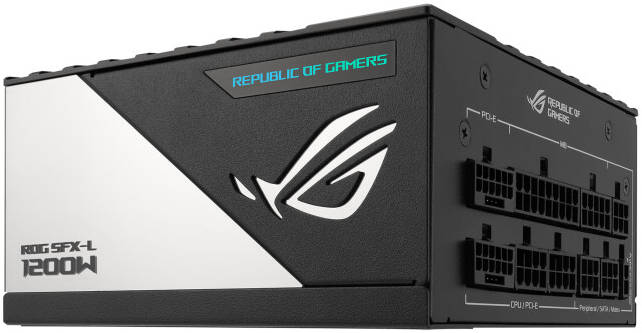

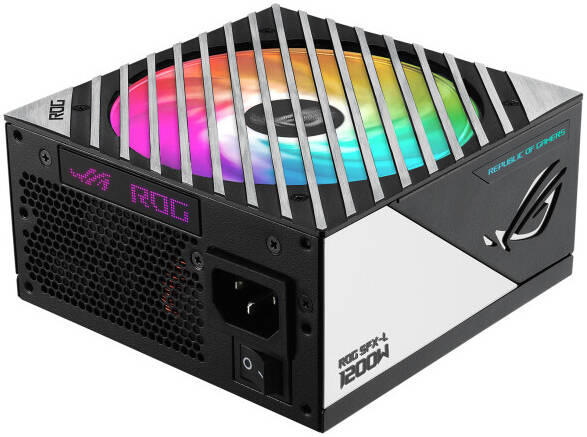

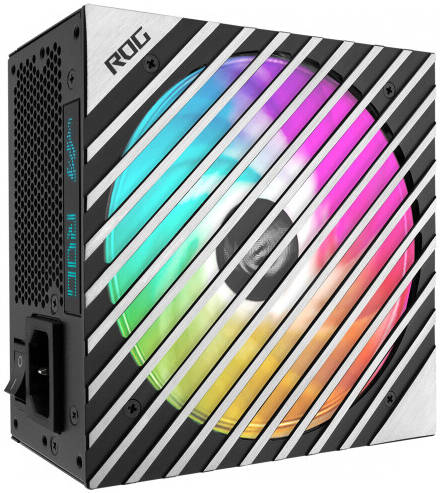

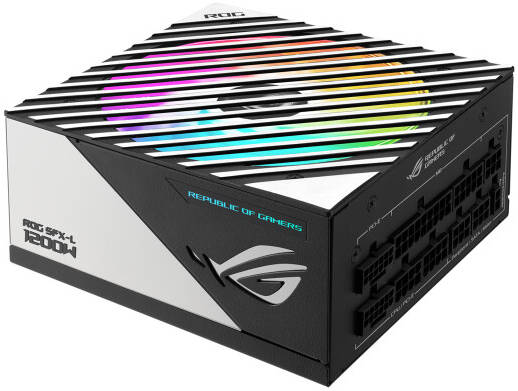

ROG LOKI SFX-L 1200W Titanium
The World’s Quietest and Most Powerful SFX-L PSU
Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
Specifications
Model
ROG-LOKI-1200T-SFX-L-GAMING
Form Factor
SFX-L
PFC Type
Active PFC
ATX Standard
ATX 3.0
Dimensions
125 x 125 x 63.5 mm
Efficiency
80Plus Titanium
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load
20A (3.3V), 20A (5V), 100A (12V), 0.8A (-12V), 3A (+5Vsb)
Combined Load
110W (3.3V + 5V), 1200W (12V), 9.6W (-12V), 15W (+5Vsb)
Total Output
1200W

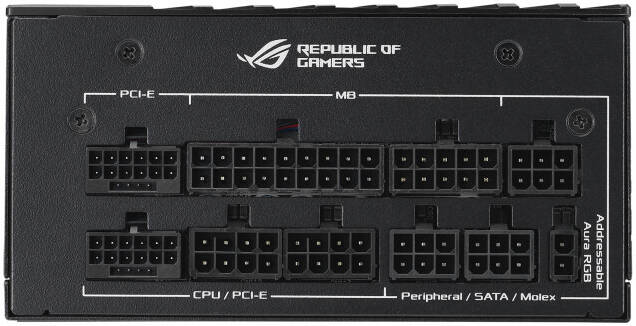

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2
PCI-E 8-pin x 4
SATA x 6
PERIPHERAL x 4

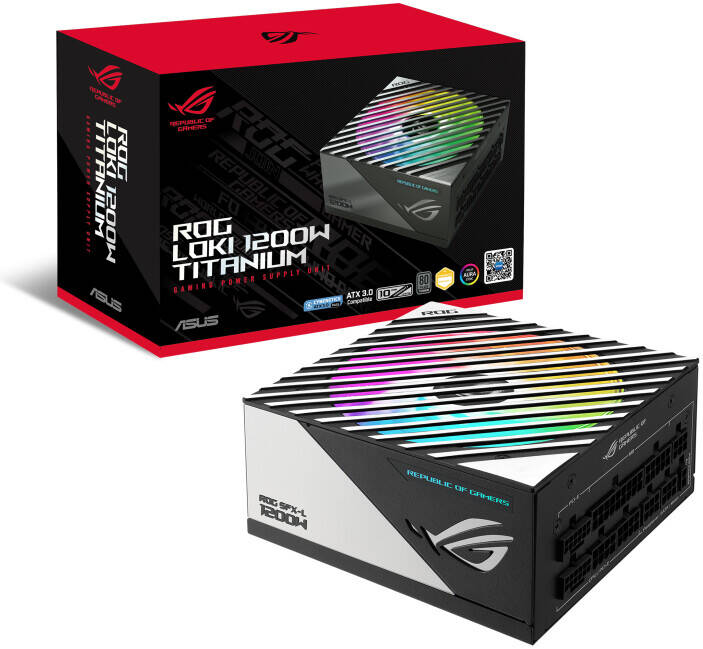

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 2 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight
2.15 kg (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
S++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
ASUS ROG Loki 1200T SFX-L 80 Plus Titanium Fully Modular Power Supply, 1200W Power, ATX 3.0 Compatible, Dual Ball Fan Bearings, PCIe Gen 5.0, ARGB-Illuminated Fan & Aura Sync, Black | 90YE00N0-B0NA00
$340.00
PCIe Gen 5.0 Ready 16-pin cable included to pipe up to 600W power to PCIe 5.0 graphics cards
80 PLUS Titanium Certified Up to 94% efficient for low heat and noise, and increased reliability

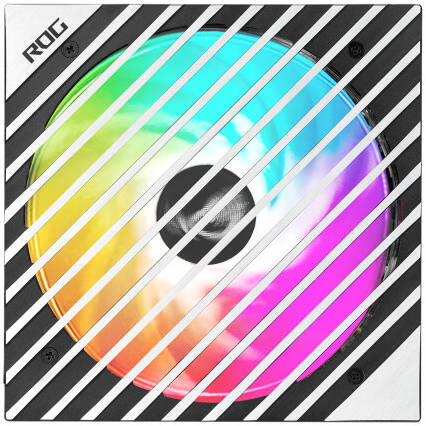

ARGB-Illuminated Fan & Aura Sync Ready to synchronize lighting effects across your gaming setup
| Brand |
ASUS |
|---|---|
| Model |
ROG LOKI 1200T SFX L GAMING |
| Date first available |
04 September; 2024 |
| Form Factor |
SFX |
| Best Sellers Rank |
#16 in Power Supplies |
| Shipping Weight |
2.95 Kg |
| Shipping Dimensions |
10.00 cm x 29.00 cm x 19.51 cm |
| Color |
Black/White |
| Fanless |
No |
| Power |
1200 W |
| Efficiency |
80 Plus Platinum |
| Modular |
Full Modular |
| PFC |
Active |
| Length |
125 mm |
| Main Connectors |
1 x 24 pin (20+4) ATX |
| EPS/CPU Connectors |
2 x 8 pin (4+4) EPS (CPU) |
| SATA Power Connectors |
6 |
| Molex Connectors |
4 |
| PCIe 6-Pin Connectors |
0 |
| PCIe 6+2-Pin Connectors |
0 |
| PCIe 8-Pin Connectors |
4 |
| PCIe 12-Pin Connectors |
0 |
| PCIe 12+4-Pin 12VHPWR Connec |
1 |
