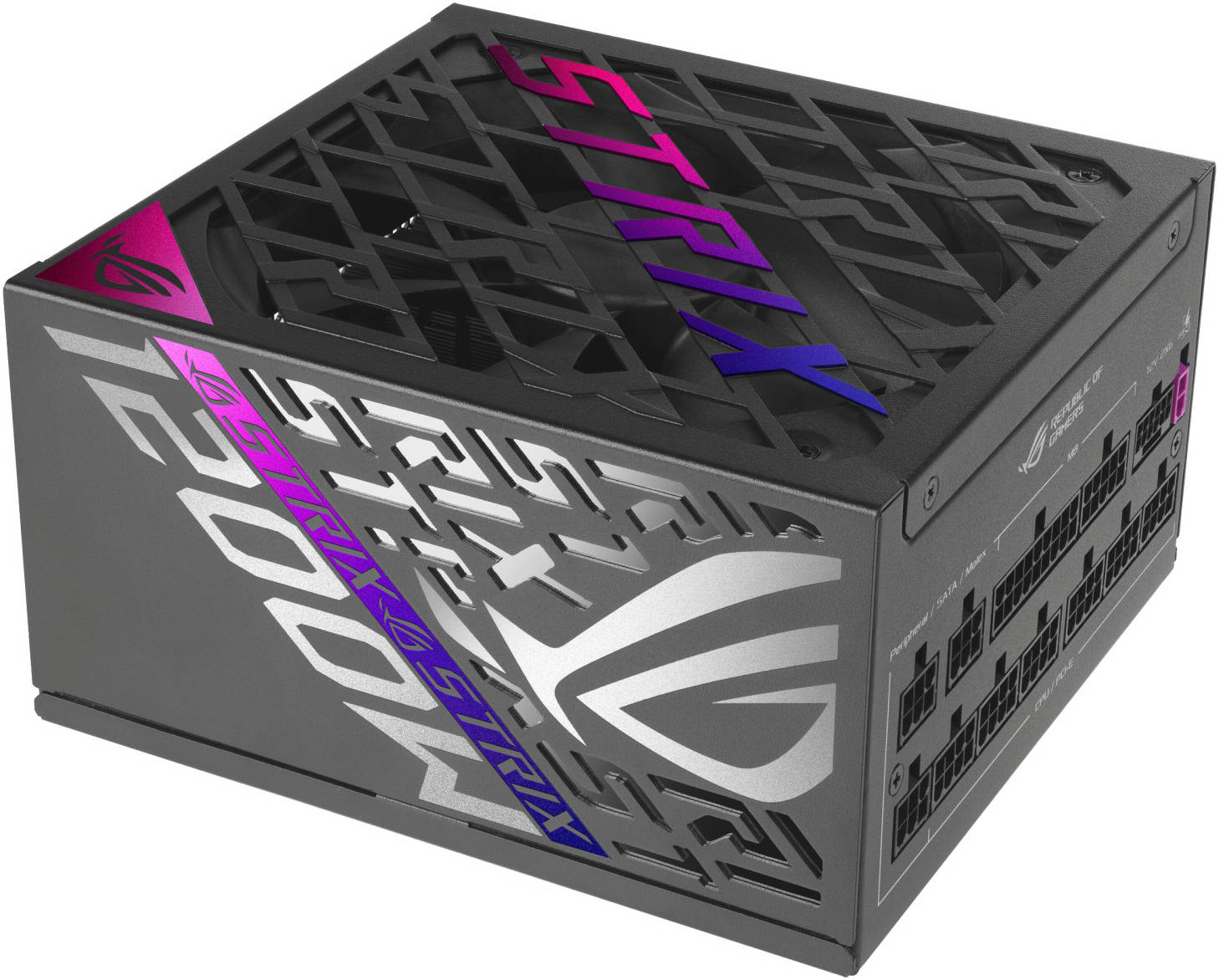

ROG STRIX 1200W Platinum
ROG Strix 1200W Platinum is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and intelligent stabilizer in striking style.
The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2×6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
Specifications
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load
25A, 25A, 100A, 0.3A, 3A
Combined Load
130W, 130W, 1200W, 3.6W, 15W
Total Output
1200W

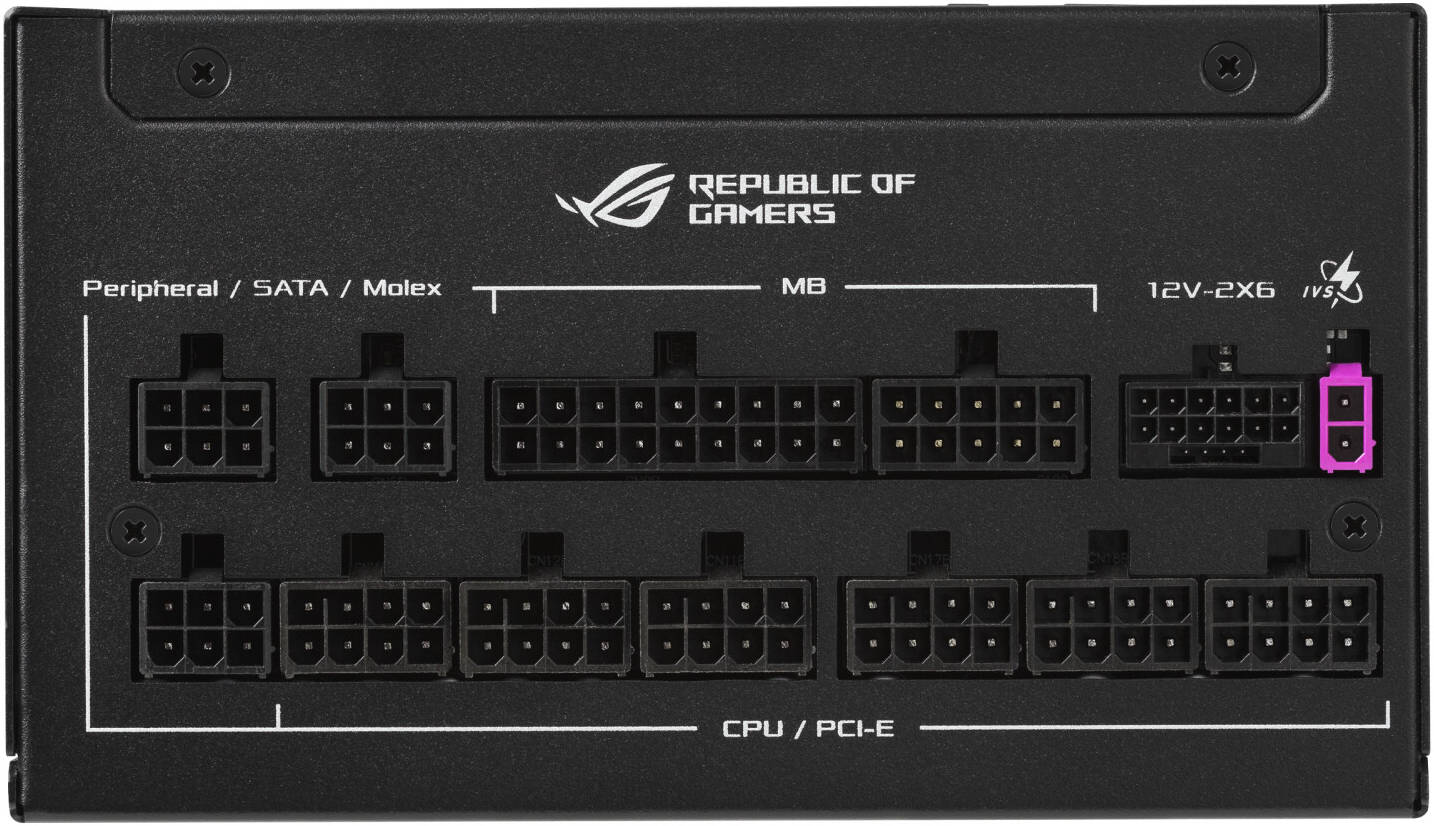

Cable Connectors
MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1 (both PSU & component side), PCI-E 6+2-pin x 4, SATA x 6, PERIPHERAL x 3

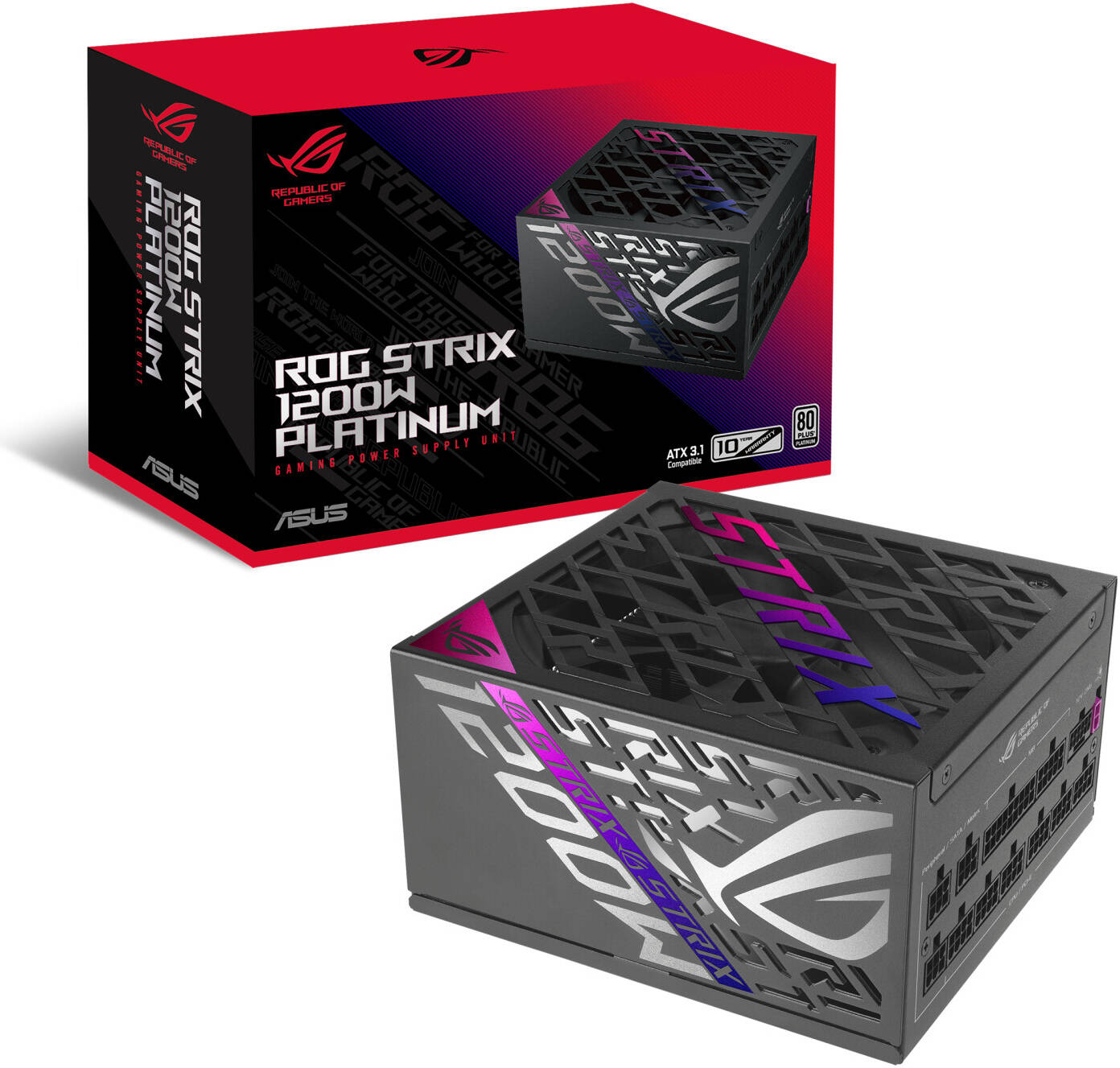

Package Contents
Power Cord x 1, Motherboard Power Cable x 1 (610mm), CPU Cable x 2 (1000mm), PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm), PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm), SATA 1-to-3 Cable x 2 (400+120+120mm), Peripheral 1-to-3 Cable x 1 (400+150+150mm), ROG Strix DIY sticker x 1, User Manual x 1
Weight
2.94 kg (single PSU)
Cybenetics Noise Level Certification
TBD

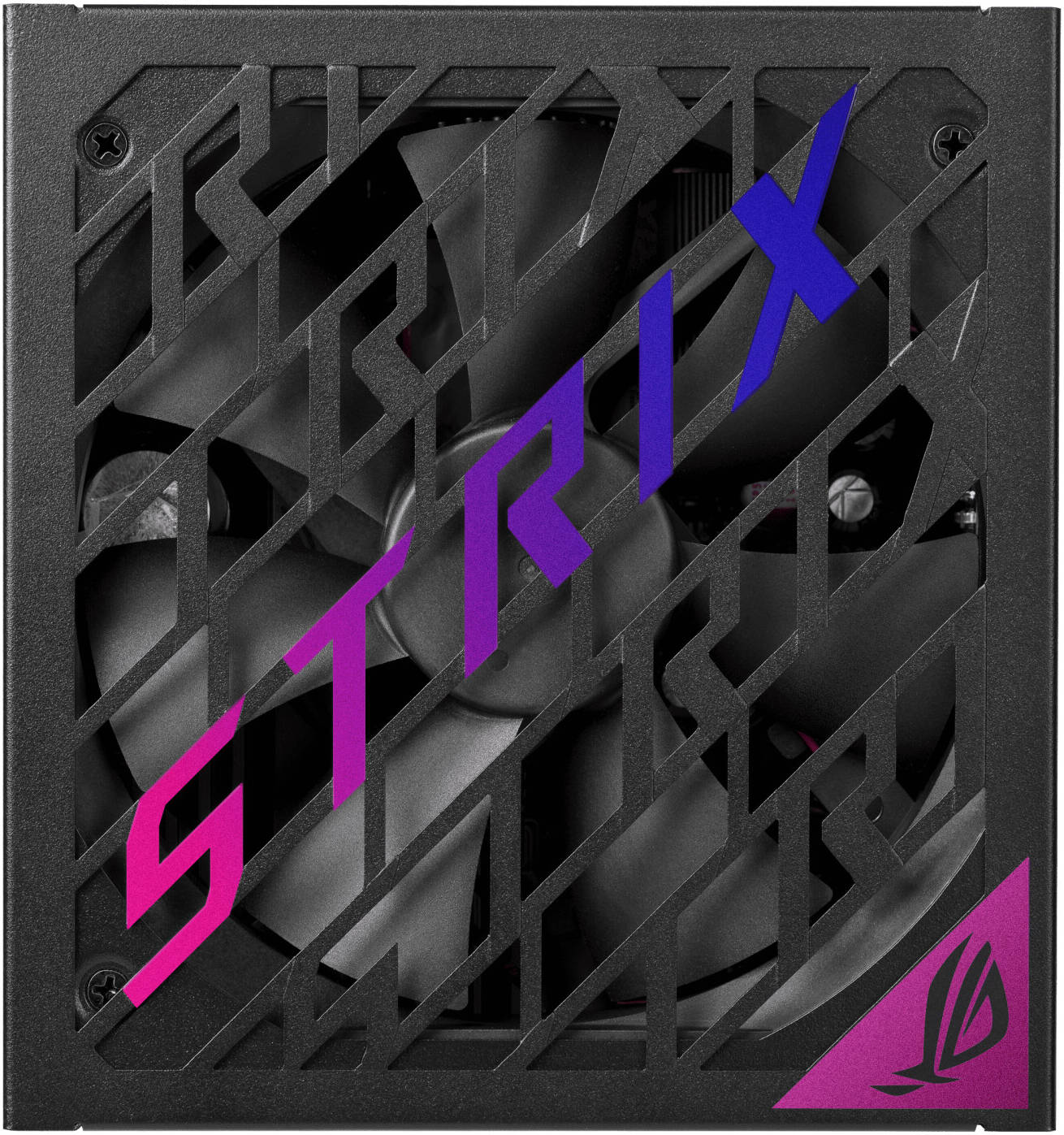

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
ASUS ROG Strix 1200W Fully Modular Power Supply, 80 PLUS Platinum Efficiency, Active PFC, GaN MOSFET, ATX 3.1 Compatible, Cybernetic Lambda A+, Dual Ball Fan bearings, Black | 90YE00W0-B0NA00
$160.00
GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
«GPU-FIRST» voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.
Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
0dB technology lets you enjoy light gaming in relative silence.
ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
PCIe 5.0 Ready: ROG Strix Platinum features a native 12V-2×6 connector for next-gen graphics card power.
80 PLUS platinum certified: ROG Strix Platinum utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
