MEG Ai1300P PCIE5
Balancing power, safety, and efficiency, the MSI 1300W MEG Ai1300 PCIE5 ATX 3.0 Power Supply offers robust flexibility for users looking to leverage NVIDIA’s GeForce RTX 40 Series graphics cards and other resource-demanding components.
Features
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
ATX 3.0 fully supported
PCIe 5.0 ready, with native 16 pin connector
Software sync with MSI center
Full modular design
Sleeve cables
80 PLUS Platinum certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
Specification
EFFICIENCY RATING
80 PLUS Platinum (up to 92%)
MODULAR
Yes (full modular)
FAN SIZE
120 mm
FAN BEARING
Hydro Dynamic Bearing
DIMENSIONS (DXWXH)
160 x 150 x 86 mm
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100-240~
POWER WATT
1300W
POWER EXCURSION
2600W (*up to 200% of the PSU’s rated power for 100μs)
INPUT FREQUENCY RANGE
50~60 Hz

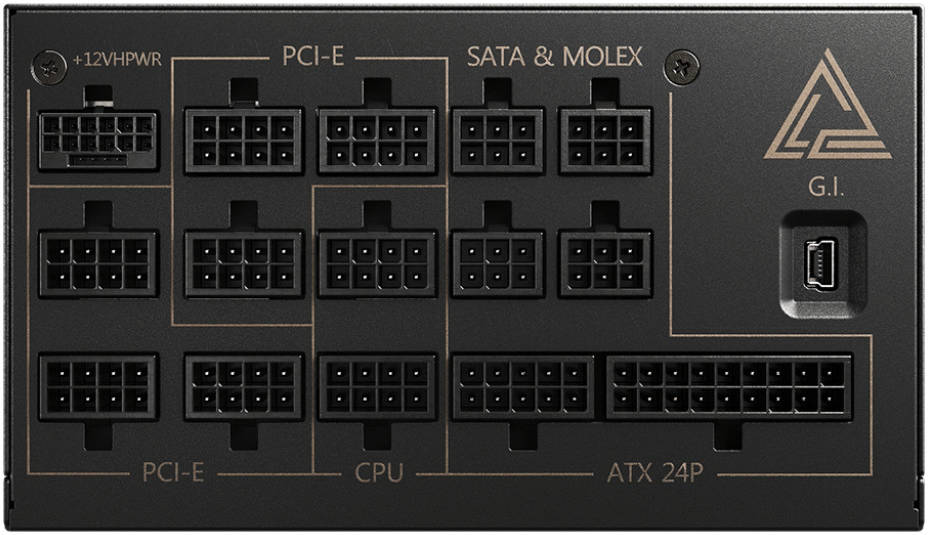

PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)
1
EPS (8 PIN)
1
EPS (4+4 PIN)
1
PCI-E 5.0 (16 PIN)
1 (600W)
PCI-E (6+2 PIN)
8
SATA (15 PIN)
16
MOLEX (4 PIN)
4
FDD (4 PIN)
1
MSI MEG Ai1300 PCIE5 ATX 3.0 Power Supply, 1300W Power, 80 PLUS Platinum Certified, Fully Modular,Dedicated PCIe 5.0 Connector, 120mm Hydro Dynamic Bearing Fan, Sleeved Cables, Black | 306-7ZP4A18-CE0
$290.00
Description
Additional information
| Brand |
MSI |
|---|---|
| Model |
MEG Ai1300 PCIE5 |
| Date first available |
05 May; 2023 |
| Form Factor |
ATX |
| Shipping Weight |
3.75 Kg |
| Shipping Dimensions |
21.00 cm x 33.00 cm x 15.01 cm |
| Color |
Black |
| Fanless |
No |
| Power |
1300 W |
| Efficiency |
80 Plus Platinum |
| Modular |
Full Modular |
| PFC |
Active |
| Length |
160 mm |
| Main Connectors |
1 x 24 pin ATX |
| EPS/CPU Connectors |
1 x 8 pin (4+4) EPS (CPU) |
| SATA Power Connectors |
16 |
| Molex Connectors |
4 |
| PCIe 6-Pin Connectors |
1 |
| PCIe 6+2-Pin Connectors |
8 |
| PCIe 8-Pin Connectors |
0 |
| PCIe 12-Pin Connectors |
0 |
| PCIe 12+4-Pin 12VHPWR Connec |
0 |
