C1500 Platinum ATX 3.1
1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
Specifications

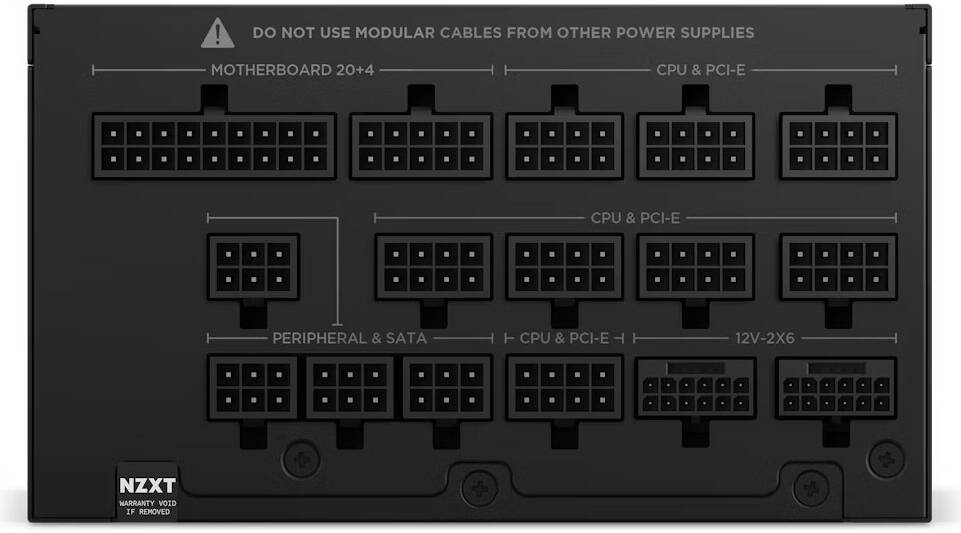

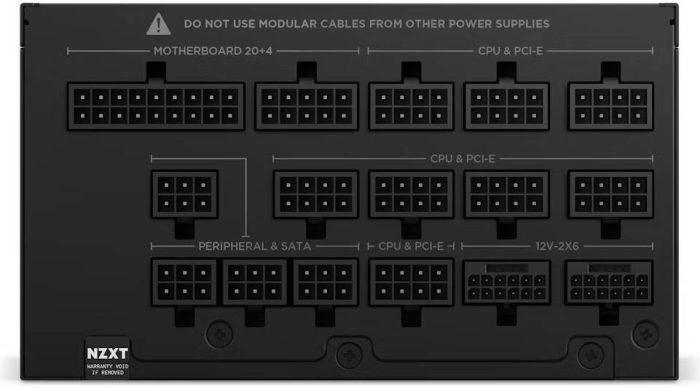

OUTPUT CONNECTORS
24-pin ATX Power Cable
1
4+4-pin CPU Power Cable
1
8-pin CPU Power Cable
1
6+2-pin PCIe Power Cable
6
16-pin (12+4) 12V-2×6 PCIe Cable
2
SATA Cable
12
Peripherals Cable
4
CABLE SPECS
24-pin ATX Power Cable
600mm with nylon sleeving
4+4-pin CPU Power Cable
700mm with nylon sleeving
8-pin CPU Power Cable
700mm with nylon sleeving
6+2-pin PCIe Power Cable
650mm with nylon sleeving
16-pin (12+4) 12V-2×6 PCIe Cable
650mm with nylon sleeving
SATA Cable
500 + 150 mm with nylon sleeving
Peripherals Cable
500 + 150 mm with nylon sleeving
AC INPUT RATING
100 – 240Vac
15A-9A 50Hz-60Hz
200 – 240Vac
9A 50Hz-60Hz
DC OUTPUT RATING
3.3V / +5V
22A (120W)
12V
125A (1500W)
5Vsb
3A (15W)
Total
1500W (115-240Vac) / 1300W (100-115Vac)
ENERGY EFFICIENCY
Rating
80 Plus Platinum
10% loading
92% @115Vac
20% loading
94% @115Vac
50% loading
93.8% @115Vac
100% loading
90.8% @115Vac
ELECTRICAL FEATURES
PF Correction
Active @0.99
Protections
OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection)
FAN SPECS
Dimensions
140 x 140 x 25 mm
Speed
2500 ± 10% RPM
Airflow
125 CFM (Typ.)
Noise
41.0 dBA max
Bearing
Magnetic Levitation Bearing (ML)
OPERATION
MTBF
100,000 hours
Temperature
0 – 50 °C
DIMENSIONS
Width
5.91 in / 150 mm
Height
3.39 in / 86 mm
Depth
7.09 in / 180 mm
GENERAL
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v3.1 / EPS12V v2.92
NZXT C1500 Platinum ATX Fully Modular PSU, 80 PLUS Platinum Efficiency, 1500W Power, Dual PCIe 5.1 Connectors, Magnetic Levitation Bearing Fan, 140mm Size, 125 CFM Airflow, Black | PA-5P1BB-UK
$290.00
Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
| Brand |
NZXT |
|---|---|
| Model |
C1500 Platinum ATX 3.1 |
| Date first available |
19 July; 2024 |
| Form Factor |
ATX |
| Best Sellers Rank |
#2 in Power Supplies |
| Shipping Weight |
5.45 Kg |
| Shipping Dimensions |
15.00 cm x 33.00 cm x 22.01 cm |
| Color |
Black |
| Fanless |
No |
| Power |
1500 W |
| Efficiency |
80 Plus Platinum |
| Modular |
Full Modular |
| PFC |
Active |
| Length |
180 mm |
| Main Connectors |
1 x 24 pin ATX |
| EPS/CPU Connectors |
2 x 8 pin (4+4) EPS (CPU) |
| SATA Power Connectors |
12 |
| Molex Connectors |
4 |
| PCIe 6-Pin Connectors |
0 |
| PCIe 6+2-Pin Connectors |
6 |
| PCIe 8-Pin Connectors |
0 |
| PCIe 12-Pin Connectors |
0 |
| PCIe 12+4-Pin 12VHPWR Connec |
2 |
