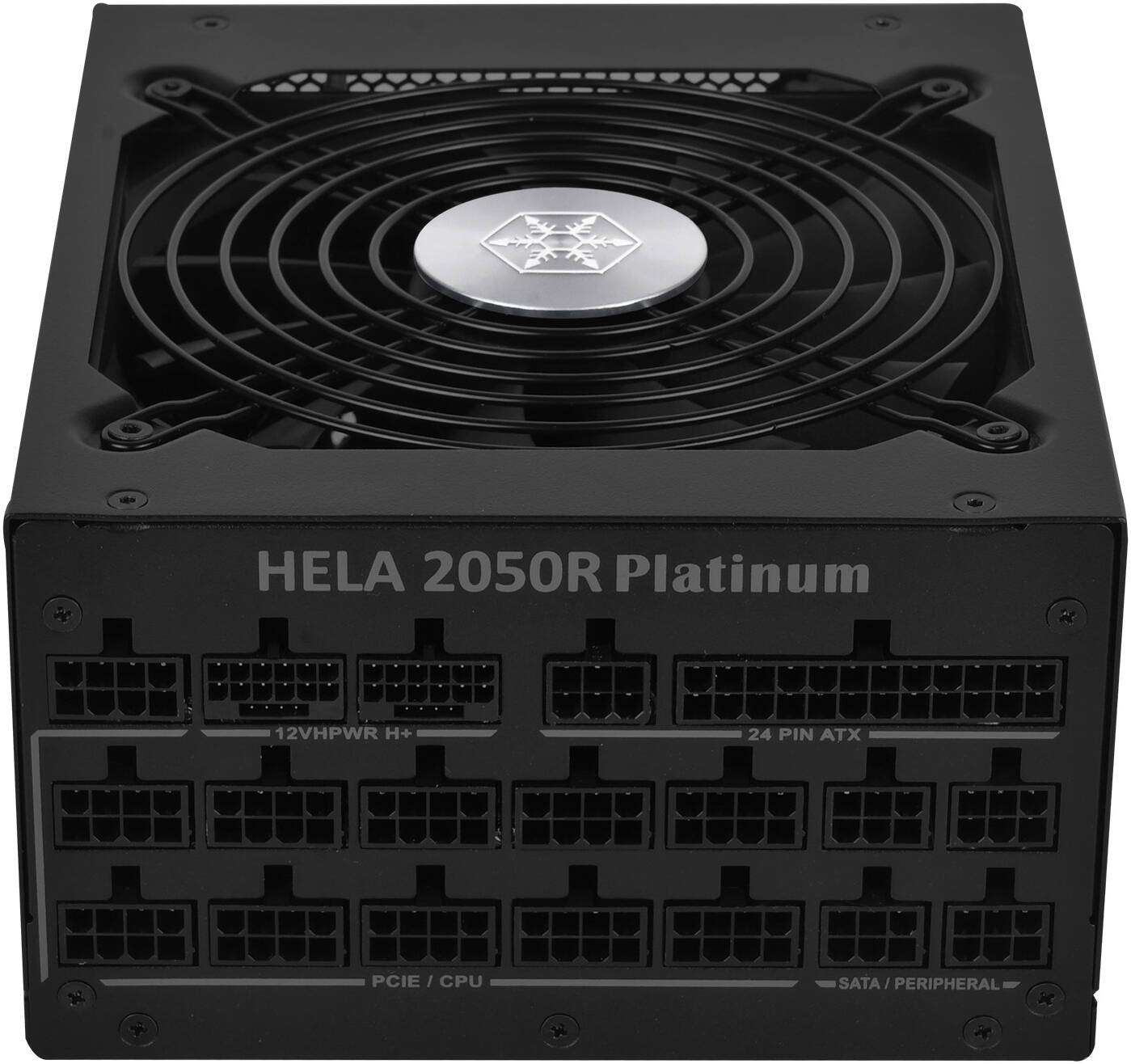

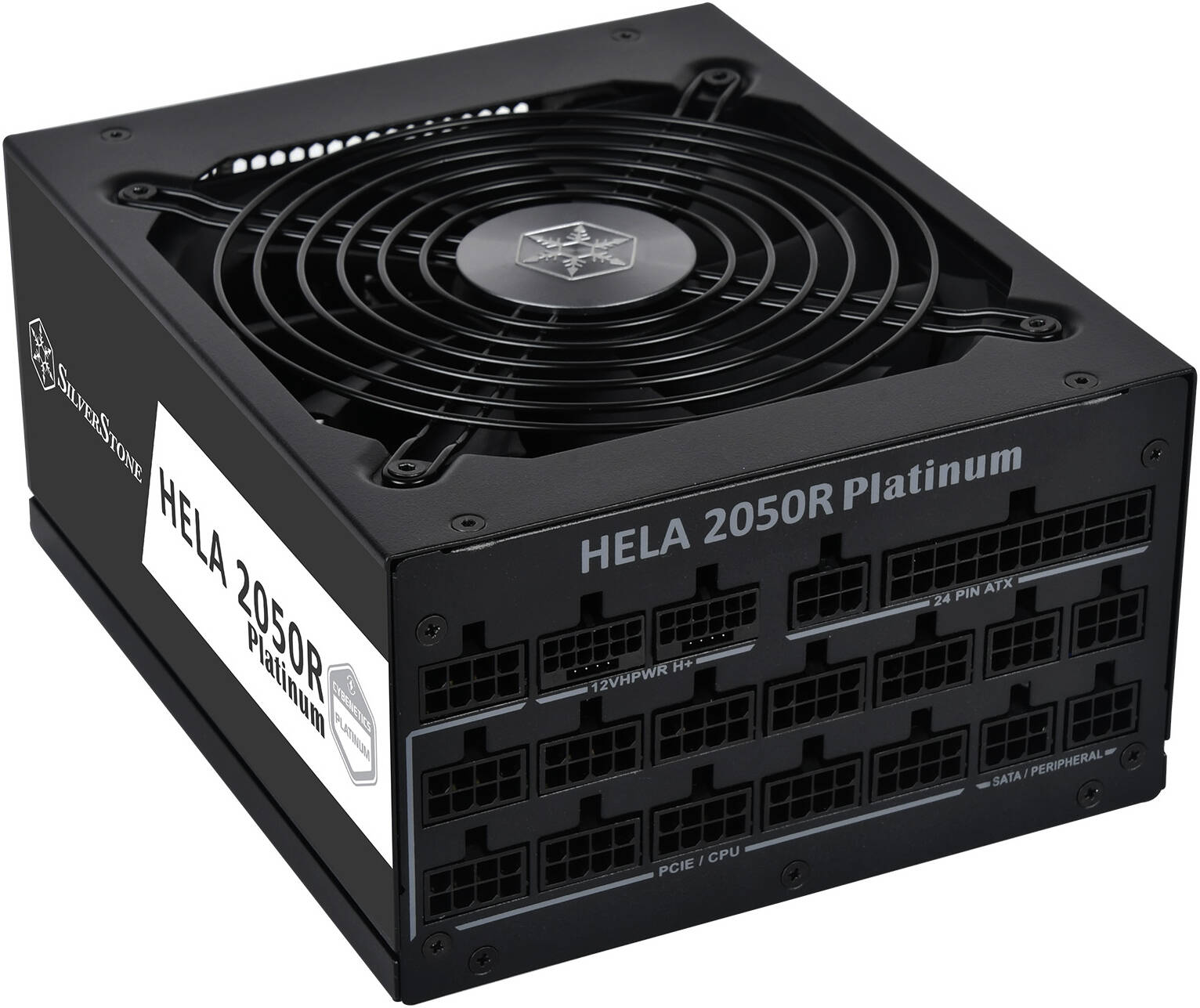

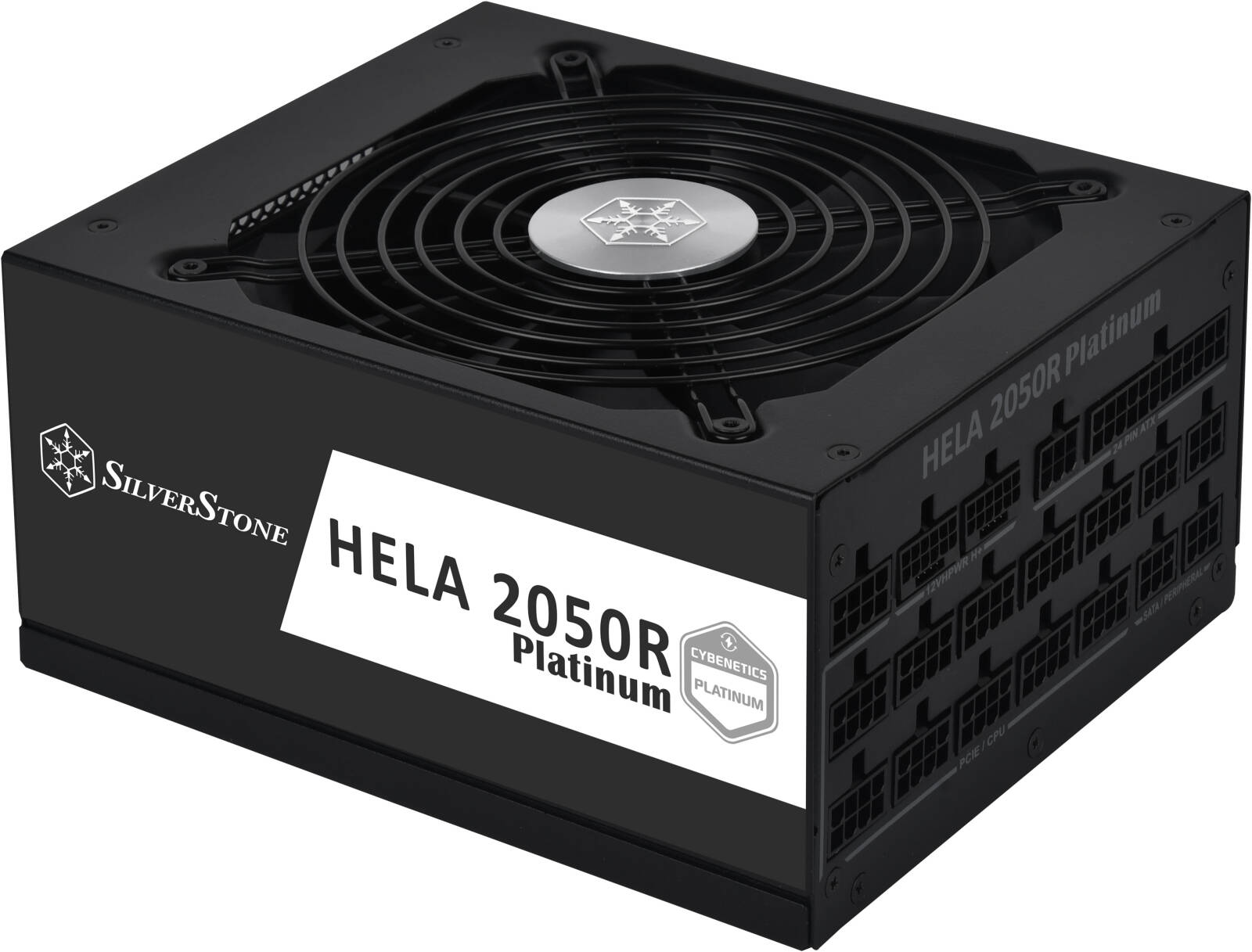

HELA 2050R Platinum
Cybenetics Platinum 2050W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
Specifications

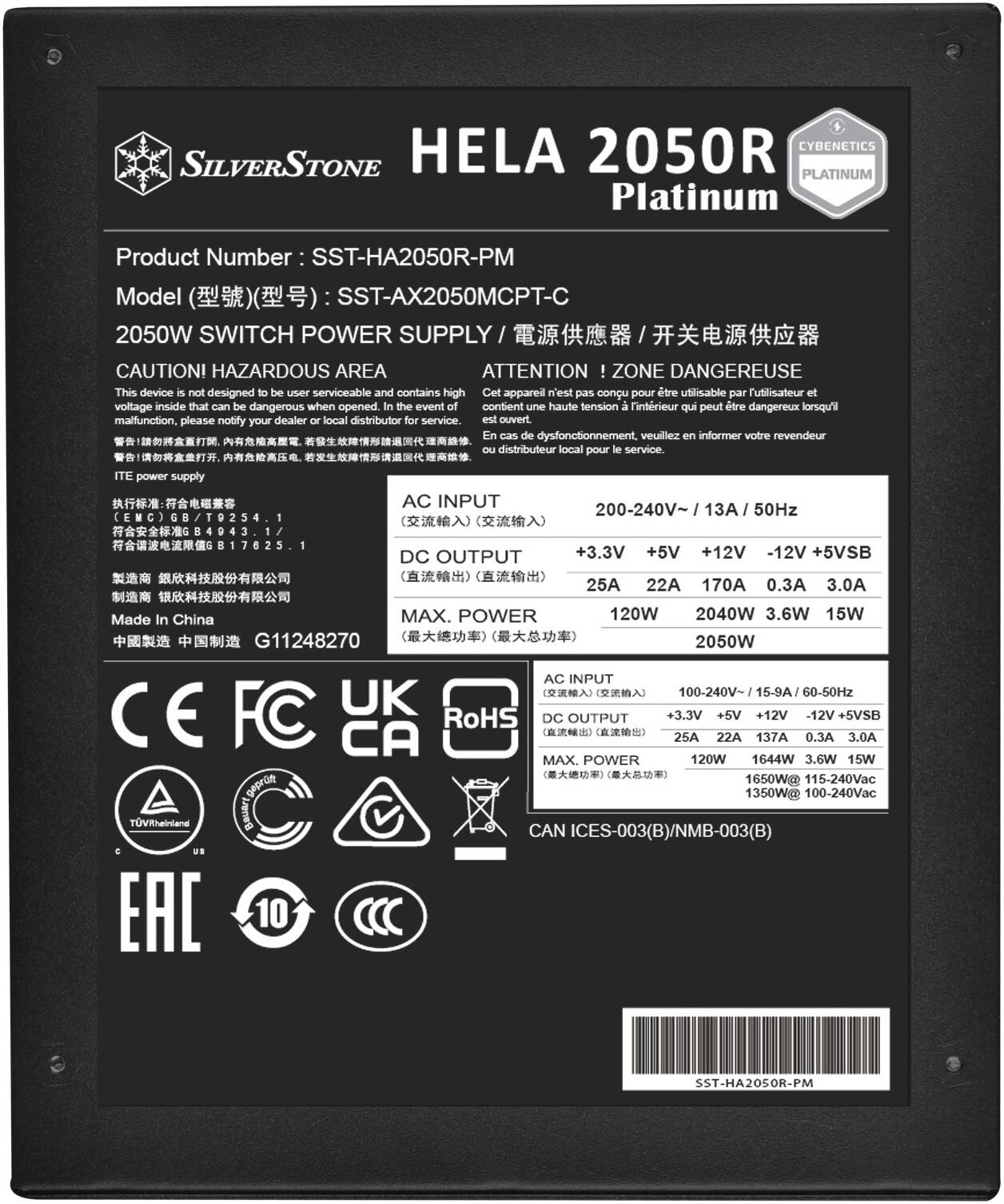

Product No.
SST-HA2050R-PM
Model (safety certification)
SST-AX2050MCPT-C
Color
Black (lead-free paint)
Max. DC Output
2050W
Power density
882W/L
Load Range
Output
+3.3V
Max. (Amps)
25A
Min. (Amps)
0A
Range (%)
±3%
Line Reg. (%)
±1%
Ripple (mVp-p)
30mV
Combined +3.3V & +5V
120W
Combined +12V
2040W
Input Voltage
2050W: 200~240 Vrms, 1650W: 103~264 Vrms, 1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF > 0.95 at full load)
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection

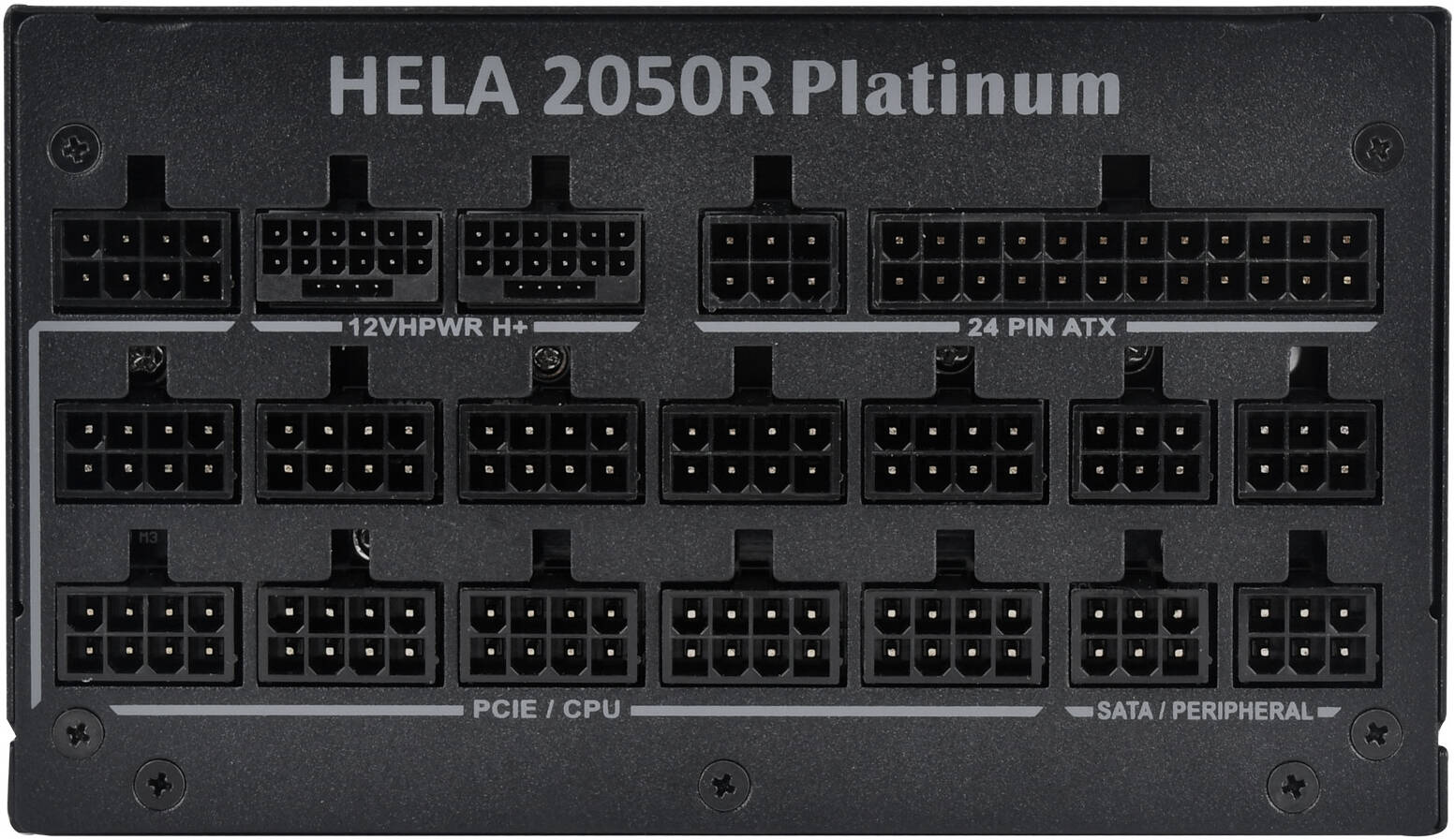

Connectors
1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 14 x 8 / 6-Pin PCIe connectors, 3 x 12+4-Pin 12VHPWR connector, 12 x SATA connector, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy adapter connector

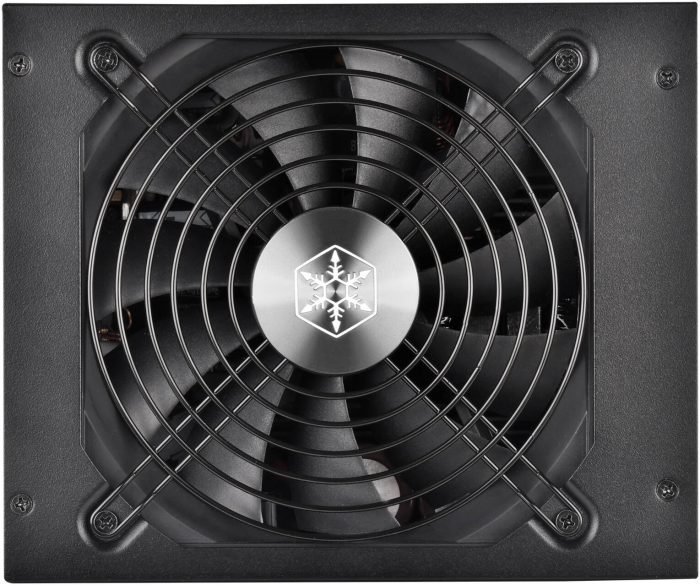

Cooling System

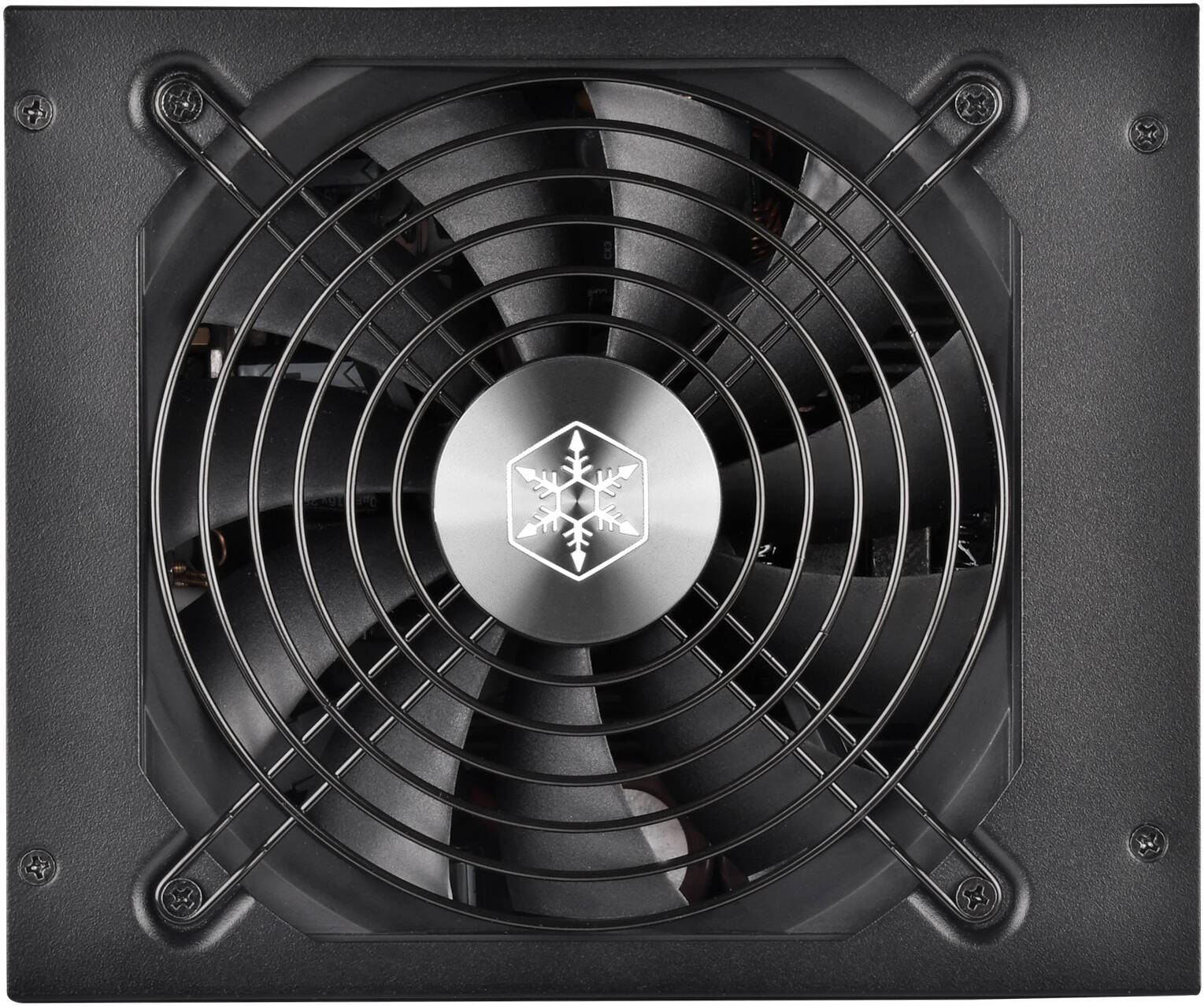

135mm dual-ball bearing fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D), 5.91″ (W) x 3.39″ (H) x 7.09″ (D)
Weight
4.34 kg
SilverStone HELA 2050R Platinum Fully Modular Power Supply, 2050W Power, Cybenetics Platinum Certified, Active PFC, All Japanese Electrolytic Capacitors, Black | SST-HA2050R-PM
$480.00
Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
High efficiency with Cybenetics Platinum certification

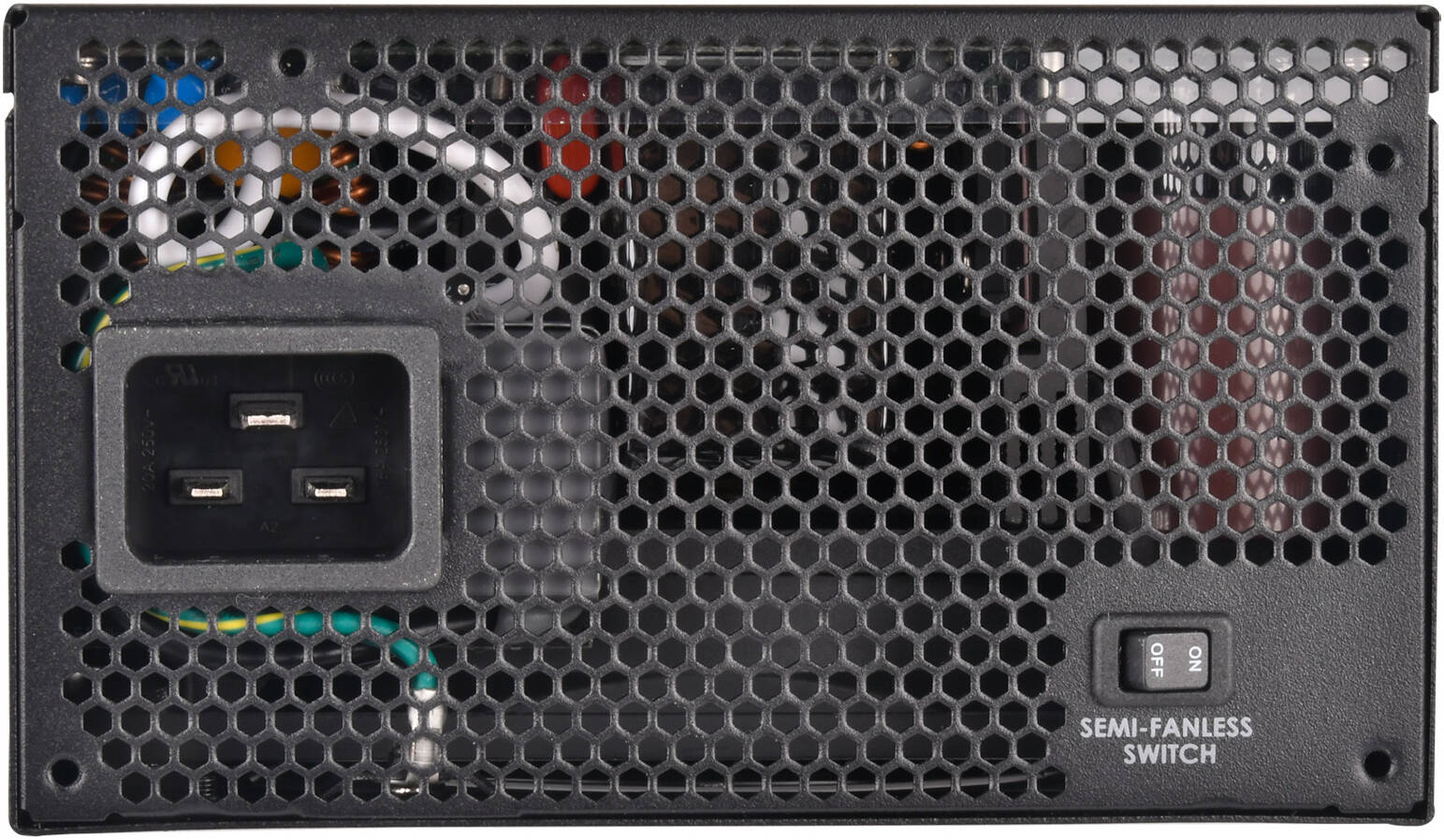

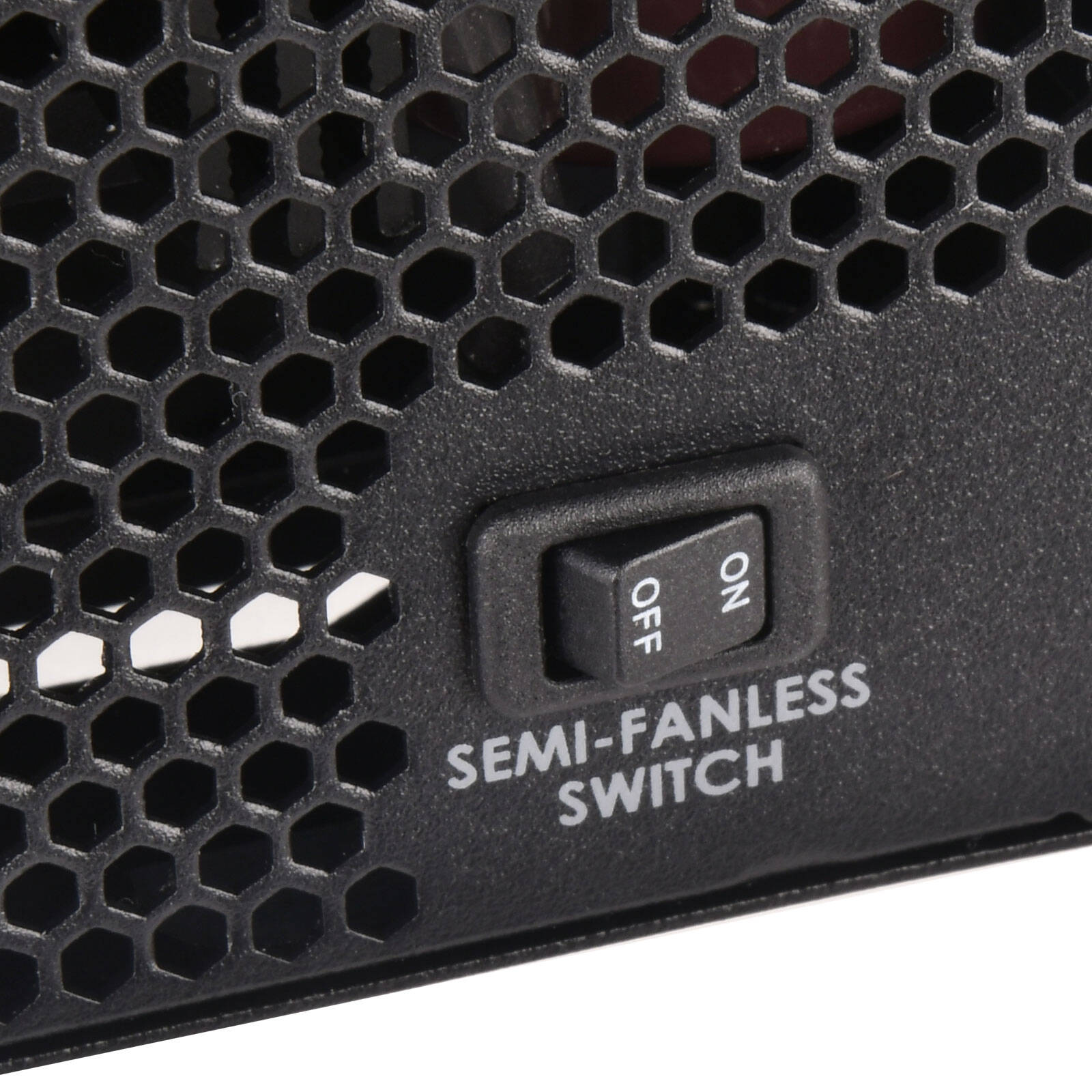

Built-in MCU semi-fanless mode to achieve optimized cooling performance
2050W continuous power output rated for 24/7 operation

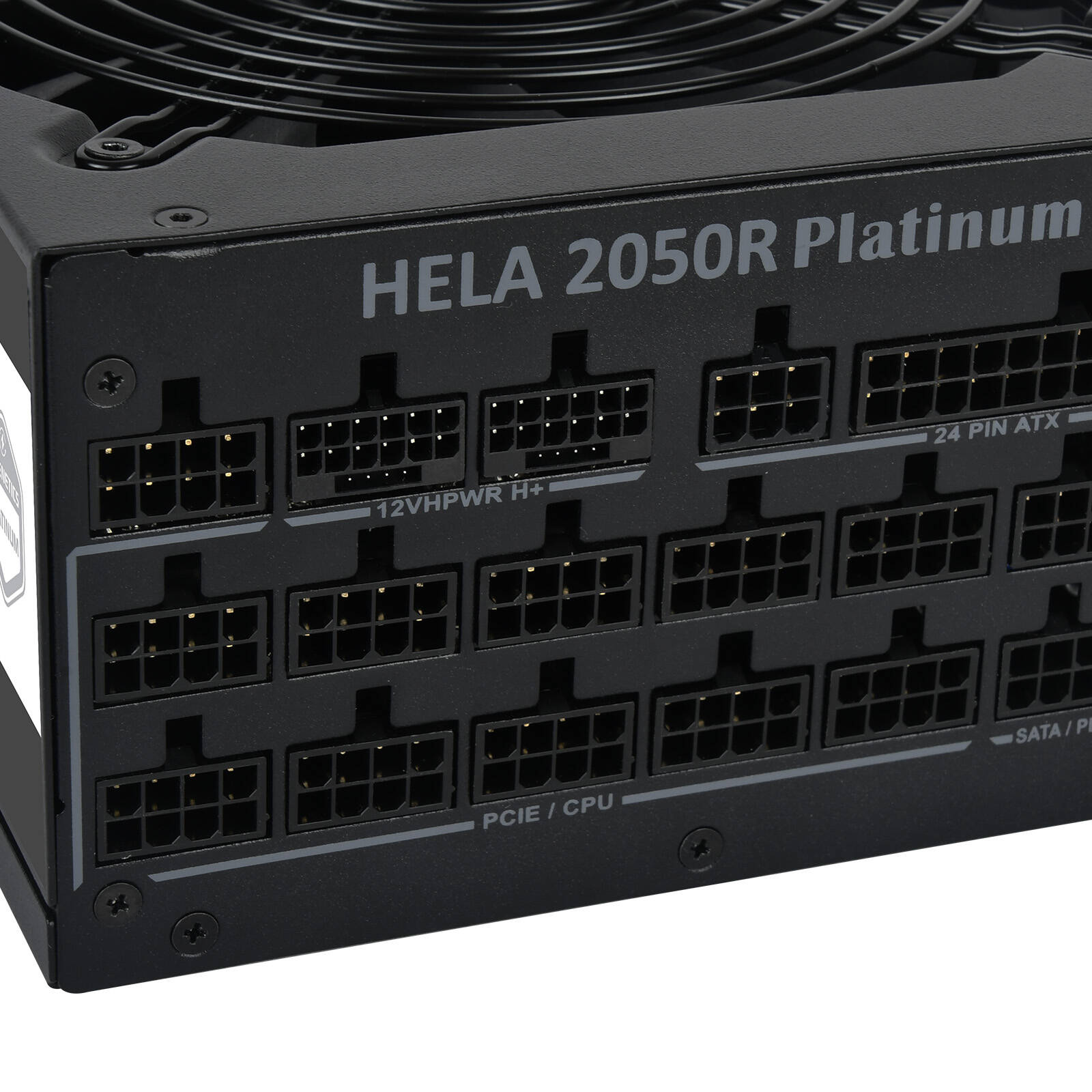

Fully modular design with SilverStone’s 3rd generation modular interface
2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included

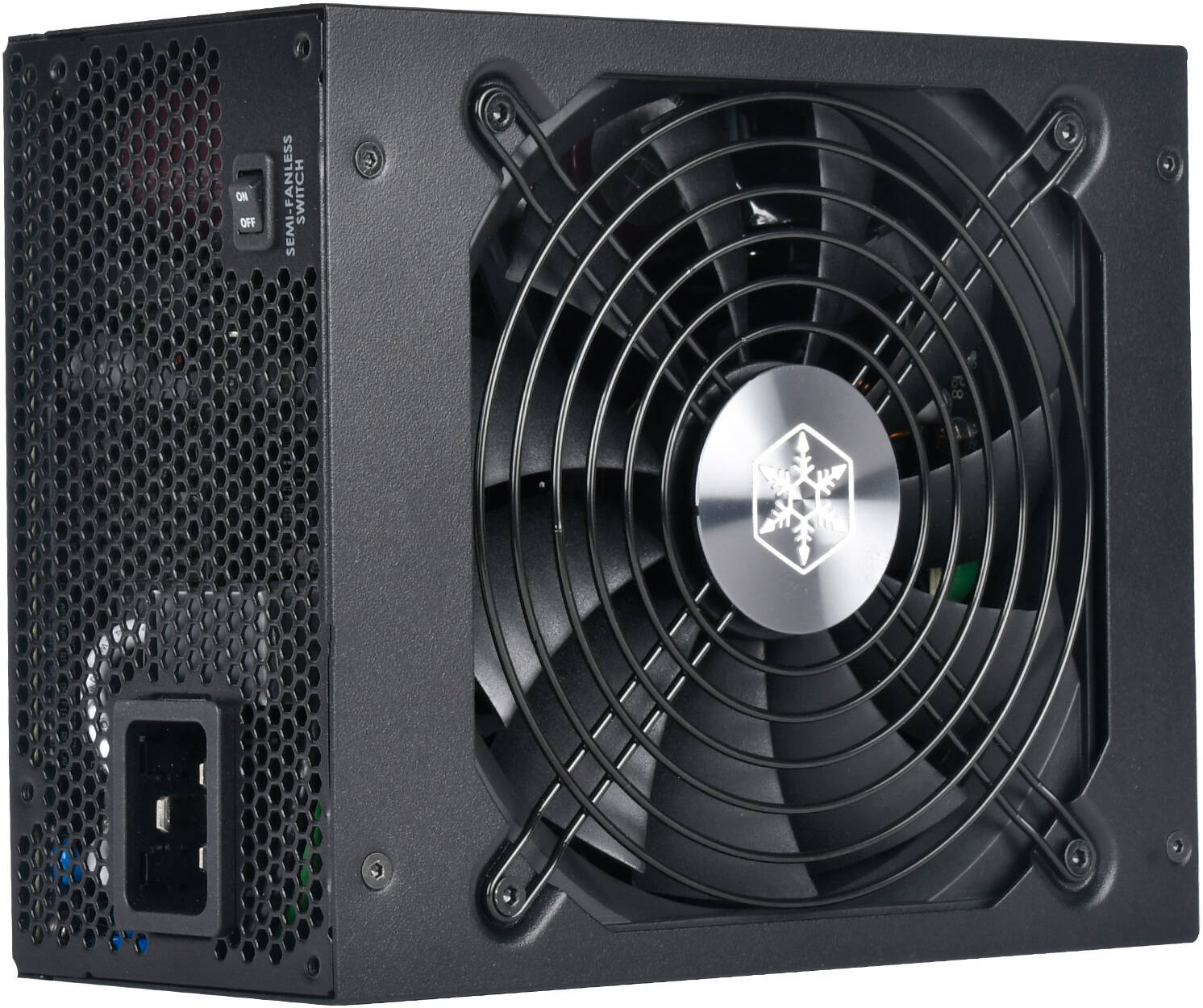

Silent running 135mm dual-ball bearing fan with advanced semi-fanless operation
| Brand |
Silverstone |
|---|---|
| Model |
HELA 2050R |
| Date first available |
31 July; 2024 |
| Form Factor |
ATX |
| Best Sellers Rank |
#1 in Power Supplies |
| Shipping Weight |
5.20 Kg |
| Shipping Dimensions |
11.50 cm x 40.00 cm x 22.01 cm |
| Color |
Black |
| Fanless |
No |
| Power |
2050 W |
| Efficiency |
80 Plus Platinum |
| Modular |
Full Modular |
| PFC |
Active |
| Length |
180 mm |
| Main Connectors |
1 x 24 pin (20+4) ATX |
| EPS/CPU Connectors |
2 x 8 pin (4+4) EPS (CPU) |
| SATA Power Connectors |
12 |
| Molex Connectors |
3 |
| PCIe 6-Pin Connectors |
0 |
| PCIe 6+2-Pin Connectors |
18 |
| PCIe 8-Pin Connectors |
0 |
| PCIe 12-Pin Connectors |
0 |
| PCIe 12+4-Pin 12VHPWR Connec |
3 |
