Soundcraft ViO/D21 96K Dante AES67 Packed Tested Spare Vi Option Card | 5045044.V

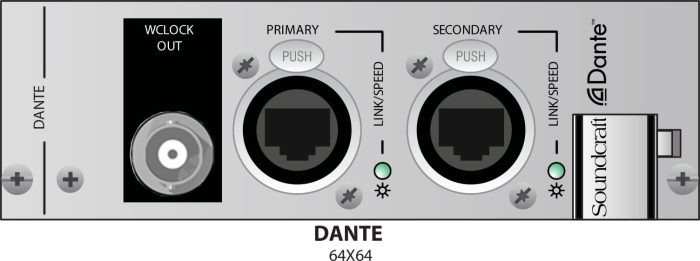

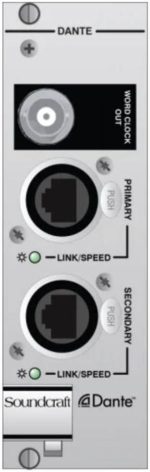

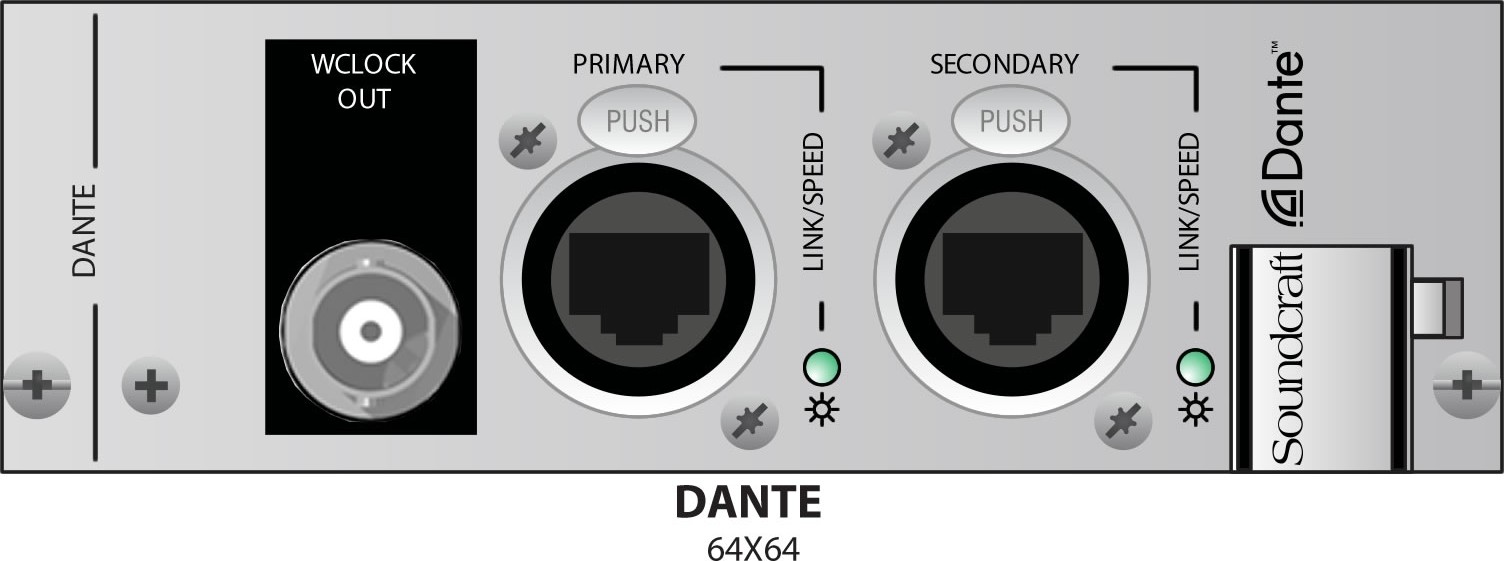

DANTE CARD
The Dante card allows 64 channels to be sent to/received from a Dante network. As well as providing audio exchange with other Dante-enabled equipment, the card also allows 64 channels of audio to be connected directly to a PC or Mac computer for recording or processing, by using a standard Ethernet connection*.
Routing and setup of the network is done using an external computer running Dante Controller software (available FOC from the Audinate website).
A BNC sync output connector on the card allows the console’s wordclock input to be driven by the network clock, if required by the clocking setup.
*Requires Dante Virtual Soundcard software to be installed on the computer — one licence token supplied with each card.
The Riedel Rocknet card allows up to 64 channels of audio (64 inputs/32 outputs) to be connected to a Riedel Rocknet network comprising up to 160 channels. The system allows connection of multiple Riedel stageboxes in a redundant ring configuration, and remote control of the Rocknet preamps is possible from the Vi or Si console. Multiple consoles can share the same I/O boxes and there is built-in gain-stabilisation for slave consoles.
