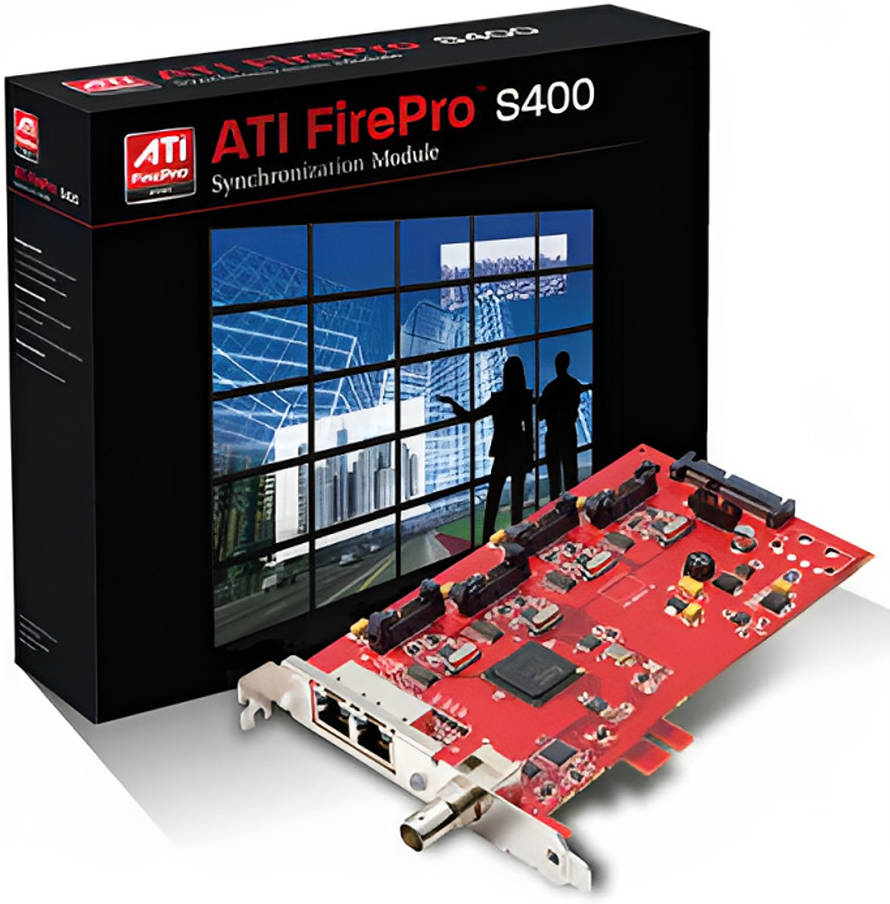

AMD FirePro S400 Synchronization Module

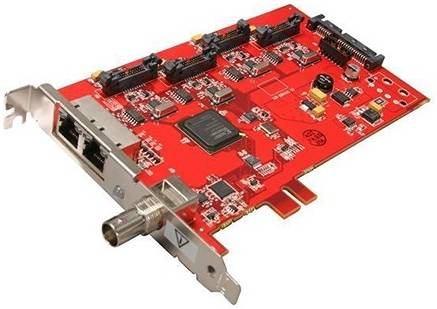

The single-slot form factor FirePro S400 Synchronization Module from AMD is able to sync between one and four compatible FirePro Graphics cards using genlock or Framelock. Genlock is common in broadcast video applications, and can be generated internally or come from an external “house” source via a BNC sync input. Framelook, meanwhile, is specific to computer graphics, combining output lock (synchronized display output) and 3D swap lock (simultaneous 3D buffer swapping) to ensure multiple GPUs in the connected systems present their outputs in lock-step. This is useful if images from multiple display outputs are being aggregated into one image. The card features dual RJ-45 ports so that daisy-chaining can be used to extend synchronization across multiple computers.
Key Features
Supports Genlock and Framelock
Synchronizes up to Four GPUs
BNC Genlock Input to Use House Clock
Dual RJ-45 Ports to Daisy-Chain Cards
Firmware Is Field Upgradeable
For Broadcast Video and Visualizations
Single-Slot Form Factor
SATA Power Connector
Windows, OS X, and Linux Compatible
With high-end performance and dedicated features, the AMD FirePro S400 synchronization module allows selected AMD FirePro graphics cards to be used in demanding applications that require synchronization to external sources (Genlock) or synchronization of 3D rendering of multiple GPUs in different systems (Framelock).

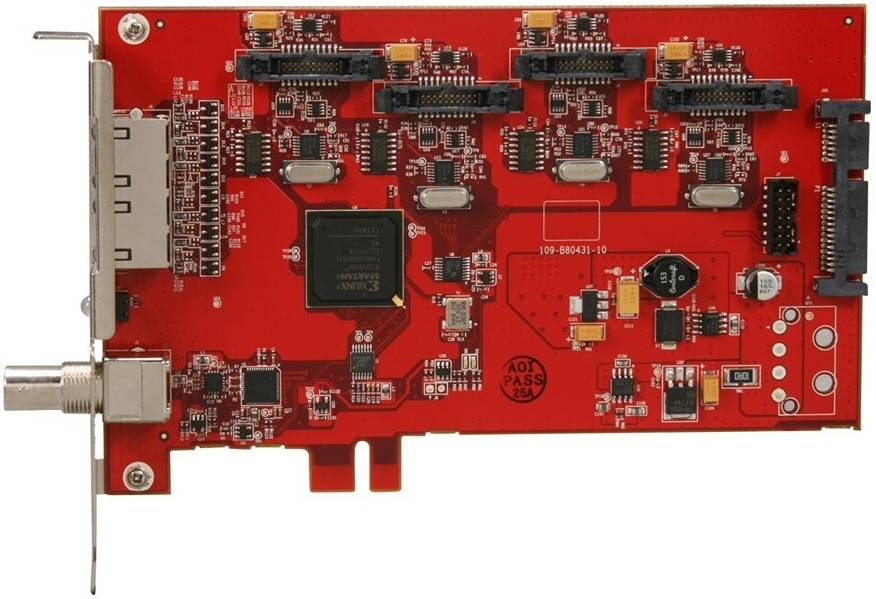

It allows for connecting multiple computers and their GPUs together, allowing for multiple channels of 3D-rendered content to be presented simultaneously and in lock-step. On board logic is dedicated to Genlock and Framelock functionality, helping to ensure accurate and consistent synchronization for all applications. The support for up to four GPUs per mode enables high density of workstation GPUs in a system. The house sync capability through the BNC input ensures it’s genlockable to nearly any source. Plus, the AMD FirePro S400 comes in a single-slot form-factor, and supports field upgradeable firmware.
Field Upgradeable
Improved functionality can be deployed after initial installation of the module without opening the host computer.
Serial ATA Power Connector
The AMD FirePro S400 allows power to be provided by a modern power connector, as the older 4-pin IDE connector is becoming obsolete, particularly in newer OEM chassis designs.
Innovation and Reliability from a Technology Leader
AMD FirePro accelerators, including the AMD FirePro S400, have been engineered to deliver innovation and reliability for a wide range of professional operating environments, including Windows XP, Windows Vista, Windows 71 and Linux. The unified driver, which supports all AMD FirePro workstation products, helps reduce the total cost of ownership by simplifying installation, deployment and maintenance.
Specification
Connectivity

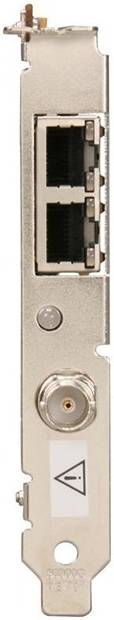

– 2 x RJ-45 for daisy-chaining multiple machines
– 1 x Genlock input on BNC
System Requirements
Hardware:
– 450 W power supply (suggested)
– 1 x Free PCI-E slot
– 512 MB RAM
Compatibility:
– Microsoft Windows XP (32/64-bit)/7/8/Server 2008 R2 (64-bit), Linux (32/64-bit)
– Compatible with AMD FirePro W9100, W9000, W8100, W8000, W7100, W7000, V7900, V7900 SDI
General
– Form Factor: Single-slot
– Dimensions: Not specified by manufacturer
– Weight: Not specified by manufacturer
