GeForce RTX™ 4060 Ti WINDFORCE OC

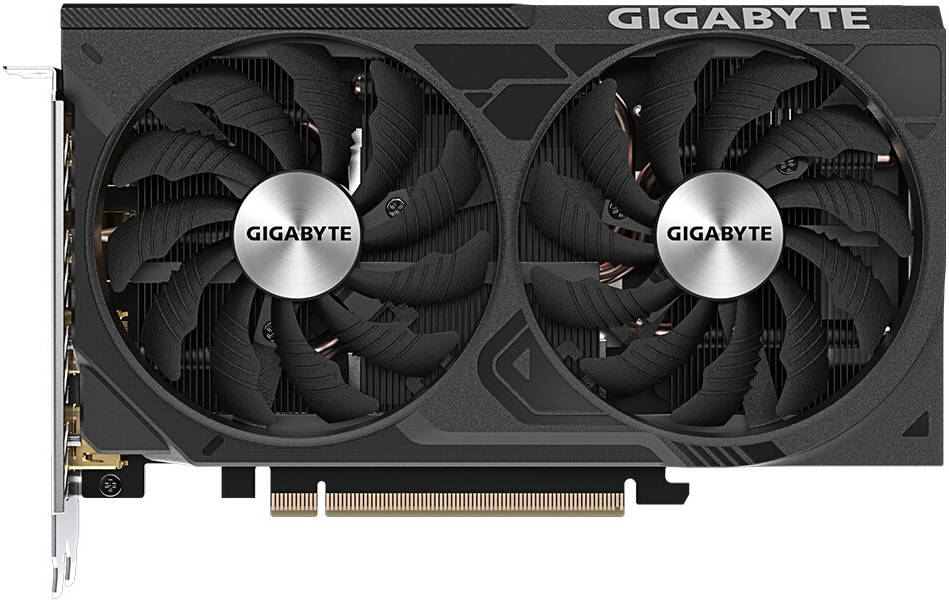

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Specifications
Graphics Processing
GeForce RTX™ 4060 Ti (16GB)
Core Clock
2565 MHz (Reference Card: 2535 MHz)
CUDA® Cores
4352
Memory Clock
18 Gbps
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital Max Resolution
7680×4320
Multi-view
4
Card Size
L=201 mm W=120 mm H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin*1
Output

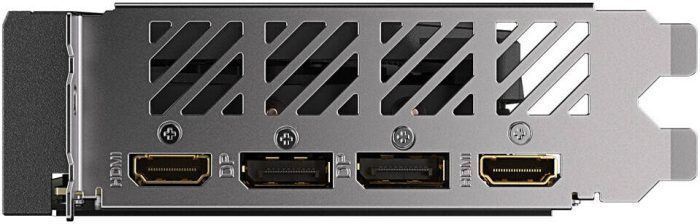

DisplayPort 1.4a*2, HDMI 2.1a*2
Accessories
Quick guide
GIGABYTE GeForce RTX 4060 Ti Windforce OC Graphics Card, 16GB GDDR6 128 Bit Memory, 2565 MHz Core Clock, 4352 CUDS Cores, PCI Express 4.0, 2x HDMI & 2x DP | GV-N406TWF2OC-16GD
$550.00
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060 Ti (16GB)
Integrated with 16GB GDDR6 128bit memory interface
WINDFORCE cooling system
Protection metal back plate
Description
Additional information
| Brand |
Gigabyte |
|---|---|
| Model |
GeForce RTX 4060 Ti Windforce OC |
| Date first available |
18 September; 2024 |
| Shipping Weight |
1.00 Kg |
| Shipping Dimensions |
12.00 cm x 19.20 cm x 4.00 cm |
| GPU |
RTX 4060 Ti |
| Chipset Manufacturer |
NVIDIA Chipset |
| Memory Size |
16 GB |
| Multi-GPU Support |
— |
| Max Resolution |
7680×4320 |
| Memory Type |
GDDR6 |
| Memory Interface |
128 Bit |
| HDMI |
Yes |
| DVI |
No |
| D-SUB (VGA) |
No |
| Display Port |
Yes |
| Effective Memory Clock |
18 Gbps |
| Form Factor |
RTX |
| Interface |
PCI Express 4.0 |
| TDP |
500 W |
| Maximum Display Support |
4 |
| Cooling |
WINDFORCE |
| Power Connectors |
8 pin*1 |
