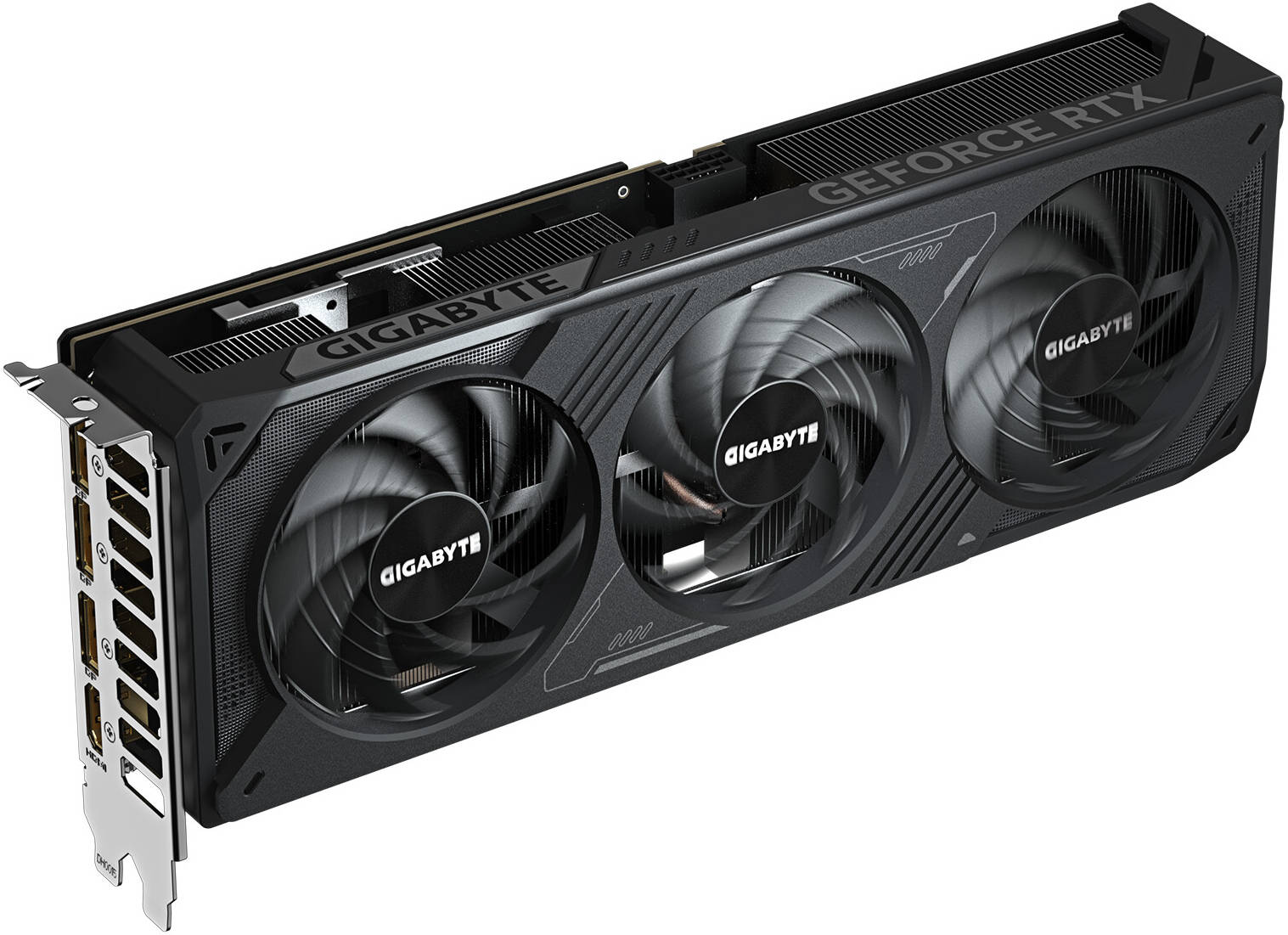

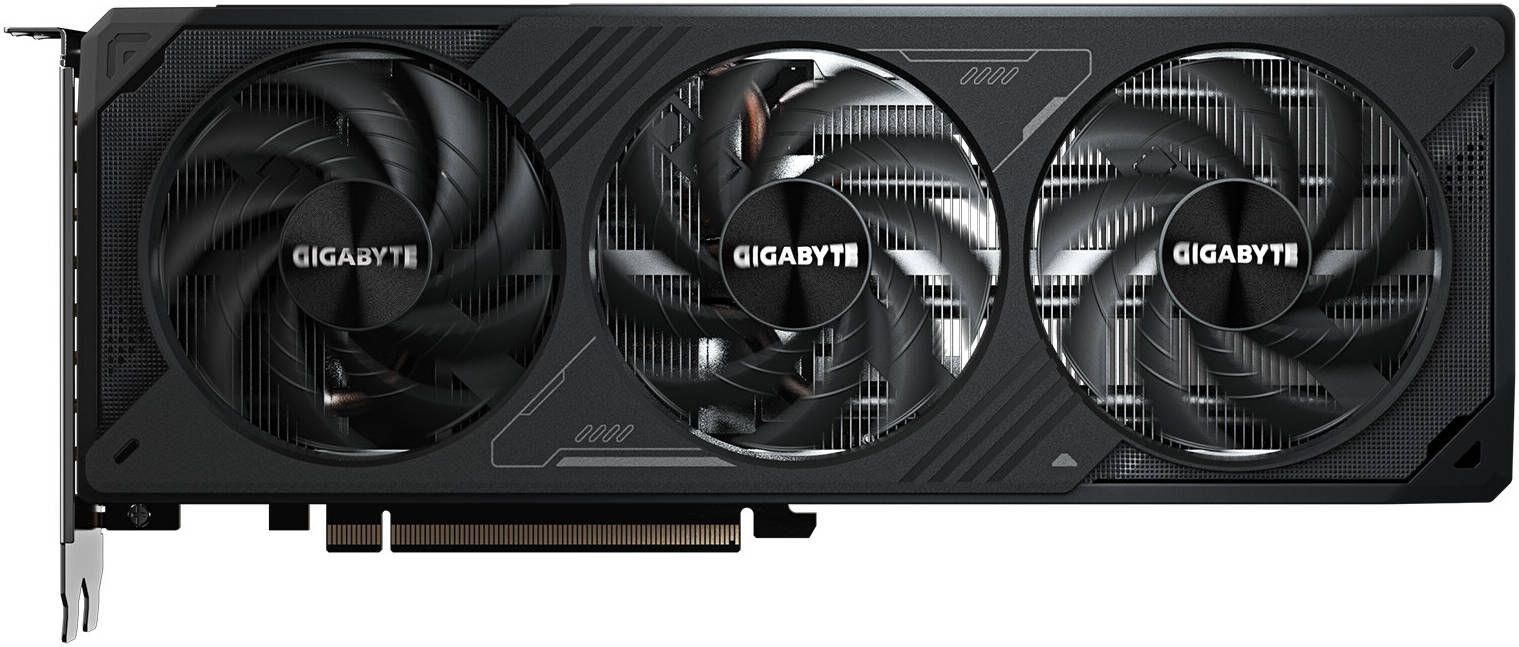

GeForce RTX™ 5070 WINDFORCE SFF 12G
GeForce RTX 50 Series – Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Specifications
Graphics Processing
GeForce RTX™ 5070
Core Clock
2512 MHz
CUDA® Cores
6144
Memory Clock
28 Gbps
Memory Size
12 GB
Memory Type
GDDR7
Memory Bus
192 bit
Card Bus
PCI-E 5.0
Digital Max Resolution
7680×4320
Multi-view
4
Card Size
282 x 110 x 50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
750W
Power Connectors
16 Pin x1
Output

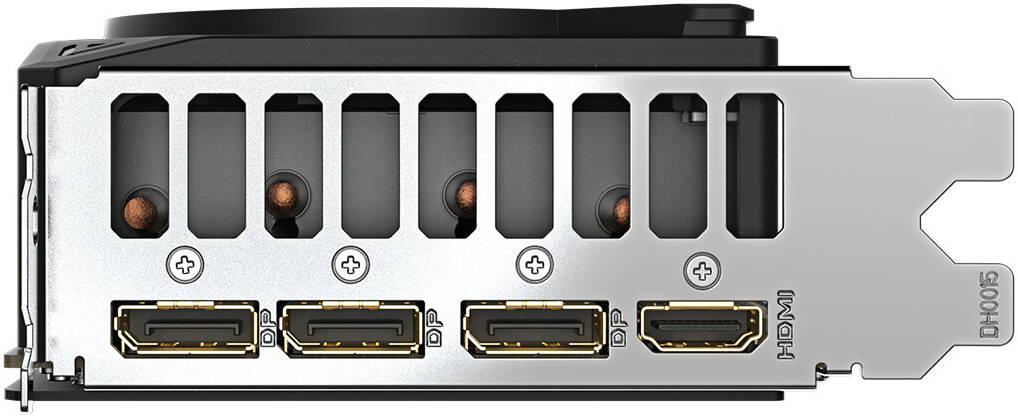

3x DisplayPort 2.1b, 1x HDMI 2.1b
Accessories
1. Quick guide
2. 12V-2×6 to 2x PCIe 8-pin adapter
GIGABYTE GeForce RTX 5070 WINDFORCE SFF Graphics Card, 12GB GDDR7 192-Bit Memory, 2512 MHz Core Clock, 6144 CUDA Cores, 28 Gbps Memory Clock, PCI Express 5.0 | GV-N5070WF3-12GD
$770.00
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system (Hawk fan, Server-grade thermal conductive gel)
NVIDIA SFF-ready
Reinforced structure
| Brand |
Gigabyte |
|---|---|
| Model |
GeForce RTX 5070 WINDFORCE SFF |
| Date first available |
10 April; 2025 |
| Shipping Weight |
1.25 Kg |
| Shipping Dimensions |
8.00 cm x 36.00 cm x 18.51 cm |
| GPU |
RTX 5070 |
| Chipset Manufacturer |
NVIDIA Chipset |
| Memory Size |
12 GB |
| Multi-GPU Support |
— |
| Max Resolution |
7680 x 4320 |
| Memory Type |
GDDR7 |
| Memory Interface |
192 Bit |
| HDMI |
Yes |
| DVI |
No |
| D-SUB (VGA) |
No |
| Display Port |
Yes |
| Effective Memory Clock |
28 Gbps |
| Form Factor |
RTX |
| Interface |
PCI Express 5.0 |
| TDP |
750 W |
| Maximum Display Support |
4 |
| Cooling |
WINDFORCE Cooling System |
| Power Connectors |
16-Pin x1 |
