GeForce RTX 5070 Ti 16G GAMING TRIO OC PLUS
GeForce RTX 50 Series – Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Specifications
Marketing Name
GeForce RTX™ 5070 Ti 16G GAMING TRIO OC PLUS
Model Name
G507T-16GTCP
Graphics Processing Unit
NVIDIA® GeForce RTX™ 5070 Ti
Interface
PCI Express® Gen 5
Core Clocks
Extreme Performance: 2580 MHz (MSI Center), Boost: 2572 MHz (GAMING & SILENT Mode)
CUDA® Cores
8960 Units
Memory Speed
28 Gbps
Memory
16GB GDDR7
Memory Bus
256-bit
Output

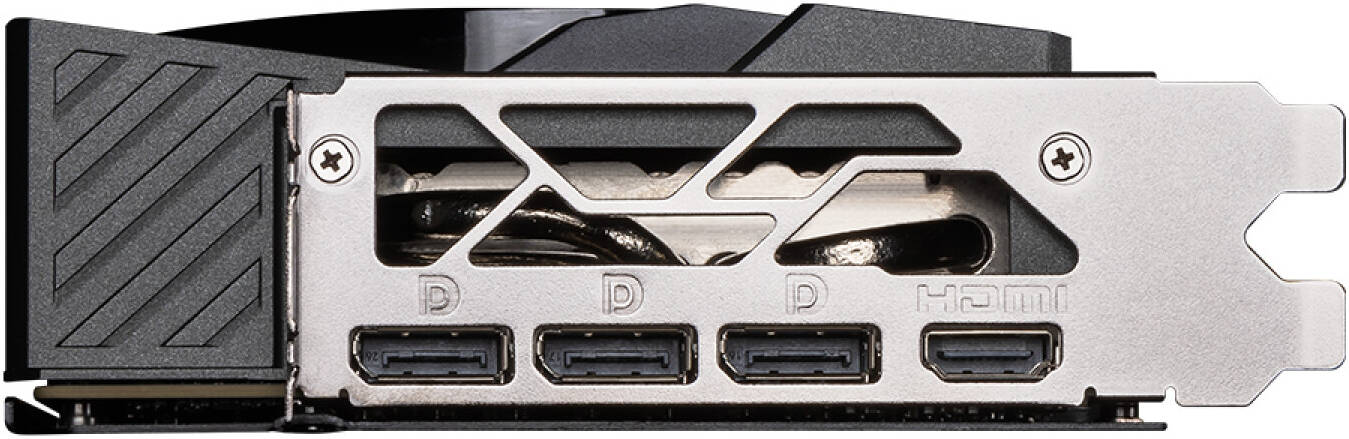

DisplayPort x3 (v2.1b), HDMI™ x1 (up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support
Yes
Power Consumption
300 W
Power Connectors
16-pin x1
Recommended PSU
750 W
Card Dimension (mm)
338 x 140 x 50 mm
Weight (Card / Package)
1310 g / 1833 g
DirectX Version Support
12 Ultimate
OpenGL Version Support
4.6
Maximum Displays
4
G-SYNC® Technology
Yes
Digital Maximum Resolution
7680 x 4320
MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS Graphics Card, 16GB GDDR7 256-Bit Memory, 2572 MHz Boost Memory, 8960 CUDA Cores, 28 Gbps Memory Speed, PCI Express Gen 5 | 912-V531-058
$1,450.00
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks: Extreme Performance: 2580 MHz (MSI Center), Boost: 2572 MHz (GAMING & SILENT Mode)
TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

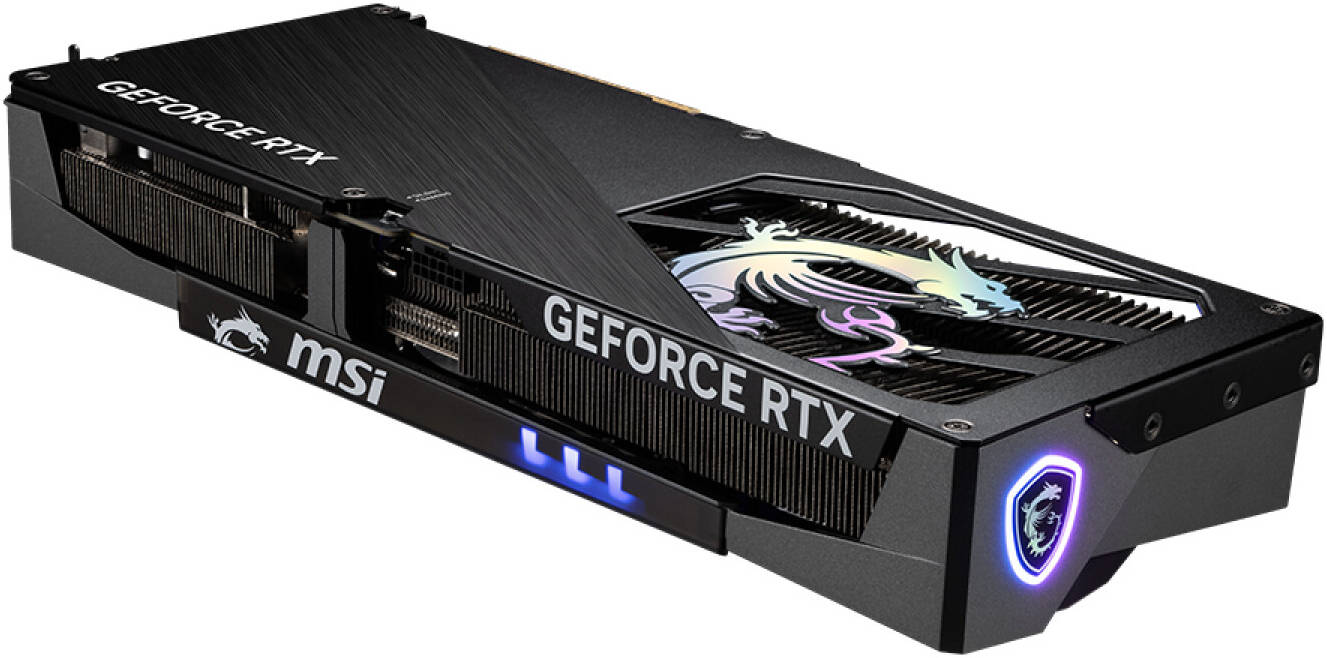

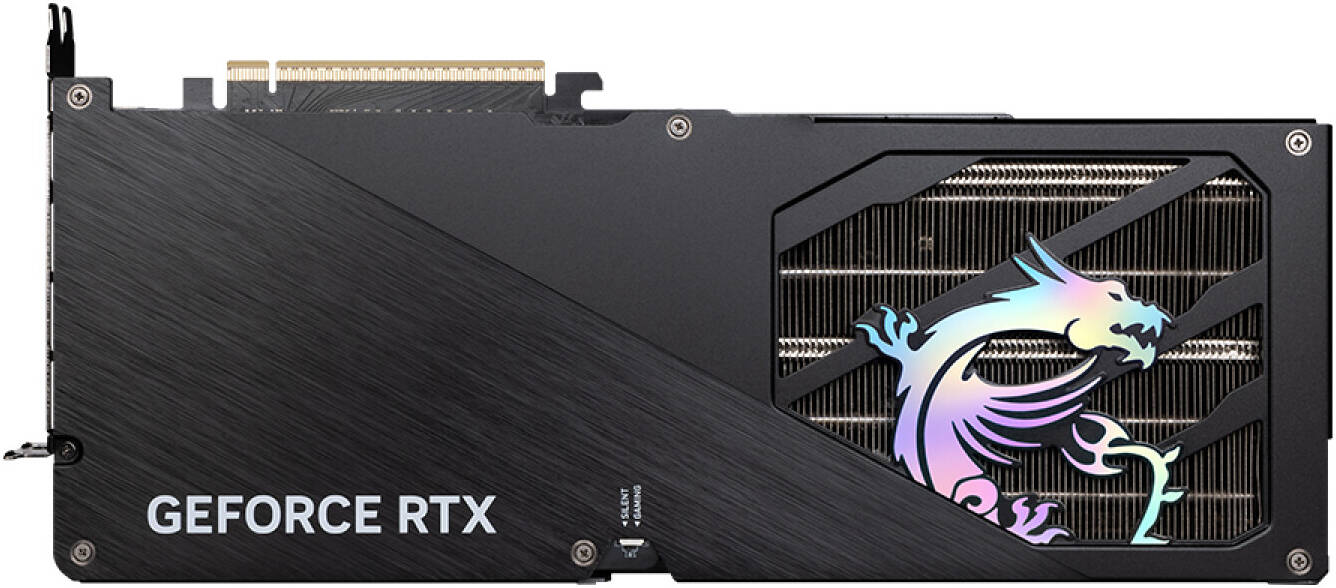

Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
| Brand |
MSI |
|---|---|
| Model |
GeForce RTX 5070 Ti GAMING TRIO OC PLUS |
| Date first available |
24 March; 2025 |
| Shipping Weight |
3.40 Kg |
| Shipping Dimensions |
12.50 cm x 45.00 cm x 28.51 cm |
| GPU |
RTX 5070 Ti |
| Chipset Manufacturer |
NVIDIA Chipset |
| Memory Size |
16 GB |
| Multi-GPU Support |
— |
| Max Resolution |
7680 x 4320 |
| Memory Type |
GDDR7 |
| Memory Interface |
256 Bit |
| HDMI |
Yes |
| DVI |
No |
| D-SUB (VGA) |
No |
| Display Port |
Yes |
| Effective Memory Clock |
28 Gbps |
| Form Factor |
RTX |
| Interface |
PCI Express 5.0 |
| TDP |
300 W |
| Maximum Display Support |
4 |
| Cooling |
STORMFORCE Fans |
| Power Connectors |
1x 16-pin |
