MSI RTX 3090 VENTUS 3X 24G OC, 24GB GDDR6X, 384-bit, Core Boost 1725 MHz,3x DisplayPort (v1.4a) and 1x HDMI 2.1, Support 8K @ 60fps | 912-V388-085 / 912-V388-018

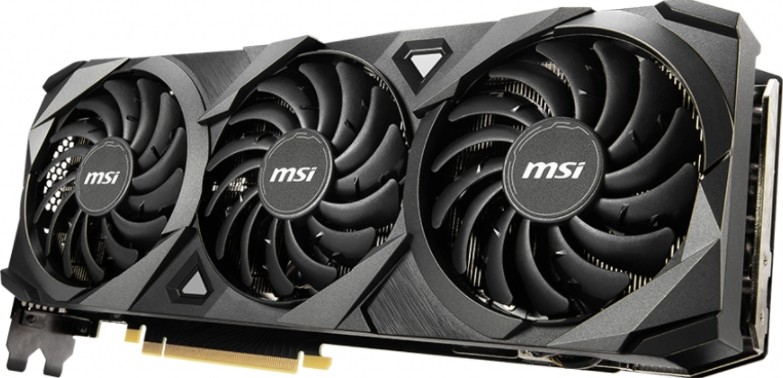

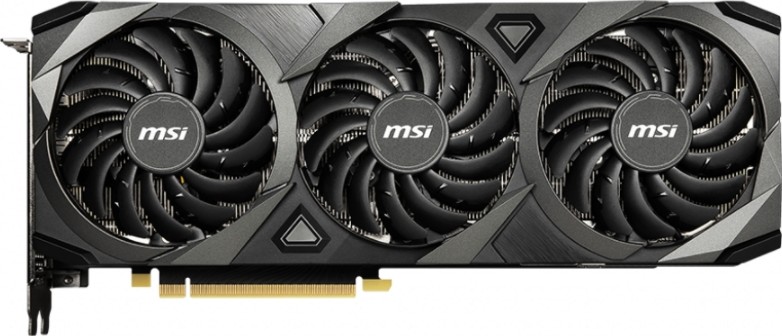

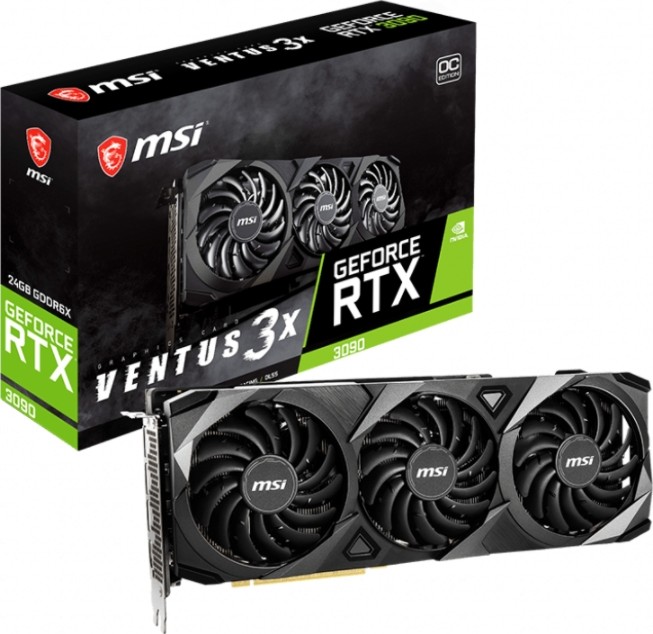

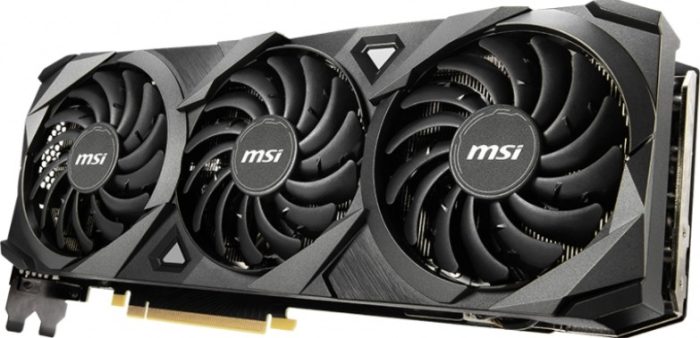

GeForce RTX™ 3090 VENTUS 3X 24G OC
The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
Core / Memory
Boost Clock / Memory Speed
1725 MHz / 19.5 Gbps
24GB GDDR6X
DisplayPort x 3 (v1.4a) / HDMI 2.1 x 1

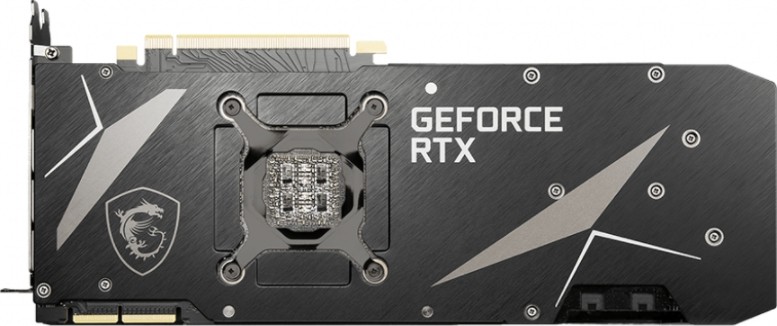

Metal backplate with heatpipes
Heatpipes beneath the sturdy brushed metal backplate provide additional cooling for the memory modules on the rear of the PCB
Core Pipe
Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Triple Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
Dragon Center
MSI’s exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
MODEL NAME
GeForce RTX™ 3090 VENTUS 3X 24G OC
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 3090
INTERFACE
PCI Express® Gen 4
CORES
10496 Units
CORE CLOCKS
Boost: 1725 MHz
MEMORY SPEED
19.5 Gbps
MEMORY
24GB GDDR6X
MEMORY BUS
384-bit
OUTPUT
DisplayPort x 3 (v1.4a) / HDMI 2.1 x 1
HDCP SUPPORT
Y
POWER CONSUMPTION
350W
POWER CONNECTORS
8-pin x 2
RECOMMENDED PSU
750W
CARD DIMENSION (MM)
305 x 120 x 57 mm
WEIGHT (CARD / PACKAGE)
1387g / 2004g
DIRECTX VERSION SUPPORT
12 API
OPENGL VERSION SUPPORT
4.6
NVLINK SUPPORT
Y
MAXIMUM DISPLAYS
4
VR READY
Y
G-SYNC® TECHNOLOGY
Y
ADAPTIVE VERTICAL SYNC
Y
DIGITAL MAXIMUM RESOLUTION
7680×4320
