SAPPHIRE NITRO+ AMD Radeon RX 7700 XT Gaming Graphics Card, 12GB DDR6 192 bit Memory, 2599 MHz Boost Clock, 18 Gbps Memory Clock, AMD RDNA 3, PCI E 4.0, 2x HDMI 2x DP | 11335-02-20G

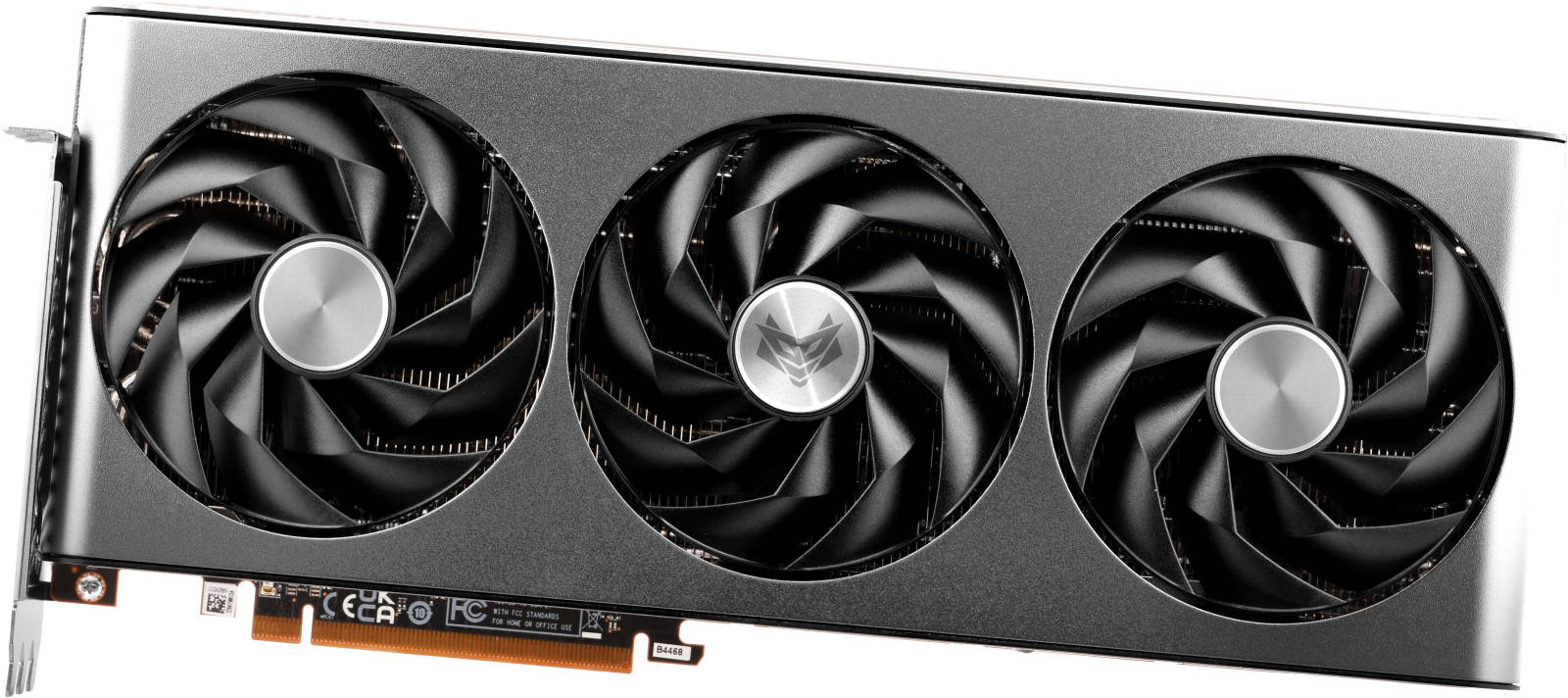

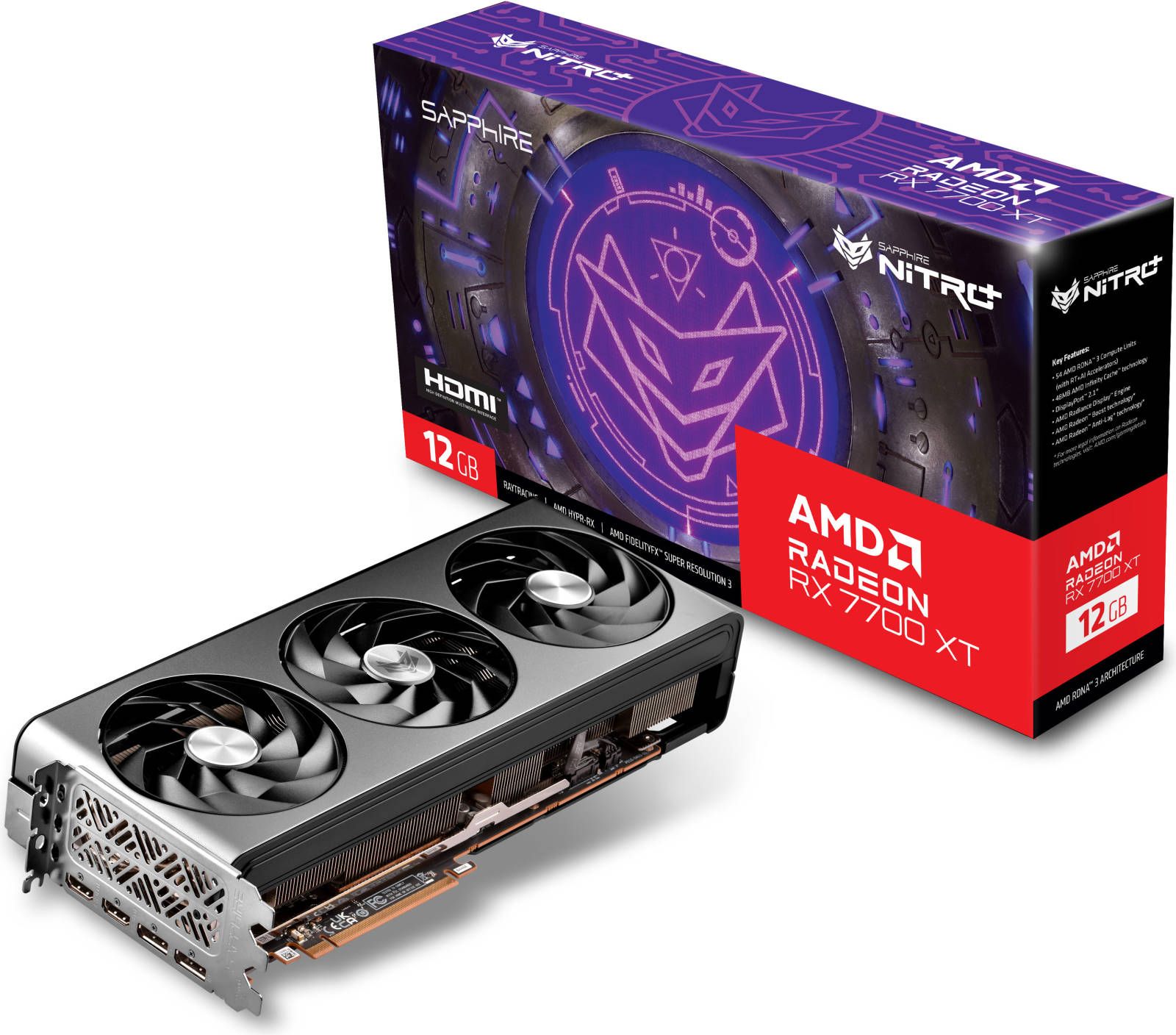

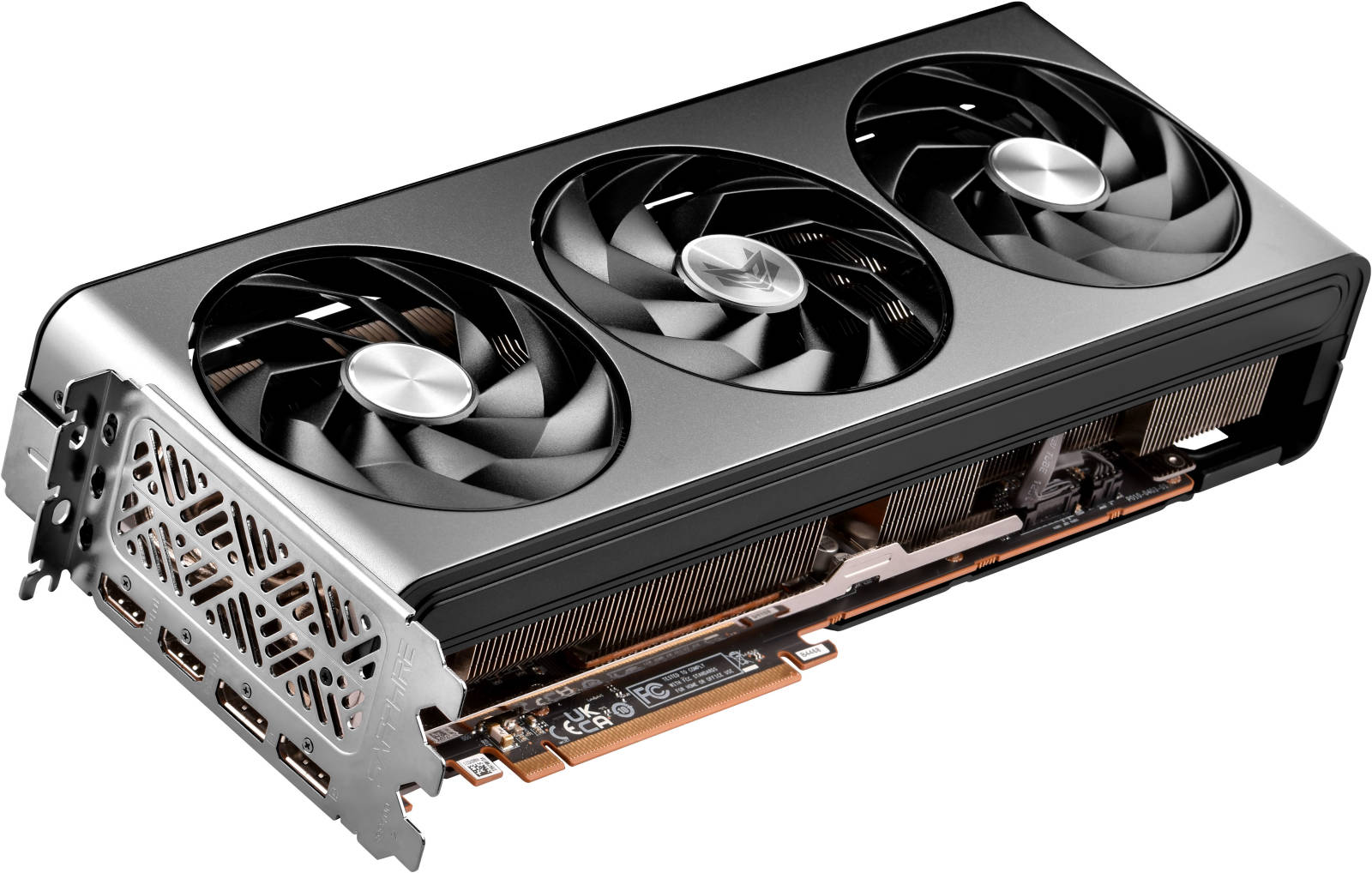

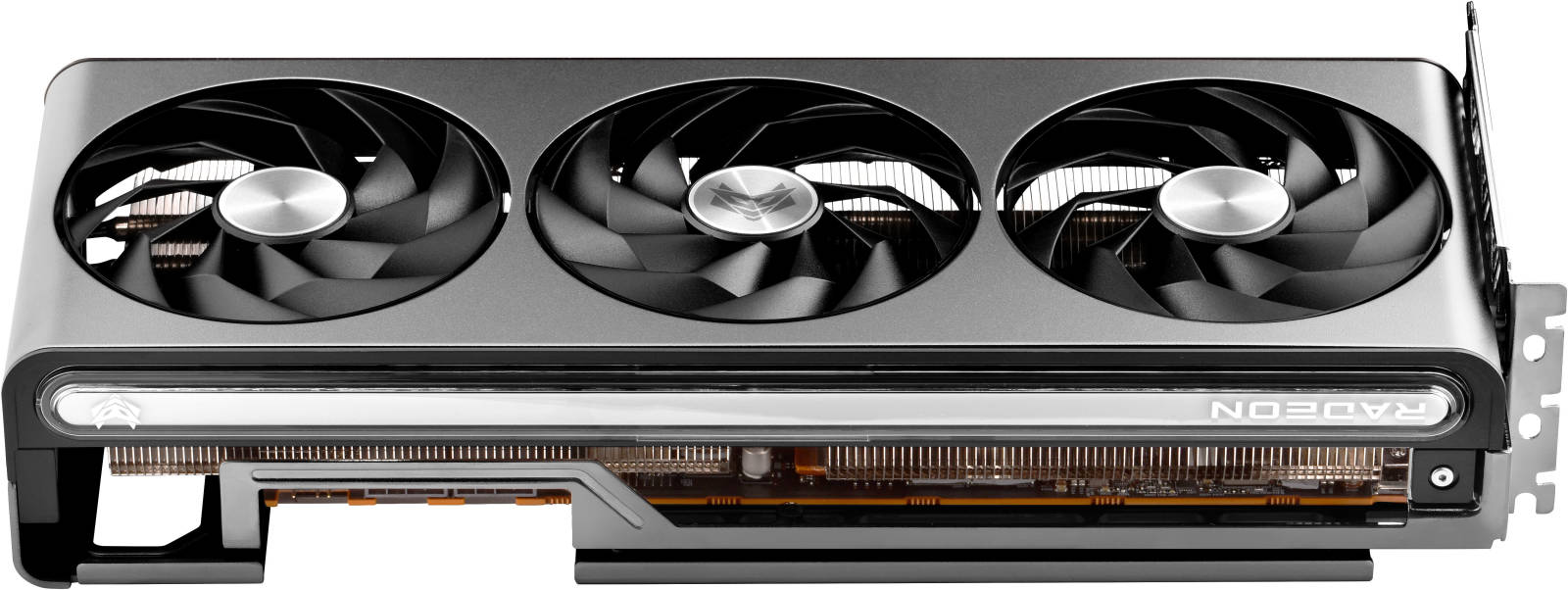

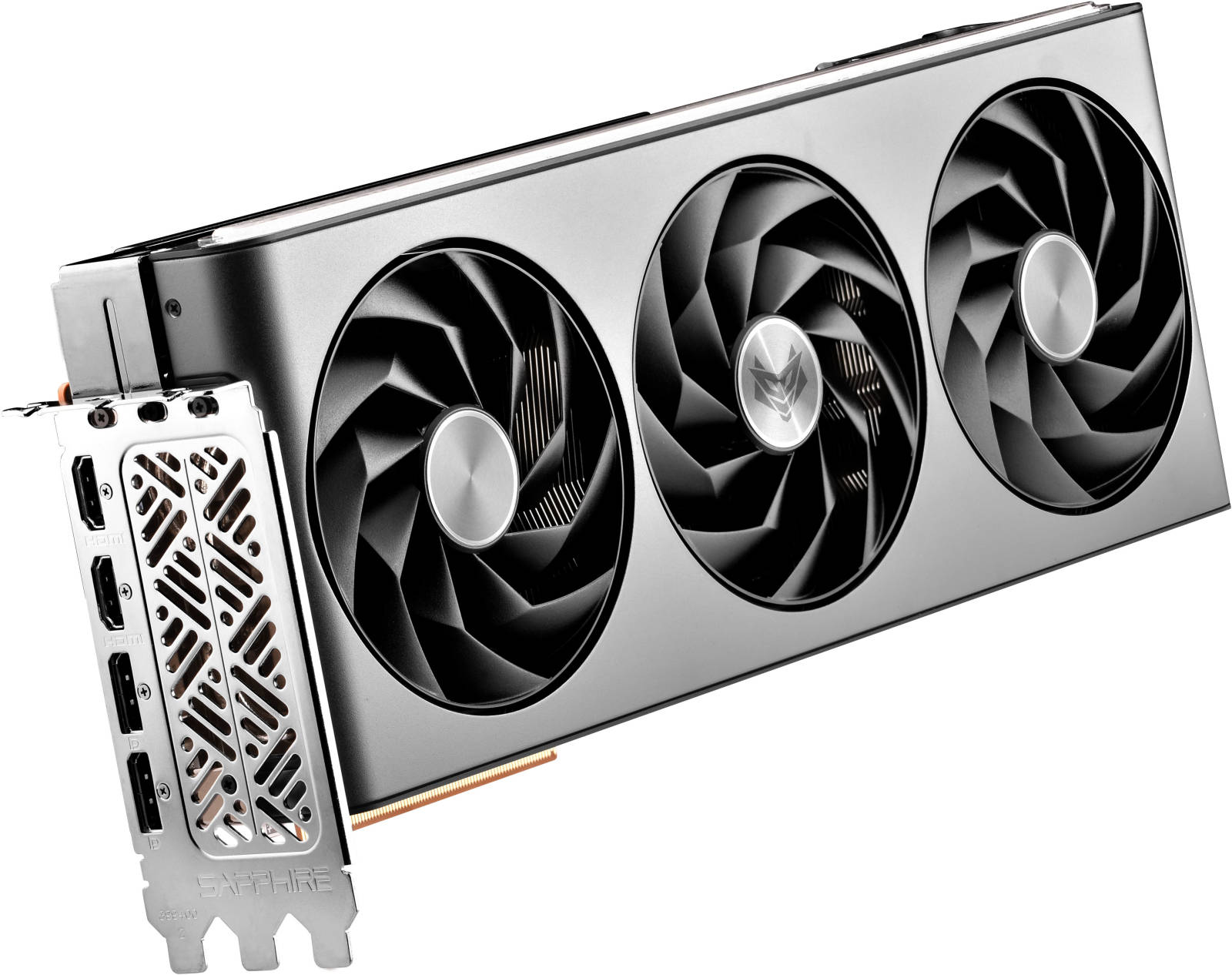

NITRO+ AMD Radeon™ RX 7700 XT 12GB
GPU: Boost Clock: Up to 2599 MHz
GPU: Game Clock: Up to 2276 MHz
Memory: 12GB/192 bit DDR6. 18 Gbps Effective
Stream Processors: 3456
RDNA™ 3 Architecture
Ray Accelerator: 54
Specifications
GPU Specifications
Details
Graphics Card
AMD Radeon™ RX 7700 XT Graphics Card
Manufacturing Process
5nm
Architecture
AMD RDNA™ 3 Architecture
Engine Clock
– Boost Clock: Up to 2599 MHz
– Game Clock: Up to 2276 MHz
Memory Specifications
Stream Processors
3456
Compute Units
54 CU (with RT+AI Accelerators)
Infinity Cache
48MB
Ray Accelerators
54
Memory Size/Bus
12GB/192 bit GDDR6
Memory Clock
18 Gbps Effective
Display and Interface
Maximum Displays
4 Displays
Resolution
– HDMI™: 7680×4320
– DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Outputs
– 2x HDMI
– 2x DisplayPort
BIOS Support
Dual UEFI
Game Index
1440P
Sapphire Features
– Dual BIOS
– TriXX Software Switch
– Premium Digital Power Design
– Ultra High-Performance Conductive Polymer
Aluminum Capacitors
– Fuse Protection
– Tri-X Cooling Technology
– High TG Copper PCB
– Optimized Composite Heatpipe
– Intelligent Fan Control
– Precision Fan Control

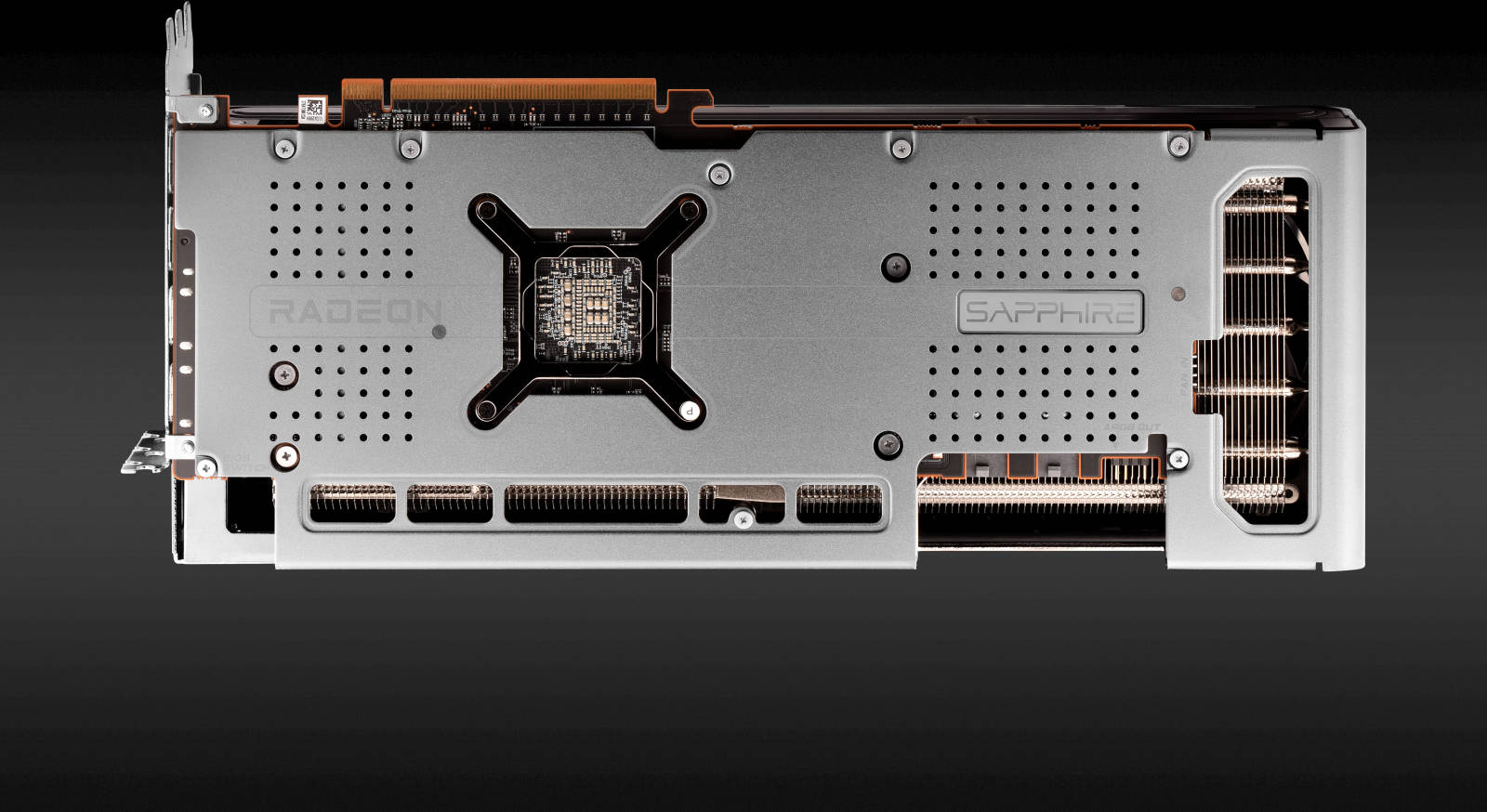

– Metal Backplate with ARGB
– ARGB Light Bar
– Two-ball bearing Fans
– Angular Velocity Fan Blade
– Assistive System Fan Control
– Aluminum Alloy Frame
– Dedicated VRM Cooling
– Wave Fin Design
– V Shape Fin Design for GPU Cooling
– TriXX Supported
– Fan Check
– Fan Quick Connect
– TriXX Boost
– NITRO Glow
– External RGB LED MB Synchronization
– Accessories Bundled
– Graphics Card Supporter
– ARGB Extension Cable
AMD Features
– AMD RDNA™ 3 Architecture
– 54 AMD RDNA™ 3 Compute Units
– 48MB AMD Infinity Cache™ Technology
– DisplayPort™ 2.1 Support
– AMD Radiance Display™ Engine
– 12GB GDDR6 on 192-Bit Memory Bus
– PCI® Express 4.0 ready
– AMD FidelityFX™ Super Resolution technology
– Microsoft® DirectX® 12 Ultimate Support
– Microsoft® DirectStorage Support
– Vulkan® Optimized
– AMD Smart Technologies
– AMD Software: Adrenalin Edition™
– AMD Noise Suppression
– AMD Privacy View
– AMD Radeon™ Super Resolution technology
– AMD Link
– AMD FreeSync™ Technology
Cooling
– 3 Fans
Form Factor
– 3 slot, ATX
– Dimensions: 320(L)X 134.85(W)X 61.57 (H)mm
Power Consumption
252W Total Board Power
OS
Linux®, Windows® 10, and Windows 11.
64-bit operating system required
System Requirement
– Minimum 700 Watt Power Supply
– 2 x 8-pin Power Connector
– PCI Express® based PC with one X16 lane
graphics slot available on the motherboard
– Minimum 8GB of system memory (16GB recommended)
