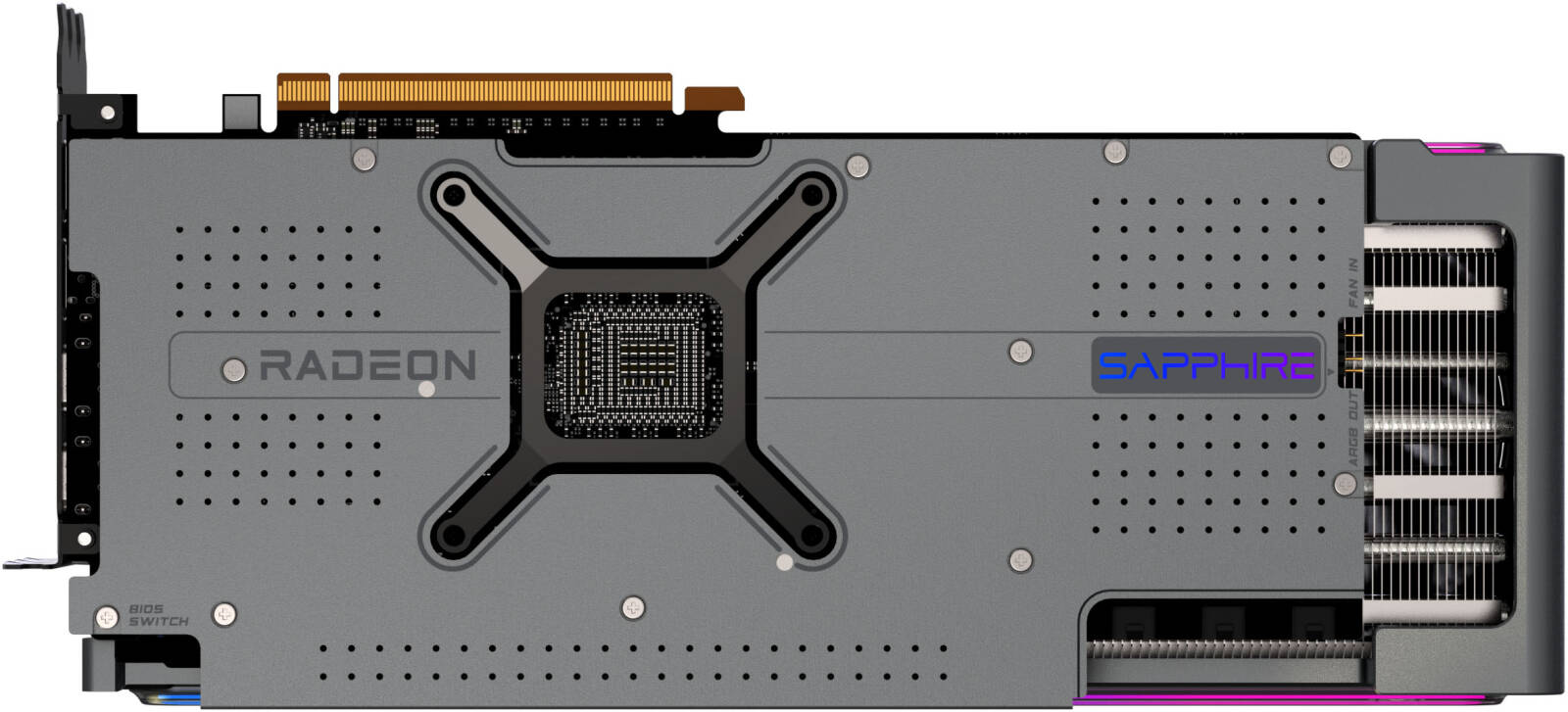

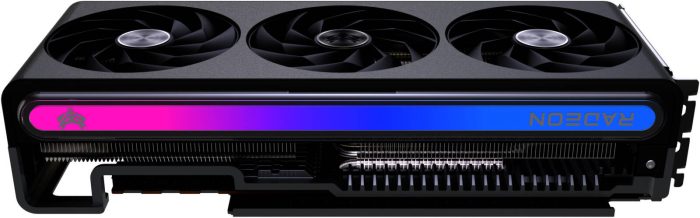

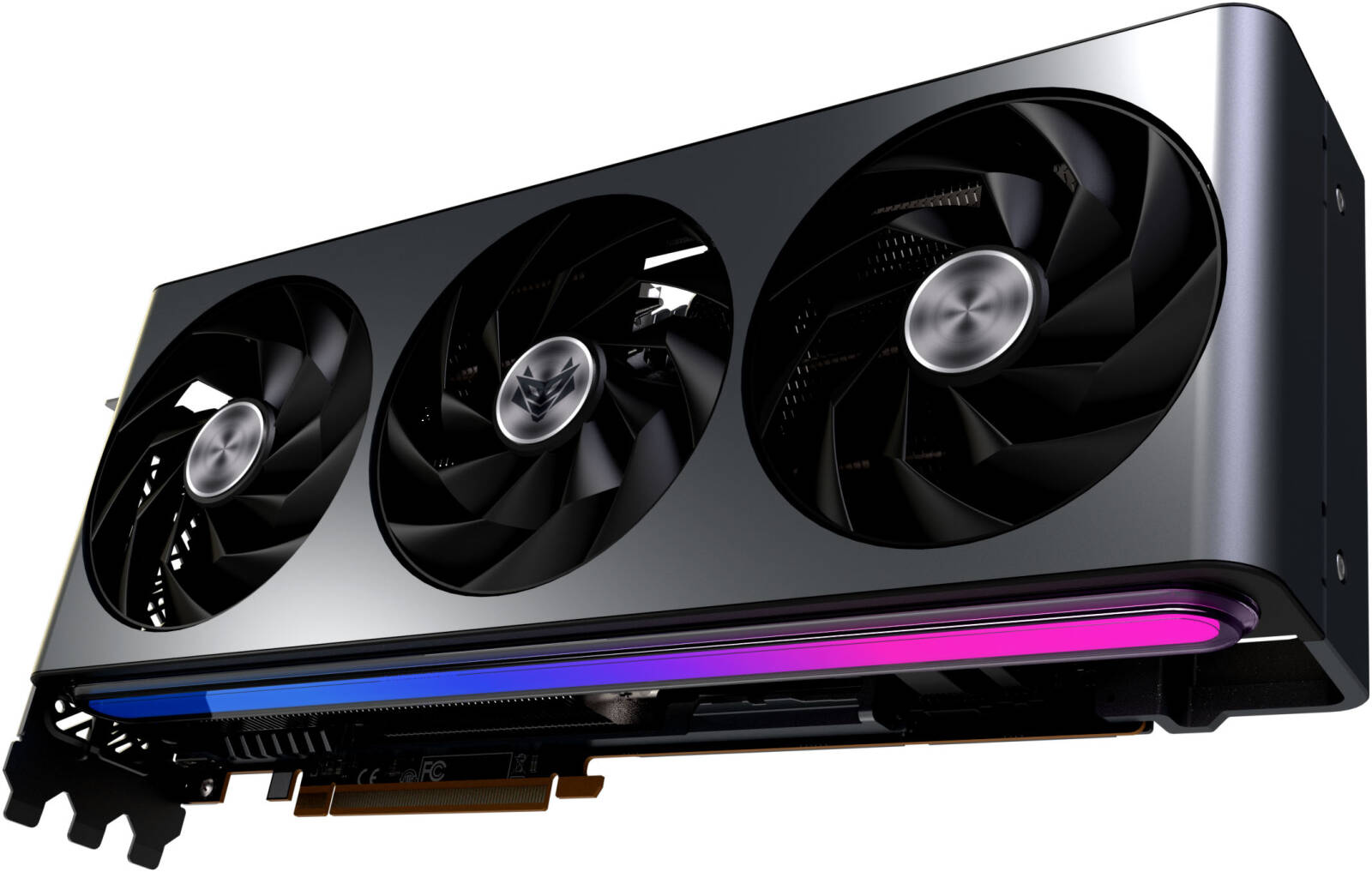

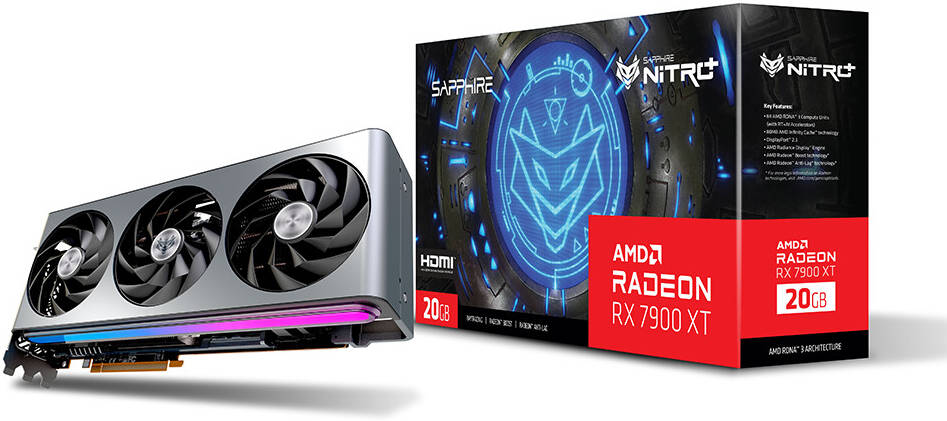

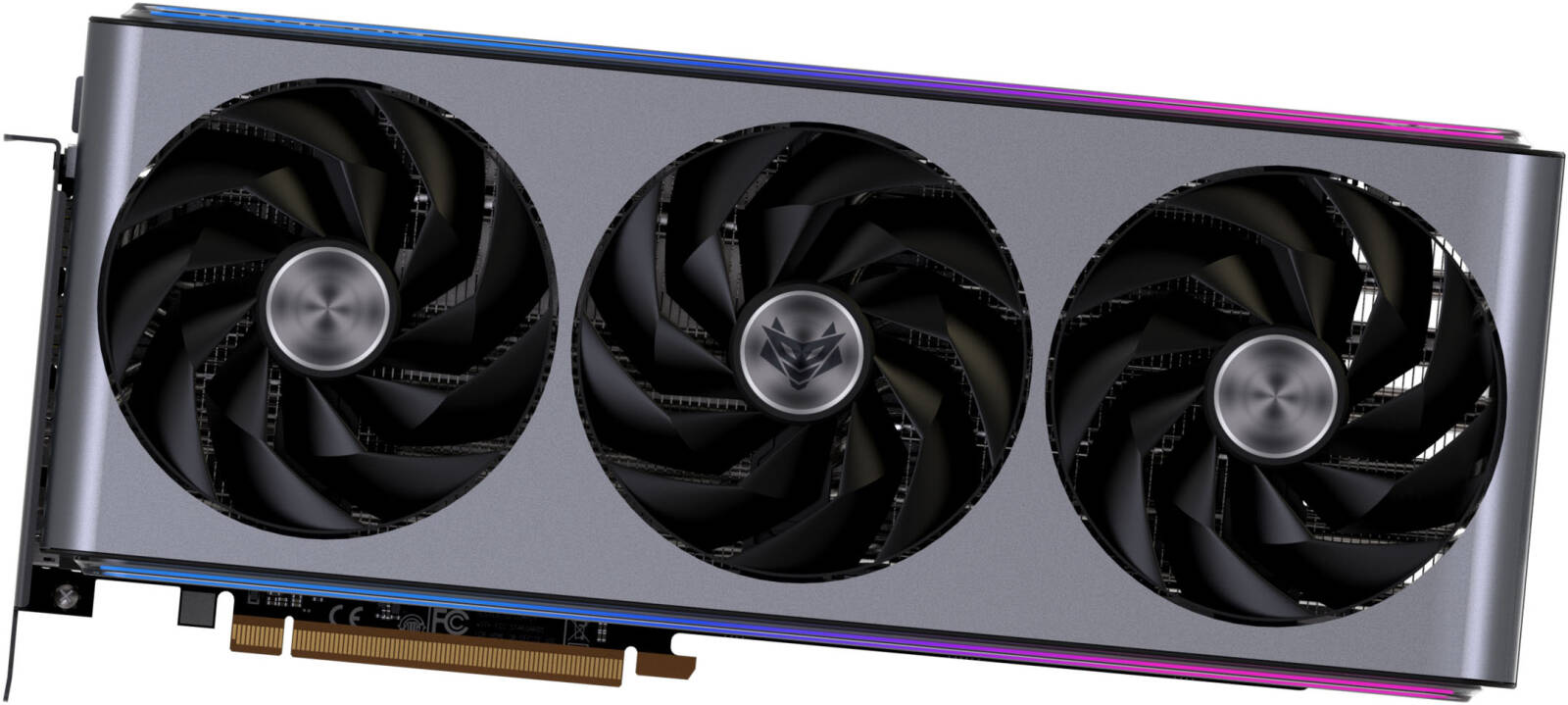

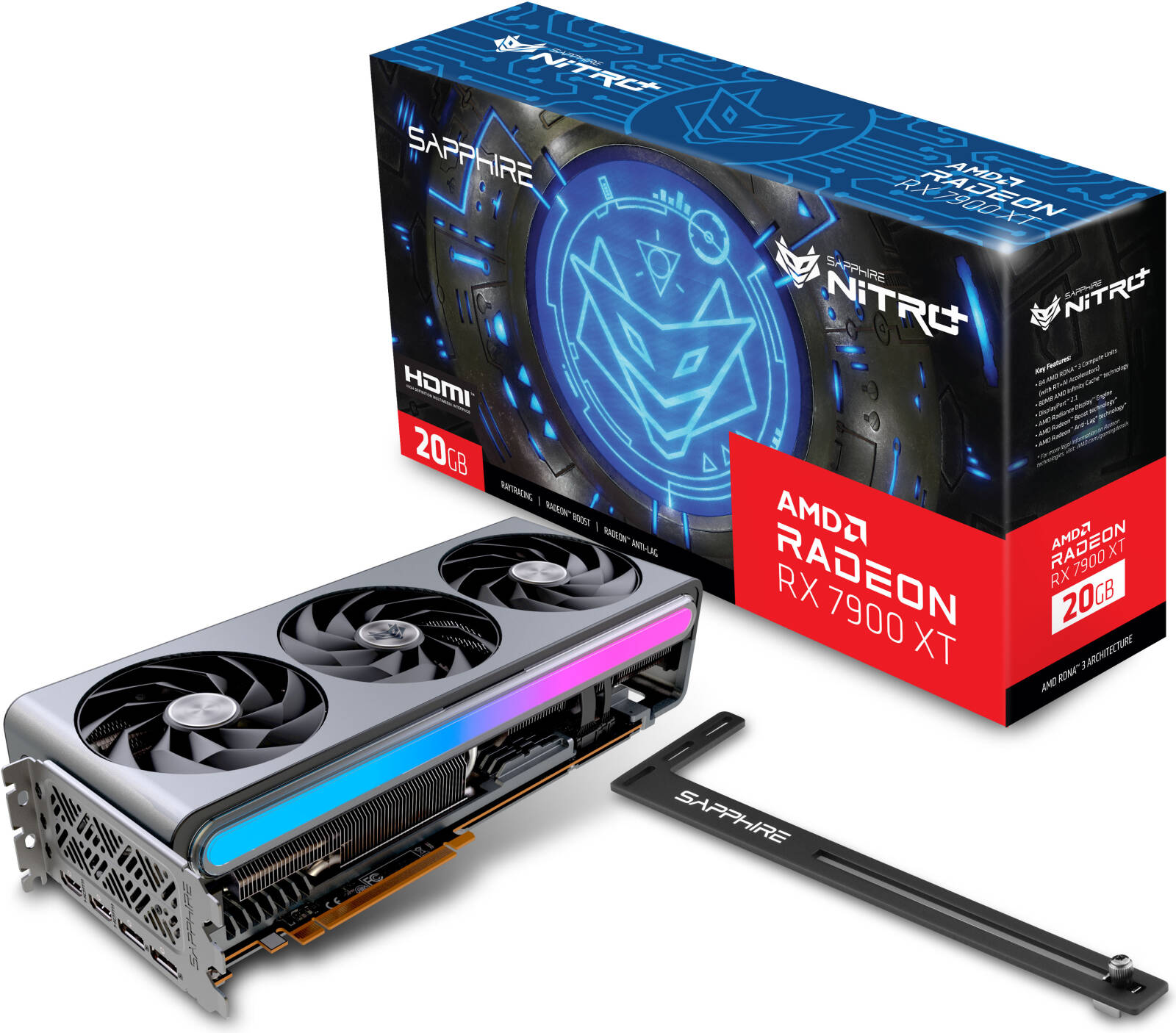

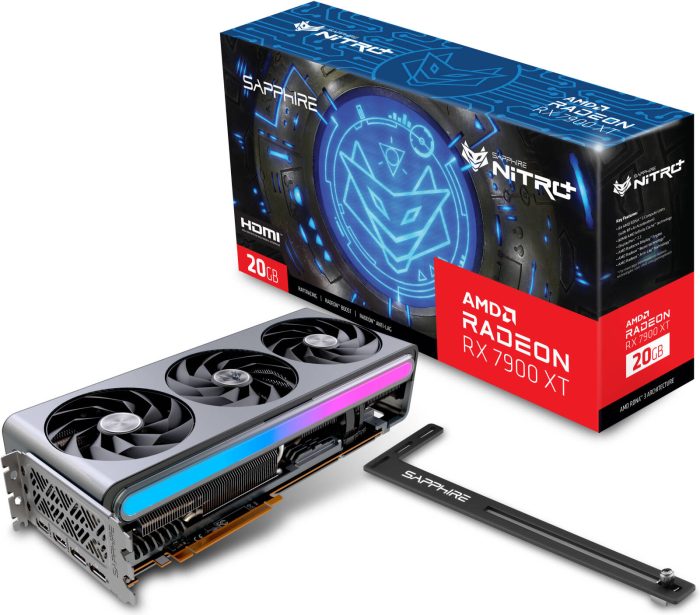

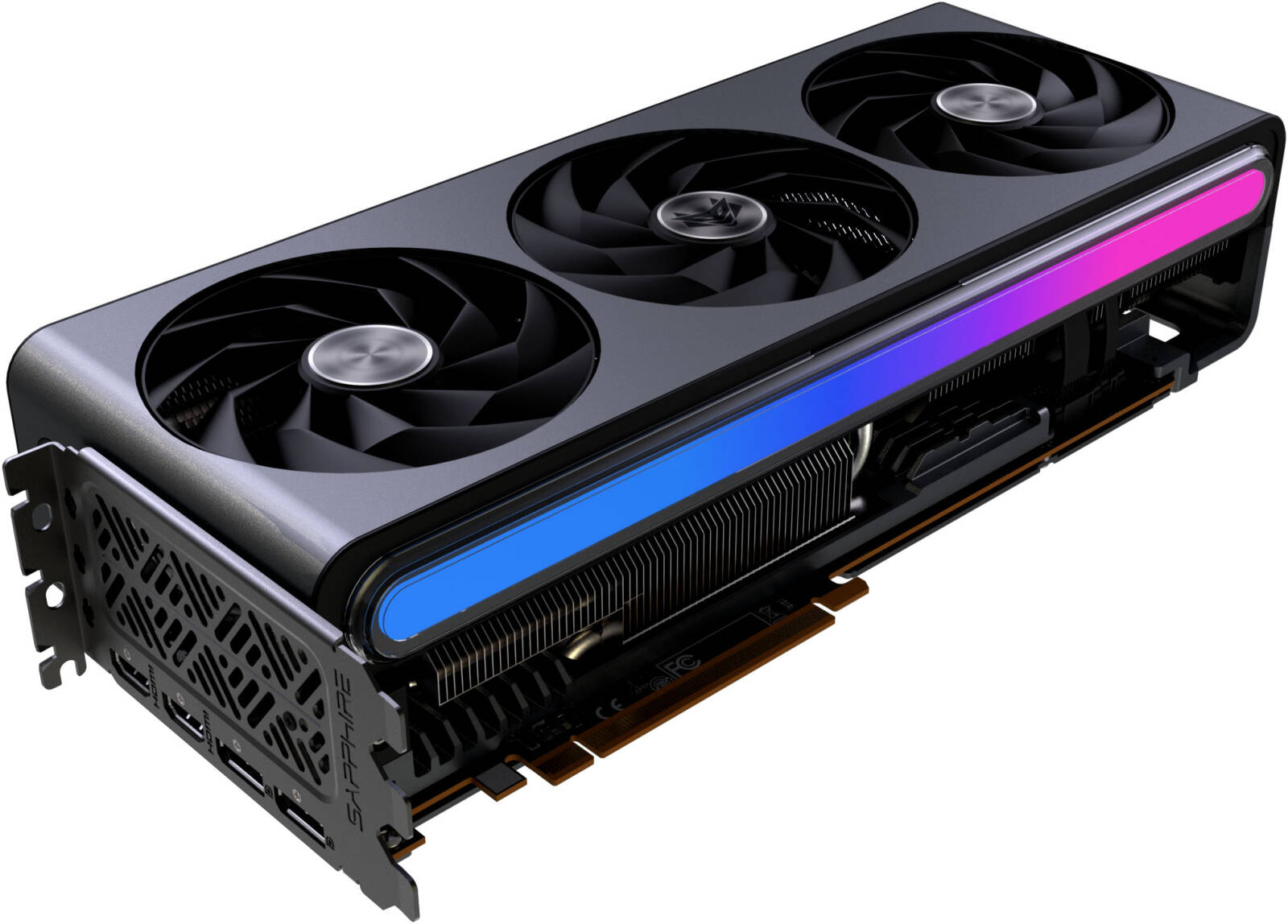

NITRO+ AMD Radeon™ RX 7900 XT Vapor-X 20GB
Specifications
GPU Model
AMD Radeon™ RX 7900 XT Graphics Card
Manufacturing Process
5nm GPU
Architecture
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2560 MHz
Game Clock: Up to 2220 MHz
Stream Processors
5376
Compute Units
84 CU (with RT+AI Accelerators)
Infinity Cache
80MB
Ray Accelerators
84
Memory Size/Bus
20GB/320 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Output
2x HDMI
2x DisplayPort
BIOS Support
Dual UEFI
Game Index
4K
Cooler Type
3 Fans
Vapor-X Cooling
Form Factor
3.5 slot, ATX
Dimensions
320(L) X 135.75(W) X 71.6(H) mm
Power Consumption
368W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 750 Watt Power Supply
3 x 8-pin Power Connector
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
Sapphire NITRO+ AMD Radeon RX 7900 XT Vapor-X Graphics Card, 20GB 320 bit DDR6 Memory, Boost Clock Up to 2560 MHz, 20Gbps Memory Speed, 5376 Stream Processors, PCIE 4.0 x16, HDMI/DP | S88-5E471-120SA
$960.00
GPU: Boost Clock: Up to 2560 MHz GPU: Game Clock: Up to 2220 MHz
Memory: 20GB/320 bit DDR6. 20 Gbps Effective
Stream Processors: 5376 RDNA™ 3 Architecture Ray
Accelerator: 84
| Brand |
SAPPHIRE |
|---|---|
| Model |
NITRO+ AMD Radeon™ RX 7900 XT Vapor-X |
| Date first available |
23 April; 2024 |
| Shipping Weight |
2.60 Kg |
| Shipping Dimensions |
25.00 cm x 46.00 cm x 11.01 cm |
| GPU |
RX 7900XT |
| Chipset Manufacturer |
AMD Chipset |
| Memory Size |
20 GB |
| Multi-GPU Support |
— |
| Max Resolution |
7680×4320 |
| Memory Type |
DDR6 |
| Memory Interface |
320 Bit |
| HDMI |
Yes |
| DVI |
No |
| D-SUB (VGA) |
No |
| Display Port |
Yes |
| Effective Memory Clock |
20 |
| Form Factor |
— |
| Interface |
PCI Express 4.0 |
| TDP |
– W |
| Maximum Display Support |
4 |
| Cooling |
3 Fans Vapor-X Cooling |
| Power Connectors |
– |
