Specifications
GPU
AMD Radeon™ RX 7600 XT Graphics Card
Architecture
AMD RDNA™ 3
Engine Clock
Boost Clock: Up to 2810 MHz
Game Clock: Up to 2539 MHz
Stream Processors
2048
Compute Units
32 CU
Infinity Cache
32MB
Ray Accelerators
32
AI Accelerators
64
Memory Size/Bus
16GB/128-bit GDDR6
Memory Clock
18 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x8
Output
2x HDMI
2x DisplayPort
BIOS Support
UEFI
Game Index
1080P Ultimate
Sapphire Features
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control

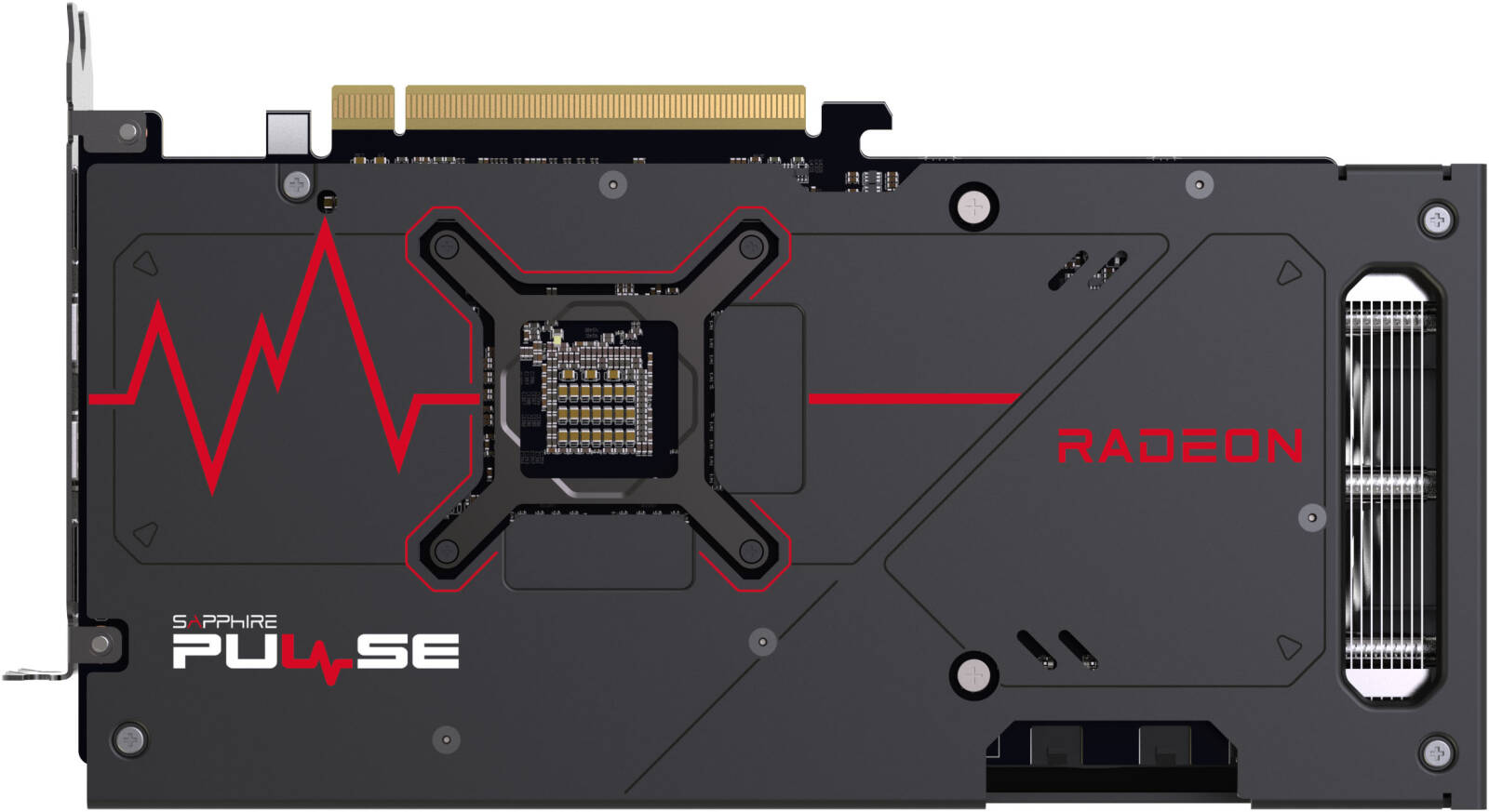

Metal Backplate
Two-Ball Bearing Fans
Optimized Composite Heatpipe
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 3 Architecture
DirectX® 12 Ultimate Support
AMD Smart Access Memory
AMD Infinity Cache™
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 2.1 with DSC
HDMI™ Support
Video Streaming up to 8K
AMD Radeon™ VR Ready Premium
AMD Radeon™ Image Sharpening
AMD Radeon™ Anti-Lag
AMD Software: Adrenalin Edition™ Application
Game Driver Optimizations
Cooler Type
2 Fans
Form Factor
2.2 slot, ATX
Dimension: 250(L) x 129.25(W) x 44.56(H) mm
Power Consumption
192W Total Board Power
OS
Linux®, Windows® 10, and Windows 11 (64-bit)
System Requirement
Minimum 600 Watt Power Supply
2 x 8-pin Power Connector
PCI Express® based PC with one X16 lane graphics slot available
Minimum 8GB system memory, 16GB recommended

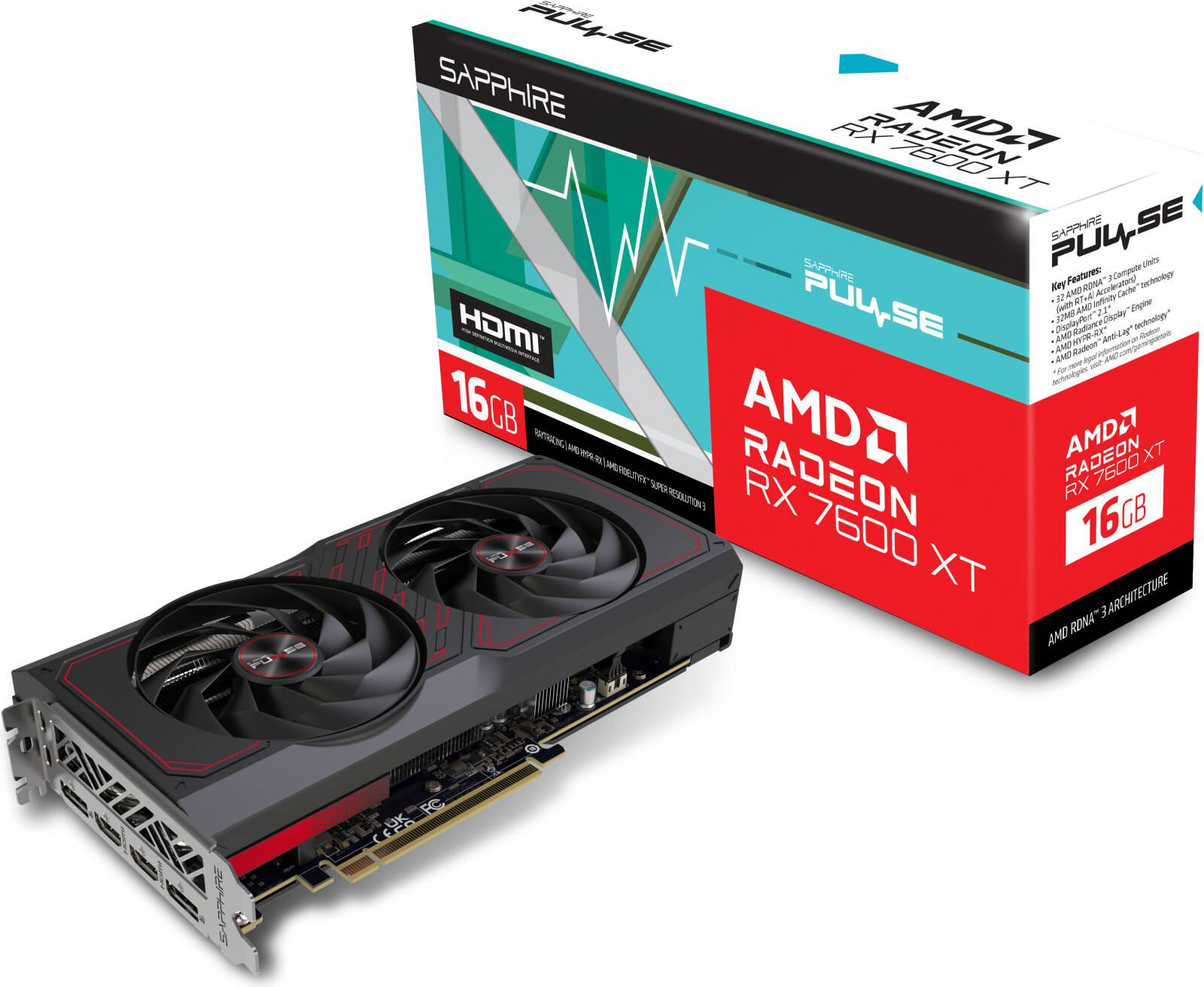

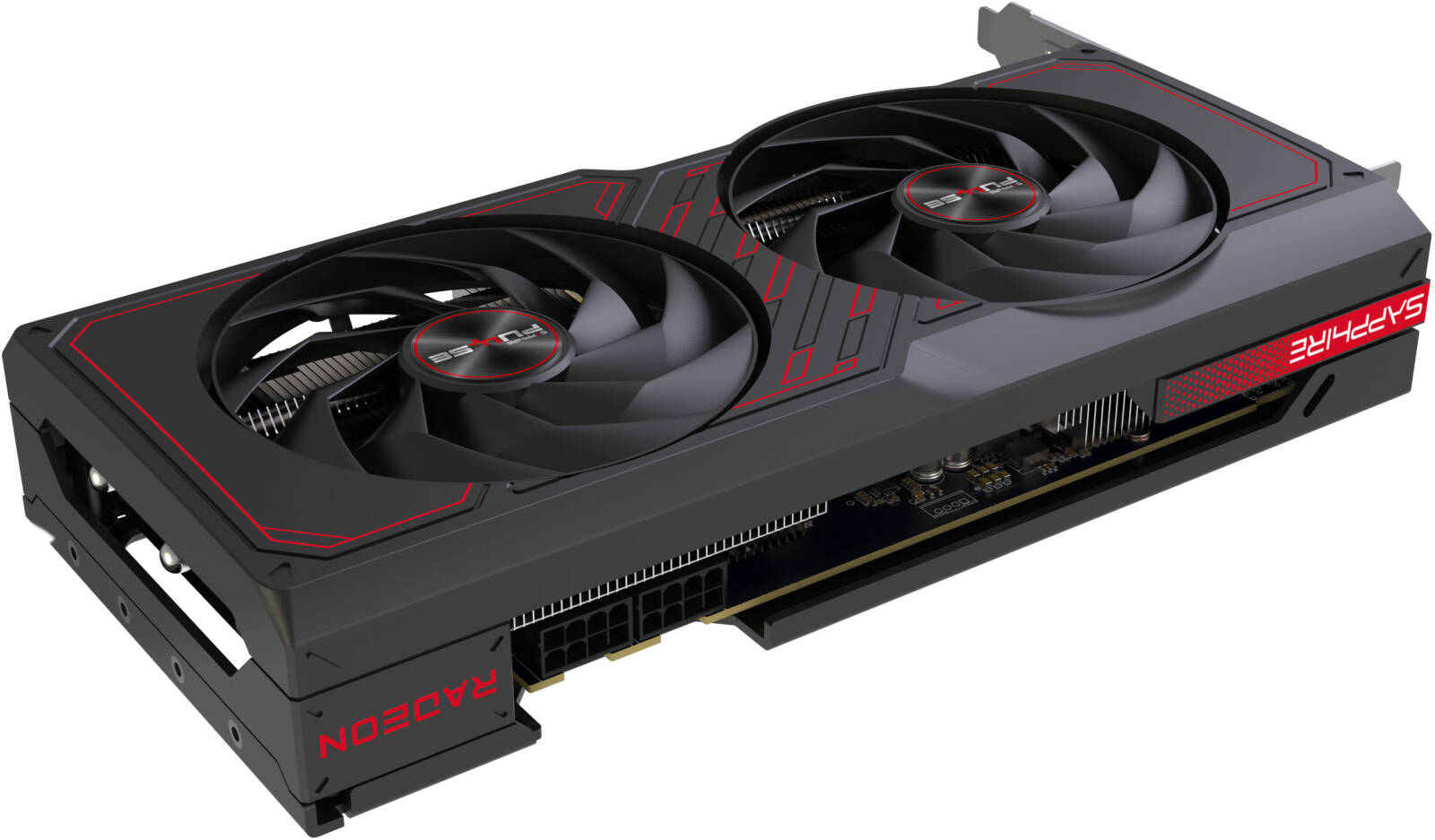

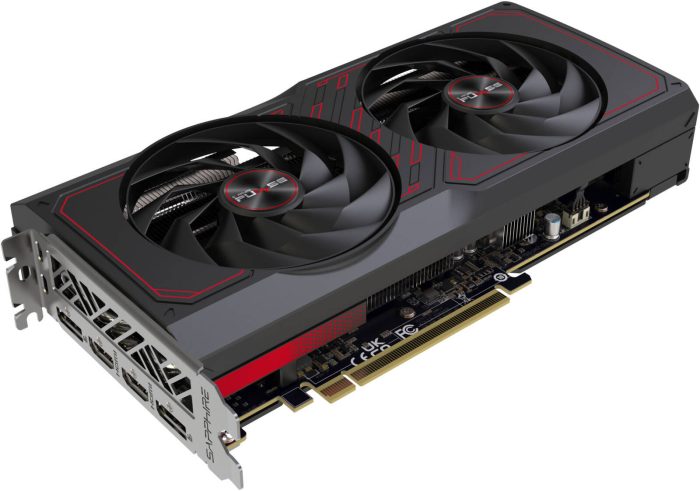

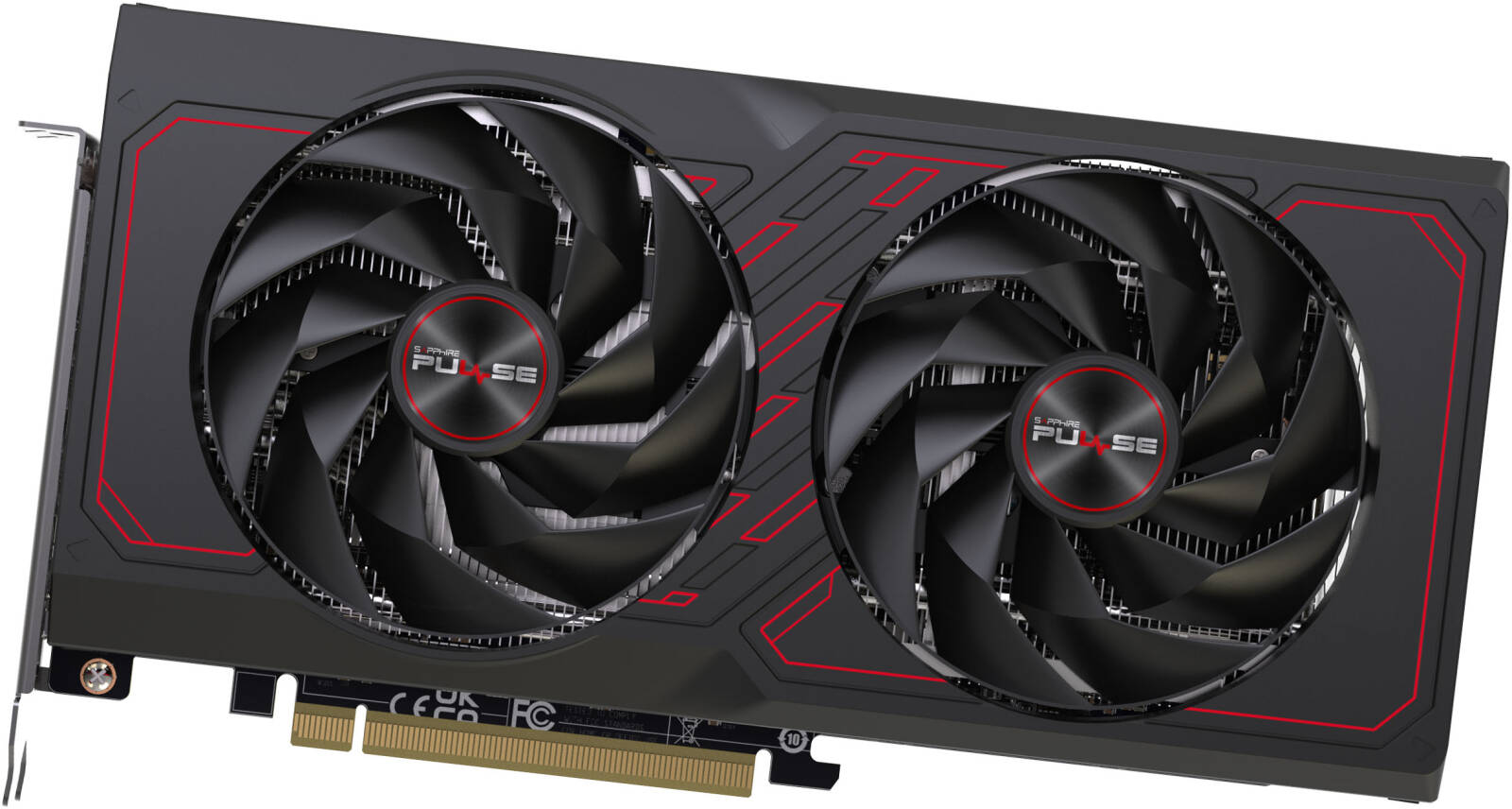

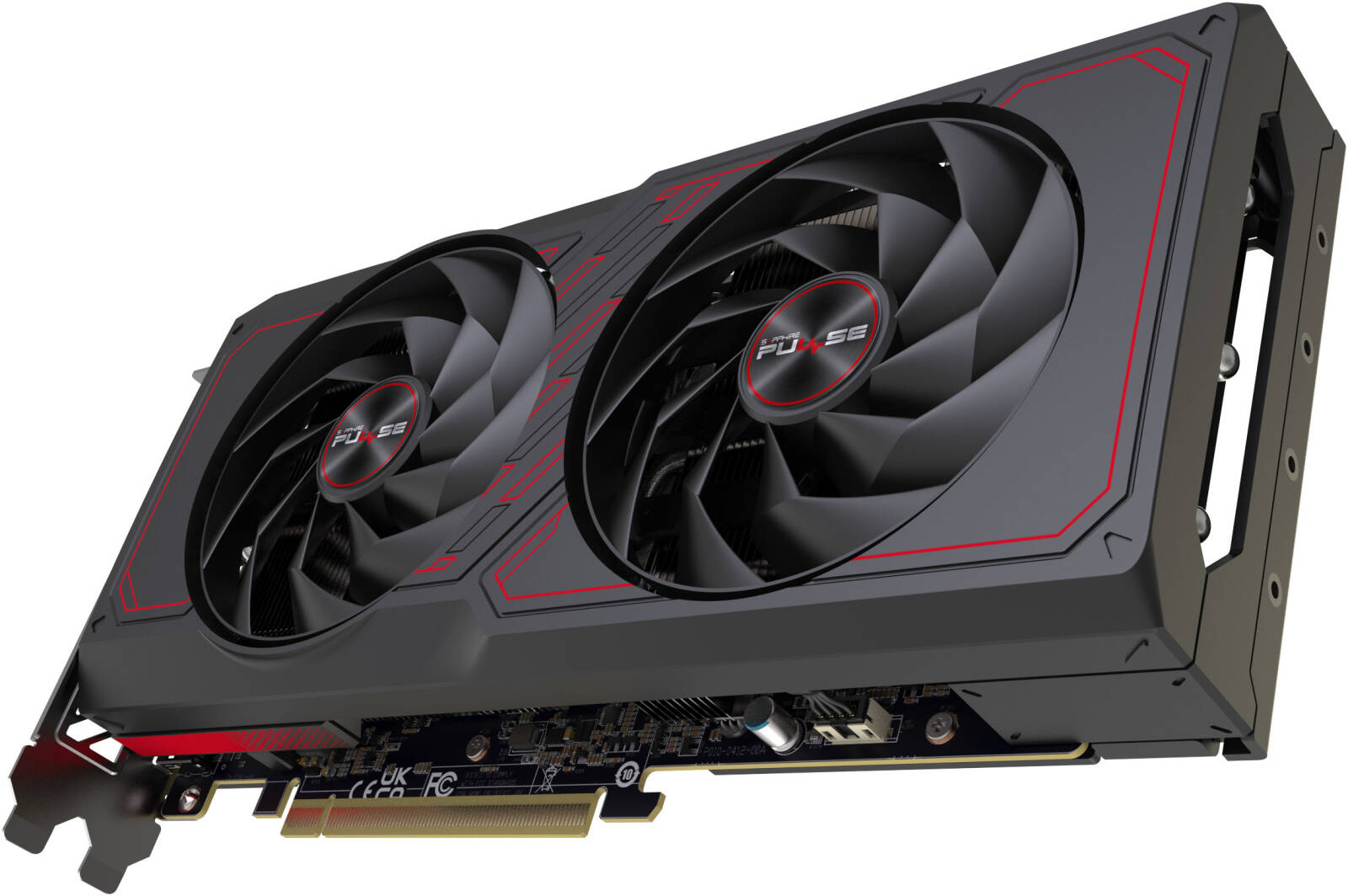

Sapphire Pulse AMD Radeon RX 7600 XT Graphics Card, 16GB GDDR6 128-Bit Memory, 2810 MHz Boost Clock, 18Gbps Memory Clock, 2048 Stream Processors, PCI-Express 4.0 x8 | 11339-04-20G
$410.00
GPU: Boost Clock: Up to 2810 MHz | Game Clock: Up to 2539 MHz
Memory: 16GB/128 bit DDR6. 18 Gbps Effective
Stream Processors: 2048
RDNA™ 3 Architecture
Ray Accelerator: 32
AI Accelerator: 64
| Brand |
SAPPHIRE |
|---|---|
| Model |
Pulse AMD Radeon RX 7600 XT |
| Date first available |
28 January; 2025 |
| Shipping Weight |
0.90 Kg |
| Shipping Dimensions |
13.00 cm x 26.70 cm x 4.10 cm |
| GPU |
RX 7600 |
| Chipset Manufacturer |
AMD Chipset |
| Memory Size |
16 GB |
| Multi-GPU Support |
— |
| Max Resolution |
7680×4320 |
| Memory Type |
GDDR6 |
| Memory Interface |
128 Bit |
| HDMI |
Yes |
| DVI |
No |
| D-SUB (VGA) |
No |
| Display Port |
Yes |
| Effective Memory Clock |
18 Gbps |
| Form Factor |
RX |
| Interface |
PCI Express 4.0 x8 |
| TDP |
192 W |
| Maximum Display Support |
4 |
| Cooling |
2 Fans |
| Power Connectors |
2x 8-pin Power Connector |
